Installation and Assembly Manual:
Custom Ceiling Mount for NEC NP400, NP500, NP500W,
and NP600 Projectors
Maximum Load Capacity: 50 lb (22.7 kg)
Model: NP600CM
Features:
• ImageLockTM alignment preventspicturesagordrift
• Wrench access slot for easier flush mount installations
• Exclusive aluminum track quick release
NEC Display Solutions of America, Inc.
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 2 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
Table of Contents
Parts List.................................................................................................................................................................... 3
Installation to Extension Columns / Ceiling Plate........................................................................................................ 4
Installation to Wood Joist Ceilings .............................................................................................................................. 5
InstallationtoConcreteCeilings.................................................................................................................................. 6
InstallationtoThreadedRods...................................................................................................................................... 7
Attaching Adapter Plate to Projector........................................................................................................................... 8
Attaching Adapter Plate to Projector Mount................................................................................................................ 9
ProjectorAlignment ...................................................................................................................................................10
Tools Needed for Assembly
•studfinder ("edge to edge" stud finder is recommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete surface
•5/32" bit for wood studs
•openendwrench
•level
• It is the responsibility of the installer to ensure that the
projectoris properly ventilated.
CAUTION
NOTE: Read entire instruction sheet before you start installation and assembly.
• Donot begin toinstall your Peerlessproduct until youhave read andunderstood the instructionsand warnings con-
tained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless
customercareat 1-800-729-0307.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Makesure that the supporting surface will safely support the combined load of theequipment and allattached hard-
wareandcomponents.
• Neverexceed theMaximum LoadCapacity.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power. See suggested torque valueswhere applicablewithin theseinstructions.
• Thisproduct is intendedfor indoor useonly. Use ofthis product outdoorscould lead toproduct failure andpersonal
injury.
WARNING
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 3 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
Description Qt
y
. Part #
Aprojector mount assembly 1 055-2803
B4 mm security allen wrench 1 560-9646
C#10-32 x 3/8" serrated washer head socket pin screw 2 520-2151
D#10-32 x 1/4" socket pin screw 1 520-2196
Eflat washer 2 540-1078
F#14 x 2.5 phillips hex head wood screw 2 5S1-015-C04
Gconcrete anchor 2 590-0097
AA adapter plate 1 055-2869
BB M4 x 16 mm serrated socket pin screw 3 510-2087
CC retaining spacer 3 590-2009
DD 2 mm allen wrench 1 560-1097
Parts List
NOTE: Actualparts may appearslightly differentthanillustrated.
Before you start check the parts list to insure all of the parts shown are included.
C
A
D
G
E
Disengageconnection blockfrom projectormount assembly(A) byunscrewing captive screw and sliding out
connection block as shown.
CONNECTIONBLOCK
CAPTIVESCREW
A
1
FCC
BB
AA
B
DD
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 4 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
NOTE: Referto accompanying instructions with ceiling plates (soldseparately) for installingthese models to
ceiling.
Screw projector mount assembly (A) onto extension column as shown in figure 2.1.
NOTE:For 3/4" extensioncolumns, reducer ACC 913 (notincluded) willberequired asshownin figure2.2.Tighten
swivel stop screw against extension column, flush mount tube or reducer using 4 mm security allen wrench (B) as
showninfigure2.3.
NOTE: Swivel stop screw is used to jam against threads of extension column, flush mount tube or reducer to
preventanyexcessmovementofprojectormountassembly(A).Donotovertightenscrew;overtighteningscrewwill
damagethreads makingit difficult to separate products.
Skip to step 3.
A
11/2"EXTENSION
COLUMN
(SOLDSEPARATELY)
ULLISTEDEXTORADJ
SERIES)
ARROW
INDICATES
FRONTOF
MOUNT A
3/4"EXTENSIONCOLUMN
(SOLDSEPARATELY)
ACC 913
(NOTUL LISTED)
(SOLDSEPARATELY)
SWIVELSTOP
SCREW
CMJ455
(SOLDSEPARATELY)
ARROW
INDICATES
FRONTOF
MOUNT
Installation to Extension Column / Ceiling Plate
2
fig. 2.1 fig. 2.2
fig. 2.3
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 5 of 10 For customer care call 1-800-865-2112 or 708-865-8870.

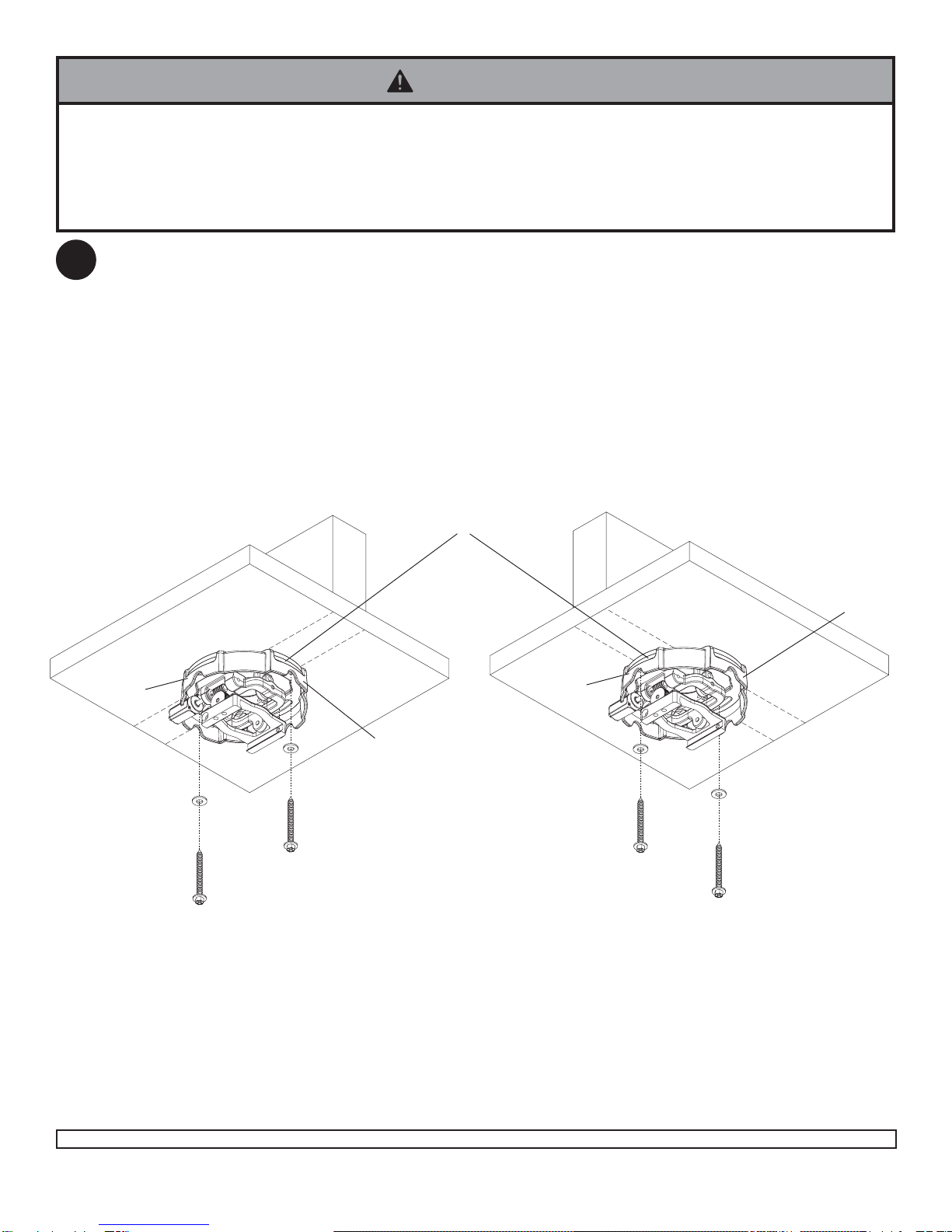

Place projector mount assembly (A) on ceiling as a template and mark the center of the two mounting holes. Make
sure that the mounting holes are in the center of the wood joist. Drill two 5/32" (4 mm) dia. holes to a minimum
depth of 2.5" (64 mm). Attach projector mount assembly (A) with two #14 x 2.5" (6 mm x 65 mm) wood screws (F)
andtwo flatwashers (E) asshown infigure2.4 orfigure 2.5depending on joistorientation. Tightenwood screws(F)
using3/8" (10mm) socketwrench, phillipsscrewdriver or10mm open end wrench until projector mount
assembly (A) is firmly attached.
Skip to step 3.
FF
A
WOODJOIST
FRONTOF
MOUNT
EE
WOODJOIST
A
• Tightenwood screwsso that projectormount assemblyis firmlyattached, but donot overtighten.Overtightening can
damagethe screws,greatly reducingtheir holdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder is
highlyrecommended.
WARNING
FRONTOF
MOUNT
ACCESSSLOTFOR
OPENENDWRENCH
ALLOWSTIGHTENING
OFWOODSCREW(F)
WITHOUTREMOVING
PROJECTOR
Installation To Wood Joist Ceilings
2
fig. 2.4 fig. 2.5
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 6 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
Place projector mount assembly (A) on ceiling as a
template and mark the center of the two mounting
holes. Drill two 1/4" (6 mm) dia. holes to a minimum
depth of 2.5" (64 mm). Attach projector mount
assembly (A) using two concrete anchors (G), two
flat washers (E), and two #14 x 2.5" wood screws (F)
as shown in fig. 2.6 and 1, 2 and 3 (right). Tighten
wood screws (F) using 3/8" (10 mm) socket wrench,
phillipsscrewdriveror10mmopenendwrenchuntil
projector mount assembly (A) is firmly attached.
NOTE: It is the responsibility of the installer to
verify that the ceiling will safely support the
combined load of all attached hardware and
components.
Skip to step 3.
• Concrete anchors are notintended forattachment to
concreteceiling coveredwith alayer of plaster,
drywall,or otherfinishing material.If mountingto
concreteceiling coveredwith plaster/drywallis un-
avoidable,plaster/drywall (up to 5/8"thick) must be
counterboredas shownbelow. If plaster/drywallis
thicker than 5/8", custom fasteners must be supplied
by installer.
WARNING
• Tighten wood screws firmly,but do notovertighten. Overtighteningcan damagethe screws,greatly reducingtheir
holdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
Installation to Concrete Ceilings
21
3
Drill holes and insert anchors
concrete
ceiling
F
F
2A
G
G
G
Place mount over anchors and secure with screws
Tighten all fasteners
F
A
CONCRETECEILING
E
GFRONTOF
MOUNT
CUTAWAYVIEW
INCORRECT
concrete
plaster/
drywall
CORRECT
concrete
plaster/
drywall
A
A
fig. 2.6
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 7 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
1/4-20THREADEDROD
(NOTINCLUDED)
Thread two1/4-20 hexthin nylon-insert locknuts (not included)on two1/4-20 threadedrods (not included) to the
desired height of projector mount assembly. Attach projector mount assembly (A)to the two 1/4-20 threaded rods
using two 1/4-20 hex thin nylon-insert locknuts as shown in figure 2.7 or figure 2.8.
A
1/4-20THREADEDROD
(NOTINCLUDED)
A
1/4-20HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
1/4-20HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
1/4-20HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
1/4-20HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
ARROW
INDICATES
FRONTOF
MOUNT
ARROW
INDICATES
FRONTOF
MOUNT
Installation to Threaded Rod
2
fig. 2.7 fig. 2.8
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 8 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
Align shoulder on connection block opposite notch
inadapter plate (AA).Attach adapter plate to
connectionblock from projectormount
assembly (A) using two #10-32 x 3/8" serrated
washer head socket pin screws (C) as shown in
figure3.1. Tightenusing 4mm allen wrench (B).
CONNECTIONBLOCK
C
NOTCHINDICATES
FRONTOFPROJECTOR SHOULDER
Attaching Adapter Plate to Projector
3
fig. 3.1
BB
Flipprojector upsidedown and attach adapter plate(AA) usingthree serrated socketpin screws(BB) and retain-
ingspacers (CC) as shown below.Tightenusing 4 mmallen wrench (B).
AA
CC
NOTE: Retainingspacers (CC)go between the
projectorand adapterplate (AA).
AA
4
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 9 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
Slide connection block with projector into projector mount assembly (A) as shown. Tighten captive screw to secure
projectorto projectormount assembly (A).
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (D) through projector mount
assembly (A) and into connection block as shown in detail 1. Tighten screw using 4mm security allen wrench (B).
A
CONNECTIONBLOCK
D
• Donot lift moreweight than you can handle.Use additional manpower or mechanicallifting equipment to safely handle
placementof thescreen.
WARNING
A
FRONTOFMOUNT
CAPTIVESCREW
ARROW
INDICATES
FRONTOF
MOUNT CONNECTIONBLOCK
Attaching Adapter Plate to Projector Mount
5
6
DETAIL1
ISSUED: 08-05-08 SHEET #: 056-9008-1
Visit the Peerless Web Site at www.peerlessmounts.com 10 of 10 For customer care call 1-800-865-2112 or 708-865-8870.
SCREWFORYAW(SWIVEL)STOP
(REFERTOSTEP2,INSTALLATION
TOEXTENSIONCOLUMNS,FIG.2.3)
KNOBFORROLL
ADJUSTMENT
KNOBFORPITCH
ADJUSTMENT
BACKOFMOUNT
ACCESSSLOTFOR
OPENENDWRENCH
ALLOWSTIGHTENING
OFWOODSCREW(F)
WITHOUTREMOVING
PROJECTOR
ARROWINDICATES
FRONTOFMOUNT
To adjust yaw (swivel) for wood stud, concrete ceiling, and threaded rod mounting applications:
Loosen wood screws (F) if flush mounted to wood joists (page 5) or concrete ceilings (page 6), or loosen
locknuts on threaded rods (page 7), until projector mount can be rotated. Rotate mount to desired position and
retighten screws or locknuts.
To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A)
indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Turn knob on back of mount as shown below. Pull knob out and
turn by hand for easy adjustment or insert #2 phillips screwdriver in end of knob and turn.
To adjust roll (side to side tilt): Turn knob on side of mount as shown below. Pull knob out and turn by hand
foreasy adjustment orinsert #2 phillips screwdriver inend of knob and turn.
A
To prevent tampering with the pitch and roll adjustments:Tighten the two tamper resistant security screws
on the projector mount assembly using 4 mm security allen wrench (B) to lock the pitch and roll adjustments as
shownbelow.
Note:Tighten screws firmly,but donot overtighten. Overtighteningcan damage themount.
• Do not adjust pitch or roll while tamper resistant security screws are fully engaged.
• Loosen the two tamper resistant security screws one complete turn before adjusting the projector mount assembly or
damagemay occur.
CAUTION
SIDE VIEW
Projector Alignment
7
7-1
TOLOCKPITCHTIGHTEN
TAMPER RESISTANT
SECURITY SCREW
©2008,PeerlessIndustries,Inc.Allrightsreserved.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
Autres manuels pour NP600CM
1
Ce manuel convient aux modèles suivants
14
Table des matières
Autres manuels NEC Support et étagère
NEC
NEC PDWHM-M Manuel utilisateur
NEC
NEC LCD8205 - MultiSync - 82" LCD Flat Panel... Manuel utilisateur
NEC
NEC LCD3215 - MultiSync - 32" LCD Flat Panel... Manuel utilisateur
NEC
NEC 42PD1 MULTI-SCREEN SUPPORT UNIT Manuel utilisateur
NEC
NEC WM-46UN Wall Mount Portrait and Landscape Manuel utilisateur
NEC
NEC NEC ST-EX2023 Manuel utilisateur
NEC
NEC NP40CM Mode d’emploi
NEC
NEC NP4000CM Manuel utilisateur
NEC
NEC N8154-46 Manuel utilisateur
NEC
NEC Video Wall Mount PD02VW MFS 46 55 L Mode d’emploi
NEC
NEC Video Wall Mount PD02VW MFS 46 55 L Mode d’emploi
NEC
NEC ST-4020 Manuel utilisateur
NEC
NEC WM-46S-P Manuel utilisateur
NEC
NEC N8143-93 Manuel utilisateur
NEC
NEC N8120-102 Manuel utilisateur
NEC
NEC PD04VW QR 46 55 Manuel utilisateur
NEC
NEC NP-UM330W Series Mode d’emploi
NEC
NEC Video Wall Mount PD02VWXUN 46 L Manuel utilisateur
NEC
NEC PA600CM Manuel utilisateur
NEC
NEC ST-EX2023 Manuel utilisateur
Manuels Support et étagère populaires d'autres marques
Salamander
Salamander Acadia AC/W/L400/WH Manuel utilisateur
Fohhn
Fohhn VAT-09 Guide de l'utilisateur
ricoo
ricoo FS0522 Manuel utilisateur
AMSOIL
AMSOIL BMK-22 Guide rapide
Kargo Master
Kargo Master 48220 Manuel utilisateur
Milestone AV Technologies
Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur
