Installing the Wall-Mount Kit (P/N 92679B/W)

Wall-Mount Description

Any key telephone can be equipped with a wall-

mount kit for attachment to a wall. The wall-

mount kit includes a mounting bracket, wall-

mount screws, washer, and handset hangers.

Optionally, the bracket can be installed on the

phone so that the phone can be placed on the

desk. This angles the phone to provide easier

viewing of the keys and the display.

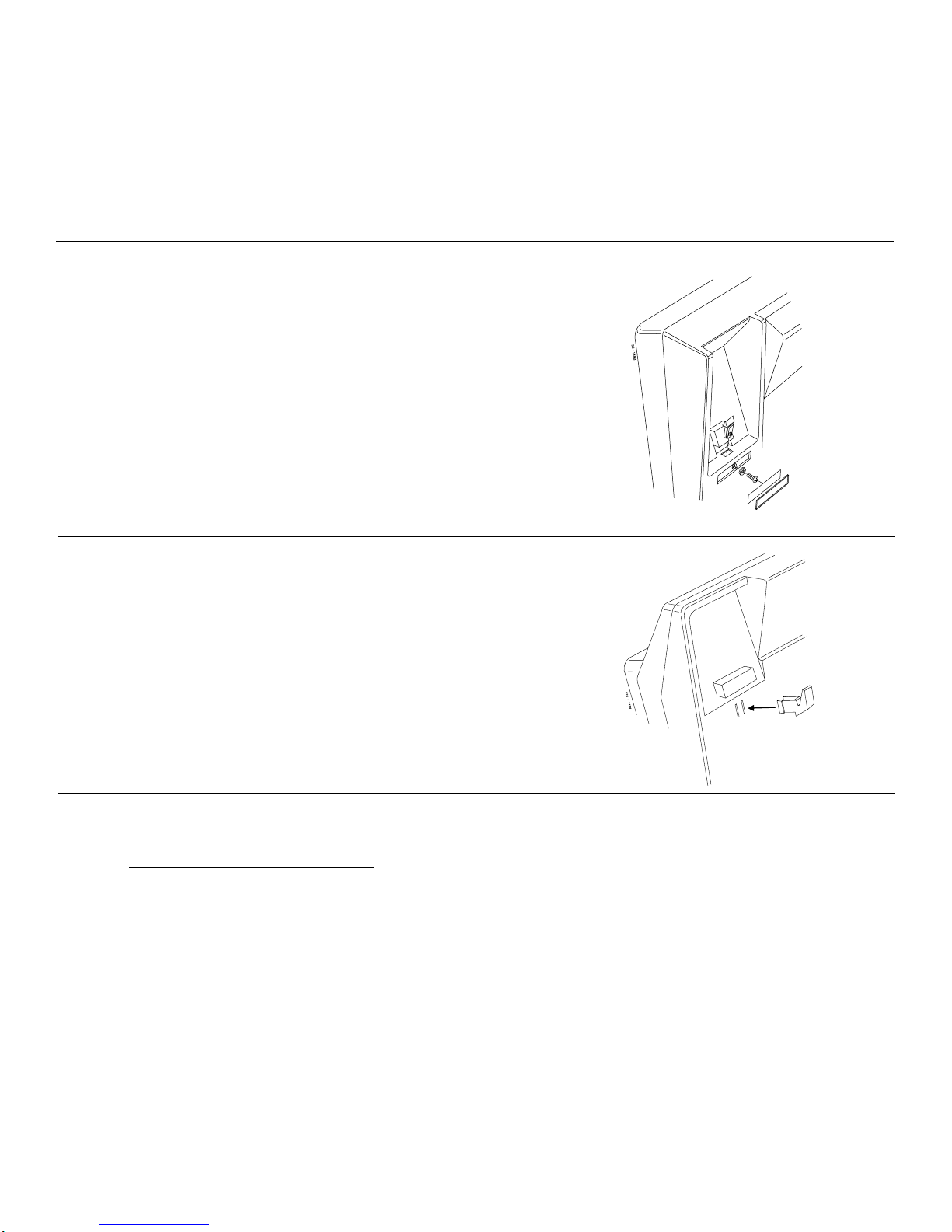

Installing the Wall-Mount Handset Hanger (if your

phone is P/N 925xx or 926xx):

Step 1 Two different types of handset hangers are

included in your kit. To ensure that you are

using the correct hanger, refer to the figure to

the right. Insert the handset hanger in the slot

provided beneath the telephone's hookswitch.

Step 2 Remove the plastic insert beneath the hook-

switch to expose the hanger screw hole.

Step 3 Place the washer over the hanger screw

hole and, using the machine screw provided,

fasten the hanger in place.

Step 4 Replace the plastic insert.

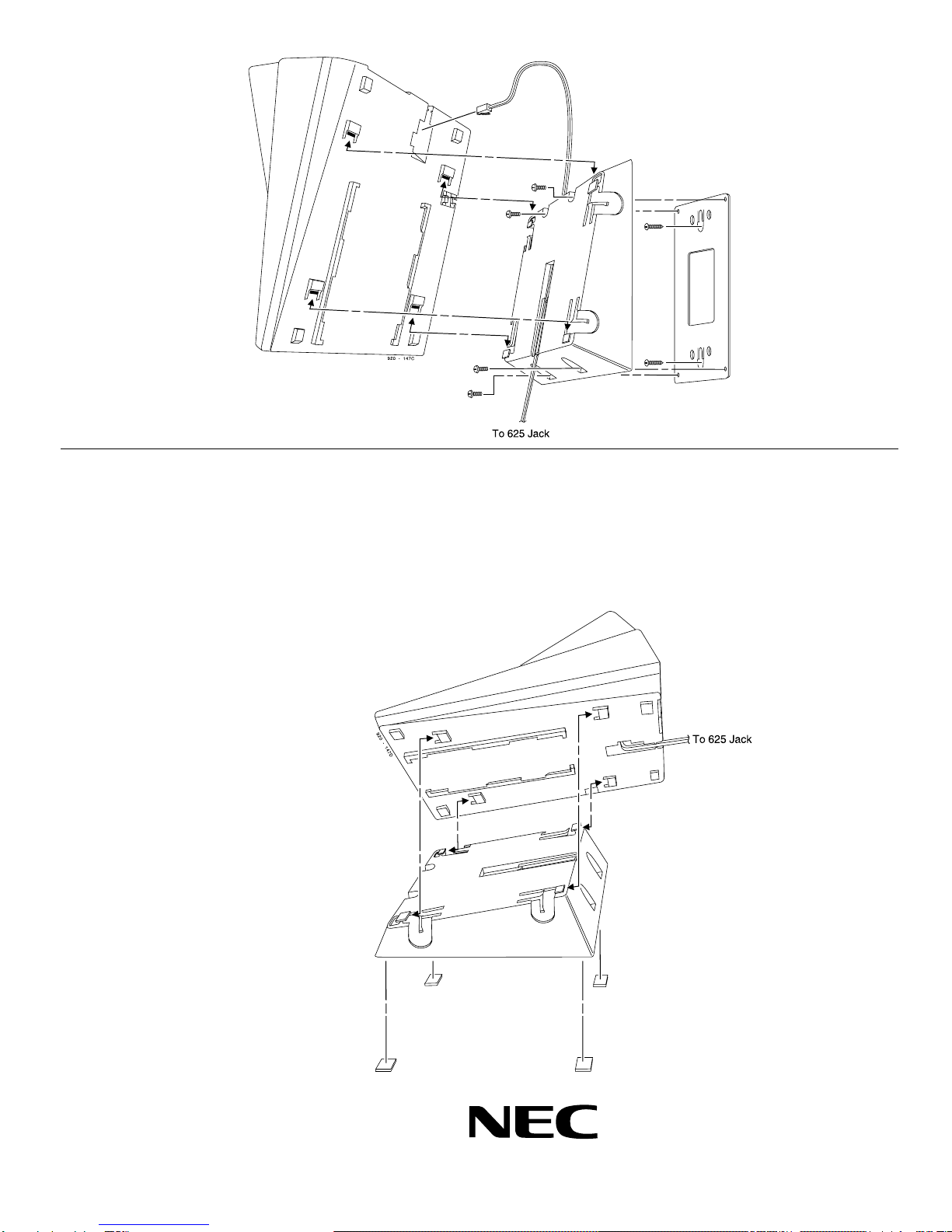

To wall-mount your phone (refer to the

figure below):

Step 1 Installing Over a Wall Plate:

Slide the metal bracket down over the

retaining screw heads on the wall plate

until secure. Note that the dimpled out-

dents in the bracket should be against

the wall.

Installing Over a Modular Jack:

Skip to Step 2.

Step 2 Depending on your installation, attach

the wall-mount kit's plastic bracket to

either the metal bracket or directly to

the wall using the screws provided.

Step 3 Insert the telephone's line cord from the

625 modular jack through the plastic

bracket into the phone. Secure the cord

using the clips provided on the bracket.

Step 4 Place the telephone on top of the

plastic bracket on the clips provided.

- over -

Installing the Wall-Mount Handset Hanger (if your

phone is P/N 922xx or 923xx):

Step 1 Two different types of handset hangers are

included in your kit. To ensure that you are

using the correct hanger, refer to the figure to

the right. Insert the handset hanger in the slot

provided beneath the telephone's hookswitch.

Make sure the clip snaps into place.

Note: The handset hanger must be installed

as shown, with the hook pointing

upward.

Part No. 92679INS02

Issue 1-0 April 2001

Printed in U.S.A

To desk-mount a key telephone:

Step 1 Place the rubber feet provided in the kit on the bottom of the plastic bracket. Place a rubber

foot on each corner.

Step 2 Insert the telephone's line cord from the 625 modular jack through the plastic bracket using

the clips provided on the bracket.

Step 3 Place the telephone on top of the plastic bracket on the clips provided. Slide the telephone

down until it snaps into place.

4 Forest Parkway, Shelton, CT 06484

TEL: 203-926-5400 FAX: 203-929-0535

cng.nec.com
