Model: SCP200

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

Maximum Load UL Capacity: 60 lb (27.2 kg)

Installation and Assembly:

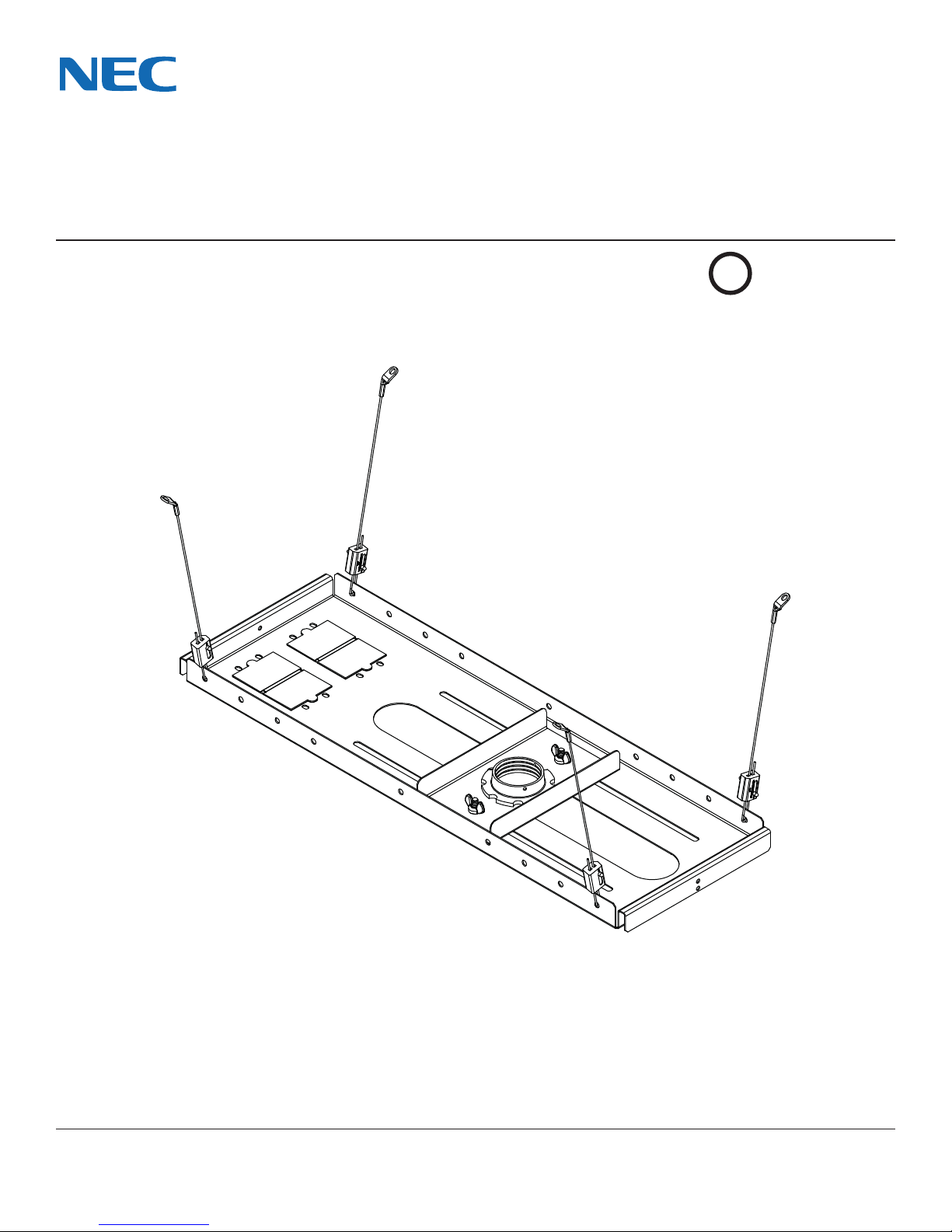

Lightweight Adjustable Suspended Ceiling Plate for Projector

Mounts

ISSUED: 12-16-04 SHEET #: 120-9015-3 11-05-10

NEC DISPLAY SOLUTIONS OF AMERICA, INC.

USC

ISSUED: 12-16-04 SHEET #: 120-9015-3 11-05-10

2 of 6

Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.

Table of Contents

Parts List.................................................................................................................................................................................3

Installation to Suspended Ceiling ..........................................................................................................................................4

Anchoring Ceiling Plate ..........................................................................................................................................................5

Warranty Information ..............................................................................................................................................................6

Tools Needed for Assembly

•stud ﬁnder ("edge to edge" stud ﬁnder is recommended)

•phillips screwdriver

•hammer

•wire cutters

•drill

•5/16" bit for concrete surface

•5/32" bit for wood studs

NOTE: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your product until you have read and understood the instructions and warnings contained

in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless

customer care at 1-800-729-0307.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardware and components.

• Never exceed the Maximum UL Load Capacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws ﬁrmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power. See suggested torque values where applicable within these instructions.

• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal

injury.

• When installing or adjusting the ceiling mount, do not use adhesives, lubricants or oils to prevent the screws from

loosening. If you use adhesives, lubricants, or oils to prevent the screws from loosening, the casing may crack and

the projector may fall, causing serious injury and damage to the projector.

WARNING

ISSUED: 12-16-04 SHEET #: 120-9015-3 11-05-10

3 of 6

Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.

Before you start check the parts list to insure all of the parts shown are included.

NOTE: You may not need all hardware provided.

NOTE: Some parts may appear slightly different than illustrated.

FHGD

Description Qty. Part #

Aceiling plate 1 055-2983

BM5 x 10 mm penta pin screw 1 505-9010

CM5 penta pin driver 1 520-9249

DM5 x 10 mm self tapping screw 2 520-9250

Esteel cable 4560-0757

Fflush mount tube 11446-014

Gwood screw 4510-9157

Hconcrete anchor 4590-0320

Icable lock 4560-0756

Jescutcheon plate 1 1418-001

Parts List

ISSUED: 12-16-04 SHEET #: 120-9015-3 11-05-10

4 of 6

Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.

Place ceiling tray (A) in grid above 24" x 24" or 24" x 48" false ceiling tile so that lip of ceiling tray (A) rests on

ceiling runners as shown in ﬁgure 1.1. Place in desired position and install 1/4-20 self tapping screws (D) into

sides of ceiling tray (A). NOTE: If collar mount plate is positioned to the right, screw (D) can be installed into

holes of outside ﬂange on ceiling tray (A). If ceiling runner height is low install screw (D) into lower hole as shown

in ﬁgure 1.2. Slide collar mount plate to desired position. Using hole in collar mount plate, mark false ceiling tile

where hole will be cut. Slide collar mount plate out of the way. Cut out 2.25" hole in false ceiling tile. Slide collar

mount plate back into position and tighten all carriage bolts and wing nuts.

Remove knock-outs before installing electrical box.

IMPORTANT: Ceiling Tray (A) is designed to ﬁt above a 24" (610 mm) x 24" (610 mm) section of a conventional

suspended ceiling system. It may also be mounted above 24" x 48" conventional suspended ceiling. Ceiling

runners (see ﬁgure 1.1) should have a "T" cross section and a minimum height of 1.5" (38 mm).

CEILING

RUNNER

OUTSIDE

FLANGE

COLLAR MOUNT PLATE

KNOCK-OUTS CARRIAGE BOLT

WING NUTS FIGURE 1.1

FIGURE 1.2

From the top down, thread ﬂush mount tube (F)

down through retaining collar in adjustable collar

mount plate.

Snap escutcheon plate (J) around ﬂush mount

tube or extension column and slide up until ﬂush

with ceiling tile.

Skip to step 3.

For Flush Mounting Applications

From the bottom up, thread extension column

(not included) up through retaining collar in

adjustable collar mount plate. Align notch in

extension column with hole in collar and fasten

with M5 x 10 mm penta pin screw (B) using penta

pin driver (C).

Snap escutcheon plate (J) around ﬂush mount

tube or extension column and slide up until ﬂush

with ceiling tile.

For Extension Column Applications

1 1/2" EXTENSION

COLUMN (SOLD

SEPARATELY)

(UL LISTED EXT OR AEC

SERIES)

ISSUED: 12-16-04 SHEET #: 120-9015-3 11-05-10

5 of 6

Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.

Drill holes for four ceiling anchors (detail 2). Position the holes so that when the steel cables (E) are attached and

taut they will angle out at 15°.

Insert loose end of steel wire (E) through one end of cable lock (I) as shown below. NOTE: Steel wires can only

insert one way through cable lock as shown in ﬁgure 5.2.

Route steel wires through hole of ceiling tray as shown in ﬁgure 5.1. Loop steel cables through ceiling tray (A)

where indicated by black rectangles in detail 3. Finish by routing loose end of steel cable through other end of

cable lock. Feed cable through cable lock until all cables are taut.

When this step is complete, the weight of the ceiling tray should be supported by the steel cables.

Peerless is a registered trademark of Peerless Industries, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.

FIGURE 5.1

FIGURE 5.2

DETAIL 3 - TOP VIEW

Wood Joists or Beams

Drill 5/32" (4 mm) dia.

holes to a minimum depth

of 1.5" (38 mm). Secure

steel cables (E) using

wood screw (G)

Solid Concrete

Drill 5/16" (8 mm) dia. holes to a mini-

mum depth of 2.25" (57 mm). Hammer

in concrete anchors (H) and secure

steel cables (E) with wood screw (G)

Truss Ceiling

No anchor required. Loop

upper end of steel cable (E)

around ceiling truss and down

into hole of cable loop. Pull

steel wire tight.

GEE

DETAIL 2

BLACK RECTANGLES REPRESENT CORRECT

POSITIONS FOR STEEL WIRE

• It is the responsibility of the installer to verify that the ceiling to which the suspended ceiling kit is anchored will safely

support the combined load of all attached components (Projector Mount, Extension Column, etc.) and equipment.

WARNING

ISSUED: 12-16-04 SHEET #: 120-9015-3 11-05-10

6 of 6

Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.

Peerless Industries, Inc. establishes a warranty period of ﬁve years for products manufactured or supplied by Peerless. This period commences from the date of

sale of the product to the original consumer, but will in no case last for more than six years after the date of the product’s manufacture. During the warranty period

such products will be free from defects in material and workmanship, provided they are installed and used in compliance with the instructions established by

Peerless Industries, Inc. Subject to applicable legal requirements, during the warranty period Peerless will repair or replace, or refund the purchase price of, any

such product which fails to conform with this warranty.

Any other warranties prescribed by the law which may apply with respect to such products also are limited in duration to the warranty period speciﬁed in this

Limited Five-Year Warranty.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless

Industries, Inc., (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless’ instructions or warnings

when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security

device which may be included with the product.

This Limited Five-Year Warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No retailer, dealer,

distributor, installer or other person is authorized to modify or extend this warranty or impose any obligation on Peerless in connection with the sale of any product

manufactured or supplied by Peerless.

This warranty gives speciﬁc legal rights, and you may also have other rights provided by the national legislation of the country in which you purchased such

product.

LIMITED FIVE-YEAR WARRANTY
