NEC NP200 - XGA DLP Projector Manuel utilisateur

NEC Display Solutions of America, Inc.

NP100/200 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP100/200 Page 1 of 5

Contents

Product Description, Lens Specs, Notes and Formulas Pg 1

Diagrams & Distance Charts Pg 2

Cabinet Dimensions Pg 3-4

Ceiling Mount Dimensions and Input Panel Pg 5

Product Description

Type: 1-chip DLP projector, Brightness: NP100: 2000 ANSI Lumens

0.55”DLP NP200: 2100ANSILumens

Resolution: NP100: 800 x 600

NP200: 1024 x 768 Fan Noise: 35dB / 33dB @ 1 meter

Dimensions: 10.7” (W) x 3.5” (H) x 8.1” (D) Weight: 5.3 lbs

Power Consumption: 228W (max) BTU’s: 870 BTU/hour

Lens Specifications

Throw Ratio: 1.9 – 2.1:1 (for 100” diagonal) Focal Length: 21.83mm – 24.00mm

Offset Angle: 12.8° - 14.0° (for 100” diagonal) F/#: 2.41 - 2.55

Screen Sizes: 27” - 300” diagonal (4:3) Manual Focus/Manual Zoom

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

•All calculations are based on a 4:3 aspect ratio.

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

Formulas

The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width

for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in

the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2:

Definitions: 4:3 Screen Formulas:

W = Image Width W = H x 4/3

H = Image Height (size) H = W x 3/4

B = Vertical distance between lens center and screen center Screen Diagonal = W x 5/4

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.489W

C(wide) = 1.948W

C (tele) = 2.15W

D= 0.113W

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

NEC Display Solutions of America, Inc.

NP100/200 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP100/200 Page 2 of 5

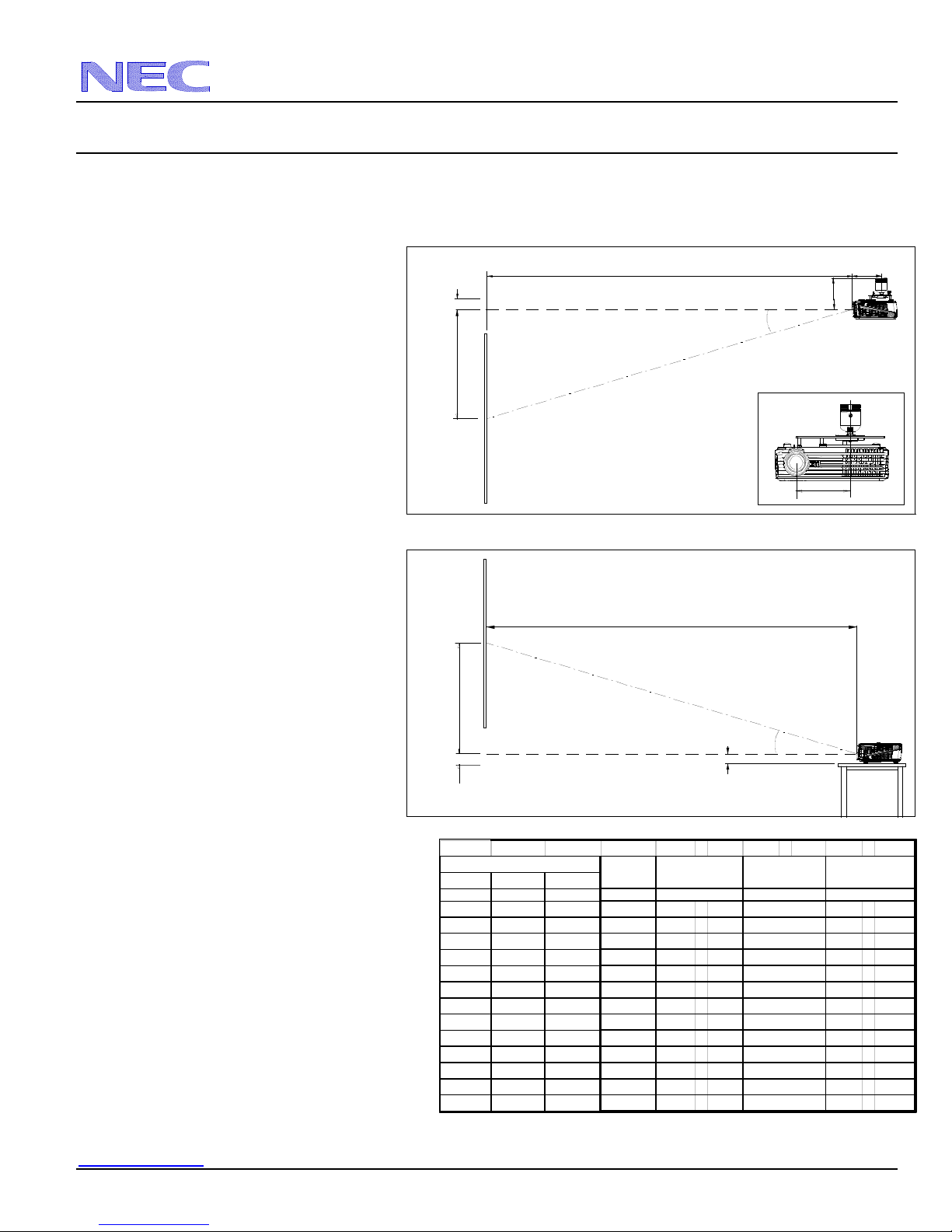

Diagrams and Distance Charts

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4.

Lens Ctr

Screen Ctr Throw Distance

Screen Bottom

1.90"

Throw Distance

Screen Top

5.23"

5.54"

Lens Offset From

Mount Pipe

Lens Ctr

Screen Ctr

5.13"

Ceiling Mounted

Desktop

Diagonal Width(W) Height (H)

inches inches inches inches

30 24 18 12 N/A - 52 N/A - 12.8

60 48 36 23 94 - 103 14.0 - 12.8

67 53.6 40.2 26 104 - 115 14.0 - 12.8

72 57.6 43.2 28 112 - 124 14.0 - 12.8

84 67.2 50.4 33 131 - 144 14.0 - 12.8

90 72 54 35 140 - 155 14.0 - 12.8

100 80 60 39 156 - 172 14.0 - 12.8

120 96 72 47 187 - 206 14.0 - 12.8

150 120 90 59 234 - 258 14.0 - 12.8

180 144 108 70 281 - 310 14.0 - 12.8

210 168 126 82 327 - 361 14.0 - 12.8

240 192 144 94 374 - 413 14.0 - 12.8

270 216 162 106 421 - 464 14.0 - 12.8

Dα

w ide - tele

egrees

Screen Size (4:3)

w ide - tele

Distance Chart for popular 4:3 screens

Note: For screen sizes not indicated on the projection

tables, use the formulas on page 1.

NEC Display Solutions of America, Inc.

NP100/200 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP100/200 Page 3 of 5

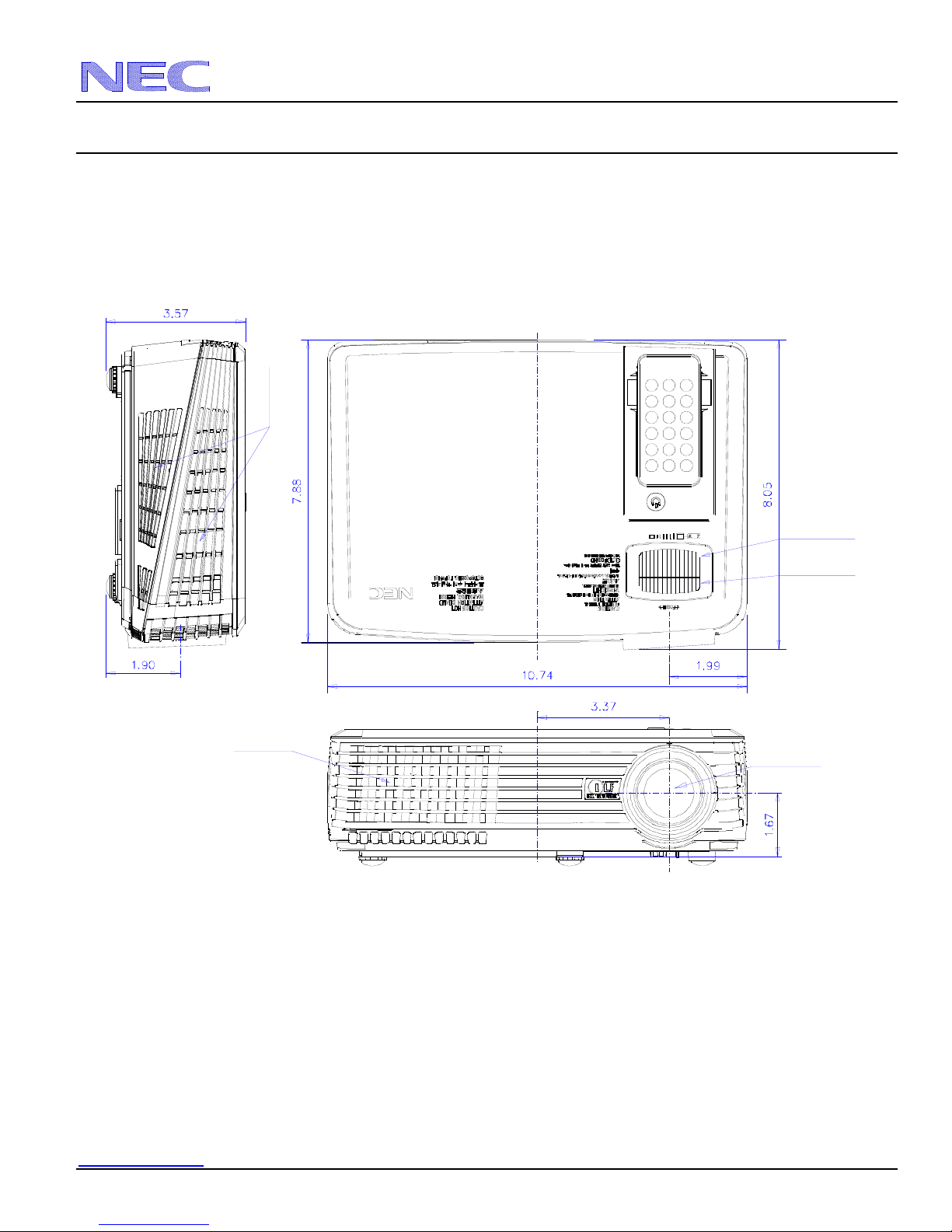

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Lens Center

Zoom Lever

Focus Lever

Ventilation

NEC Display Solutions of America, Inc.

NP100/200 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP100/200 Page 4 of 5

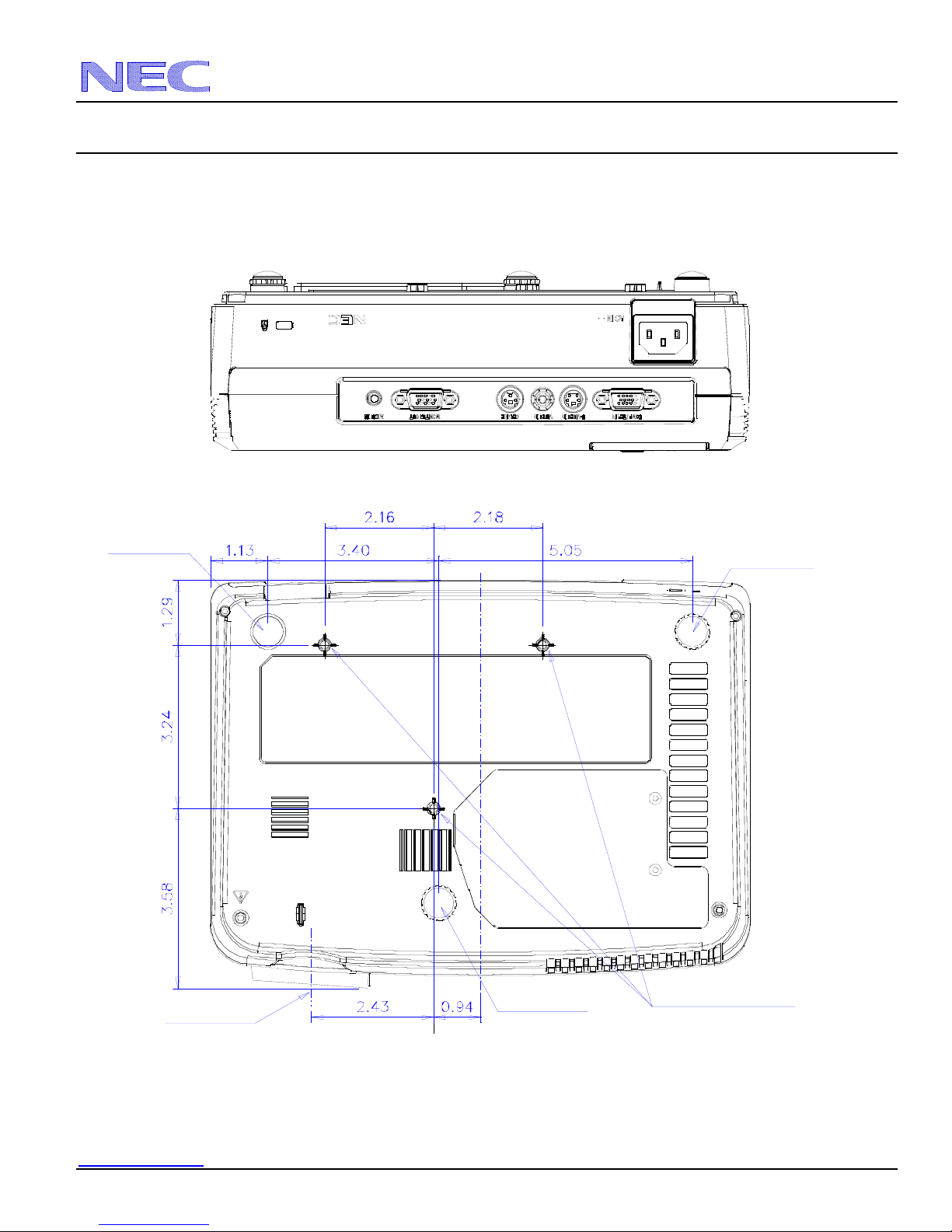

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Lens Center

Rear Foot

Front Foot 3 - M3*16 Max

for Ceiling Mount Kit

NEC Display Solutions of America, Inc.

NP100/200 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

www.necdisplay.com NP100/200 Page 5 of 5

Optional Ceiling Mount Dimensions (Model #: NP40CM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Input Panel
