NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 1 of 7

Contents

Product Description, Lens Specs, Notes and Formulas Pg 1

Diagrams & Distance Charts Pg 2

Cabinet Dimensions Pg 3-4

Optional Wall Mount Dimensions Pg 5

Optional Ceiling Mount Dimensions Pg 6

Input Panel and Control Codes Pg 7

Product Description

Type: 3 panel LCD projector, Dimensions: 12.1” (W) x 5.4” (H) x 11.9” (D)

0.59”p-SiTFTw/MLA Weight: 7.3lbs

Resolution: 1280 x 800 (16:10) / 1066 x 800 (4:3) Brightness: 2100 Lumens

Fan Noise: 35 dB / 29dB @ 1 meter BTU’s: 1009 BTU/hour

Network Ready Power Consumption: 325W (max)

Lens Specifications

Throw Ratio: 0.74:1 (for 94” diagonal) Focal Length: 9.7mm

Offset Angle: 29.1° (for 94” diagonal) F/#: 2.3

Screen Sizes: 57” - 104” diagonal (16:10) Manual Focus/Manual Zoom

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

All calculations are based on a 4:3 aspect ratio.

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

Formulas

The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width

for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in

the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2:

Definitions: 16:10 Screen Formulas:

W = Image Width W = H x 16/10

H = Image Height (size) H = W x 10/16

B = Vertical distance between lens center and screen center Screen Diagonal = W x 18.868/16

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.418W

C = 0.74W

D= 0.1W

α= tan¯¹ (B/C)

NEC Display Solutions of America, Inc.

NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 2 of 7

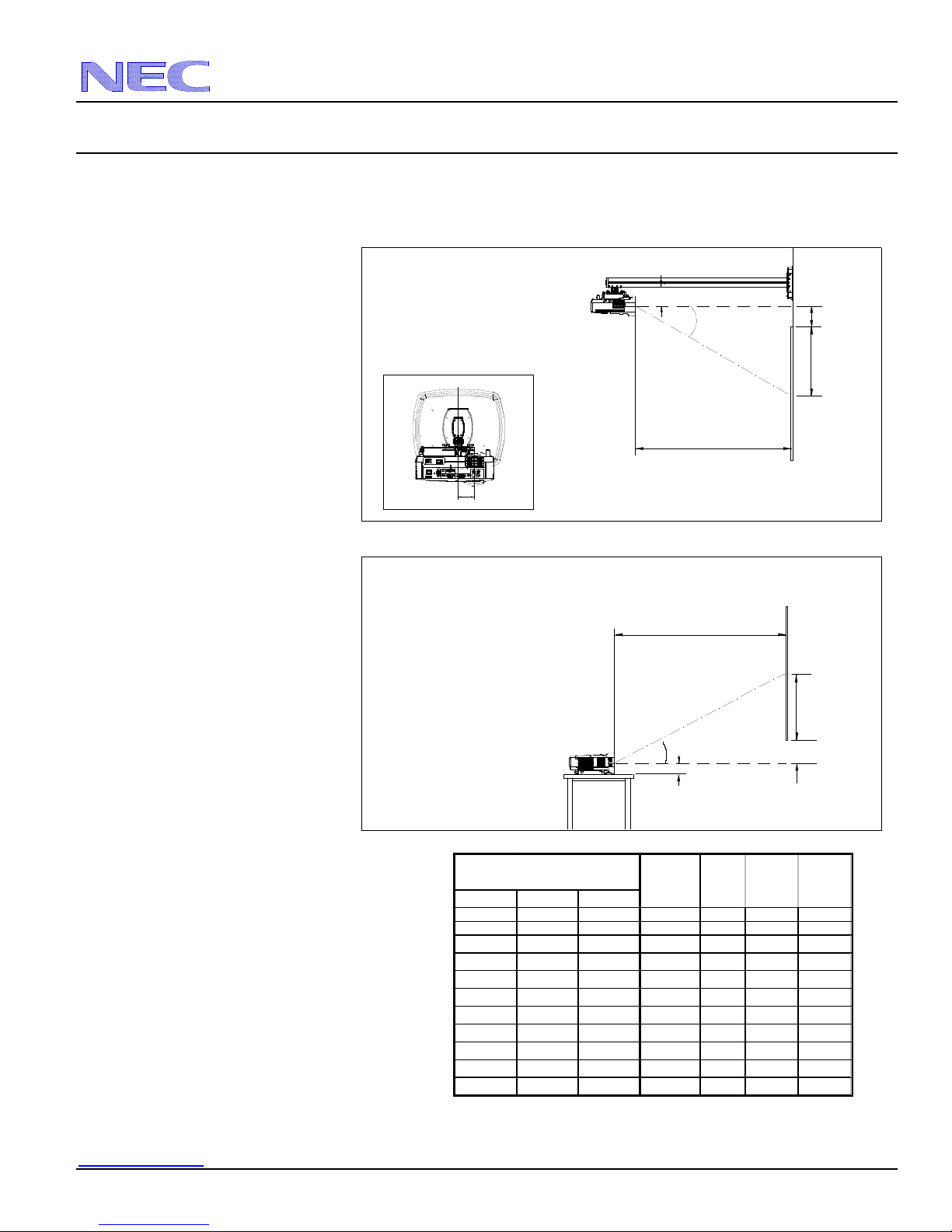

Diagrams and Distance Charts

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of

installation.

Distances are in inches. For millimeters multiply by 25.4.

Throw Distance

Screen Top

4.5"

Lens Ctr

Screen Ctr

Lens Ctr

Screen Ctr

Throw Distance

Screen Bottom

3.00"

Lens Offset

2.53

Wall Mounted

Desktop

Distance Chart for popular 16:10 screens

Diagonal Width(W) Height (H)

inches inches inches inches inches inches degrees

57 48 30 20 36 5 29.3

66 56 35 23 41 6 29.3

68 58 36 24 43 6 29.3

75 64 40 27 47 6 29.2

79 67 42 28 50 7 29.2

85 72 45 30 53 7 29.1

87 74 46 31 54 7 29.1

92 78 49 33 58 8 29.1

94 80 50 33 59 8 29.1

104 88 55 37 65 9 29.1

Image Size (16:10)

on a (16:10) screen B C

Notes:

#1 – Maximum screen size utilizing the NPSTWM

(wall mount arm as shown in diagram above)

is 87” diagonally.

#2 - For screen sizes not indicated on the projection

tables, use the formulas on page 1.

NEC Display Solutions of America, Inc.

NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 3 of 7

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

600S

Lamp

Lens Center

Focus Lever

Lens Center

Exhaust

Intake

Filter

NEC Display Solutions of America, Inc.

NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 4 of 7

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Lens Center

Exhaust

3 - M4*8 Max

for Ceiling Mount Kit

Intake

Filter

NEC Display Solutions of America, Inc.

NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 5 of 7

Optional Wall Mount Dimensions (Model #: NPSTWM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

NEC Display Solutions of America, Inc.

NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 6 of 7

Optional Ceiling Mount Dimensions (Model #: NP600CM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

NEC Display Solutions of America, Inc.

NP500WS Installation Guide

Ceiling Mounted and Desktop Rev 1.6

www.necdisplay.com NP500WS Page 7 of 7

Input /Output Panel

PC Control Codes

Function CodeData

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUTSELECTVIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUTSELECTS-VIDEO 02H 03H

00H 00H 02H 01H 0BH 13H

INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H

INPUT SELECT DVI (ANALOG) 02H 03H 00H 00H 02H 01H 02H 0AH

PICTUREMUTEON 02H 10H

00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUNDMUTEOFF 02H 13H

00H 00H 00H 15H

PROJECTOR INFORMATION REQUEST 00H BFH 00H 00H 01H 02H C2H

ERROR STATUS REQUEST 00H 88H 00H 00H 00H 88H

INFORMATION REQUEST 03H 8AH 00H 00H 00H 8DH

Note: Contact your NEC rep for codes not listed.

Cable Connection

Communication Protocol:

Baud Rate: 19200 bps

Data Length: 8 bits

Parity: No Parity

Stop Bit: One Bit

X on/off: None

Communications: Full duplex

12345

67 8 9

To GND of PC

To RxD of PC

To TxD of PC

To CTS of PC

To RTS of PC

PC Control Connector (D-Sub 9P

NOTE 1 : Pins 1, 4, 6, and 9 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

NOTE 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
