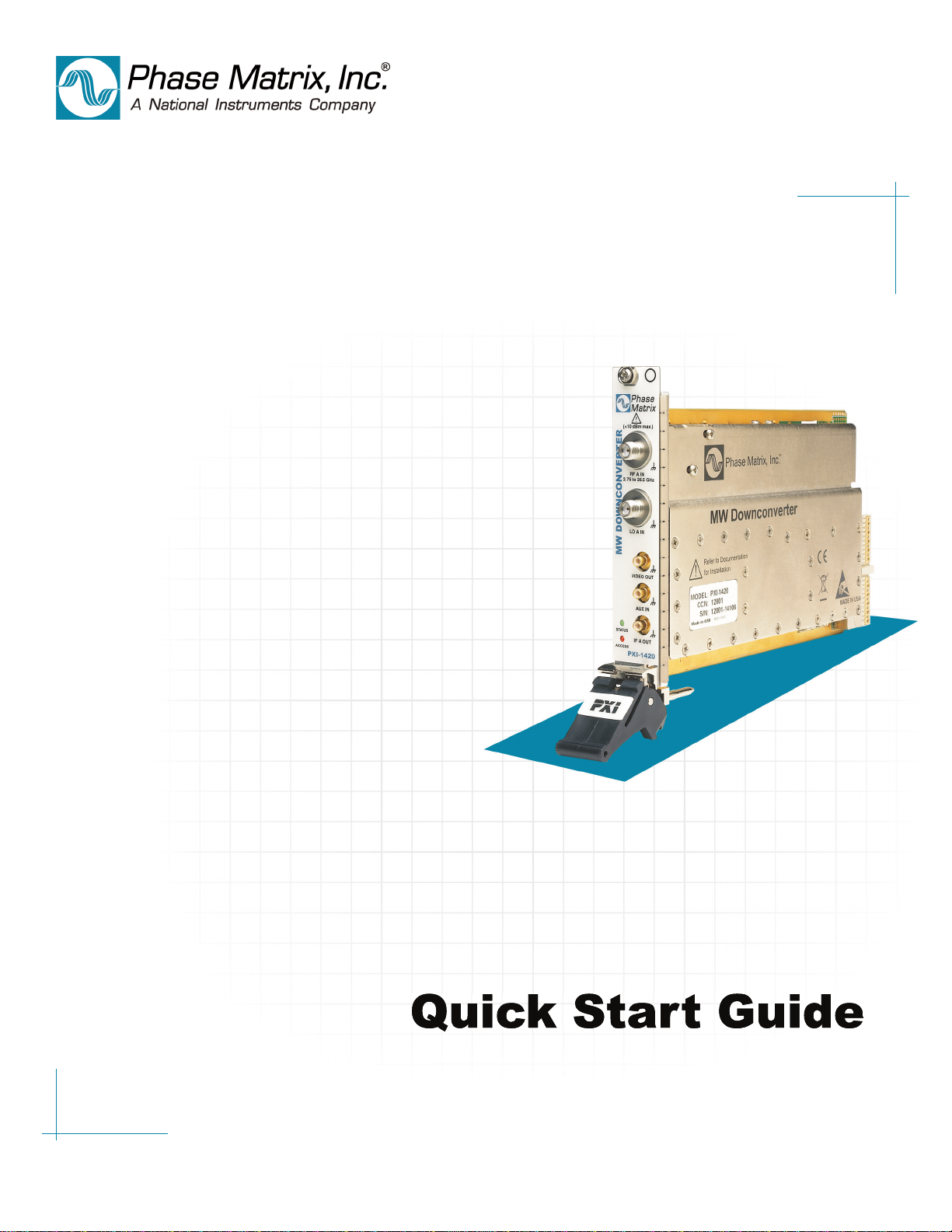

PXI MICROWAVE

MW DOWNCONVERTER MODULE

Quick Start GuideQuick Start Guide

PXI-1420 CCN 12801

Manual Assy Part Number 5585112-01

Manual Text Part Number 5580112-01 Rev &

Model PXI-1420

Notices

No part of this manual may be copied,

duplicated, or reproduced in any form or

by any means (including electronic stor-

age and retrieval or translation into a for-

eign language) without prior agreement

and written consent from Phase Matrix,

Inc. as governed by United States and

international copyright laws.

Phase Matrix, Inc.

4600 Patrick Henry Drive

Santa Clara, CA 95054

Software Copyright

Original Phase Matrix, Inc. software may

be distributed without consent from Phase

Matrix, Inc. only if all software and asso-

ciated files are included in the distribution

and remain unmodified.

Warranty

Phase Matrix, Inc. warrants this product

to be free from defects in material and

workmanship for one year from the date

of delivery. Damage due to accident,

abuse, or improper signal level is not cov-

ered by the warranty. Removal, deface-

ment, or alteration of any serial or

inspection label, marking, or seal may

void the warranty. Phase Matrix, Inc. will

repair or replace, at its option, any com-

ponents of this product which prove to be

defective during the warranty period, pro-

vided the entire unit is returned to Phase

Matrix, Inc. or an authorized service facil-

ity. In-warranty units will be returned

freight prepaid; out-of-warranty units will

be returned freight COLLECT. No war-

ranty other than the above is expressed or

implied.

Certification

Phase Matrix, Inc. certifies this instru-

ment to be in conformance with the speci-

fications noted herein at time of shipment

from the factory. Phase Matrix, Inc. fur-

ther certifies that its calibration measure-

ments are traceable to the United States

National Institute of Standards and Tech-

nology.

Manual Change Information

As Phase Matrix, Inc. continually

improves and updates its products,

changes to the material covered by the

manual will occur. When a part or assem-

bly in a Phase Matrix, Inc. instrument is

changed to the extent that it is no longer

interchangeable with the earlier part, the

configuration control number (CCN) of

the instrument, shown on the title page of

the manual, will change, and a new edi-

tion of the manual will be published.

To maintain the technical accuracy of the

manual, it may be necessary to provide

new or additional information with the

manual. In these cases, the manual is

shipped with a Manual Update. Please be

sure to incorporate the information as

instructed in the Manual Update.

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could result

in damage to the product or loss of

important data. Do not proceed

beyond a CAUTION notice until

the indicated conditions are fully

understood and met.

WARNING

A WARNING notice defines a

hazard. It calls attention to an

operating procedure or practice

that if not correctly followed or

adhered to, could result in

either personal injury or death.

Do not proceed beyond a

WARNING notice until the indi-

cated conditions are fully

understood and met.

EIP® is a brand name used to refer to a

line of traditional T&M instruments

owned by Phase Matrix, Inc.

National Instruments®, NI®,

ni.com®, LabVIEW®,

and LabWindows®

are registered trademarks of

National Instruments Corporation.

Microsoft®, Windows®, Vista®, XP®,

and 2000® are registered trademarks of

Microsoft Corporation.

Document created for Phase Matrix, Inc.

2010 by RLTechnical.com

Phase Matrix PXI-1420 MW Downconverter Module 3

Quick Start Guide

Introducing the PXI-1420 MW Downconverter Module

Congratulations on purchasing a

Phase Matrix PXI-1420 MW Downconverter Module!

To get the most out of your purchase, it is recommended that this

Quick Start Guide be read carefully and completely.

In this document...

The scope of this document is to describe the installation process of the 

stand-alone hardware and software for the PXI-1420 and to confirm

basic module operation.

This document describes information for the PXI-1420 when used in a

PXI system with an embedded controller or a PXI remote controller.

“Step 1. Confirm Module Operating Requirements" on page 4

“Step 2. Perform Hardware Installation/Configuration" on page 5

“Step 3. Perform Software Installation/Configuration" on page 9

“Step 4. Review Hardware and Software Front Panels" on page 19

“Step 5. Confirm Basic Module Operation" on page 31

4 Phase Matrix PXI-1420 MW Downconverter Module

Quick Start Guide

Step 1. Confirm Module Operating Requirements

Table 1 Module Operating Requirements When Used in a PXI System

Operating System

•Windows 7 (32- and 64-bit versions)

•Windows XP (32-bit version)

•LabVIEW Real-Time (Version 8.2.1 and later)

BIOS - computers manufactured prior to 2008 require NI MXI-Express BIOS Compatibility Software.

This BIOS software is available on the Internet at: NI > Support > Drivers and Software > 

MXI-Express BIOS Compatibility Software - Windows Vista x86/XP

RAM - minimum of 256 MB required by LabVIEW.

CD Drive - used to install PXI device driver software and Soft Front Panel from an optional CD

PXI device driver software and Soft Front Panels are available from an optional CD

or from the Phase Matrix web site at: www.phasematrix.com

Screen Resolution - at least 1024 × 768 pixels, recommended.

Adobe Reader - 6.0.1 or later to view or search PDF versions of manuals.

Interface/Controller - select either an embedded controller or a PXI remote controller.

Embedded Controller

NI PXI-8106 2.16 GHz Dual-Core PXI Embedded Controller

or NI PXIe-8106 2.16 GHz Dual-Core PXI Express Embedded Controller

or equivalent embedded controller running Windows 7/XP

PXI Remote Controller

NI PXI-CardBus8310 Laptop Control of PXI with PCMCIA CardBus

or NI PXIe-ExpressCard8360 Laptop Control of PXI Express with ExpressCard

or equivalent PXI remote controller running Windows 7/XP

NOTE

LabVIEW does not support Windows NT/Me/98/95, any of the Windows Server

editions, or Windows XP x64.

LabVIEW does support Windows 7 (64-bit version).

LabVIEW or the LabVIEW Run-Time Engine does support Windows 2000 with

Service Pack 3 or later.

Phase Matrix PXI-1420 MW Downconverter Module 5

Quick Start Guide

Step 2. Perform Hardware Installation/Configuration

Step 2-1. Unpack Hardware

Each PXI-1420 ships in an antistatic package to prevent damage from

electrostatic discharge (ESD). Because ESD can damage several

components of a hardware module, store all modules in antistatic

envelopes when not in use.

CAUTION

PXI hardware does not support “hot-swap” capabilities!

Before installing the PXI-1420 MW Downconverter Module, the PXI chassis must be

powered off and unplugged to prevent damage to PXI modules.

The PXI-1420 can be installed in any standard-PXI slot marked with a

peripheral slot compatibility image (a circle containing the slot number).

The PXI-1420 can also be installed in any hybrid-PXI slot marked with a

peripheral slot compatibility image (the letter “H” and a solid circle

containing the slot number).

Do not install the PXI-1420 into a slot for PXI Express (PXIe) modules.

NOTE

A PXI-1420 can be used in a PXI or PXIe chassis, with either a PXI or PXIe remote

controller, but the PXI-1420 must only be installed into a standard-PXI slot or a

hybrid-PXI slot.

CAUTION

•To avoid damage when handling a module, do not touch exposed connector pins.

•Before touching or handling a module, use a grounding strap or touch a grounded

object to ground yourself.

•Before touching or removing a module from its package, touch the antistatic package

to a metal part of your computer chassis.

•Remove each module from its package and inspect it for loose components or any

signs of damage. Notify Phase Matrix if any module appears damaged in any way.

•Do not install damaged modules into a system.

6 Phase Matrix PXI-1420 MW Downconverter Module

Quick Start Guide

Unpack the contents of the box and verify that everything is included:

•PXI-1420 MW Downconverter Module

•Optional CD (included if specifically ordered; otherwise, PXI device

driver software and Soft Front Panels are available the Phase Matrix

web site at: www.phasematrix.com).

Step 2-2. Install PXI Modules into a PXI Chassis

Figure 1 Install PXI Modules into a PXI Chassis

Phase Matrix PXI modules are sensitive instruments that should be

handled carefully. Do not expose modules to temperatures or humidity

beyond their rated maximums.

CAUTION

•For information about the rated maximums, refer to each module’s specifications

document available at: www.phasematrix.com

•Keep the module free of dust by cleaning only with compressed air.

•Do not clean the module with any solvents or liquids.

•To prevent damage to the module caused by ESD or contamination, handle the

module using the edges or the metal bracket.

Quick Start Guide

Phase Matrix PXI-1420 MW Downconverter Module 7

1Assure that the power switch is in the Off (Standby) position and

unplug the PXI chassis.

2If the chassis has multiple fan speed settings, ensure that the fans are

set to automatic. Do not set the fan speed to low or turn it off.

3Position the chassis so that there is ample space between the chassis

fan intake and exhaust vents. Blockage by walls or obstructions

affects the air flow needed for cooling. (Refer to the chassis

documentation for more information about cooling.)

4Holding the PXI-1420 by the injector/ejector handle, slide it into an

available PXI (or hybrid) slot, as shown in Figure 1.

aInstall the PXI-1420 into the PXI (or hybrid) slot of the chassis by

placing the module card edges into the front module guides (top

and bottom).

bSlide the PXI-1420 to the rear of the chassis and assure that the

injector/ejector handle is pushed down in the unlatched

(downward) position.

cSlide the module completely into the chassis. When you begin to

feel resistance, push up on the injector/ejector handle to fully

inject the module into the chassis frame.

5Latch the PXI-1420 by pulling up on the injector/ejector handle and

secure the module front panel to the chassis using the module

front-panel mounting screws.

6Tighten the screws on the PXI-1420 front panel. Performance may

suffer if the screws are not tightened properly.

7Verify that the PXI chassis fans are operable and free of dust and

other contaminants that may restrict airflow.

8Install all chassis covers and filler panels after installing the

PXI-1420. Missing filler panels disrupt necessary air circulation in

the chassis.

9Plug-in and power-on the PXI chassis.

NOTE

Phase Matrix recommends installing slot blockers in adjacent vacant PXI slots to

maximize cooling air flow to the PXI modules.

A PXI Chassis Slot Blocker Kit (National Instruments part number 778678-01) is

available for purchase at www.ni.com.

8 Phase Matrix PXI-1420 MW Downconverter Module

Quick Start Guide

Step 2-3. Connect to the Host Computer and Power Source

Embedded Controller

1Connect the keyboard, mouse, monitor and any other external

devices to the PXI embedded controller.

2Connect the chassis’ AC or DC inlet to the power source using an

appropriate power cable.

3When the power switch is in the ON position, observe that fans

become operational.

4If the power outlet does not have an appropriate ground connection,

connect the premise safety ground to the chassis grounding screw.

Refer to the chassis’ user manual at ni.com/manual for instructions.



PXI systems can be controlled from a

PC or laptop computer through a

software transparent link using

National Instruments’ PXI Remote

Controllers.



- PC control of PXI consists of a

PCI/PCI Express board in the

computer and a PXI/PXI Express

module in slot 1 of the PXI system,

connected by a copper or fiber-optic

cable.



- Laptop computer control of



PXI consists of an

ExpressCard/PCMCIA CardBus card

in the laptop and a PXI/PXI Express

module in slot 1 of the PXI system,

connected by a copper cable.

PXI Remote Controller

1Install the PCI/PCI Express board in a PC or

insert the ExpressCard/PCMCIA CardBus card in a laptop computer.

2Connect the chassis’ AC or DC inlet to the power source using an

appropriate power cable.

3When the power switch is in the ON position, observe that fans

become operational.

4If the power outlet does not have an appropriate ground connection,

connect the premise safety ground to the chassis grounding screw.

Refer to the chassis’ user manual at ni.com/manual for instructions.

(Step 2-4. Optional) Uninstall PXI Modules

Before uninstalling PXI modules, power off the PXI chassis!

When removing PXI modules from a chassis, ensure that you are

grounded with a grounding strap or are touching a grounded metal

surface. To avoid ESD, do not touch the exposed connector pins or any

exposed circuitry on the device. When not in use, PXI modules should

be stored in the original antistatic envelope to avoid damage.

Phase Matrix PXI-1420 MW Downconverter Module 9

Quick Start Guide

Step 3. Perform Software Installation/Configuration

Complete the following steps to install the PXI device driver software

and Soft Front Panel available from an optional CD or from the Phase

Matrix web site at: www.phasematrix.com

Embedded Controller

1Install the PXI device driver from the optional CD or

from the Phase Matrix web site.

See “Step 3-1. Installing the PXI Device Driver" on page 10.

2Install the Soft Front Panel from the optional CD or

from the Phase Matrix web site.

See “Step 3-2. Installing the Soft Front Panel" on page 13.

PXI Remote Controller

PXI systems can be controlled from a

PC or laptop computer through a

software transparent link using

National Instruments’ PXI Remote

Controllers.



- PC control of PXI consists of a

PCI/PCI Express board in the

computer and a PXI/PXI Express

module in slot 1 of the PXI system,

connected by a copper or fiber-optic

cable.



- Laptop computer control of



PXI consists of an

ExpressCard/PCMCIA CardBus card

in the laptop and a PXI/PXI Express

module in slot 1 of the PXI system,

connected by a copper cable.

1If the PXI remote controller (PC or laptop computer) being used is a

Windows based operating system and was manufactured prior to

2008, install NI MXI-Express BIOS Compatibility Software:

NI MXI-Express BIOS Compatibility Software

2Install the NI PXI Platform Services Software that accompanies the

PXI remote controller: NI PXI Platform Services Software

3Install the PXI device driver from the optional CD or

from the Phase Matrix web site.

See “Step 3-1. Installing the PXI Device Driver" on page 10.

4Install the Soft Front Panel from the optional CD or

from the Phase Matrix web site.

See “Step 3-2. Installing the Soft Front Panel" on page 13.

5Connect the PXI remote controller, using the manufacture’s

provided cable, to the expansion card in the PXI remote controller.

6Reboot the PXI remote controller.

NOTE

Any application development environment (ADE) that is to be used (such as LabVIEW,

LabWindows/CVI, or a third-party program) must be installed prior to installing the

PXI device driver software or its Soft Front Panel.

10 Phase Matrix PXI-1420 MW Downconverter Module

Quick Start Guide

Step 3-1. Installing the PXI Device Driver

This procedure is used to install the PXI-1420’s device driver using the

“Found New Hardware Wizard” on an embedded controller or a

PXI remote controller running Windows 7/XP.

1Install PXI device drivers using one of the following methods:

•Insert the optional CD containing the device driver.

•Download the latest available PXI device driver from the

Phase Matrix web site and unzip it to a location on the

embedded controller or the PXI remote controller.



Device drivers are available at: www.phasematrix.com



NOTE

If the embedded controller or the PXI remote controller being used has previously had a

device driver of the same type installed, it must be removed before installing a new

PXI-1420’s device driver.



Refer to “(Step 3-3. Optional) Uninstalling the PXI Device Driver" on page 17 for

further details.

NOTE

Any application development environment (ADE) that is to be used (such as LabVIEW,

LabWindows/CVI, or a third-party program) must be installed prior to installing the

PXI device driver software or its Soft Front Panel.

NOTE

The following procedure is shown for systems running Windows 7 and may vary slightly

for systems running Windows XP.

NOTE

Anti-virus software may prevent the PXI device driver installer from executing.

CAUTION

PXI hardware does not support “hot-swap” capabilities!

Before installing the PXI-1420 MW Downconverter Module, the PXI chassis must be

powered off and unplugged to prevent damage to PXI modules.

Table des matières

Autres manuels National Instruments Unité de contrôle

National Instruments

National Instruments NI PXIe-4138 Manuel utilisateur

National Instruments

National Instruments NI 9246 Manuel utilisateur

National Instruments

National Instruments PXIe-4466 Manuel utilisateur

National Instruments

National Instruments NI 9472 Manuel utilisateur

National Instruments

National Instruments NI 9760 Manuel utilisateur

National Instruments

National Instruments PXI-6683 Series Manuel utilisateur

National Instruments

National Instruments NI ISM-7401 Manuel utilisateur

National Instruments

National Instruments PXIe-4322 Manuel utilisateur

National Instruments

National Instruments NI PXIe-4080 Manuel utilisateur

National Instruments

National Instruments NI 6520 Manuel utilisateur

National Instruments

National Instruments PXIe-8238 Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-FRC Manuel utilisateur

National Instruments

National Instruments NI 9802 Manuel utilisateur

National Instruments

National Instruments NI 9269 Manuel utilisateur

National Instruments

National Instruments NI 9411 Manuel utilisateur

National Instruments

National Instruments NI 9425 Manuel utilisateur

National Instruments

National Instruments FieldPoint FP-2000 Manuel utilisateur

National Instruments

National Instruments PXI Terminal Block NI TB-2708 Manuel utilisateur

National Instruments

National Instruments Module SCXI-1125 Manuel

National Instruments

National Instruments NI 4472 Manuel utilisateur

National Instruments

National Instruments 7340 PCI Manuel utilisateur

National Instruments

National Instruments FD-11634 Manuel utilisateur

National Instruments

National Instruments FieldPoint FP-20 Series Manuel utilisateur

National Instruments

National Instruments SLSC-12251 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
