GETTING STARTED GUIDE

ATCA-3671

FPGA Module for ATCA

This document describes how to install, configure, and test the ATCA-3671 FPGA Module for

ATCA. The ATCA-3671 is programmable both through LabVIEW using LabVIEW FPGA and

through BEEcube Platform Studio (BPS).

Note If you are using BPS, visit ni.com/info and enter the Info Code BPSsupport

to access BPS-related resources within the BPS Support Community.

This icon denotes a caution, which advises you of precautions to take to avoid injury,

data loss, or a system crash.

Caution You can impair the protection provided by the ATCA-3671 if you use it in

a manner not described in this document.

Contents

Electromagnetic Compatibility Guidelines...............................................................................2

Verifying the System Requirements..........................................................................................2

Unpacking the Kit..................................................................................................................... 3

Verifying the Kit Contents................................................................................................ 3

Preparing the Environment....................................................................................................... 5

Installing the Software.............................................................................................................. 5

Installing the Hardware.............................................................................................................6

Protection Impairment.......................................................................................................6

Installing the RTM............................................................................................................ 6

Installing the ATCA-3671 Module................................................................................... 7

Installing AIO-3681/3682 Modules.................................................................................. 7

Installing AIO-3691 Modules......................................................................................... 12

Powering On the ATCA-3671 Module................................................................................... 15

Maximum Power Requirements......................................................................................16

Connecting to a Host Computer..............................................................................................17

Installing MXI Cables.....................................................................................................17

Identifying FPGA Devices in MAX............................................................................... 17

Network Connection Configuration to the ATCA-3671................................................. 18

Programming...........................................................................................................................18

Finding Example VIs...................................................................................................... 18

Verifying the Device Connection (Optional).................................................................. 18

Removing Modules................................................................................................................. 19

Removing the ATCA-3671 Module................................................................................19

Removing the RTM.........................................................................................................19

Removing the ATCA I/O Module...................................................................................19

Front Panels and Connectors...................................................................................................19

ATCA-3671 Front Panel................................................................................................. 19

RTM-3661 Front Panel................................................................................................... 23

ATCA Compatibility vs. Compliance..................................................................................... 23

Troubleshooting...................................................................................................................... 23

Should I Update Device Firmware and FPGA Images?................................................. 23

Why Doesn't the Device Power On?...............................................................................23

Why Doesn't the Device Appear in MAX?.....................................................................24

Where to Go Next................................................................................................................... 24

Worldwide Support and Services............................................................................................ 25

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and accessories. Fiber optic cables connected to SFP+ and QSFP+

ports do not require shielding.

Caution To ensure the specified EMC performance, the length of any cable

connected to the Ethernet port and the Mini-SAS HD ports must be no longer than

30 m (100 ft.). The lengths of fiber optic cables connected to the SFP+ or QSFP+

ports are not controlled. The length of any cable connected to any other port must be

no longer than 3 m (10 ft.).

Verifying the System Requirements

To use the NI ATCA FPGA Modules instrument driver, your system must meet certain

requirements.

2| ni.com | ATCA-3671 Getting Started Guide

Refer to the product readme, which is available online at ni.com/manuals, for more

information about minimum system requirements, recommended system, and supported

application development environments (ADEs).

Unpacking the Kit

Caution To prevent electrostatic discharge (ESD) from damaging the device,

ground yourself using a grounding strap or by holding a grounded object, such as

your computer chassis.

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Caution Never touch the exposed pins of connectors.

Note Do not install a device if it appears damaged in any way.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

Verifying the Kit Contents

• ATCA-3671 module

• Ethernet cable

• ATCA I/O slot blockers (x4)

•ATCA-3671 Getting Started Guide (this document)

Note Your ATCA-3671 kit may contain additional NI ATCA products.

ATCA-3671 Getting Started Guide | © National Instruments | 3

Other Equipment

Required Items

In addition to the kit contents, you must provide the following additional items:

• A chassis from the following list:

– Single-Module ATCA Chassis1

– 14-Slot ATCA Chassis

Note If your kit does not include a chassis, you can purchase one from ni.com

or by contacting your local NI sales representative.

• Rear transition module (RTM) from the following list:

– (Recommended) RTM-3661 PCI Express Rear Transition Module for ATCA1

– RTM-3662 High-Speed Serial Rear Transition Module for ATCA

Note The RTM-3662 is supported only in BPS. To access BPS-related

resources and documentation for the RTM-3662 within the BPS Support

Community, visit ni.com/info and enter the Info Code BPSsupport.

• DC power supply1 as described in the device specifications

• Number 2 Phillips screwdriver

• Number 1 Phillips screwdriver

• Small flat-blade screwdriver

• Host PC or laptop

ATCA I/O Modules (Optional)

In addition to the required items, you may choose to provide one or more of the following

ATCA I/O modules.

• AIO-3681 Digitizer Module for FMC, with the following components:

– Riser card (x1)

– Male-to-female M2.5 standoffs (10 mm hex length, 6 mm thread length) (x2)

– Male-to-female M2.5 standoffs (12.5 mm hex length, 3.5 mm thread length) (x2)

– M2.5x8 screws (x2)

– M2.5x6 screws (x2)

• AIO-3682 Signal Generator Module for FMC, with the following components:

– Riser card (x1)

– Male-to-female M2.5 standoffs (x4)

1Included in some ATCA-3671 kits.

4| ni.com | ATCA-3671 Getting Started Guide

– M2.5x8 screws (x2)

– M2.5x6 screws (x2)

• AIO-3691 High-Speed Serial Adapter Module2, with the following components:

– Female-to-female standoffs (x2)

– M2.5x8 screws (x2)

– M2.5x6 screws (x4)

Preparing the Environment

Ensure that the environment you are using the ATCA-3671 in meets the following

specifications.

Ambient temperature range

(IEC 60068-2-1, IEC 60068-2-2)

0 °C to 40 °C

Operating temperature range

Used with a Single-Module ATCA

Chassis

0 °C to 25 °C

Used with a 14-Slot ATCA Chassis Dependent on final system installation

Note Operating temperatures are valid only when the ATCA-3671 module is used

with the specified chassis.

Operating humidity (IEC 60068-2-56) 10% to 90% RH, noncondensing

Pollution Degree 2

Maximum altitude 2,000 m at 25 °C ambient temperature

Indoor use only.

Caution Electrostatic Discharge (ESD) can damage the AIO-3681/3682 and

AIO-3691. To prevent damage, use industry-standard ESD prevention measures

during installation, maintenance, and operation.

Installing the Software

You must be an Administrator to install NI software on your computer.

1. Install an ADE, such as LabVIEW.

2. If you chose to install LabVIEW in step 1, install LabVIEW FPGA.

3. Visit ni.com/info and enter the Info Code atcadriver to access the driver download

page for the latest NI ATCA FPGA Modules software.

4. Download the NI ATCA FPGA Modules driver software.

2Included in some ATCA-3671 kits.

ATCA-3671 Getting Started Guide | © National Instruments | 5

5. Follow the instructions in the installation prompts.

Note Windows users may see access and security messages during

installation. Accept the prompts to complete the installation.

6. When the installer completes, select Restart in the dialog box that prompts you to restart,

shut down, or restart later.

Installing the Hardware

Protection Impairment

Caution You can impair the protection provided by the ATCA-3671 if you use it in

a manner not described in this document.

Caution Do not operate the ATCA-3671 in a manner not specified in this

document. Product misuse can result in a hazard. You can compromise the safety

protection built into the product if the product is damaged in any way. If the product

is damaged, return it to NI for repair.

Caution Observe all instructions and cautions in the user documentation. Using

the model in a manner not specified can damage the model and compromise the

built-in safety protection. Return damaged models to NI for repair.

Installing the RTM

Caution Install the RTM before installing the ATCA-3671. Installing the

ATCA-3671 before installing the RTM can damage the connectors of both modules.

1. Gently guide the module into the chassis module guides and slide the module into the

chassis until it is fully inserted.

2. Close the module ejector handles to fully seat the module and latch it to the chassis, as

shown in the following figure.

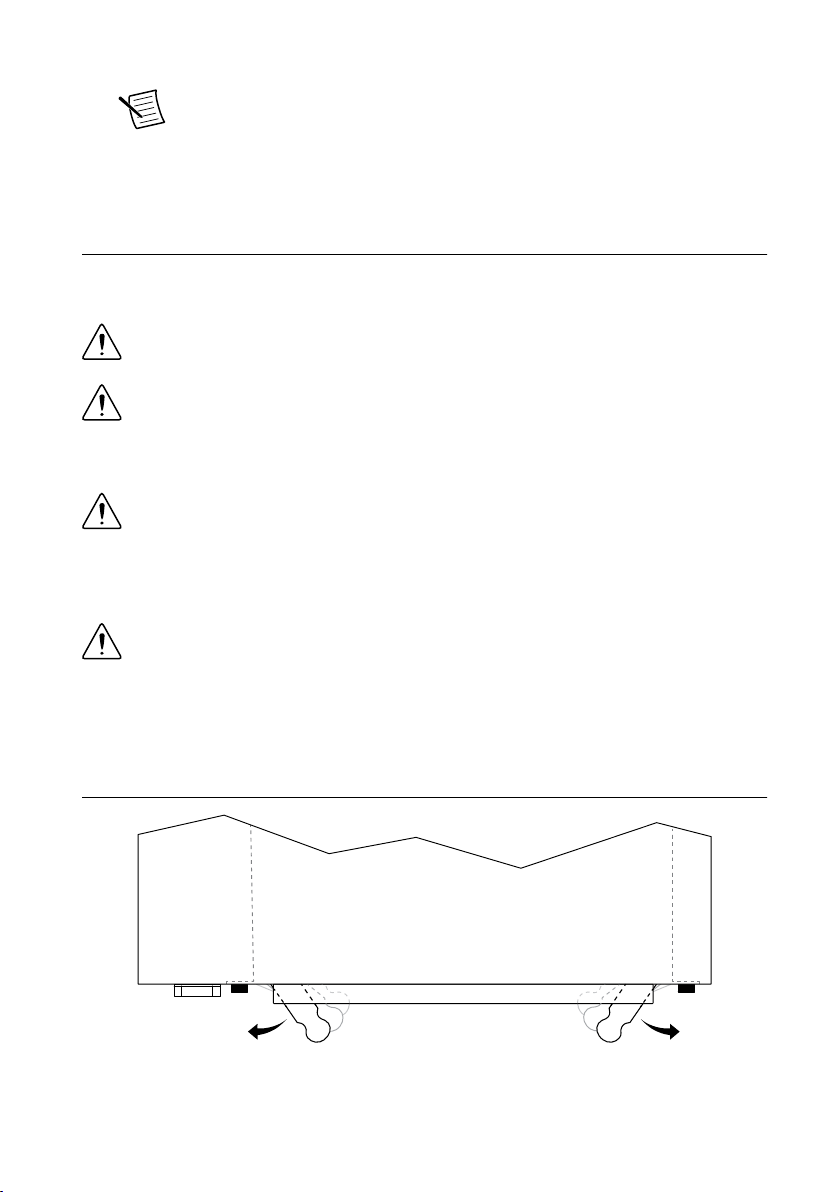

Figure 1. Using the Ejector Handles to Install the RTM

3. Tighten the four captive screws on the panel to secure the module.

6| ni.com | ATCA-3671 Getting Started Guide

Installing the ATCA-3671 Module

Caution Install the RTM before installing the ATCA-3671. Installing the

ATCA-3671 before installing the RTM can damage the connectors of both modules.

1. Ensure that the module ejector handles are in the open position, as shown in the following

figure.

Figure 2. Opening the Module Ejector Handles

ESD

SENSITIVE

ATCA-3671

FPGA Module for ATCA

AIO A AIO B AIO C AIO D

JC OUT A CLK IN/OUT A JC OUT B CLK IN/OUT B

1Gb ETH

GPIO BAIO CLK JTAGSYNC A GPIO C MGT REF SYNC B GPIO DGPIO A

JC OUT C CLK IN/OUT C JC OUT D CLK IN/OUT D

2. Gently guide the module into the chassis module guides and slide the module into the

chassis until it is fully inserted.

3. Close the module ejector handles to fully seat the module and latch it to the chassis, as

shown in the following figure.

Figure 3. Closing the Module Ejector Handles

ESD

SENSITIVE

ATCA-3671

FPGA Module for ATCA

AIO A AIO B AIO C AIO D

JC OUT A CLK IN/OUT A JC OUT B CLK IN/OUT B

1Gb ETH

GPIO BAIO CLK JTAGSYNC A GPIO C MGT REF SYNC B GPIO DGPIO A

JC OUT C CLK IN/OUT C JC OUT D CLK IN/OUT D

4. Tighten the four captive screws on the panel to secure the module.

Installing AIO-3681/3682 Modules

Install one or more AIO-3681/3682 modules to enable analog-to-digital and digital-to-analog

conversion of RF signals.

Determine how many modules you are installing and choose the appropriate number of empty

slot(s) in the ATCA-3671. If hardware is present in the slot(s) you choose, remove the installed

ATCA I/O module(s), riser card(s), and additional components from the slot(s).

Ensure you have the following components for each AIO-3681/3682 module:

ATCA-3671 Getting Started Guide | © National Instruments | 7

• Riser card (x1)

• Male-to-female M2.5 standoffs (10 mm hex length, 6 mm thread length) (x2)

• Male-to-female M2.5 standoffs (12.5 mm hex length, 3.5 mm thread length) (x2)

• M2.5x8 screws (x2)

• M2.5x6 screws (x2)

Complete the following steps to install one to four AIO-3681/3682 modules, depending on

your chosen hardware configuration.

1. Install a riser card into the ATCA-3671 motherboard mating connector. Secure with two

male-to-female M2.5 standoffs (10 mm hex length, 6 mm thread length), as shown in the

following figure.

Figure 4. Installing Riser Card(s)

FPGA Module for ATCA

ATCA-3671

1. ATCA-3671 Module

2. Riser Cards

3. Male-to-Female M2.5 Standoff (10 mm Hex Length, 6 mm Thread Length)

8| ni.com | ATCA-3671 Getting Started Guide

2. Install two male-to-female standoffs into the AIO-3681/3682 module with two male-to-

female M2.5 standoffs (12.5 mm hex length, 3.5 mm thread length), as shown in the

following figure.

Figure 5. Installing Standoffs into the AIO-3681/3682 Module(s)

1. AIO-3681/3682 Module

2. M2.5x6 Screw, Preinstalled

3. Male-to-Female M2.5 Standoff (12.5 mm Hex Length, 3.5 mm Thread Length)

3. Align the AIO-3681/3682 module with the riser card connector and gently mate the

connectors, as shown in the following figure.

Note The AIO-3681/3682 module must be centered on the riser card

connector so that the holes for the screws are aligned.

ATCA-3671 Getting Started Guide | © National Instruments | 9

Figure 6. Aligning the AIO-3681/3682 Module(s) with the Riser Card(s)

FPGA Module for ATCA

ATCA-3671

1. ATCA-3671 Module

2. Riser Card

3. AIO-3681/3682 Modules

4. Secure the AIO-3681/3682 module to the ATCA-3671 module with two M2.5x8 screws

from the underside of the ATCA-3671 module, as shown in the following figure.

10 | ni.com | ATCA-3671 Getting Started Guide

Table des matières

Autres manuels National Instruments Unité de contrôle

National Instruments

National Instruments NI 9205 Manuel utilisateur

National Instruments

National Instruments 9472 Manuel utilisateur

National Instruments

National Instruments NI 9866 Manuel utilisateur

National Instruments

National Instruments NI 9861 Manuel utilisateur

National Instruments

National Instruments SCC-AI Series Manuel utilisateur

National Instruments

National Instruments FBUS-HSE/H1 LD Manuel utilisateur

National Instruments

National Instruments NI FlexRIO PXI-7951R Manuel utilisateur

National Instruments

National Instruments NI 9207E Manuel utilisateur

National Instruments

National Instruments PXI-2503 Manuel utilisateur

National Instruments

National Instruments NI PXIe-4138 Manuel utilisateur

National Instruments

National Instruments SCXI SCXI-1102 Manuel utilisateur

National Instruments

National Instruments BNC-208X Series Manuel utilisateur

National Instruments

National Instruments NI MID-7604 Guide d'installation

National Instruments

National Instruments NI PXIe-4080 Manuel utilisateur

National Instruments

National Instruments NI-9206 Manuel utilisateur

National Instruments

National Instruments NI 9751 Manuel utilisateur

National Instruments

National Instruments FieldPoint FP-AI-110 Manuel utilisateur

National Instruments

National Instruments 9221 Manuel utilisateur

National Instruments

National Instruments FlexRIO PXI-79 R Series Manuel utilisateur

National Instruments

National Instruments FlexRIO PXIe-7975R Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel

National Instruments

National Instruments NI TB-4340 Manuel utilisateur

National Instruments

National Instruments SCXI-1520 Manuel

National Instruments

National Instruments LabVIEW Robotics Module Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
