National Instruments NI PXIe-8880 Manuel utilisateur

PXIe-8880

Getting Started

2024-02-05

Contents

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Preparing the Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Shock and Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installing an OS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing from a USB CD/DVD-ROM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installing the NI PXIe-8880 into a PXI Express Chassis. . . . . . . . . . . . . . . . . . . . . . . 6

LabVIEW RT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LabVIEW RT Soware Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LabVIEW RT Configuration Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Drivers and Soware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Data Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

NI PXIe-8880 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Front Panel Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PXI Express Trigger Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Front Panel Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

PXI Express Chassis Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

PXI Express System Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Removing the NI PXIe-8880 from a PXI Express Chassis. . . . . . . . . . . . . . . . . . . . . 16

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Common Configuration Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

General Questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

What do the LEDs on the front panel mean?. . . . . . . . . . . . . . . . . . . . . . . . . 17

Aer shutting down my NI PXIe-8880 controller, the Port 1 Ethernet LEDs

continue to blink. Is it safe to remove my controller or disconnect power?.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How do I check the configuration of the memory, hard drive, time/date,

and so on?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Can I use the internal Serial ATA drive and an external hard drive at the

same time?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Boot Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ni.com

PXIe-8880 Getting Started

What devices can I boot from?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

How do I configure the controller to boot from these devices?. . . . . . . . . 18

Cables and Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

How do I plug both a PS/2 mouse and PS/2 keyboard into the controller?.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

What if I don’t have a Y-splitter cable? Can I still use a mouse and

keyboard?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Soware Driver Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

How do I install or reinstall the video driver?. . . . . . . . . . . . . . . . . . . . . . . . . 19

How do I install or reinstall the Ethernet driver?. . . . . . . . . . . . . . . . . . . . . . 20

How do I install or reinstall the GPIB driver?. . . . . . . . . . . . . . . . . . . . . . . . . 20

How do I install soware from a CD?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Upgrade Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

How do I upgrade system memory?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

NI PXIe-8880 System Memory Information. . . . . . . . . . . . . . . . . . . . . . 21

How do I flash a new BIOS?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Where do I get the latest soware drivers?. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

My NI PXIe-8880 does not have an internal floppy drive. Is there a way to

use an external drive?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

PXI Express Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

How do I use the SMB trigger on the front panel?. . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

What if the Controller Does Not Boot?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

What If I Can’t See The Video?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

My system boots fine as long as a particular module is not in my chassis. How

do I boot the chassis with the module installed?. . . . . . . . . . . . . . . . . . . . . . . . . . 24

My chassis or controller does not appear in MAX. How do I use MAX to identify

and configure my PXI system?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

My CMOS is corrupted. How do I set it back to default?. . . . . . . . . . . . . . . . . . . . . 24

NI Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

PXIe-8880 Getting Started

Overview

This document includes instructions for installing and configuring your NI PXIe-8880

embedded controller.

Instruments>\_Legal Information directory for information about NI copyright,

patents, trademarks, warranties, product warnings, and export compliance.

Unpacking

The NI PXIe-8880 ships in an antistatic package to prevent electrostatic discharge

from damaging device components. To prevent such damage when handling the

device, ground yourself using a grounding strap or by holding a grounded object,

such as your computer chassis, and complete the following steps:

1. Touch the antistatic package to a metal part of the chassis before removing

the device from the package.

Caution Never touch the exposed pins of connectors.

2. Remove the device from the package and inspect the device for loose

components or any other sign of damage.

3. Notify NI if the device appears damaged in any way. Do not install a damaged

device into your chassis.

Electrical

Voltage (V) Current (Amps) Typical Current (Amps) Maximum

+3.3 V 3.75 A 5.4 A

+5 V 1.5 A 2.0 A

+12 V 3.5 A 5.0 A

-12 V 0.00 A 0.00 A

ni.com

PXIe-8880 Getting Started

Voltage (V) Current (Amps) Typical Current (Amps) Maximum

5 VAUX 0.3 A 0.4 A

Preparing the Environment

Ensure the environment you are using the NI PXIe-8880 in meets the following

specifications.

Ambient temperature range

Standard 0 to 50 °C[1],[2] (Tested in accordance with

IEC-60068-2-1 and IEC-60068-2-2. Meets MIL-

PRF-28800F Class 3 temperature limits, except

as noted.)

Relative humidity range 10% to 90%, noncondensing (Tested in

accordance with IEC-60068-2-56.)

Maximum altitude 2,000 m (800 mbar) (at 25 °C ambient

temperature) with chassis fans on high.

Pollution Degree 2

Indoor use only.

Note Refer to the NI PXIe-8880 User Manual and Specifications for full

NI PXIe-8880 specifications.

Shock and Vibration

Operating Shock 30 g peak, half-sine, 11 ms pulse in the Y and Z

axes. 20 g peak, half-sine, 11 ms pulse in the X

axis. (Tested in accordance with IEC-60068-2-27.

Meets MIL-PRF-28800F Class 2 limits in Y and Z

axes.)

Random Vibration

Operating 5 to 500 Hz, 0.3 grms

Nonoperating 5 to 500 Hz, 2.4 grms (Tested in accordance with

IEC-60068-2-64. Nonoperating test profile

PXIe-8880 Getting Started

exceeds the requirements of MIL-PRF-28800F,

Class 3.)

Installing an OS

NI PXIe-8880 controllers include a preinstalled OS. In some cases, you may want to

install a dierent OS.

You can install Windows 7 from a USB CD/DVD-ROM or use an external SCSI CD-ROM

with a PXI-SCSI adapter.

Note For additional assistance with installing or changing an operating

system, refer to KnowledgeBase 2ZKC02OK, Hard Drive Recovery and OS

Installation for PXI, VXI, cRIO-908x, and cDAQ-913x Controllers, at

ni.com/support.

Installing from a USB CD/DVD-ROM

The NI PXIe-8880 supports the installation of Windows 7 from a USB CD/DVD-ROM.

As an alternative to a USB CD/DVD-ROM drive, you can use an external SCSI CD-ROM

with a PXI-SCSI adapter.

Note For additional assistance with installing or changing an operating

system, refer to KnowledgeBase 2ZKC02OK, Hard Drive Recovery and OS

Installation for PXI, VXI, cRIO-908x, and cDAQ-913x Controllers, at

ni.com/support.

Installing the NI PXIe-8880 into a PXI Express Chassis

To install the NI PXIe-8880 into a PXI Express chassis, complete the following steps.

1. Plug in your chassis before installing the NI PXIe-8880. The power cord

grounds the chassis and protects it from electrical damage while you install

the module.

ni.com

PXIe-8880 Getting Started

Caution To protect both yourself and the chassis from electrical

hazards, leave the chassis powered o until you finish installing the

NI PXIe-8880 module.

2. Remove any filler panels blocking access to the system controller slot (Slot 1)

in the chassis.

3. Touch the metal part of the chassis case to discharge any static electricity that

might be on your clothes or body.

4. Remove the protective plastic covers from the four bracket-retaining screws as

shown in the following figure.

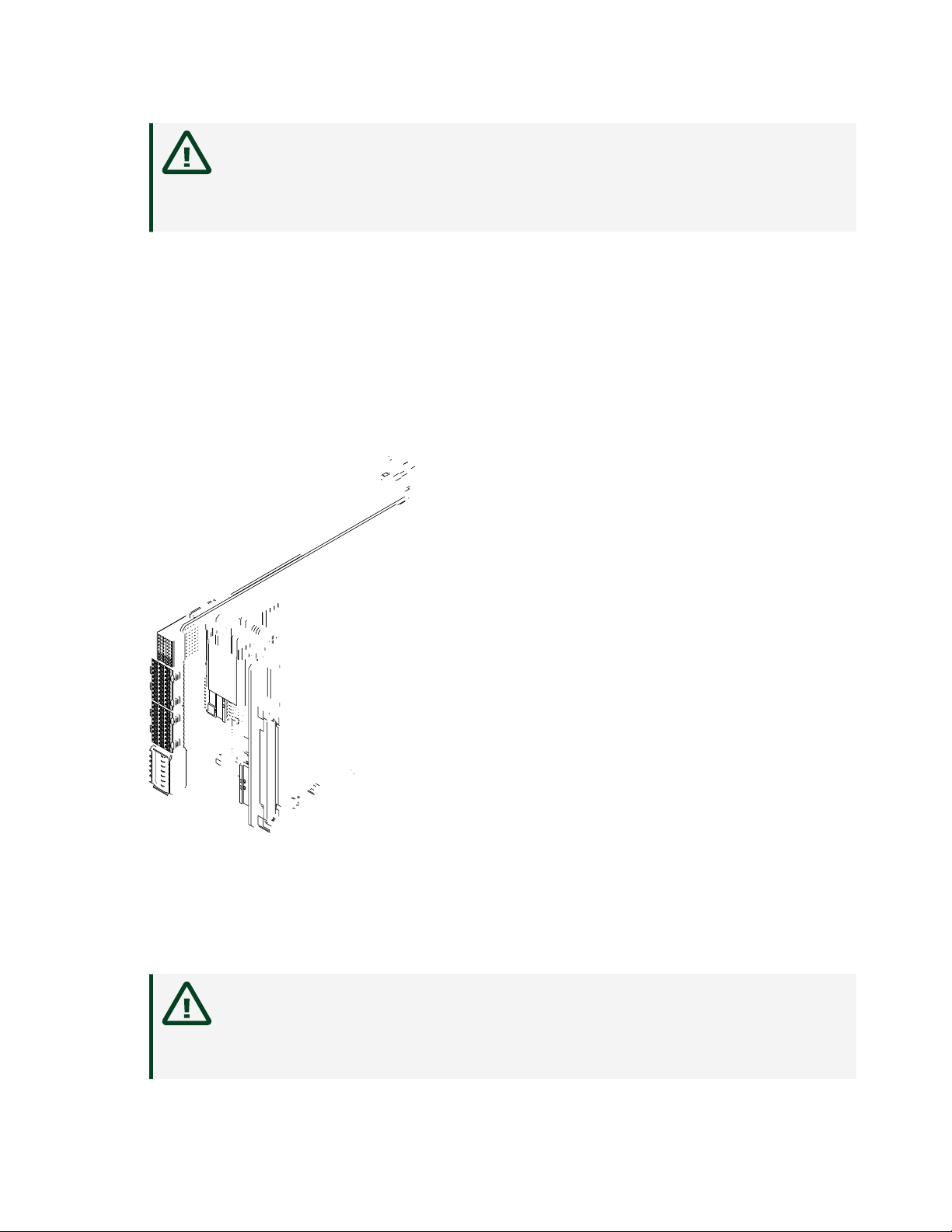

Figure 1. Removing Protective Screw Caps

a. Protective Screw Cap (4X)

5. Make sure the injector/ejector handle is in its downward position. Align the

NI PXIe-8880 with the card guides on the top and bottom of the system

controller slot.

Caution Do not raise the injector/ejector handle as you insert the

NI PXIe-8880. The module will not insert properly unless the handle

PXIe-8880 Getting Started

is in its downward position so that it does not interfere with the

injector rail on the chassis.

6. Hold the handle as you slowly slide the module into the chassis until the

handle catches on the injector/ejector rail.

7. Raise the injector/ejector handle until the module firmly seats into the

backplane receptacle connectors. The front panel of the NI PXIe-8880 should

be even with the front panel of the chassis.

8. Tighten the four bracket-retaining screws on the top and bottom of the front

panel to secure the NI PXIe-8880 to the chassis.

9. Check the installation.

10. Connect the keyboard and mouse to the USB connectors. If you are using a

PS/2 keyboard and a PS/2 mouse, a Y-splitter adapter is available to connect

both to a single USB connector. National Instruments oers a Y-splitter

adapter cable, part number 778713-02, available through the online catalog at

ni.com/products.

11. Connect the DisplayPort monitor video cable to the DisplayPort connector, or

use the DisplayPort-to-VGA adapter included with your controller to connect a

VGA monitor to the DisplayPort connector.

12. Connect devices to ports as required by your system configuration. Refer to

the NI PXIe-8880 Front Panel Connectors figure for front panel connector

locations.

13. Power on the chassis.

14. Verify that the controller boots. If it does not boot, refer to the

Troubleshooting section.

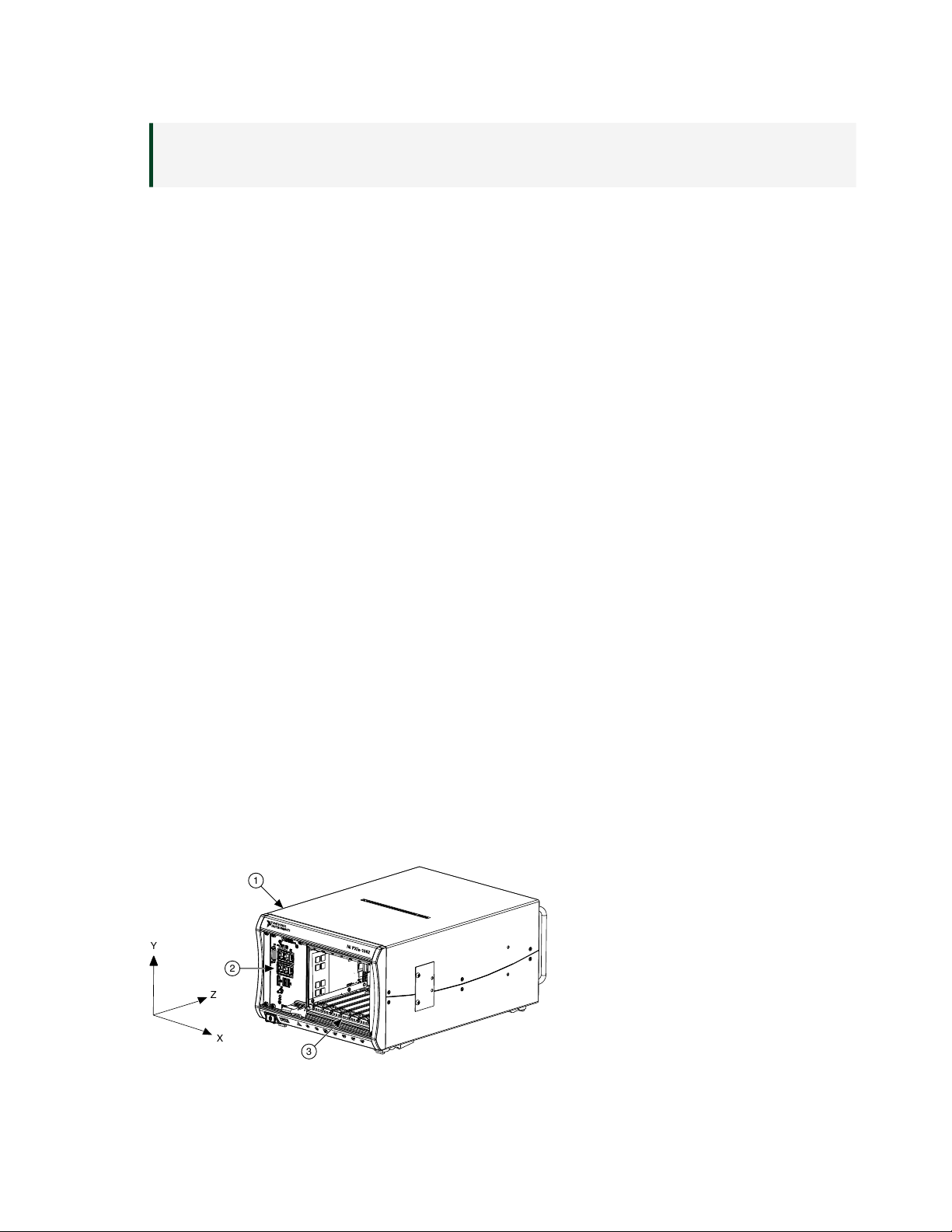

Figure 2. NI PXIe-8880 Installed in a PXI Express Chassis

ni.com

PXIe-8880 Getting Started

a. PXI Express Chassis

b. PXI Express Controller

c. Injector/Ejector Rail

LabVIEW RT

This section explains soware installation and switch configuration for LabVIEW RT

on your PXI Express controller.

LabVIEW RT Soware Installation

The following section describes the necessary steps to get your PXI Express

embedded controller setup to run LabVIEW Real-Time. In this section you will

configure the boot mode of the controller, verify or change IP settings, and install

LabVIEW Real-Time soware.

Complete the following steps to install the LabVIEW RT soware.

1. Boot the NI PXI Express embedded controller into the real-time operating

system. Refer to the LabVIEW RT Configuration Switches section to

configure the controller for booting into LabVIEW RT.

The PXI Express controller will automatically boot into LabVIEW RT Safe Mode

when no soware is installed. LabVIEW RT Safe Mode loads with the basic real-

time operating system and will automatically attempt to connect to the

network using DHCP. If DHCP is not available, it will then connect to the

network with a link-local IP address.

Tip You can connect a monitor to the controller to display startup

messages such as the IP address and MAC address.

2. Open Measurement & Automation Explorer (MAX) on another computer in the

same subnet and expand the Remote Systems branch. MAX lists the PXI

Express controller as the model name of the controller followed by the MAC

address (for example, NI-PXIe-8880 00802f108562).

Note The other computer must have LabVIEW, LabVIEW RT, and any

desired drivers installed.

PXIe-8880 Getting Started

Tip Record the PXI Express controller MAC address, located on the

side of the controller, for use in identifying the controller. The label

also can be removed and placed on the front of the controller for

easier access.

3. Click on the appropriate PXI Express controller entry to access the Network

Settings tab in the right pane view.

4. (Optional) Enter a name for the RT target in the Name text box.

5. (Optional) Set the network configuration options of the RT target in the IP

Settings section and click the Apply button.

For information about configuring network settings, refer to the Configuring

Network Settings book, accessible by browsing to MAX Remote Systems

Help » LabVIEW Real-Time Target Con󽘀guration » Con󽘀guring

Network Settings from the Contents tab of MAX Help.

Note When any IP or identification settings are changed, you will

be prompted to reboot the controller for the changes to take eect.

Click Yes to automatically reboot the RT target. You may also reboot

the controller by right-clicking on the target name under Remote

Systems and selecting Reboot.

Aer rebooting the PXI Express controller it will appear in the Remote

Systems category with the assigned name.

6. Expand the PXI Express controller view in the Remote Systems branch and

select Software.

7. Click the Add/Remove Software button in the toolbar to launch the

LabVIEW Real-Time Soware Wizard.

8. Install the LabVIEW Real-Time soware and device drivers that you require on

the RT target. Refer to the NI Web site at ni.com/info and enter the Info Code

etspc for the latest information about supported soware.

Aer installation of the soware the controller will automatically reboot and you

will now be able to program it using LabVIEW Real-Time.

ni.com

PXIe-8880 Getting Started

Autres manuels pour NI PXIe-8880

Table des matières

Autres manuels National Instruments Matériel informatique

National Instruments

National Instruments PXI NI 8171 Series Manuel utilisateur

National Instruments

National Instruments USB-6501 Manuel utilisateur

National Instruments

National Instruments PC-DIO-24/PnP Manuel utilisateur

National Instruments

National Instruments NI sbRIO-960x Manuel utilisateur

National Instruments

National Instruments DAQ PCI-1200 Manuel utilisateur

National Instruments

National Instruments Deterministic Ethernet Expansion Chassis NI... Manuel utilisateur

National Instruments

National Instruments IMAQTM Manuel utilisateur

National Instruments

National Instruments CPCI-GPIB Manuel utilisateur

National Instruments

National Instruments Two-Slot Embedded Controller NI PXI-8183 Manuel utilisateur

National Instruments

National Instruments DAQ PCI-6023E Manuel utilisateur

National Instruments

National Instruments SCB-19 Manuel utilisateur

National Instruments

National Instruments R Series Manuel utilisateur

National Instruments

National Instruments NI 9213 Manuel utilisateur

National Instruments

National Instruments NI PXIe-1085 Manuel utilisateur

National Instruments

National Instruments PXIe-8106 Manuel utilisateur

National Instruments

National Instruments NI PXIe-8133 Manuel utilisateur

National Instruments

National Instruments 9260 Manuel utilisateur

National Instruments

National Instruments sbRIO-9607 Manuel utilisateur

National Instruments

National Instruments GPIB-120B Manuel utilisateur

National Instruments

National Instruments NI 6612 Manuel utilisateur

National Instruments

National Instruments PXI/CompactPCI Embedded Computer NI PXI-8108 Manuel utilisateur

National Instruments

National Instruments NI PXI-8184 Manuel utilisateur

National Instruments

National Instruments NI 9472 Manuel utilisateur

National Instruments

National Instruments Multifunction RIO PXI-7830 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
