INSTALLATION GUIDE

NI 8221

The NI 8221 is a two-slot CardBus PC Card carrier for the

PXI/CompactPCI bus.

Contents

Hardware Overview ................................................................................ 1

NI 8221 Features.............................................................................. 1

PC Card Specification...................................................................... 2

Connectivity..................................................................................... 2

Software ........................................................................................... 2

What You Need to Get Started ............................................................... 2

Installing the NI 8221 ............................................................................. 3

Installation Steps Specific to Windows 2000 ......................................... 4

Common Questions................................................................................. 5

Specifications .......................................................................................... 5

Environmental.................................................................................. 5

Power Requirements ........................................................................ 5

Hardware Overview

The NI 8221 integrates two PC Card slots in a single PXI module and uses

a single-chip PC Card host adapter to control up to two fully independent

PC Card sockets.

NI 8221 Features

• Two-slot PC Card adapter in one PXI/CompactPCI slot

• Compatible with both 16-bit and CardBus (32-bit) PC Cards

• Supports two Type I/II or one Type III PC Card

• Supports 5 V and 3.3 V PC Cards

• Serialized Interrupts in PXI supports legacy ISA-style interrupts

for 16-bit PC Cards (with NI 8171 series controllers only)

• Compliant with PC Card Standard Release 7.0

• Compliant with PXI and CompactPCI specifications

NI 8221 Installation Guide 2 ni.com

PC Card Specification

The PC Card standard defines three form factors—Type I, Type II, and

Type III—with a 68-pin interface between the peripheral card and socket.

All PC Cards have the same length and width, differing only in thickness.

Smaller cards can fit in larger sockets. In addition to electrical and physical

specifications, the PC Card standard defines a software architecture to

provide plug-and-play capability across the widest range of products.

This software includes Socket Services and Card Services, which make

PC Cards interoperable.

The PC Card specification includes:

•16-bit PC Card

–16-bit data and 26-bit addressing capabilities

–Up to 20 Mbytes/s peak bandwidth at 100 ns cycle rate

–Compatibility with PCMCIA 2.1/JEIDA 4.2

•CardBus PC Card

–32-bit data and addressing capabilities

–Up to 132 Mbytes/s Burst transfer rate

–Support for Bus Masters on PC Cards

–Synchronous interface

–3.3 V and lower voltage operation

Connectivity

The NI 8221 can support two 16-bit or CardBus (32-bit) Type I/II cards or

one Type III PC card using the two standard 68-pin interface connectors.

Software

Windows 2000 includes native support for the NI 8221.

Older Windows versions are not fully supported.

What You Need to Get Started

Make sure you have the following items before attempting to install the

NI 8221 hardware and software:

•Windows 2000 installed on your NI 8171 series controller

•BIOS version 1.16 or later on your NI 8171 series controller. For the

latest BIOS, see ftp://ftp.ni.com/support/pxi/pxi-8171/

BIOS_update/.

©National Instruments Corporation 3 NI 8221 Installation Guide

Installing the NI 8221

This section describes how to install your NI 8221.

Caution Electrostatic discharge can damage several components on the NI 8221. To avoid

such damage in handling the board, touch the antistatic plastic package to a metal part of

your system chassis before removing the board from the package.

1. Make sure your PXI/CompactPCI system is turned off, but keep it

plugged in so that it remains grounded while you install the NI 8221.

2. Choose an unused PXI/CompactPCI slot in your system.

3. Remove the slot cover for the slot you have chosen.

4. Make sure the injector/ejector handle on the NI 8221 is in its

downward position. Align the NI 8221 with the card guides

on the top and bottom of the slot.

Caution Do not raise the injector/ejector handle as you insert the NI 8221. The module

will not insert properly unless the handle is in its downward position so that it does not

interfere with the injector rail on the mainframe.

5. Hold the handle as you slowly slide the module into the mainframe

until the handle catches on the injector/ejector rail.

6. Raise the injector/ejector handle until the module firmly seats into the

backplane receptacle connectors. The NI 8221 front panel should be

even with the mainframe front panel.

NI 8221 Installation Guide 4 ni.com

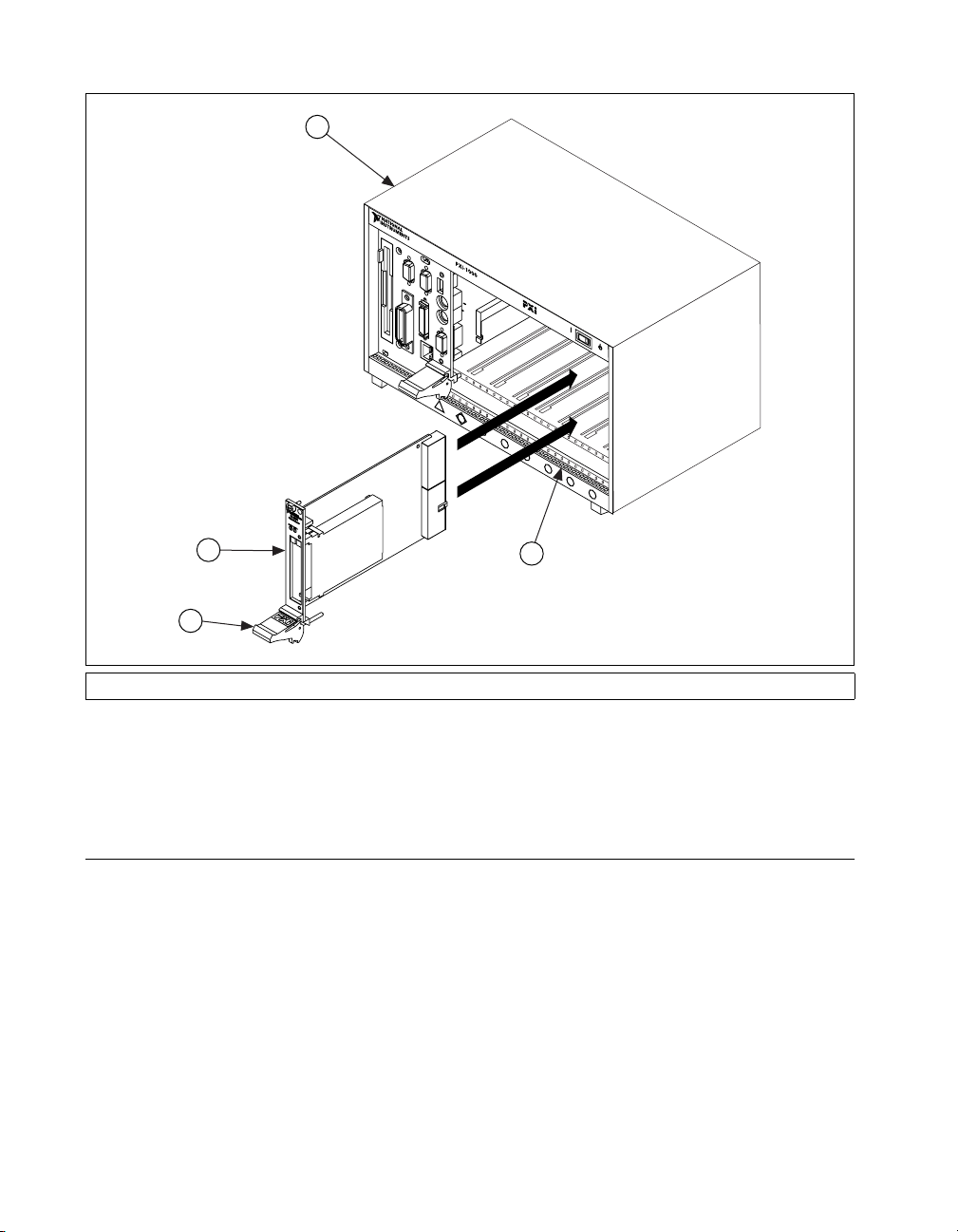

Figure 1 shows how to install the NI 8221 in a PXI/CompactPCI chassis.

Figure 1. Installing the NI 8221 into a PXI/CompactPCI Chassis

7. Screw the front panel of the NI 8221 to the front panel-mounting rail.

8. Turn on your system.

Installation Steps Specific to Windows 2000

Windows 2000 should automatically detect all new devices—two

PCI-CardBus bridge devices—and automatically determine the right

driver. A New Hardware Found dialog box appears and then disappears

on its own. Go to the Control Panel, double-click the PC Card icon, and

follow any remaining Windows 2000 steps. Your NI 8221 installation

for Windows 2000 is now complete.

1 PXI Chassis 2 Injector/Ejector Rail 3 Injector/Ejector Handle 4 PXI Module

ONSTANDBY

©National Instruments Corporation 5 NI 8221 Installation Guide

Note You may need to free ISA resources for the NI 8221. You can do this by disabling

devices on the Start»Settings»Control Panel»System»Hardware»Device Manager tab

or by reconfiguring the BIOS to disable ISA interrupts or devices (serial ports, parallel

ports, and so on).

Common Questions

How do I enable resources for PC Cards?

You may need to free ISA resources for the NI 8221. You can do this

by disabling devices on the Start»Settings»Control Panel»System»

Hardware»Device Manager tab or by reconfiguring the BIOS to disable

ISA interrupts or devices (serial ports, parallel ports, and so on).

What do I do if my PXI hardware is listed in the Windows Device

Manager with a circled X or exclamation point (!) overlaid on it?

Repeat the steps in the Installing the NI 8221 section. If the problem

persists, contact National Instruments.

Can I use the NI 8221 with other vendors’ CPCI controllers?

Yes, but only if the CPCI controller supports Serialized Interrupt

Implementations and the PC Card uses Serialized Interrupts.

Specifications

Environmental

Temperature

Operating......................................0 to 55 °C

Storage .........................................–20 to 70 °C

Relative humidity

Operating ........................................ 10% to 90% noncondensing

Storage ............................................ 5% to 95% noncondensing

Functional shock .................................... 30 g peak, half-sine, 11 ms pulse

Random vibration................................... 5 to 500 Hz, 0.31 grms, operating

10 to 500 Hz, 2.46 grms,

nonoperating

NI 8221 Installation Guide 6 ni.com

Power Requirements

+3.3 V

Typical.............................................50 mA

Maximum ........................................100 mA

+5 V

Typical.............................................50 mA

Maximum ........................................100 mA
