MUTOH VJ-628 ValueJet Manuel utilisateur

MSMIE-A-01

INSTALLATION

WIZARD

OPERATION

MANUAL

Read This Manual Before Using The Application

( 1 )

Contents

1Introduction.............................................................................1-1

1-1 Target Models..................................................................................1-1

1-2 Supported Operation Systems.........................................................1-1

1-3 Supported Languages .....................................................................1-1

2Installation Wizard Functions...................................................2-1

3Installation Wizard...................................................................3-1

3-1 Launching Installation Wizard..........................................................3-1

3-2 Initial Setting (MSM) ........................................................................3-5

3-3 Activation.......................................................................................3-19

3-4 Initial Charge..................................................................................3-24

3-5 Media Set ......................................................................................3-66

3-6 Nozzle Check...............................................................................3-120

3-7 Cleaning ......................................................................................3-125

3-8 Adjustment Print ..........................................................................3-127

3-9 Media Feed Adjustment...............................................................3-132

3-10 Complete .....................................................................................3-141

MUTOH Status Monitor

Installation Wizard Operation Manual

1 Introduction

1-1

MSMIE-A-01

1 Introduction

This document describes the specifications for the Installation Wizard performed from

MUTOH Status Monitor (referred to as “MSM”).

MSM and other related applications should be installed from All-in-one installer.

1-1 Target Models

The target models are as follows:

Model

F/W Version

Windows Driver Version

VJ-628

1.00 or later

VJ-426UF

1.00 or later

VJ-628X

1.00 or later

VJ-626UF

1.00 or later

VJ-628MP

1.00 or later

XPJ-1682SR/1641SR

1.00 or later

XPJ-461UF/661UF

1.00

1-2 Supported Operation Systems

The supported OS are as follows:

Processor

Supported OS

x86

Windows 10

Windows 8/8.1

Windows 7

x64

Windows 10

Windows 8/8.1

Windows 7

1-3 Supported Languages

The supported languages are as follows:

Japanese

Chinese

Dutch

Portuguese

English

German

Italian

Korean

Spanish

French

MUTOH Status Monitor

Installation Wizard Operation Manual

2 Installation Wizard Functions

2-1

MSMIE-A-01

2 Installation Wizard Functions

The Installation Wizard guides you through the printer initial installation process for your

selected printer and informs the installation result to All-in-on installer.

When the Installation Wizard is fully completed, MSM is closed and you will return to the

All-in-one installer process.

For the details of the Installation Wizard, see “3 Installation Wizard”.

VJ-628's Installation Wizard screens are used as examples here, unless otherwise noted.

NOTE

MUTOH Status Monitor

Installation Wizard Operation Manual

3 Installation Wizard

3-1

MSMIE-A-01

3 Installation Wizard

The Installation Wizard launches depending on the printer status and guides you through

the printer initial installation process after the printer registration.

3-1 Launching Installation Wizard

The Installation Wizard launches if any of the following conditions apply;

1. The MSM initial setting has not been completed.

2. The printer activation has not been completed

3. The initial ink charge has not been performed.

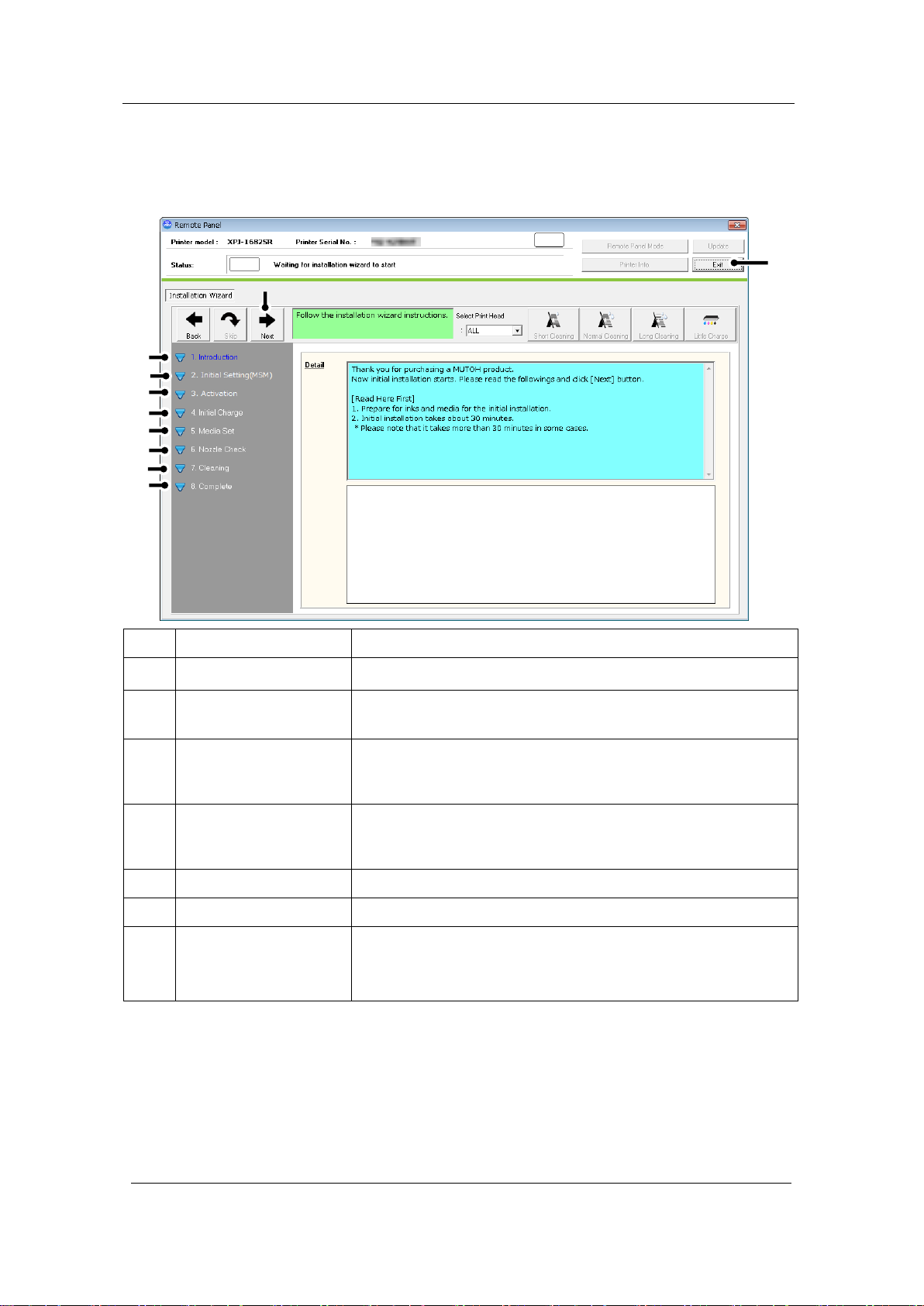

1). Main Menu for VJ-628/628X/628MP

MUTOH Status Monitor

Installation Wizard Operation Manual

3 Installation Wizard

3-2

MSMIE-A-01

Name

Contents

Introduction

Displays the introduction of the Installation Wizard.

Click [Next] to continue.

Initial Setting (MSM)

Performs the MSM initial setting.

Click [Next] in this menu to launch the Initial Setting Wizard.

Activation

Performs the printer activation.

Click [Next] in this menu to launch the Activation Wizard.

* If the printer activation was already performed, skip this menu.

4-9

Initial Charge

Performs the initial ink charge and printer adjustments.

Click [Next] to proceed each menu.

* If the initial ink charge was already performed, skip the “Initial

Charge”menu.

Complete

Exits the Installation Wizard in this menu.

Go to the “Initial Setting”menu.

Exit

Terminates the Installation Wizard.

If you terminate the Installation Wizard without performing the

followings, your printer cannot be operated:

・Activation

・Initial Charge

MUTOH Status Monitor

Installation Wizard Operation Manual

3 Installation Wizard

3-3

MSMIE-A-01

2). Main Menu for VJ-426UF/626UF/XPJ-461UF/661UF

Name

Contents

Introduction

Displays the introduction of the Installation Wizard.

Click [Next] to continue.

Initial Setting (MSM)

Performs the MSM initial setting.

Click [Next] in this menu to launch the Initial Setting Wizard.

For the details, see “MUTOH Status Monitor Design Specification”.

Activation

Performs the printer activation.

Click [Next] in this menu to launch the Activation Wizard.

For the details, see “MUTOH Status Monitor Design Specification”.

* If the printer activation was already performed, skip this menu.

4-5

Initial Charge

Performs the initial ink charge and printer adjustments.

Click [Next] to proceed each menu.

* If the initial ink charge was already performed, skip the “Initial

Charge”menu.

Complete

Exits the Installation Wizard in this menu.

Go to the “Initial Setting”menu.

Exit

Terminates the Installation Wizard.

If you terminate the Installation Wizard without performing the

followings, your printer cannot be operated:

・Activation ・Initial Charge

MUTOH Status Monitor

Installation Wizard Operation Manual

3 Installation Wizard

3-4

MSMIE-A-01

3). Main Menu for XPJ-1682SR / 1641SR

Name

Contents

Introduction

Displays the introduction of the Installation Wizard.

Click [Next] to continue.

Initial Setting (MSM)

Performs the MSM initial setting.

Click [Next] in this menu to launch the Initial Setting Wizard.

For the details, see “MUTOH Status Monitor Design Specification”.

Activation

Performs the printer activation.

Click [Next] in this menu to launch the Activation Wizard.

For the details, see “MUTOH Status Monitor Design Specification”.

* If the printer activation was already performed, skip this menu.

4-7

Initial Charge

Performs the initial ink charge and printer adjustments.

Click [Next] to proceed each menu.

* If the initial ink charge was already performed, skip the “Initial

Charge”menu.

Complete

Exits the Installation Wizard in this menu.

Go to the “Initial Setting”menu.

Exit

Terminates the Installation Wizard.

If you terminate the Installation Wizard without performing the

followings, your printer cannot be operated:

・Activation ・Initial Charge

MUTOH Status Monitor

Installation Wizard Operation Manual

3 Installation Wizard

3-5

MSMIE-A-01

3-2 Initial Setting (MSM)

Performs the MSM initial setting.

For the details, see “MUTOH Status Monitor Operation Manual”.

Name

Contents

Launches the Initial Setting Wizard.

MUTOH Status Monitor

Installation Wizard Operation Manual

3 Installation Wizard

3-6

MSMIE-A-01

1). Introduction

This window will be displayed at the first time to use MSM.

Check the contents, and click "Start" button.

No.

Name

Description

Service List

List of services to be available for users by connecting the MSM to

MUTOH Club.

Start

Start the initial setting.
