MUTOH Toucan lt Mode d'emploi

Toucan LT board printer

Setup and Operating instructions

Unpack the Toucan LT board printer as you would any Toucan LT. Follow all cautions

associated with installing a standard Toucan LT.

Change in ‘wash’ instructions:

Proceed with a single ‘wash’ with Head conditioner because the printer has been ‘inked’ up

and tested during the manufacture of the ‘board’ printer.

Remember to verify ‘flow’ of liquids through the printer during the ‘wash’ and ‘ink fill’.

Complete the installation of the Toucan LT:

Align the printheads and print the copies of the Adjustment Parameter sheet and Test

prints. One set are to be stored in the left end of the printer and one set to return to Mutoh

America Inc. Follow the published Toucan LT installation document.

February 21, 2006 1/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Assembly and Setup of the Board printer:

During the ‘ink fill’ unpack the ‘tables’ from their shipping box.

Notice that on the front and rear of the Toucan LT Board printer there are two large

brackets on which there is a large stainless ‘mounting’ pin on each one. This pin will

screw up and down as required in a later step.

Mounting ‘Pin’ on front and back of printer. Mounting ‘Pin bracket’ on the sides of tables.

The mounting ‘pins’ are the main support on the right and left sides of each table where

there is a corresponding ‘mounting pin support bracket’ on each side of the table.

Notice that the bracket in front of the ‘ink pump’ station must be removed to verify

‘ink flow’ during the wash and ink fill processes. A 3mm Allen wrench is required to

remove the bracket.

Identifying the tables and spacer fins:

Tables:

The ‘rear’ table (at right) is identified by the

absence of screws along the ‘inside’ edge of

the table. The ‘outside’ edge is a ‘finished’

edge while the ‘inside’ edge (the edge

closest to the printer) is smooth aluminum.

The ‘front’ table (at left) is identified by a row

of screws, each with a rubber spacer, along the

smooth aluminum edge.

February 21, 2006 2/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Tip: The front ‘finished’ edges can be protected during everyday setup and

teardown by saving two of the long protective foam packing bats that came in the original

packaging to protect the table edges during shipping. When the table is to be stored the

bats can be pressed in place along the front edge. When the tables are in use these bats can

be placed underneath the printer table across the table leg braces.

Spacer fins:

There are 3 wider fins for the space over the dryer and 2 thin fins to bolt on the rear table.

Assembly of the tables:

Rear table assembly:

The two stainless fins must be attached to the ‘inside’ edge before being mounted to the

printer. This attachment is done with machine screws and nuts that have a knurled edge.

The knurled edge will pull tight into the holes and ‘seat’, becoming captive.

Note: Remove the protective film BEFORE assembling the fins to the table.

Align the two fins, side by side, so that they are flush with the top of the table. Insert the

screws, start each screw first and then tighten them all.

Note: In order to draw the knurl into the hole it may be necessary to hold the ‘nut’

while tightening until it gets started, then tighten a little more to ‘seat’ it.

February 21, 2006 3/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Mounting the rear table:

Have two people set the table upright and raise the ‘outside’ edge high enough for the side

mounting brackets to clear the alignment pins and the fins to slide in under the rear ‘static

tinsel strip’. Set the ‘holes’ on the pins and then lower the outside edge till the feet touch

the floor.

First: Raise far

end up to insert

fin end into back

of printer

Second: slide

table into back of

printer

Third: Once the table is inserted then lower the far end to set the alignment brackets onto

e pins.

ower the outside edge until the feet touch the floor.

Mounting the front table:

Three large stainless fins are to be attached to the ‘inside’ edge of the front table. This

attachm after mounting the table. Remove the white

the floor. Confirm that the surface of the three front fins are level with the table.

ent can be done either before or

protective film BEFORE attaching the fin.

Align the holes (keyhole slots) in the fins with the screws, slide them in place and press

down firmly. Set the alignment brackets onto the pins and lower the outside edge till the

feet touch

Adjust as required.

February 21, 2006 4/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

When tables are mounted on front and rear the tables are now ready for ‘leveling’ and final

oard position.

ing the tables to the height of the grid

‘operational position’.

This fin rag of the board as it passes across the table

Use the ‘leveler feet’ of the tables and the ‘alignment pins’ of the printer to adjust both

until the surface of the table is level with the grid roller. See diagram next page.

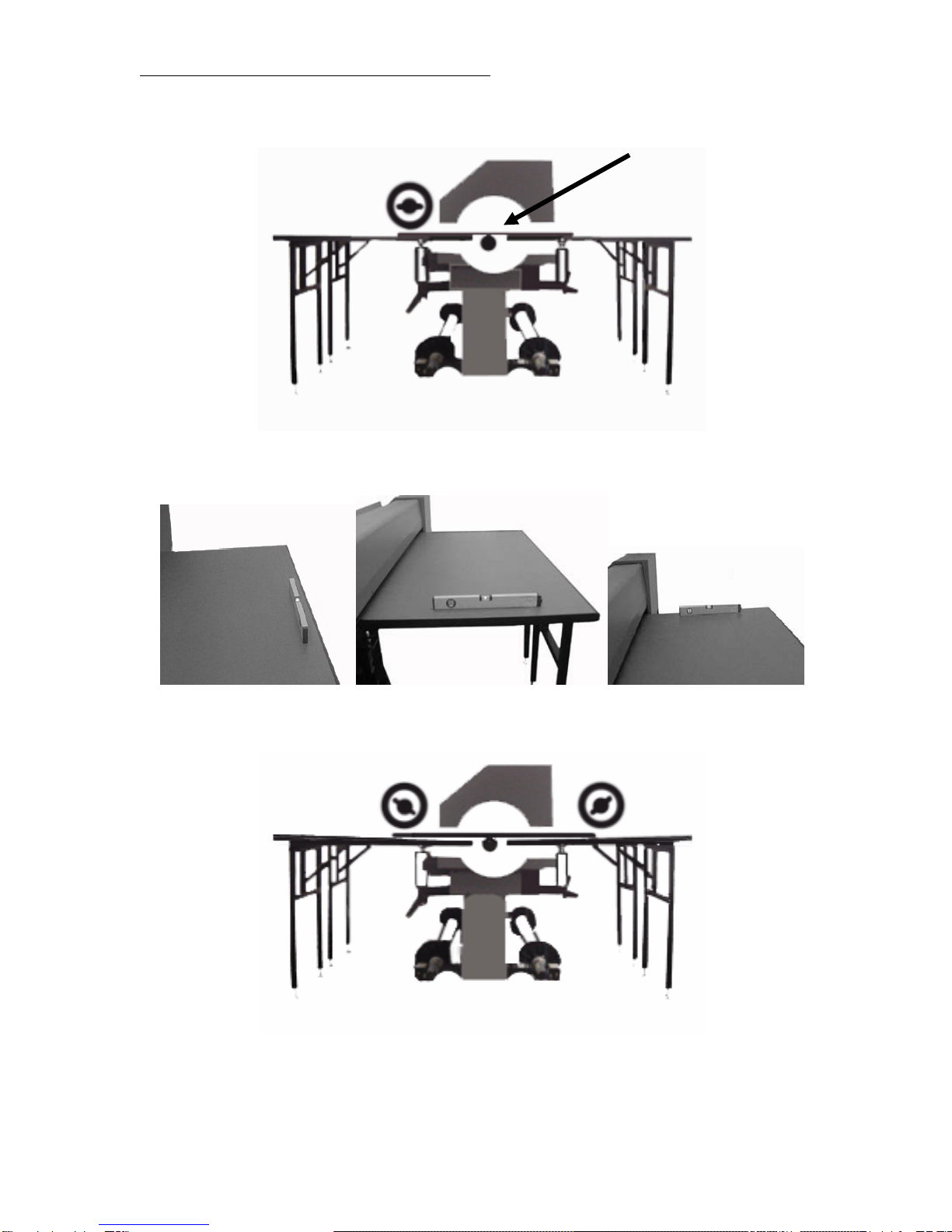

Leveling the tables:

Leveling the tables of the Toucan LT consists of level

rollers and then dropping the ‘inside’ edge of each table into their

al position is done to minimize d

through the printer.

February 21, 2006 5/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Grid roller

Note: If a four foot long level is not available then use a piece of rigid material to span the

and the grid roller.distance between the table

Check each table side ‘level front to back’ and across the outside edge from right to left.

Final adjustment of the tables:

nce the tables are level to the grid roller, lower the ‘mounting pins’ approx. ¼ to ½ turn.O

This should create just enough space so that a board passing through the printer stops

touching the rear table about 4 inches prior to entering the back of the printer.

February 21, 2006 6/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

too high where

dia slides on the rear table

to the end. There should be a

slight gap between the board and

the table starting at about 4 inches

(at the arrow).

The picture at right shows a front table which is

lowered just enough so that the printed board does

When properly aligned, the only thing the board should touch while ‘inside’ the printer is

the grid and pressure rollers.

Remember to tighten the locking nut on the shaft of each leveling foot. All eight adjustable

feet should be touching the floor.

The picture to the left shows a

table, which is still

the me

not touch the front table until about 4 inches onto

the table. This same gap should be on both the

front and the back tables.

February 21, 2006 7/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Operating the Toucan LT:

The board printer can be operated in either ‘Board’ or ‘R

that in order to switch back and forth the printer ‘must’ be powered OFF and then back ON

again.

1. Operating in ‘Roll’ mode the Toucan LT Board p

LT.

2. Operating in “Board” mode requires answering a couple of questions upon Power

ON:

To operate in ‘Board mode’, Power ON the printer and answer “Board” to the first question

on the display.

(Board or Roll)

onsider the next question with the word “IS” in front. “IS” the “Y-rail set?” Yes or No

NO is the answer then the printer will prompt with “Se

oll’ modes. It is important to note

rinter works just like a Toucan

If t rail to highest height and insert

board”.

Note: The Toucan LT is fitted with a ‘crank’ at the far left end.

Turning the crank Clockwise will ‘Raise’ the pressure rollers up to a maximum

height where media up to ½ inch can be loaded.

Turning the ‘crank’ Counter Clockwise will drop the “Y” rail down and as in the

case with switching back to ‘Roll’ mode it would be cranked down to the lowest

position.

With the crank turned so that the “Y-rail” is in the highest position load a ‘board’.

Note: Remove the crank when you are not adjusting the “Y-rail” as its weight or

someone touching it may cause the crank to turn.

Loading and centering a board:

The block of white polypropylene that has two pins inserted on one side is mounted

into holes in the center of the Platen so that a board can be pushed through and centered

from the back. It is imperative that this ‘block’ be removed once the board is loaded

straight and square in the printer.

February 21, 2006 8/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Caution: Failure to remove the block before the next step may result in damage to

rd edges.

the printer.

Look in from the front to insure that no pinch rollers are less than ‘half’ on the edge

of the media. Try to align the ‘board’ edges so that a roller is either completely ON or OFF

the boa

Once the board is properly aligned AND the block is removed, confirm the question on the

panel by pressing ENTER.

The printer will prompt to set the head gap. “Down ‘Y’ rail and set head gap”.

The head will unlock and move out to the center of the printer. Gently pull the head

carriage down to the far left edge of the board.

Aligning the ‘head gap’:

1. se the ‘head gap’ gauge and a flashlight to align the ‘head gap’.

2. gap’ gauge

Top arrow is the

correct position ,

1. a roller is

completely ON the

board.

2. edge of media

is between two

the incorrect

position where

only ½ or less of a

roller is on the

board.

rollers.

With the head carriage at the far left end of the board, set the ‘head

under the bumper under the left side of the head carriage behind the fan. View

from table height to make this adjustment.

Notice that the ‘gauge’ has three heights; lowest = ‘GO’, not so low = ‘No Go’ and th

top of the gauge. Turn the crank to lower the carriage bumper until it just touches the

lowest ‘No Go’ height.

Bottom arrow is

February 21, 2006 9/12 Toucan LT board printer setup

Setup instructions for Toucan LT board printer

Con second setting (No Go) the gauge moves.

correct depth shoul

Picture at right shows no gap between

e bumper and the head gap gauge. If the

auge’ should

mo .

firm this step is correct by manually moving the carriage, side to side so that as it

touches the

Note: The bumper and board may not be completely parallel but lowering the

carriage to the d move the ‘gauge’ as mentioned above.

Picture at left shows a gap between the

bumper and the head gap gauge. Lower the

carriage until the bumper touches the gauge.

carriage can be moved back and forth

over the No Go setting, without moving

the head gap gauge, then the carriage must

come down a little more.

Once the contact of the bumper to the head gap gauge is correct the ‘g

ve when the bumper presses against the ‘NoGo’ height sliding the ‘gauge’ sideways

3. Final step is to adjust the crank additionally ½ turn DOWN.

Caution: REMOVE the flat white block from the PLATEN before confirming. The

head carriage will ‘hit’ the white block if it is not removed.

February 21, 2006 10/12 Toucan LT board printer

setup

Table des matières

Autres manuels MUTOH Imprimante

MUTOH

MUTOH Falcon II Outdoor Manuel utilisateur

MUTOH

MUTOH Valuevet VJ-1638 Manuel utilisateur

MUTOH

MUTOH ValueJet VJ-1204 Manuel utilisateur

MUTOH

MUTOH Rockhopper II Series Manuel utilisateur

MUTOH

MUTOH Viper TX Manuel utilisateur

MUTOH

MUTOH UniFixer 65 Manuel utilisateur

MUTOH

MUTOH Viper TX Softsign Manuel utilisateur

MUTOH

MUTOH VJ-1628TD Manuel utilisateur

MUTOH

MUTOH ValueJet VJ-1204 Manuel utilisateur

MUTOH

MUTOH ValueJet VJ-1204 Manuel utilisateur

MUTOH

MUTOH VJ-1627MH Manuel utilisateur

MUTOH

MUTOH ValueJet VJ-1638UH Manuel d'installation et d'exploitation

MUTOH

MUTOH ValueJet VJ-1604 Manuel utilisateur

MUTOH

MUTOH VJ-2638 Manuel utilisateur

MUTOH

MUTOH ValueJet VJ1324X Manuel utilisateur

MUTOH

MUTOH valuejet 1614 Manuel utilisateur

MUTOH

MUTOH VJ-1638UH Mark II Manuel utilisateur

MUTOH

MUTOH ValueJet 1304 Manuel utilisateur

MUTOH

MUTOH ValueJet 1304 Manuel utilisateur

MUTOH

MUTOH ValueJet VJ-628MP Manuel utilisateur

MUTOH

MUTOH ValueJet 1604 Manuel utilisateur

MUTOH

MUTOH Valuevet VJ-628X Manuel utilisateur

MUTOH

MUTOH VJ-628 ValueJet Manuel utilisateur

MUTOH

MUTOH Osprey 75 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

MUTOH toucan lt Mode d'emploi

Manuels Imprimante populaires d'autres marques
