MSI MS-7521 (v2.X) Manuel utilisateur

1-1

Getting Started

Chapter 1

Thank you for choosing the MS-7521 v3.X Micro-ATX

mainboard. The MS-7521 v3.X Micro-ATX mainboard is

based on Intel P43 & ICH10R chipsets for optimal sys-

tem efficiency. Designed to fit the advanced Intel Core

2 Quad, C or e 2 Duo, Pentium Dual-Core an d

Celeron Dual-Core LGA775 processor, the MS-7521

v3.X Micro-ATX mainboard delivers a high performance

and professional desktop platform solution.

MS-7521 M ainboard

1-2

Mainboard Specifications

Processor Support

- Intel Core 2 Quad, Core 2 Duo, Pentium Dual-Core and Celeron

Dual-Core processors in the LGA775 package

- Intel next generation 45 nm Multi-core CPU

Supported FSB

- 1333/ 1066/ 800 MHz

Chipset

- North Bridge: Intel P43 chipset

- South Bridge: Intel ICH10R chipset

Memory Support

- 4 DDR2 DIMMs support DDR2 800/ 667 SDRAM (240pin / 1.8V /

16GB Max)

LAN

- Supports PCIE LAN 10/100/1000 Fast Ethernet by Realtek 8111C

Audio

- Chip integrated by Realtek ALC888

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

- Meet Microsoft Vista Premium spec

SATA

- 6 SATAII ports by ICH10R

- 1 E-SATA port by JMicron JMB362 (back panel)

- Supports storage and data transfers at up to 3 Gb/s

1394

- Supports 1394 by JMicron JMB381

RAID

- SATA1~6 support RAID 0/ 1/ 5/ 10/ JBOD mode by ICH10R

Connectors

Back panel

- 1 S/PDIF out connector (Coaxial)

- 4 USB 2.0 ports

- 1 1394 port

- 1 E-SATA port

- 1 LAN jack

- 6 flexible audio jacks

1-3

Getting Started

On-Board Pinheaders / Connectors

- 3 USB 2.0 pinheaders

- 1 1394 pinheader

- 1 front audio pinheader

- 1 S/PDIF out pinheader

Slots

- 1 PCI Express x16 slot, supports up to PCI Express 2.0 x16 speed

- 1 PCI Express x1 slot

- 2 PCI slots, support 3.3V/ 5V PCI bus Interface

Form Factor

- Micro-ATX (24.4cm X 24.4cm)

Mounting

- 8 mounting holes

MS-7521 M ainboard

1-4

MS-7521 v3.X Micro-ATX Mainboard

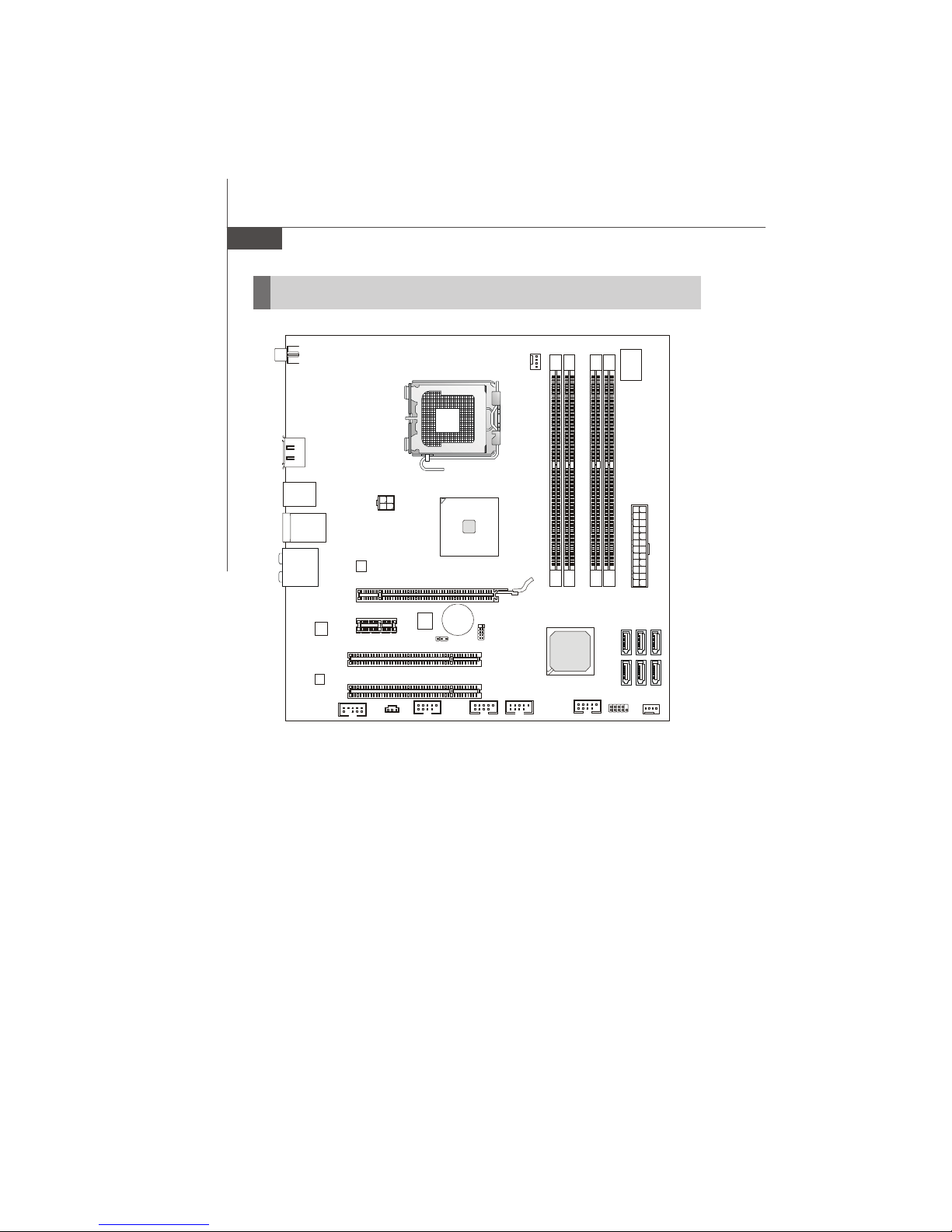

Mainboard Layout

PCI 2

PCI 1

PCI _E2

PCI _E1

BATT

ATX 1

CPU_ FAN1

AUX_ FAN1

DIMM1

DIMM3

DIMM2

DIMM4

JU SB1

JUSB2

JUSB3

JF P1

SATA1SATA4

SATA2

SATA5

SATA3

SATA6

JAUD1

JSPD 1

J13 9 4_ 1

JBAT1 JSP I1

PWR1

T:Li ne-In

M:L ine-O ut

B:S PDIF-out port

T:RS- Out

M:CS-Out

B:S S-Out

T: LAN jack

B: U SB port s

T: 1394

B: U SB ports

Intel

ICH10R

Intel

P43

eS ATA por t

SPDIF1

2-1

Hardware Setup

Chapter 2

This chapter provides you with the information about

hardware setup procedures. While doing the installation,

be careful in holding the components and follow the

installation procedures. For some components, if you

install in the wrong orientation, the components will not

work properly.

Use a grounded wrist strap before handling computer

c om ponen ts . S tati c elec t ri c it y m ay da mag e the

components.

MS-7521 M ainboard

2-2

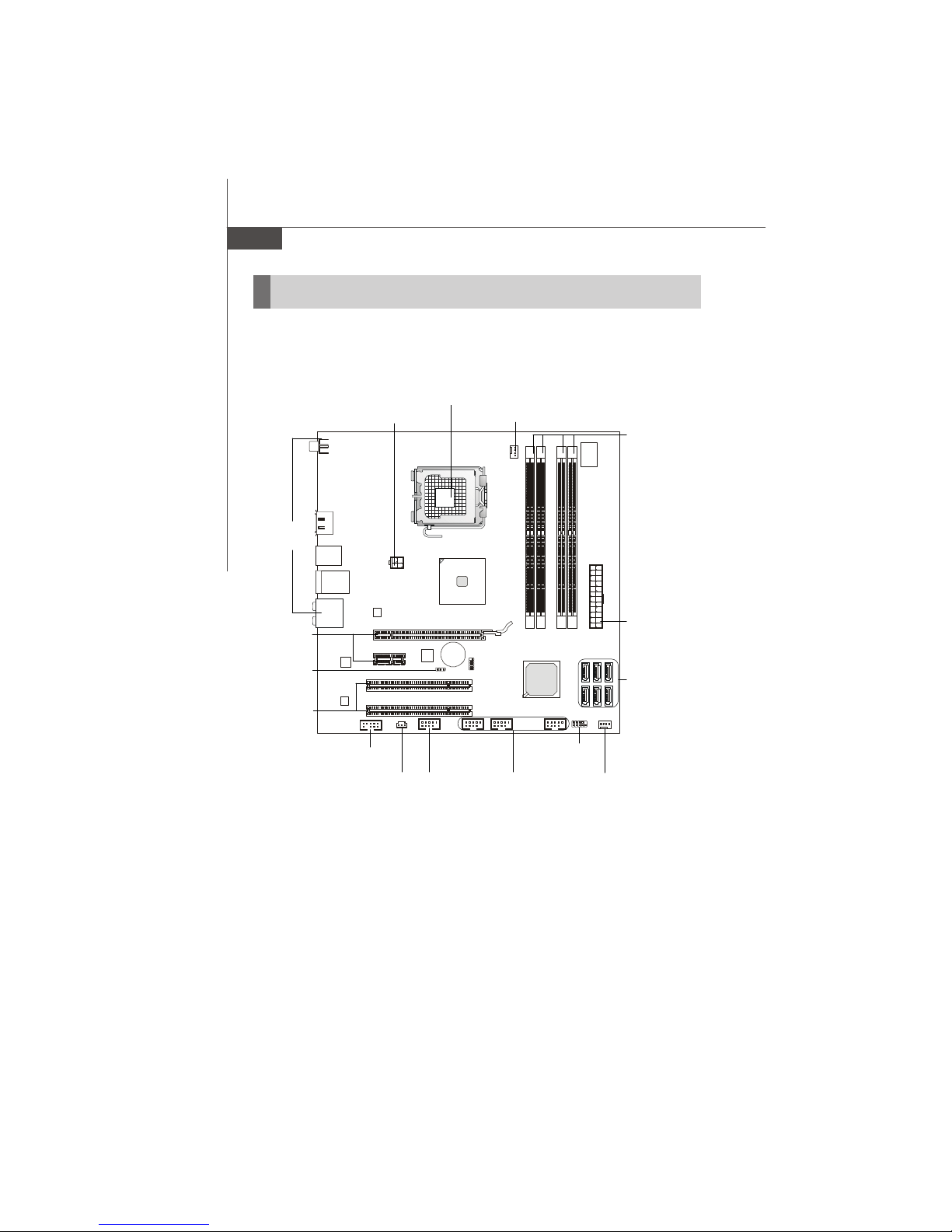

Quick Components Guide

CPU,

p.2-3

DDR2 DIMMs,

p.2-7

ATX1,

p.2-9

SATA,

p.2-12

J1394_1,

p.2-13

JAUD1,

p.2-14

PCI,

p.2-17

Back Panel,

p.2-10

PWR1,

p.2-9

JFP1,

p.2-14

AUX_FAN1,

p.2-12

CPUFAN1,

p.2-12

PCIE,

p.2-17

JBAT1,

p.2-16

JUSB1~3,

p.2-15

JSPD1,

p.2-13

2-3

Hardware Setup

CPU (Central Processing Unit)

W hen you are installing the CPU, make sure to install the cooler to prevent

overheating. If you do not have the CPU cooler, consult your dealer before turning

on the computer.

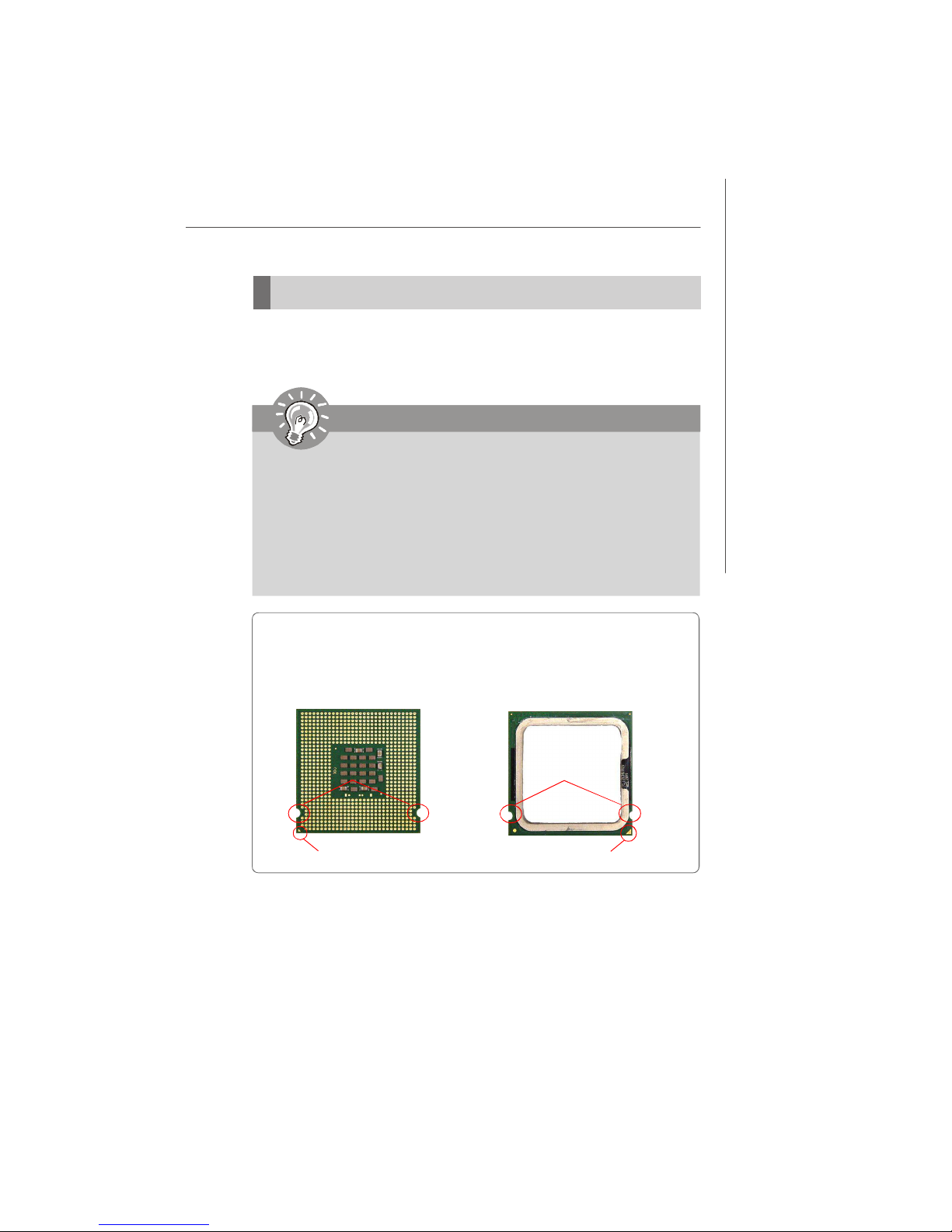

Introduction to LGA 775 CPU

The surface of LGA 775 CPU.

Remember to apply some ther-

mal paste on it for better heat

dispersion.

Yellow triangle is the Pin 1 indicator

The pin-pad side of LGA 775

CPU.

Yellow triangle is the Pin 1 indicator

Alignment Key Alignment Key

Important

Over heating

Overheating will seriously damage the CPU and system. Always make sure

the cooling fan can work properly to protect the CPU from overheating. Make

sure that you apply an even layer of thermal paste (or thermal tape) between

the CPU and the heatsink to enhance heat dissipation.

Replacing the CPU

While replacing the CPU, always turn off the ATX power supply or unplug the

power supply s power cord from the grounded outlet first to ensure the safety

of CPU.

MS-7521 M ainboard

2-4

Important

1. Confirm if your CPU cooler is firmly installed before turning on your system.

2. Do not touch the CPU socket pins to avoid damaging.

3. The availability of the CPU land side cover depends on your CPU packing.

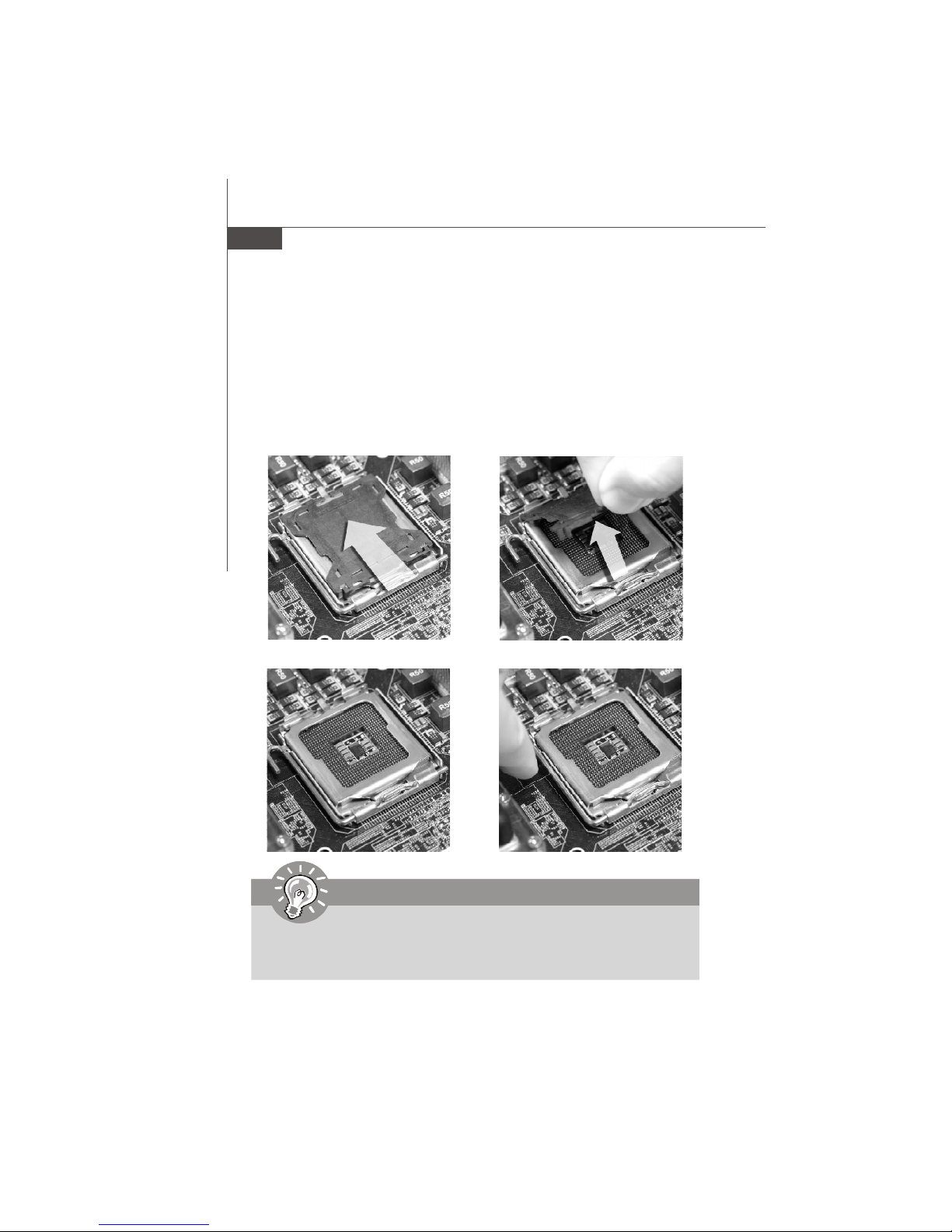

2. Remove the cap from lever hinge

side (as the arrow shows).

1. The CPU socket has a plastic cap on

it to protect the contact from damage.

Before you install the CPU, always

cover it to protect the socket pin.

3. The pins of socket reveal.

CPU & Cooler Installation

When you are installing the CPU, make sure the CPU has a cooler attached on

the top to prevent overheating. Meanwhile, do not forget to apply some thermal

paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. W rong installation will

cause the damage of your CPU & mainboard.

4. Open the load lever.

2-5

Hardware Setup

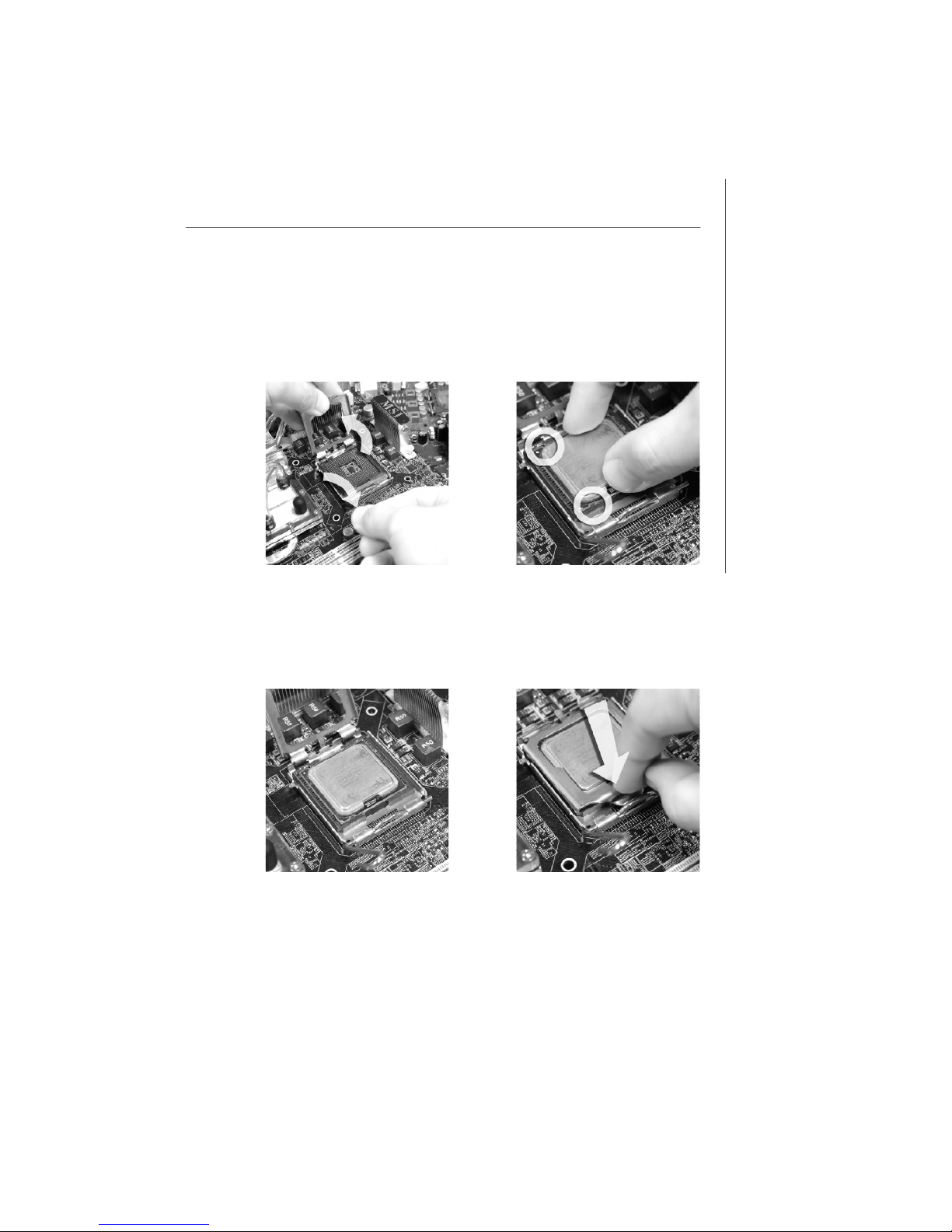

6. After confirming the CPU direction

for correct mating, put down the

CPU in the socket housing frame.

Be sure to grasp on the edge of

the CPU base. Note that the align-

ment keys are matched.

8. Cover the load plate onto the

package.

5. Lift the load lever up and open the

load plate.

7. Visually inspec t if the CPU is

seated well into the socket. If not,

take out the CPU with pure vertical

motion and reinstall.

alignment

key

MS-7521 M ainboard

2-6

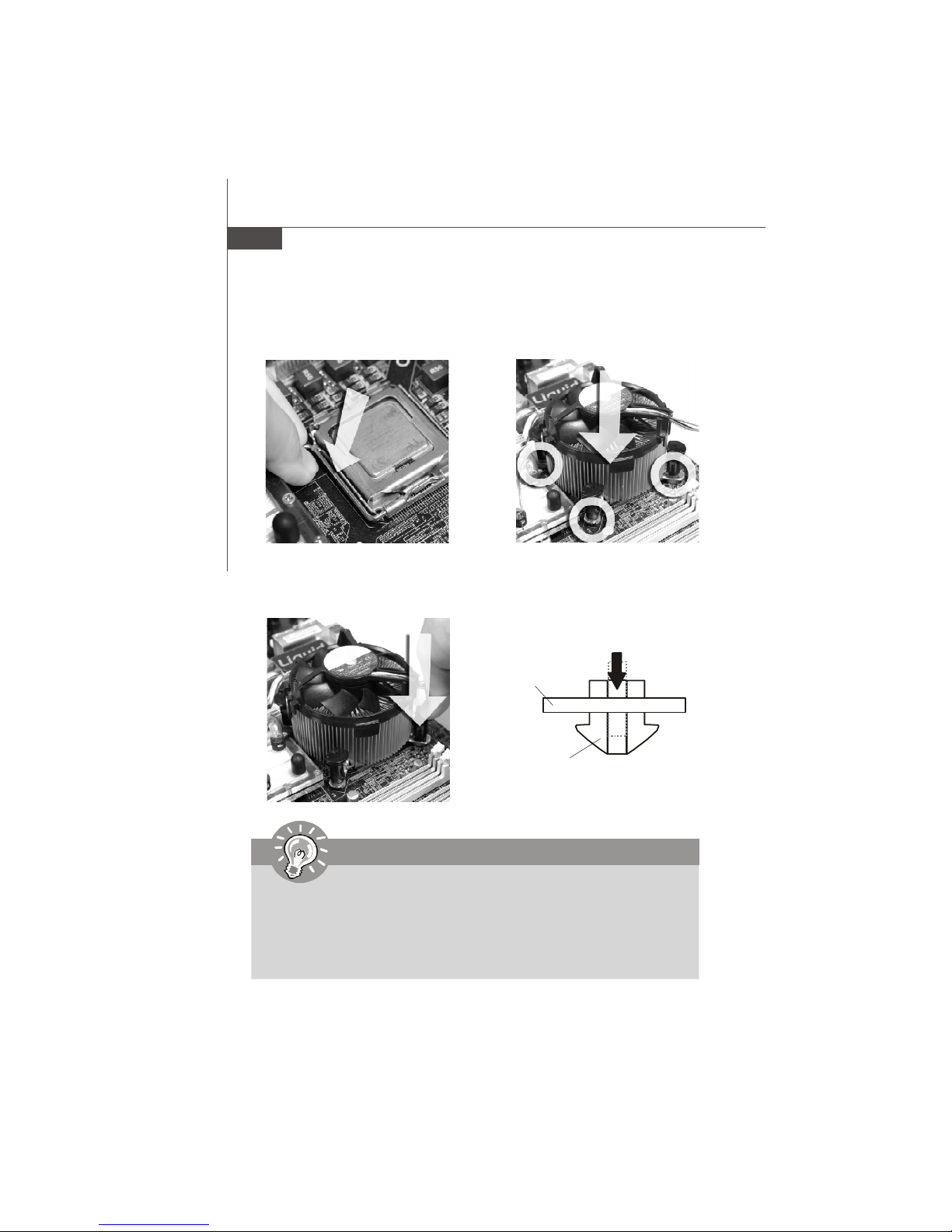

10. Align the holes on the mainboard

with the heatsink. Push down the

cooler unti l its fou r c lip s g et

wedged int o t he holes of t he

mainboard.

12. Turn over the mainboard to con-

firm that the clip-ends are correctly

inserted.

9. Press down the load lever lightly

onto the load plate, and then se-

cure the lever with the hook under

retention tab.

Important

1. Read the CPU status in BIOS (Chapter 3).

2. Whenever CPU is not installed, always protect your CPU socket pin with the

plastic cap covered (shown in Figure 1) to avoid damaging.

3. Mainboard photos shown in this section are for demonstration of the CPU/

cooler installation only. The appearance of your mainboard may vary depend-

ing on the model you purchase.

11. Press the four hooks down to fasten

the cooler. Then rotate the locking

switch (refer to the correct direction

marked on it) to lock the hooks.

locking

switch

Mainboard

Hook
