MSI 845 PRO4 Manuel utilisateur

MSI

MICRO-STAR INTERNATIONAL

MS-6391 ATX Mainboard

Version 1.0

G52-MA00362

845 PRO4

Manual Rev : 1.0

Release Date : Jul. 2001

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a resi-

dential area is likely to cause harmful interference, in which case the user

will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order

to comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6391

Tested to comply with

FCC Standard

For Home or Office Use

III

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products

are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks used in this manual are the property of their respective owners.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 98, Windows ME, and Windows NT are registered trademarks of

Microsoft.

Netware is a registered trademark of Novell.

Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

V1.0 First Release Jul. 2001

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always unplug the Power Cord before inserting any add-on card or

module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause

electrical shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

The power cord or plug is damaged

Liquid has penetrated into the equipment

The equipment has been exposed to moisture

The equipment has not work well or you can not get it work accord-

ing to User’s Manual.

The equipment has dropped and damaged

If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F),

IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by

the manufacturer.

Contents

Chatper 1 Introduction .......................................................................... 1-1

Mainboard Specifications ................................................................ 1-2

Mainboard Layout ............................................................................ 1-4

Quick Components Guide ............................................................... 1-5

Chatper 2 Hardware Setup .................................................................. 2-1

Central Processing Unit: CPU ......................................................... 2-2

CPU Installation Procedures .................................................... 2-2

CPU Core Speed Derivation Procedure ................................... 2-3

Installing the CPU Fan .............................................................. 2-4

Memory Installation ......................................................................... 2-6

Memory Bank Configuration .................................................... 2-6

Module Installation Procedures............................................... 2-7

Power Supply .................................................................................... 2-8

ATX 20-pin Power Connector .................................................. 2-8

ATX 12V Power Connector: JPW1 ............................................ 2-8

Back Panel ....................................................................................... 2-10

Mouse Connector ..................................................................... 2-10

Keyboard Connector ................................................................ 2-11

USB Connectors ....................................................................... 2-11

Serial Port Connectors: COM A & COM B ............................. 2-12

Midi/Joystick/Audio Port Connectors ................................. 2-12

LAN Jack (RJ-45) (optional) .................................................... 2-13

Parallel Port Connector: LPT1 ................................................ 2-14

Connectors ...................................................................................... 2-15

Floppy Disk Drive Connector: FDD1 ..................................... 2-15

Hard Disk Connectors: IDE1 & IDE2 .................................... 2-16

Fan Power Connectors: P_FAN1/C_FAN1/S_FAN1 ......... 2-17

Case Connector: F_P1 & F_P2 (optional) .............................. 2-18

Power Saving Switch Connector: JGS1 ................................. 2-21

Power Saving LED Connector: JGL1 ..................................... 2-22

Wake On Ring/Wake On LAN Connectors .......................... 2-23

CD-In/AUX Line-In/Modem-In Connectors ....................... 2-24

IrDA Infrared Module Connector: IR1 & IR2 (optional) ...... 2-25

USB PC to PC Connector: USB1 & USB2 (optional) ............. 2-26

Front Audio Connector: JAUDIO1 & JAUDIO2 (optional) .. 2-27

Jumpers ............................................................................................ 2-29

Clear CMOS Jumper: JBAT1 .................................................... 2-29

Onboard Audio Jumper: JP1 (optional) ................................. 2-30

Slots .................................................................................................. 2-31

AGP (Accelerated Graphics Port) Slot ................................... 2-31

PCI Slots .................................................................................... 2-31

ISA (Industry Standard Architecture) Slot (optional) .......... 2-32

CNR (Communication & Networking Riser) Slot ................ 2-32

Chapter 3 Award®BIOS Setup ............................................................ 3-1

Entering Setup .................................................................................. 3-2

Control Keys ...................................................................................... 3-2

Getting Help ...................................................................................... 3-3

Main Menu ........................................................................................ 3-4

Standard CMOS Features ................................................................ 3-6

VII

Advanced BIOS Features ................................................................. 3-9

Advanced Chipset Features .......................................................... 3-14

Integrated Peripherales .................................................................. 3-17

Power Management Setup ............................................................. 3-22

PnP/PCI Configurations ............................................................... 3-27

PC Health Status............................................................................. 3-29

Frequency/Voltage Control ........................................................... 3-31

Load Fail-Safe/Optimized Defaults ............................................. 3-33

Set Supervisor/User Password..................................................... 3-34

Save & Exit Setup/Exit without Saving ....................................... 3-36

Appendix A: Glossary ........................................................................... B-1

Introduction

1-1

Introduction 1

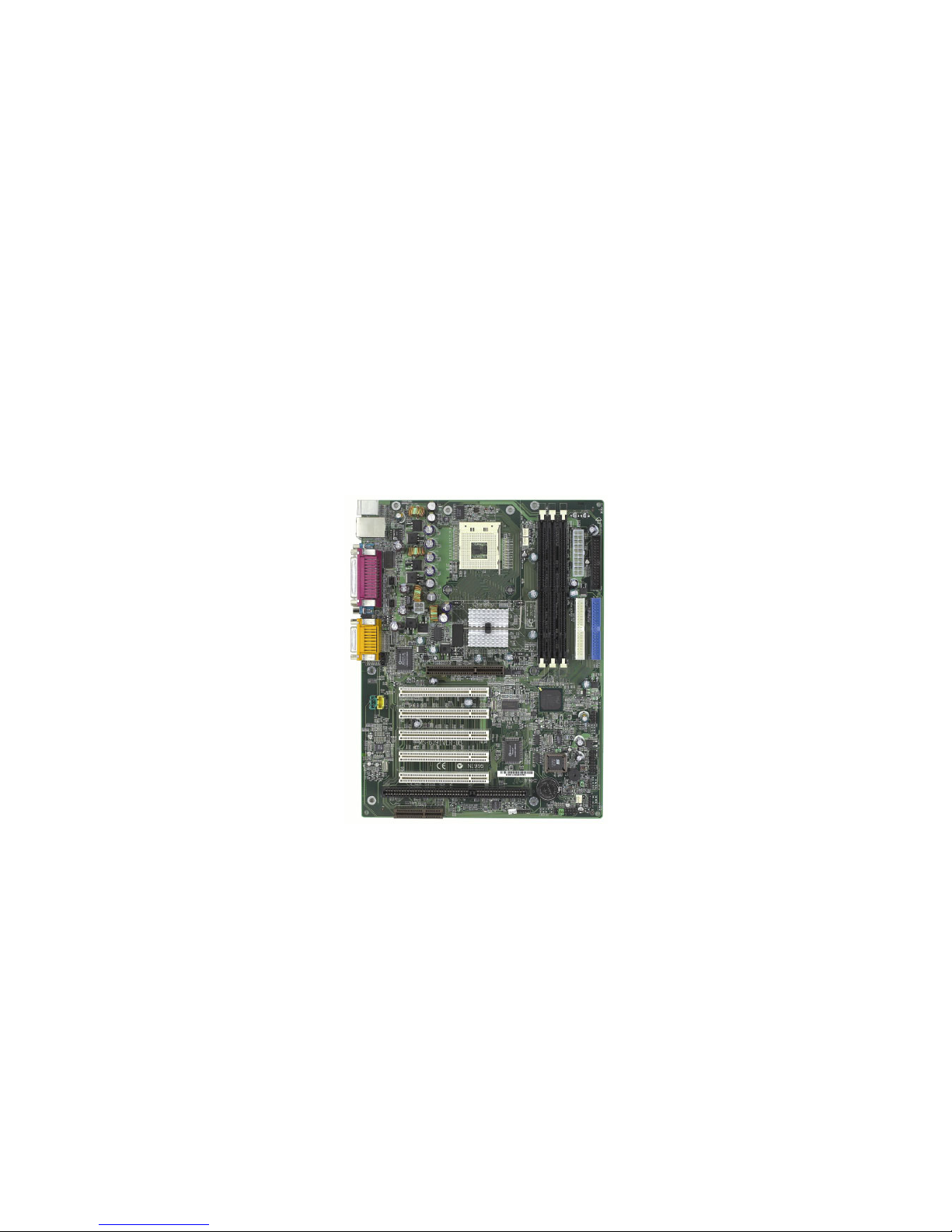

The 845 Pro4 (MS-6391) ATX mainboard is a high-performance

computer mainboard based on Intel®82845 & 82801BA chipsets. The

845 Pro4 is designed for Intel®Pentium®4 processor in the 478 pin

package that delivers a high performance and professional desktop

platform solution.

The Intel®82845 Memory Controller Hub (MCH) provides the

processor interface, SDRAM interface, AGP interface and hub interface.

It supports: a single processor with a data transfer rate of 400MHz,

SDRAM at 133MHz operation (PC133), AGTL+ host bus with integrated

termination supporting 32-bit host addressing, 1.5V AGP interface with

4x SBA/data transfer and 2x/4x fast write capability, and 8-bit, 66MHz

4x hub interface to the Intel ICH2.

The 82801BA I/O Controller Hub 2 (ICH2) provides the I/O

subsystem with access to the rest of the system and additionally integrates

many I/O functions. It supports: upstream hub interface for access to the

Intel MCH, 2-channel Ultra ATA/100 bus master IDE controller, USB

controller 1.1 (expanded capabilities for 4 ports), I/O APIC, SMBus

controller, FWH interface, LPC interface, AC’97 2.1 interface, PCI 2.2

interface, integrated system management controller, and integrated LAN

controller.

This chapter includes the following topics:

Mainboard Specifications 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Chapter 1

1-2

CPU

Support Intel®Pentium®4 processor in FC-PGA2 package

Support 1.3GHz, 1.4GHz and up to 2GHz

Chipset

Intel®845 chipset (593 FC-BGA)

- Support 400MHz Intel NetBurst micro-architecture bus

- Support SDRAM at 133MHz operation (PC133)

- 100MHz FSB

- AGP 2x/4x universal slot

Intel®ICH2 chipset (360BGA)

- Two full IDE channels, support up to ATA100

- AC’ 97 controller integrated

- LPC interface for SIO

- Integrated 10/100 Ethernet

Main Memory

Three 168-pin SDRAM sockets

Support a total of 3GB memory, using 16/64/128/256/512Mb

technology

Slots

One AGP 2x/4x slot

Five PCI 2.2 32-bit Master PCI Bus slots

(support 3.3v/5v PCI bus)

One CNR (Communication Network Riser) slot

One ISA (Industry Standard Architecture) slot (optional)

On-Board IDE

An IDE controller on the ICH2 chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA66/100 operation

modes

Can connect up to four IDE devices

Mainboard Specifications

Introduction

1-3

On-Board Peripherals

On-Board Peripherals include:

- One floppy port supports two FDDs with 360KB, 720KB, 1.2MB,

1.44MB and 2.88MB.

- Two serial ports (COM A + COM B)

- One parallel port supports SPP/EPP/ECP mode

- Four USB ports (Rear * 2/Front * 2)

- One RJ-45 connector (optional)

- One audio/game port

Audio

ICH2 chipset integrated

ADI 1885

- AC’ 97 compliant

- Support two channel audio

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects

the peripheral devices and expansion cards of the board

automatically.

The mainboard provides a Desktop Management Interface (DMI)

function which records your mainboard specifications.

Dimension

ATX Form Factor

Mounting

6 mounting holes

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MSI Carte mère

MSI

MSI 970A-G45 series Manuel utilisateur

MSI

MSI Z77A-G45 GAMING series Manuel utilisateur

MSI

MSI 7C67-001R Manuel utilisateur

MSI

MSI IM-GME965 Manuel utilisateur

MSI

MSI PRO Z690-P WIFI Manuel utilisateur

MSI

MSI B560-A PRO Manuel utilisateur

MSI

MSI Z490M-S01 Manuel utilisateur

MSI

MSI MS-6367 Manuel utilisateur

MSI

MSI MS-6137 v5.X Manuel utilisateur

MSI

MSI Pro266 Master Manuel utilisateur

MSI

MSI MAG B460M MORTAR WIFI Manuel utilisateur

MSI

MSI X99S GAMING 9 AC Manuel utilisateur

MSI

MSI MPG Z390I GAMING EDGE AC Manuel utilisateur

MSI

MSI H270-A Manuel utilisateur

MSI

MSI ATX BX10 Manuel utilisateur

MSI

MSI A320M-A PRO Manuel utilisateur

MSI

MSI MPG Z390M GAMING EDGE AC Manuel utilisateur

MSI

MSI 865PE Neo2-P Platinum Edition Manuel utilisateur

MSI

MSI Z87I Manuel utilisateur

MSI

MSI MEG X670E GODLIKE Manuel utilisateur

MSI

MSI A320M PRO-VD Manuel utilisateur

MSI

MSI P6NGM-FIH - Motherboard - Micro ATX Manuel utilisateur

MSI

MSI MAG B660M BAZOOKA Manuel utilisateur

MSI

MSI MS7797 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
