MSI MS-6195 Manuel utilisateur
CHAPTER 1 INTRODUCTION
1-1
The MS-6195 ATX IR3 mainboard is a high-performance personal computer
mainboard based on the AMD Athlon®processor. This mainboard provides
onboard Creative®CT5880 PCI technology in audio. The AMD Athlon®
processor is the newest microprocessor in the AMD K86TM family of
microprocessors.
The mainboard uses the highly integrated AMD®751 system controller and
AMD 756 peripheral controller. The AMD-751 system controller features:
the S2k system interface supports a 100Mhz clock and double-data rate
(DDR) transfers, the 33MHz 32-bit bus interface supports up to six PCI
masters, the 66MHz AGP 1.0 compliant interface supports 2x data transfer
mode, and High Speed memory designed to support a 100MHz SDRAM (PC-
100-compatible-DIMM)withserialpresencedetect(SPD). TheAMD-756
peripheral bus controllers feature an integrated ISA bus controller, an
enhanced IDE controller with Ultra DMA-66 support, and a keyboard/mouse
controller.
The MS-6195 ATX IR3 mainboard is one of our system board to implement
the AMD-750 chipset (AMD-751 and AMD-756), which supports a single
Slot A for AMD Athlon®processor.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSlot A for AMD®AthlonTM processor.
lSupport500MHz,550MHz,600MHz,650MHzorhigherprocessor
Chipset
lAMD®Irongate chipset. (Northbridge)
-200MHzEV6 System Interface speed
-100MHzSDRAM
-1x/2xAGP
- Status - Silicon currently in bring-up
lAMD®756TM(Viper) chipset. (Southbridge)
-OHCIUSB
-APIC
- ACPI Power Management
FrontSideBus (FSB)
l100MHz clock is supported. (200MHz Internal System Bus)
MainMemory
lSupports three memory banks using three 168-pin unbuffered DIMM
sockets.
lSupportsa maximum memorysizeof 768MB forSDRAM.
lSupports 3.3vPC100SDRAMDIMM.
Slots
lOne AGP (Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP66/133MHz 3.3v device support
lSix 32-bit Master PCI Bus slots and one 16-bit ISA bus slots
lSupports 3.3v/5v PCI bus Interface.
On-BoardIDE
lAn IDE controller on the AMD®756 chipset provides IDE HDD/CD-ROM
with PIO and Ultra DMA/66 operation modes.
lCan connect up to four IDE devices.
CHAPTER 1 INTRODUCTION
1-3
On-BoardPeripherals
lOn-BoardPeripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-2 serial ports (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports
- 1 IrDA connector for SIR.
Audio
lCreativeCT5880.(optional)
- 64 Voice WaveTable Synthesizer
- Sound Library of over 4000 different sounds
-Support SPDIF (AC3)
- Support Microsoft Direct Sound, Direct Sound 3D, Direct Music,
and A3DAPI.
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lATXForm Factor: 30.5cm x19.2cm x4 layers PCB
Mounting
l7 mounting holes.
CHAPTER 1 INTRODUCTION
1-4
1.2 Mainboard Layout
FDD
IDE1 IDE2
DIMM 1
DIMM 2
DIMM 3
Top: mouse
Top: Port1
USB
Bottom:
Port2
Top: LPT
Bottom:
COMA
COMB
ATX
Power Supply
J3
PCI SLOT 3
PCI SLOT 2
PCI SlOT 1
SLOT A
AGP Slot
PCI SLOT 4 BATT
+
BIOS
J2
AMD-756
chipset
JFP1
AMD-751
chipset
JWOL
JMODEM
Bottom:
keyboard
ISA SLOT 1
PCI SLOT 5
USB2
Creative
CT5880
BIOS
(PLCC)
Modem_In
MS-6195 ATX IR3 Mainboard
PCI SLOT 6
IR
JPLED
JCASE
JBAT JSLP1
Top: MIDI/
GamePort
Bottom:
Line-Out
Line-In
Mic
CD_In
AUX_In
J1
CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
Step 1: Install the Retention Mechanism.
Attach the Retention Mechanism to the Mainboard. Push the Plastic
lock to secure the Retention Mechanism into the mainboard.
Secure the processor by
pulling up the Retention
Mechanism Processor
Lock
Insert the processor
like inserting a PCI or
an ISA card
To release the
processor, push the
Retention Mechanism
Processor lock down
Step 2: Install the Processor.
Insert the Processor like inserting a PCI or an ISA card.
Step 3: Lock the Processor.
Lock the processor by pulling up the Retention Mechanism proces-
sor lock shown above.
2.1-1 Processor Installation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-2
2.1-2 CPU Core Speed Derivation Procedure
The Mainboard can auto-detect the processor speed. Just insert the
AMD Athlon processor into Slot A.
If CPUClock = 100MHz
Core/Bus ratio = 5
then CPU core speed = Host Clock x Core/Busratio
= 100MHz x5
= 500MHz
CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-4 Fan Power Connectors: J1, J2, & J3
These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. Ifyour
mainboardhasSystemHardwareMonitorchipseton-board,youmustusea
speciallydesigned fanwithspeedsensorto takeadvantageofthis function.
Note: For fans with fan speed sensor, every rotation of the fan will send out
2 pulses. System Hardware Monitor will count and report the fan rotation
speed. This is an optional function for System Hardware Monitor.
J1: Processor Fan
J2: System Fan
J3: Power Fan
GND
+12V
Sensor
J1
J2
GND
+12V
Sensor
J3
GND
+12V
Sensor
CHAPTER 2 HARDWARE INSTALLATION
2-4
2.2 Clear CMOS Jumper: JBAT
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT
1
3
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboardsupportsa maximum memory size of 768MB for SDRAM: It
provides three 168-pin unbufferedDIMMs (Double In-Line Memory Mod-
ule) sockets. It supports 8 MB to 256 Mbytes DIMM memory module.
DIMM3(Bank4+Bank5)
DIMM2(Bank2+Bank3)
DIMM1(Bank0+Bank1)
CHAPTER 2 HARDWARE INSTALLATION
2-6

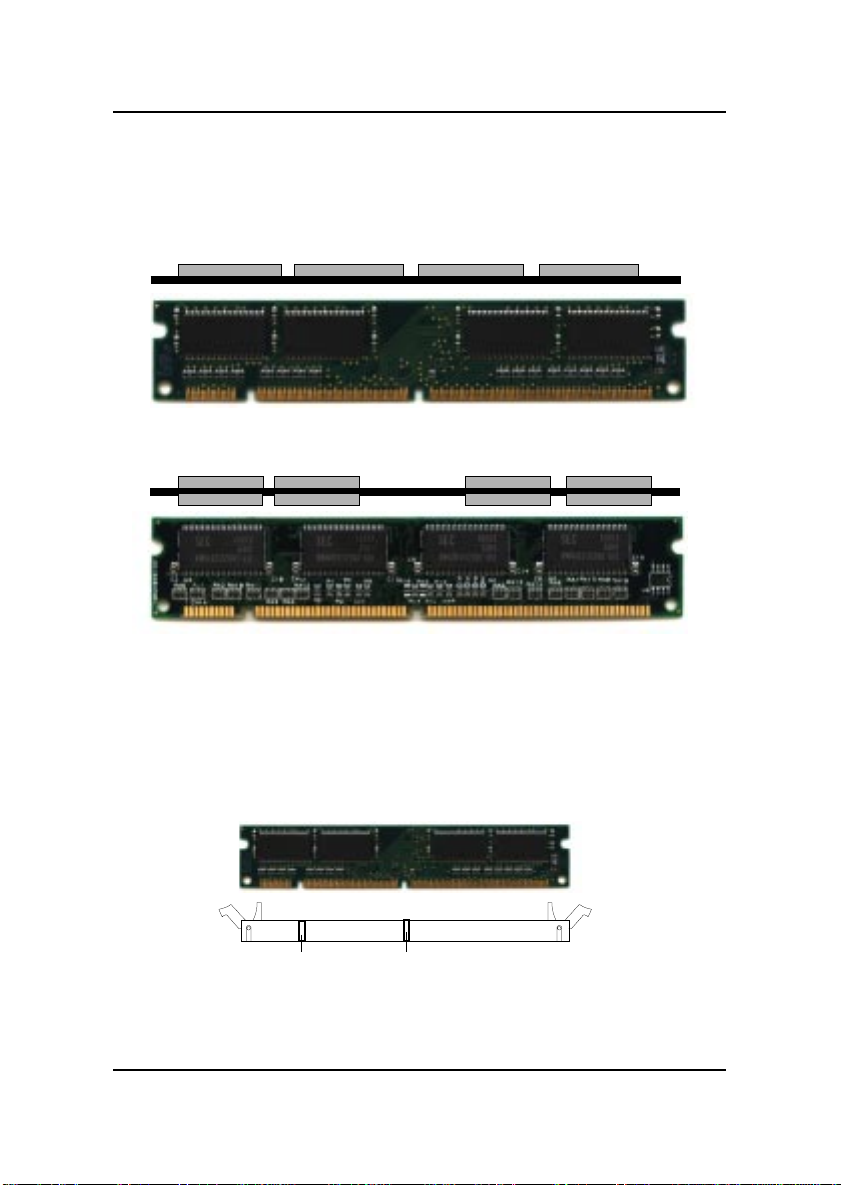

A. HowtoinstallaDIMMModule
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRAM
2.3-2 Memory Installation Procedures
