MSI MS-9105 Manuel utilisateur
i
Version 1.0
G52-MA00436

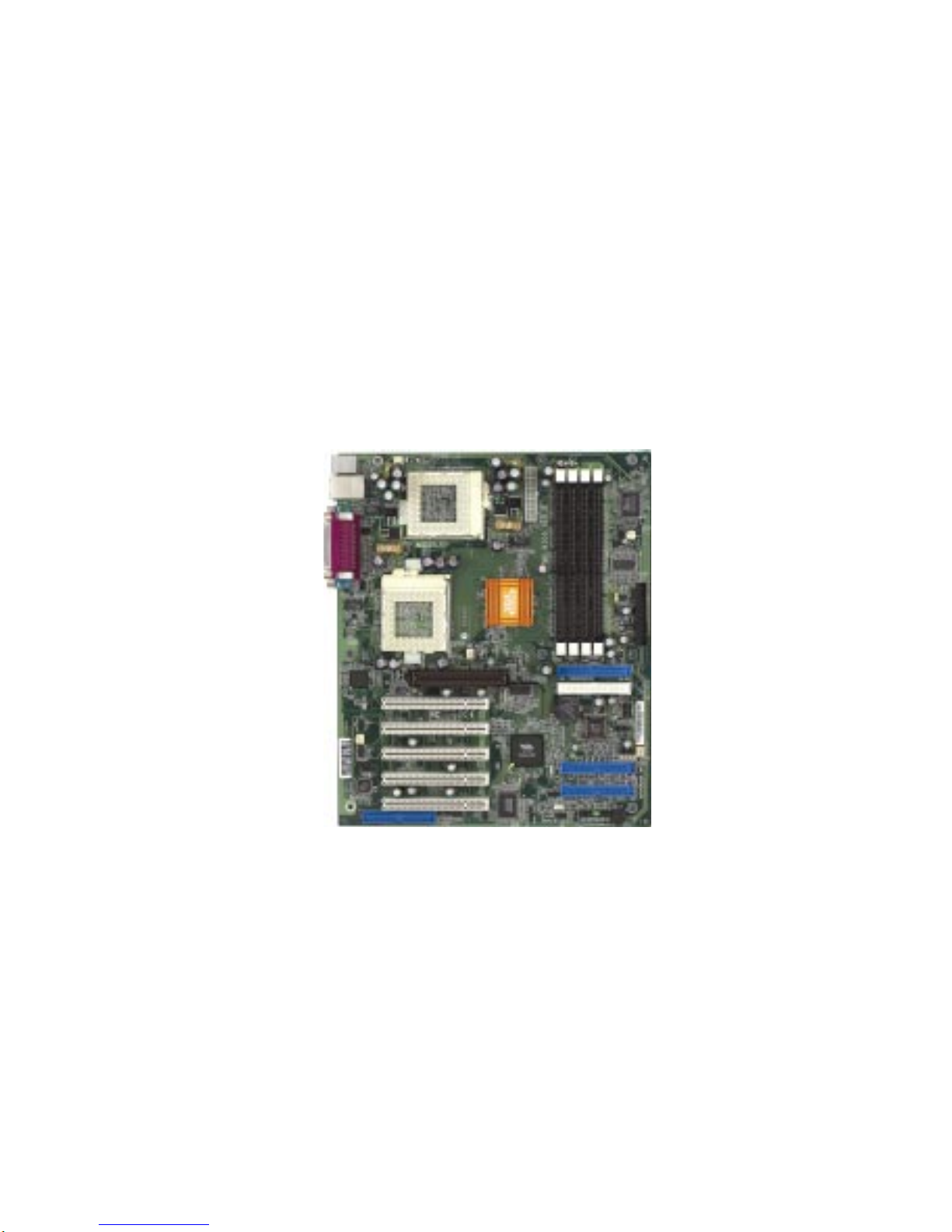

MS-9105 ATX Mainboard
MSI
MICRO-STAR INTERNATIONAL
Pro266TD Master
Pro266TD Master-LR
ii
Manual Rev: 1.0
Release Date: October 2001
FCC-BRadioFrequencyInterferenceStatement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-StarInternational MS-9105
Testedtocomply
withFCCStandard
ForHomeorOfficeUse
iii
Edition
October 2001
Copyright Notice
The material in this document is the intellectual property of MICRO-
STAR INTERNATIONAL. We take every care in the preparation
of this document, but no guarantee is given as to the correctness of its
contents. Our products are under continual improvement and we re-
serve the right to make changes without notice.
Trademarks
All trademarks used in this manual are the property of their respective
owners.
Intel and Pentium are registered trademarks of Intel Corporation.
PS/2 and OS/2 are registered trademarks of IBM Corporation.
Windows 98/2000/ME and Windows NT are registered trademarks of
Microsoft.
Netware is a registered trademark of Novell.
Award is a registered trademark of Award Software Inc.
Revision History
Revision RevisionHistory Date
1.0 First release October2001
iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipmentfromoverheating. DONOTCOVERTHEOPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. AlwaysUnplug the PowerCordbefore inserting anyadd-oncard ormodule.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged
zLiquid has penetrated into the equipment
zThe equipment has been exposed to moisture
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged
zIf the equipment has obvious sign of breakage
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),IT
MAYDAMAGETHEEQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
v
CONTENTS
Chapter1. Introduction ............................................................................ 1-1
Mainboard Specification ......................................................................1-2
Mainboard Layout ...............................................................................1-4
Quick Components Guide ....................................................................1-6
Key Features ........................................................................................1-7
MSI Special Features ...........................................................................1-8
D-LED™ ........................................................................................1-8
Chapter2. HardwareSetup ...................................................................... 2-1
Central Processing Unit: CPU ..............................................................2-2
CPU Installation Procedures .........................................................2-3
CPU Core Speed Derivation Procedure .........................................2-4
Memory................................................................................................2-5
Introduction to DDR SDRAM.......................................................2-5
DIMM Modules Combination.......................................................2-6
Installing DIMM Modules ............................................................ 2-6
Power Supply .......................................................................................2-7
ATX 20-Pin Power Supply .............................................................2-7
BackPanel ............................................................................................2-8
Mouse Connector ......................................................................... 2-8
Keyboard Connector .....................................................................2-9
USB Connectors ............................................................................2-9
Parallel Port Connector ................................................................ 2-10
Serial Port Connectors: COM A & COM B.................................. 2-11
LAN(RJ-45)Jack(Pro266TDMaster-LR).................................... 2-11
Connectors......................................................................................... 2-12
Floppy Disk Drive Connector: FDD1........................................... 2-12
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-13
IDERAIDConnectors: IDE3&IDE4 (Pro266TDMaster-LR) ..... 2-14
Case Connector: JFP1.................................................................. 2-15
vi
PowerSavingLEDConnector:JGL1 ........................................... 2-17
Chassis Intrusion Switch Connector: JCASE1 ............................ 2-18
Power Saving Switch Connector: JGS1........................................ 2-18
Wake On Ring Connector: JMDM1............................................. 2-19
IrDA Infrared Module Connector: J14......................................... 2-19
FanPowerConnectors:CPUFN1/CPUFN2/SYSFN1/SYSFN2 ..... 2-20
Remote Power On/Off Switch Connector: JRMS1 ....................... 2-21
TOPTECHIII:JTECH1................................................................ 2-21
USB Front Panel Connectors: USB2 & USB3 .............................. 2-22
Wake On LAN Connector: JWOL1.............................................. 2-23
Jumpers .............................................................................................. 2-24
Clear CMOSJumper: JBAT1 ........................................................ 2-24
Slots ................................................................................................... 2-25
AGP (Accelerated Graphics Port) Slot......................................... 2-25
PCI Slots ...................................................................................... 2-25
PCI Interrupt Request Routing .................................................... 2-26
Chapter3. AWARD®BIOSSetup........................................................... 3-1
Entering Setup......................................................................................3-2
Control Keys ........................................................................................ 3-2
Getting Help .........................................................................................3-3
The Main Menu ...................................................................................3-4
Standard CMOS Features ....................................................................3-6
Advanced BIOS Features ....................................................................3-9
Advanced Chipset Features............................................................... 3-13
Integrated Peripherals ........................................................................ 3-18
Power Management Setup ................................................................. 3-24
PnP/PCI Configurations ..................................................................... 3-29
PC Health Status ................................................................................ 3-31
Frequency/Voltage Control ................................................................ 3-33
LoadFail-Safe/OptimizedDefaults ..................................................... 3-35
vii
Set Supervisor/User Password........................................................... 3-37
Save & Exit Setup............................................................................... 3-39
Exit Without Saving ........................................................................... 3-40
Glossary ....................................................................................................G-1
Introduction
1-1
Chapter 1.
Introduction
Thank you for purchasing the Pro266TD Master series (MS-9105)
ATX motherboard. Based on Apollo Pro266T (VT8653+VT8233) chipset,
the motherboard supports SINGLE/DUAL Intel®Pentium®III processors
(FC-PGA/FC-PGA2) and is designed for inexpensive workstation and entry-
level server markets.
There are two models for Pro266TD Master series: Pro266TD Master
and Pro266TD Master-LR. Pro266TD Master is the standard version. As
for Pro266TD Master-IR, it integrates both LAN and IDE RAID technology
on the board in addition to standard functions.
This chapter includes the following topics:
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-6
Key Features 1-7
MSI Special Features 1-8
1
Chapter 1
1-2
CPU
zSupports Single/Dual Intel®Pentium®III processors
zSupports Coppermine up to 1.1GHz @ 133MHz FSB
zSupports Tualatin up to 1.26GHz or higher @ 133MHz FSB
Chipset
zVIA®VT8653chipset(552BGA)
- 100/133MHz FSB settings
- AGP 4x and PCI Advanced high performance memory controller
zVIA®VT8233chipset(376BGA)
- High Bandwidth Vlink Client controller
- Integrated Fast Ethernet LPC
- Ultra DMA 33/66/100 master mode PCI EIDE controller
-ACPI
z266MB/sec high bandwidth North/South Bridge V-Link Bus
ClockGenerator
z100MHz/133MHz clocks are supported.
MainMemory
zSupports eight memory banks using four184-pin DDR DIMM
zSupports up to 4GB ECC registered DDR200/266 SDRAM
zSupports 2.5v DDR SDRAM
Slots
zOne (Accelerated Graphics Port) AGP slot
- AGP specification compliant
- Supports AGP 2.0 4x
zFive 32-bit Master PCI Bus slots
zSupports 3.3v/5v PCI bus Interface
Mainboard Specification
Note: Both Tualatin with 256K L2 cache and Tualatin with
512K L2 cache are able to be used on the motherboard. But
Tualatin with 256K L2 cache can be used only when you
install SINGLE CPU on the board.
Introduction
1-3
On-BoardIDE
zAn IDE controller on the VIA®VT8233 chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA 33/66/100 operation modes.
zCan connect up to four IDE devices
Promise20265ROn-Board(Pro266TDMaster-LRonly)
zSupports IDE RAID 0, 1
zCan connect up to four IDE devices
On-BoardPeripherals
zOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COMA + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB 1.1 ports (2 Rear Connectors/ 4 from USB Front Pin Headers)
- 1 IrDA connector for SIR/CIR/ASKIR/HPSIR.
Network(Pro266TDMaster-LRonly)
zIntel 82559 Lan controller
-Integrated IEEE802.310BASE-Tand100BASE-TXcompatiblePHY
- Wake-On-LAN and WFM 2.0 support
- ACPI and PCI Power Management
BIOS
zThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
zThe mainboard provides a Desktop Management Interface (DMI) func-
tion which records your mainboard specifications.
Dimension
zATXFormFactor:30.4cmx25.4cm
Mounting
z9 mounting holes, 6 Layers
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels MSI Carte mère
MSI
MSI MEG B550 UNIFY Manuel utilisateur
MSI
MSI 7C67-001R Manuel utilisateur
MSI
MSI MPG Z590 GAMING CARBON WIFI Manuel utilisateur
MSI
MSI X58M - Motherboard - Micro ATX Manuel utilisateur
MSI
MSI H67MA-E35 series Manuel utilisateur
MSI
MSI 990XA-GD55 series Manuel utilisateur
MSI
MSI Z68A-GD80 G3 series Manuel utilisateur
MSI
MSI G31M4-F Manuel utilisateur
MSI
MSI H310M PRO-VL Manuel utilisateur
MSI
MSI 845E Neo-V Manuel utilisateur
MSI
MSI P7N2 Diamond Series Manuel utilisateur
MSI
MSI P45 NEO3-FR - Motherboard - ATX Manuel utilisateur
MSI
MSI MS-6119 ATX BX2 Instructions d'installation
MSI
MSI MS-7238 Manuel utilisateur
MSI
MSI B150-ICAFE/ H110 PC MATE Manuel utilisateur
MSI
MSI B550M PRO/ A520M PRO Manuel utilisateur
MSI
MSI MAG B550M BAZOOKA Manuel utilisateur
MSI
MSI H310-A PRO Manuel utilisateur
MSI
MSI 945GM3-F - Motherboard - Micro ATX Manuel utilisateur
MSI
MSI Z87M GAMING Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
