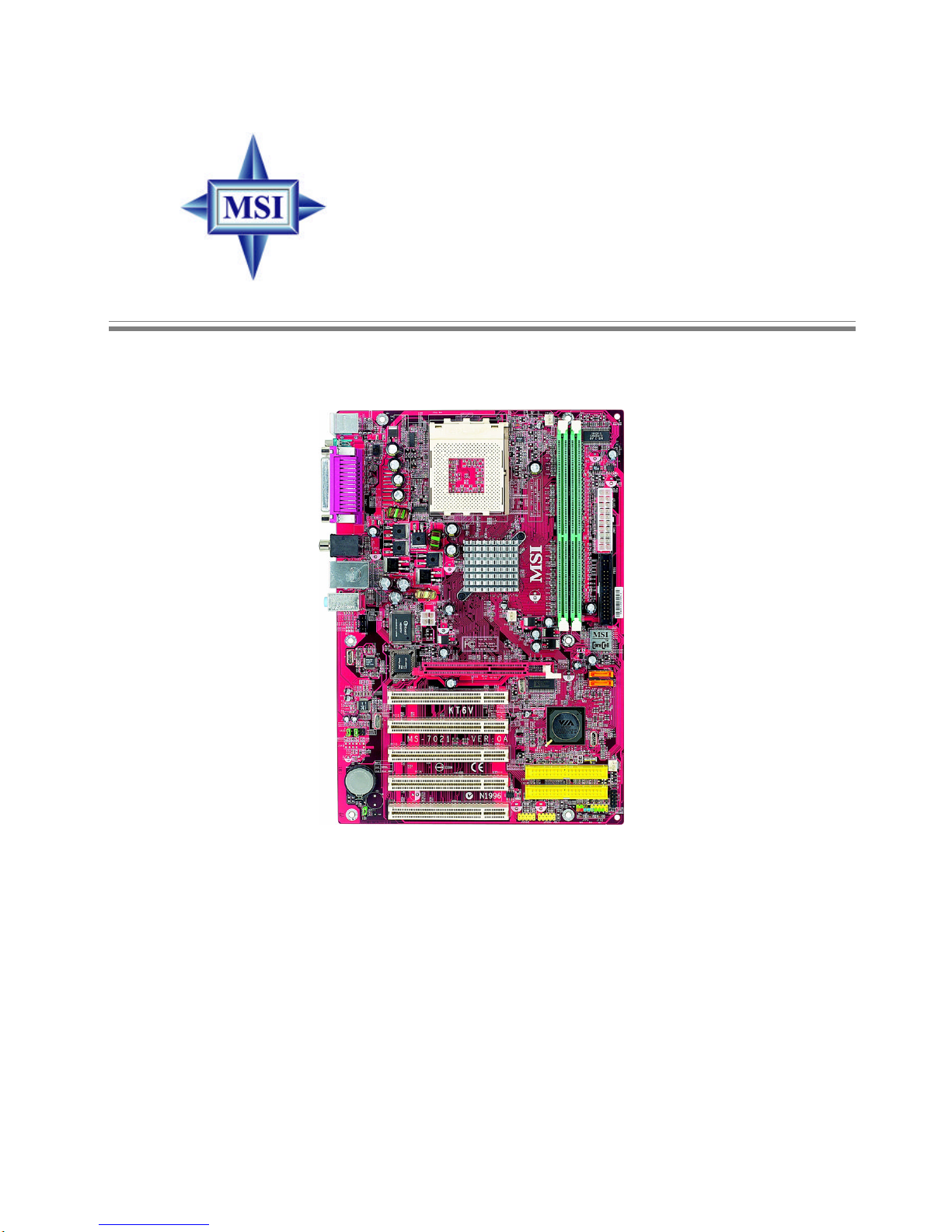

MSI KT6-V Manuel utilisateur

KT6V

Version1.1

G52-M7021X5

MS-7021 (v1.X)ATXMainboard

ManualRev:1.1

ReleaseDate:January2004

FCC-BRadioFrequencyInterference Statement

Thisequipmenthasbeentestedand found tocomplywiththelimitsforaclass

Bdigitaldevice,pursuanttopart15 oftheFCC rules.Theselimitsaredesigned

toprovidereasonableprotection againstharmfulinterference whentheequip-

mentisoperatedinacommercialenvironment.Thisequipmentgenerates,uses

and canradiateradiofrequencyenergyand,ifnotinstalledand usedinaccor-

dance withtheinstruction manual,maycauseharmfulinterference toradio

communications.Operation ofthisequipmentinaresidentialarea islikelyto

causeharmfulinterference,inwhichcasetheuserwill berequiredtocorrect

theinterference athisownexpense.

Notice1

Thechangesormodificationsnotexpresslyapprovedby thepartyrespon-

sibleforcompliance couldvoidtheuser’sauthoritytooperatetheequipment.

Notice2

Shieldedinterfacecablesand A.C.powercord,ifany,mustbeusedinorderto

complywiththeemission limits.

VOIRLANOTICED’INSTALLATIONAVANTDERACCORDERAU

RESEAU.

Micro-StarInternationalMS-7021

Testedtocomply

withFCCStandard

ForHomeorOfficeUse

iii

CopyrightNotice

ThematerialinthisdocumentistheintellectualpropertyofMICRO-STAR

INTERNATIONAL.We takeeverycareinthepreparation ofthisdocument,

butno guarantee isgivenastothecorrectness ofitscontents.Ourproducts

areundercontinualimprovementand wereservetherighttomakechanges

withoutnotice.

Trademarks

All trademarksarethepropertiesoftheirrespectiveowners.

AMD,Athlon™ ,Athlon™ XP,Thoroughbred™ ,and Duron™ areregistered

trademarksofAMDCorporation.

PS/2and OS®/2areregisteredtrademarksofInternationalBusiness Machines

Corporation.

Windows®95/98/2000/NT/XPareregisteredtrademarksofMicrosoft

Corporation.

Netware®isaregisteredtrademarkofNovell,Inc.

Award®isaregisteredtrademarkofPhoenixTechnologiesLtd.

AMI®isaregisteredtrademarkofAmericanMegatrendsInc.

RevisionHistory

RevisionRevisionHistoryDate

V1.1Add QuickInstallationGuideJanuary2004

TechnicalSupport

If aproblemariseswithyoursystemand no solution canbeobtainedfromthe

user’smanual,pleasecontactyourplace ofpurchaseorlocaldistributor.

Alternatively,pleasetrythefollowing helpresourcesforfurtherguidance.

Visit theMSIwebsiteforFAQ,technicalguide,BIOSupdates,driver

updates,andotherinformation:http://www.msi.com.tw/

Contactourtechnicalstaffat: support@msi.com.tw

1.Alwaysreadthesafetyinstructionscarefully.

2.KeepthisUser’sManualforfuturereference.

3.Keepthisequipmentawayfromhumidity.

4.Laythisequipmenton areliableflatsurface beforesetting it up.

5.Theopeningson theenclosureareforairconvection hence protectsthe

equipmentfromoverheating.DONOTCOVERTHEOPENINGS.

6.Makesurethevoltageofthepowersource and adjustproperly110/220V

beforeconnecting theequipmenttothepowerinlet.

7.Place thepowercordsuchawaythatpeoplecannotstepon it.Donot

place anything overthepowercord.

8.AlwaysUnplug thePowerCordbeforeinsertinganyadd-oncardormodule.

9.All cautionsand warningson theequipmentshouldbenoted.

10.Neverpouranyliquidintotheopening thatcoulddamageorcauseelectri-

calshock.

11.If any ofthefollowing situationsarises,gettheequipmentcheckedby a

service personnel:

lThepowercordorplug isdamaged.

lLiquidhaspenetratedintotheequipment.

lTheequipmenthasbeenexposedtomoisture.

lTheequipmenthasnotworkwell oryou cannotgetit workaccording

toUser’sManual.

lTheequipmenthasdroppedand damaged.

lTheequipmenthasobvioussign ofbreakage.

12.DO NOTLEAVETHISEQUIPMENTINAN ENVIRONMENT

UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),IT

MAYDAMAGETHEEQUIPMENT.

SafetyInstructions

CAUTION:Dangerofexplosion ifbatteryisincorrectlyreplaced.

Replace onlywiththesameorequivalenttyperecommendedby the

manufacturer.

CONTENTS

FCC-BRadioFrequencyInterference Statement........................................ ii

CopyrightNotice ......................................................................................iii

Revision History......................................................................................iii

TechnicalSupport.....................................................................................iii

SafetyInstructions.................................................................................. iv

Chapter1.GettingStarted.................................................................... 1-1

MainboardSpecifications.................................................................1-2

MainboardLayout...........................................................................1-4

MSISpecialFeatures........................................................................1-5

ColorManagement....................................................................1-5

D-Bracket™2(Optional)............................................................1-6

CoreCenter...............................................................................1-8

CoreCell™Chip...................................................................... 1-10

LiveBIOS™/LiveDriver™....................................................... 1-11

LiveMonitor™........................................................................ 1-12

Round Cable(Optional)........................................................... 1-13

CPUThermalProtection ........................................................... 1-13

Chapter2.HardwareSetup ................................................................... 2-1

CPUClockFrequencySelection through BIOS..................................2-2

MemorySpeed/CPUFSBSupportMatrix..........................................2-2

DIMM ModuleCombination ............................................................2-2

Installing DDRModules...................................................................2-3

BackPanel&PowerSupply..............................................................2-4

Connectors,Jumpersand Slots.........................................................2-5

Chapter3.BIOSSetup.......................................................................... 3-1

TheMainMenu ...............................................................................3-2

StandardCMOSFeatures.................................................................3-4

Frequency/VoltageControl...............................................................3-5

SetSupervisor/UserPassword..........................................................3-8

LoadHigh Performance/BIOSSetup Defaults....................................3-9

AppendixA:Using4-or6-ChannelAudioFunction.............................. A-1

AppendixB:VIAVT8237SerialATARAIDIntroduction..................... B-1

1-1

GettingStarted

Thank you forpurchasing KT6V(MS-7021 v1.X)ATX

mainboard.TheKT6VmainboardisbasedonVIA®KT600North

Bridge&VT8237 SouthBridgechipsetforoptimalsystem

efficiency.Designedtofit theadvancedAMD®Athlon™ ,

Athlon™ XPorDuron™ processors,theKT6Vmainboardde-

liversahigh performance and professionaldesktop platform

solution.

GettingStarted

1-2

MS-7021 ATXMainboard

MainboardSpecifications

CPU

†SupportsSocketA(Socket-462)forAMD®Athlon™ /Athlon™ XP/Duron™

processors

†SupportsAthlon XP1500+to3200+orhigherspeed

Chipset

†VIA®KT600 NorthBridge

-Supports200/266/333/400MHzfrontsidebus

-SupportsDDR200/266/333/400

-SupportsAGP8Xand PCIadvancedhigh performancememorycontroller

†VIA®VT8237 SouthBridge

-SupportsdualchannelnativeSATAcontrollerup to150MB/swithRaid0

&Raid1

-IntegratedHardwareSound Blaster/DirectSound AC’97 audio

-UltraDMA66/100/133mastermodePCIEIDEcontroller

-SupportsUSB2.0up to8ports

MainMemory

†Supportstwo184-pinDDRDIMMs

†Supportsup to2GBDDR200/266/333/400 SDRAMs

†Supports2.5vDDRSDRAM

Slots

†OneAGP(AcceleratedGraphicsPort)1.5Vslot

†Five32-bit PCIbusslots(support3.3v/5v PCIbusinterface)

On-BoardIDE

†AnIDEcontrolleron theVT8237 chipsetprovidesIDEHDD/CD-ROMwith

PIO,BusMasterand UltraDMA66/100/133 operation modes

†SerialATA150 controllerintegratedbyVT8237

-Upto150MB/stransferrate

-Canconnectup totwoserialATAdevices

On-BoardPeripherals

†On-BoardPeripheralsinclude:

-1floppy portsupports2FDDswith360K,720K,1.2M,1.44Mand

2.88Mbytes

1-3

GettingStarted

-1serialport

-1parallelportsupportsSPP/EPP/ECPmode

-3audioportsinvertical

-1RCASPDIF-Out

-1D-Bracket2pinheader

-1RJ-45LANJack

Audio

†AC’97linkcontrollerintegratedinVIA8237

†5.1ChannelaudiosupportedbyRealtekALC655 codec

-CompliancewithAC’97 v2.2spec.

-MeetPC2001audioperformancerequirement

BIOS

†ThemainboardBIOSprovides“Plug &Play” BIOSwhichdetectsthepe-

ripheraldevicesand expansion cardsoftheboardautomatically.

†ThemainboardprovidesaDesktop ManagementInterface (DMI) function

whichrecordsyourmainboardspecifications.

Dimension

†ATXFormFactor:29.5cm(L)x20.5cm(W)

Mounting

†6mounting holes

Others

†Suspend toRAM/Disk(S3/S4)

†PC2001compliant

1-4

MS-7021 ATXMainboard

MainboardLayout

KT6V(MS-7021 v1.X)ATXMainboard

BATT

DDR1

DDR2

ATX

PowerSupply

JUSB2

JUSB1

JAUD1

JCD1

SOCKET 462

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

IDE 2

IDE 1

JBAT1

JLED1

JFP1 JFP2

SATA2

SATA1

Top: LAN jack

Bottom: USB ports

Top : Parallel Port

Bottom:

COM A

Top : mouse

Bottom: keyboard

NBFAN1

JPW1

CFAN1

SFAN1

Winbond

W83697HF

Codec

Realtek

8201BL

T:Line-In

B:Mic

Line-Out

FDD1

AGP Slot

Top: Coaxial SPDIF Out

Bottom: USB ports

VIA

VT8237

VIA

KT600
