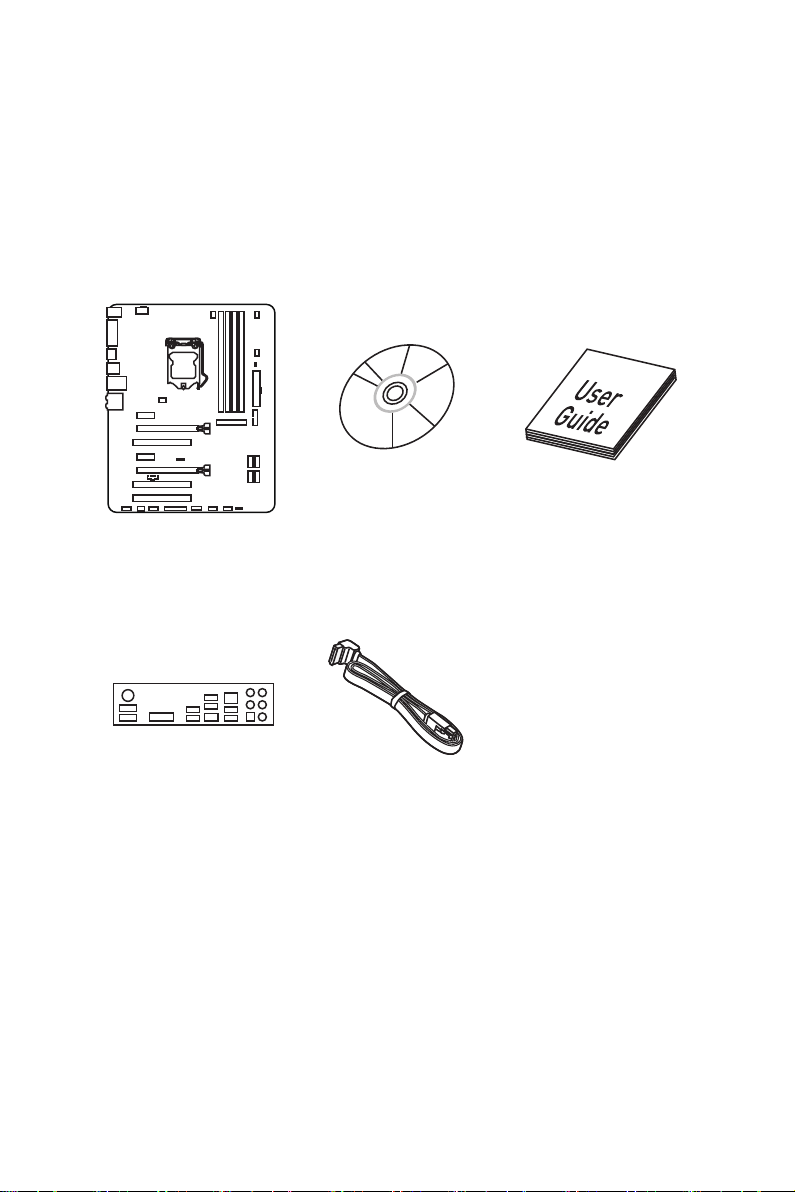

Unpacking

Thank you for buying the MSI®H170A GAMING PRO/ B150A GAMING PRO

motherboard. Check to make sure your motherboard box contains the following items.

If something is missing, contact your dealer as soon as possible.

SATA Cable

Drivers & Utilities

Disc

Motherboard User

Guide

I/O Shield

Motherboard

2Safety Information

Safety Information

●The components included in this package are prone to damage from electrostatic

discharge (ESD). Please adhere to the following instructions to ensure successful

computer assembly.

●Ensure that all components are securely connected. Loose connections may cause

the computer to not recognize a component or fail to start.

●Hold the motherboard by the edges to avoid touching sensitive components.

●It is recommended to wear an electrostatic discharge (ESD) wrist strap when

handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is

not available, discharge yourself of static electricity by touching another metal object

before handling the motherboard.

●Store the motherboard in an electrostatic shielding container or on an anti-static pad

whenever the motherboard is not installed.

●Before turning on the computer, ensure that there are no loose screws or metal

components on the motherboard or anywhere within the computer case.

●Do not boot the computer before installation is completed. This could cause

permanent damage to the components as well as injury to the user.

●If you need help during any installation step, please consult a certified computer

technician.

●Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing any computer component.

●Keep this user guide for future reference.

●Keep this motherboard away from humidity.

●Make sure that your electrical outlet provides the same voltage as is indicated on

the PSU, before connecting the PSU to the electrical outlet.

●Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

●All cautions and warnings on the motherboard should be noted.

●If any of the following situations arises, get the motherboard checked by service

personnel:

▶Liquid has penetrated into the computer.

▶The motherboard has been exposed to moisture.

▶The motherboard does not work well or you can not get it work according to user

guide.

▶The motherboard has been dropped and damaged.

▶The motherboard has obvious sign of breakage.

●Do not leave this motherboard in an environment above 60°C (140°F), it may

damage the motherboard.

Quick Start

Intel®LGA 1151 CPU

DDR4 Memory

Graphics Card

SATA Hard Disk Drive

SATA DVD Drive

A Package of Screws

Phillips Screwdriver

Chassis

Power Supply Unit

CPU Fan Thermal Paste

Quick Start

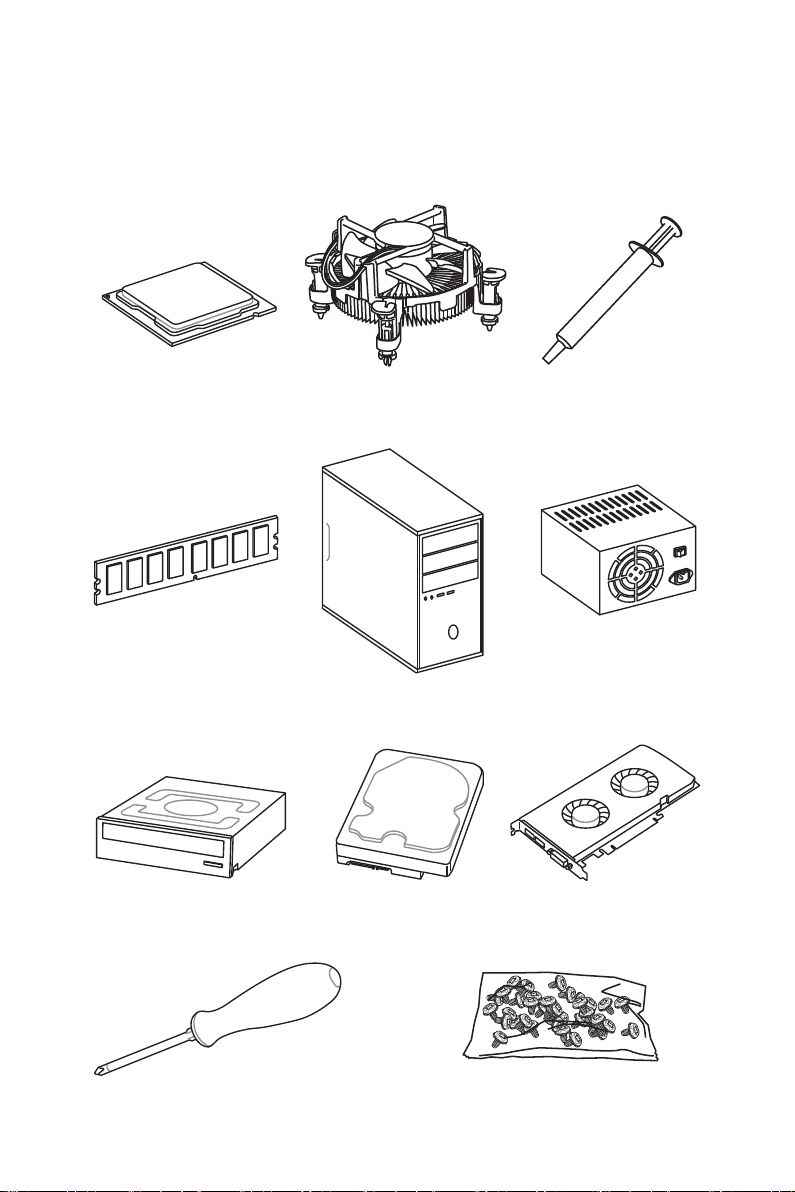

Preparing Tools and Components

4Quick Start

http://youtu.be/bf5La099urI

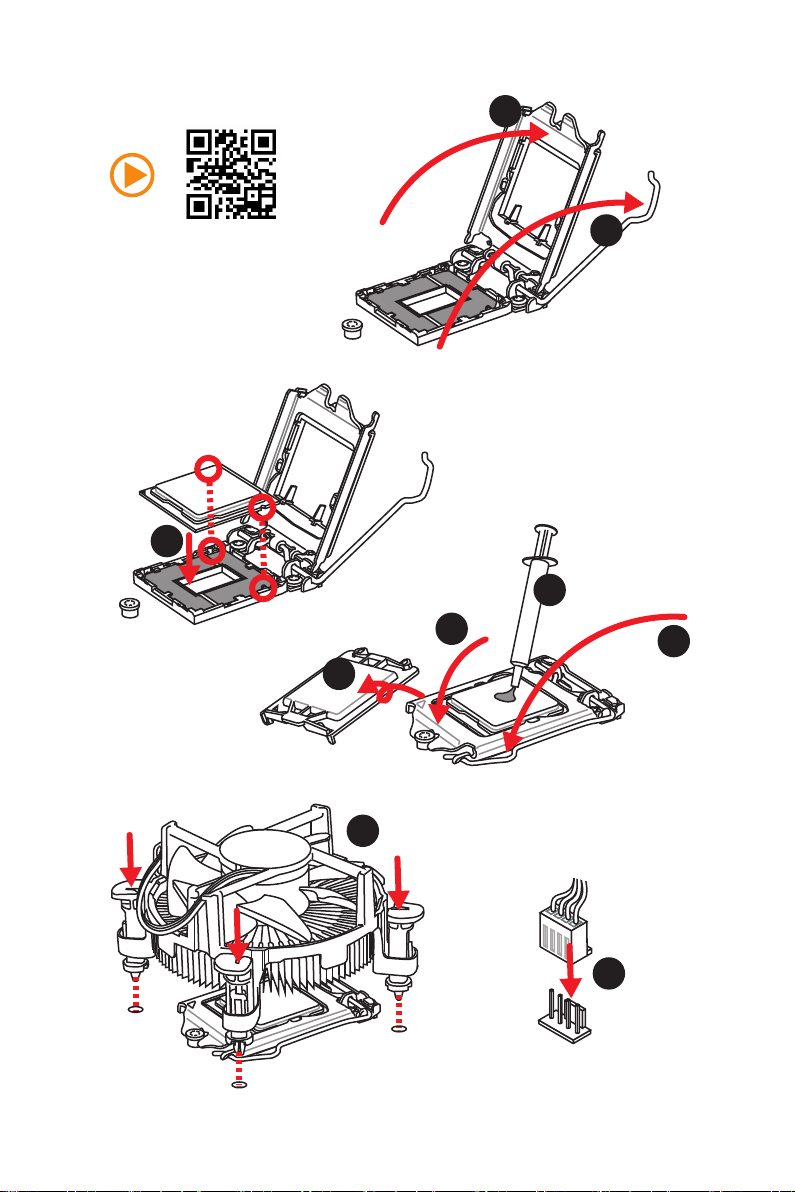

Installing a Processor

Quick Start

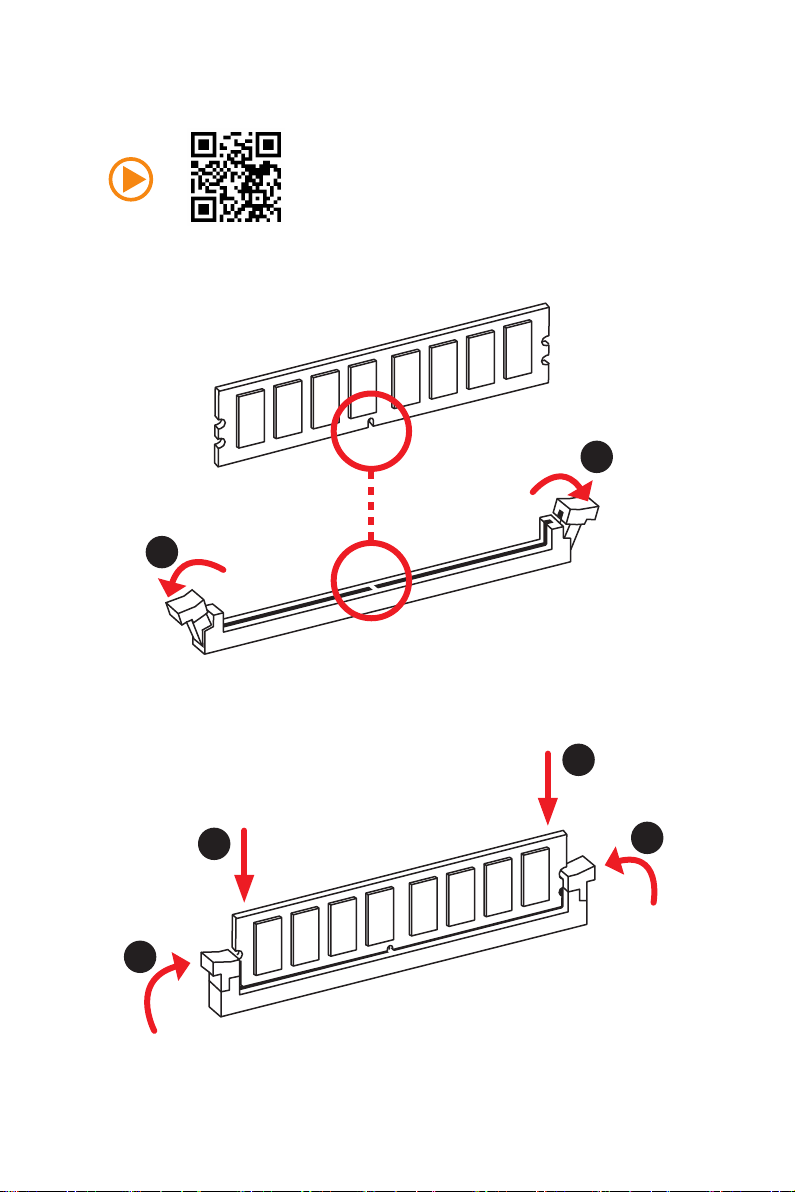

Installing DDR4 memory

http://youtu.be/T03aDrJPyQs

6Quick Start

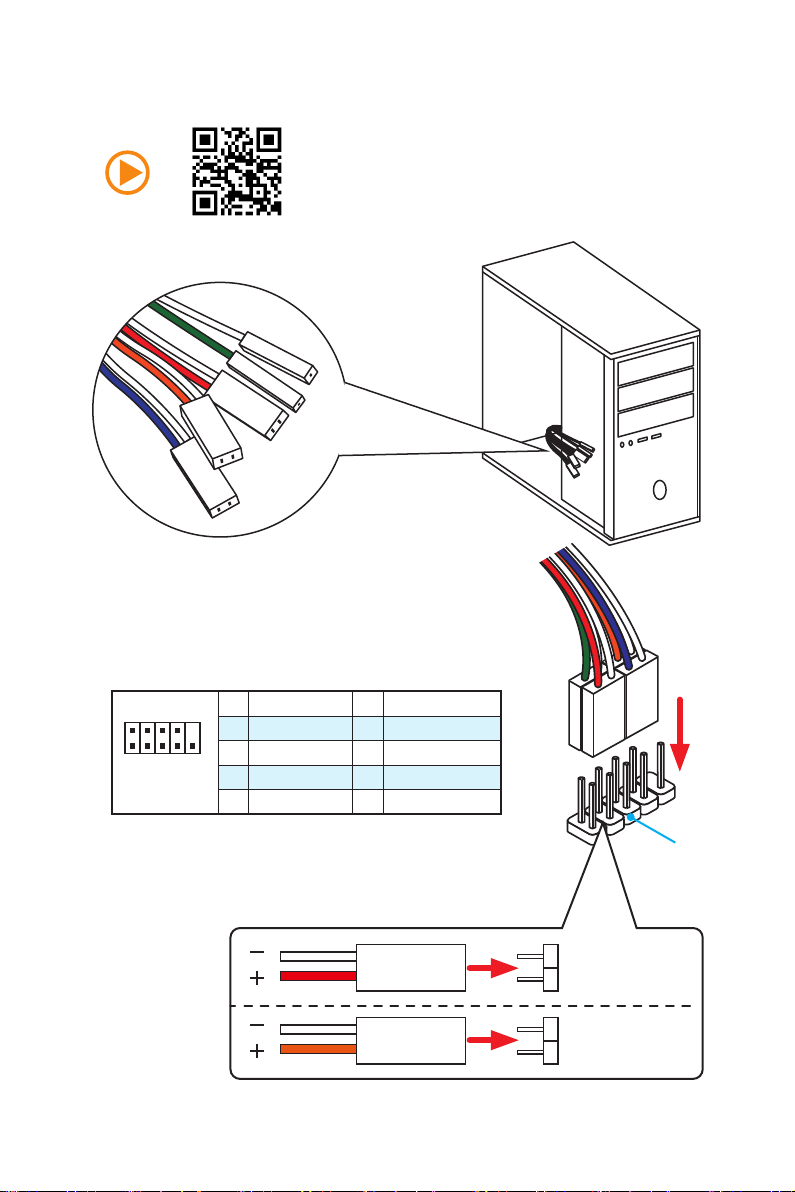

Connecting the Front Panel Header

http://youtu.be/DPELIdVNZUI

2 10

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

RESET SW

POWER SW

POWER LED+

POWER LED-

HDD LED

RESET SW

JFP1

HDD LED HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

Quick Start

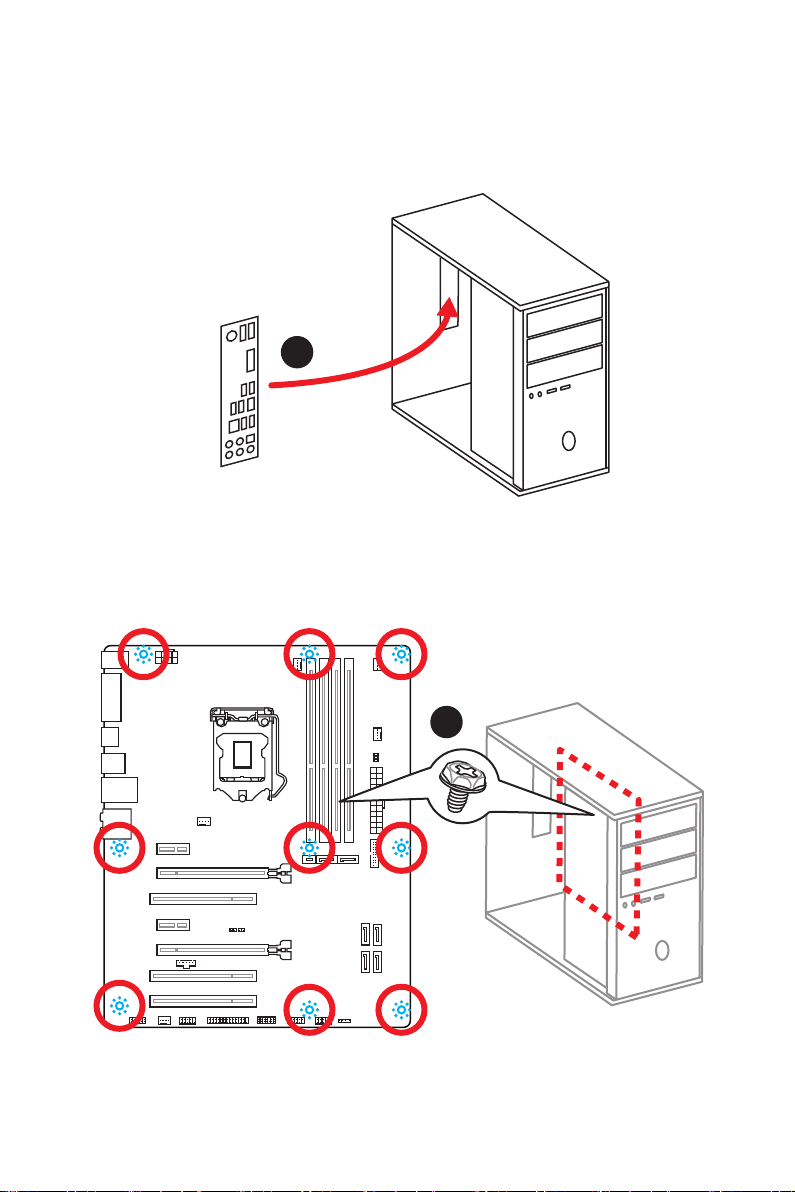

Installing the Motherboard

8Quick Start

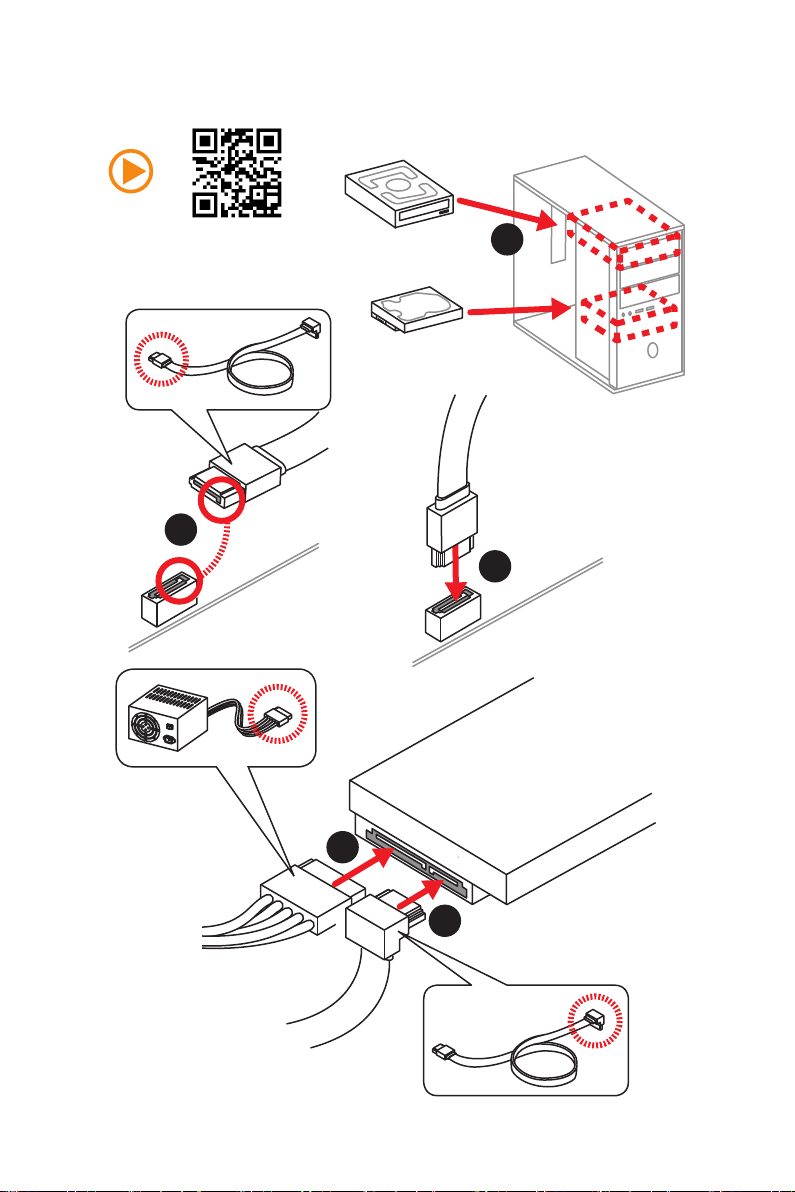

Installing SATA Drives

http://youtu.be/RZsMpqxythc 1

Quick Start

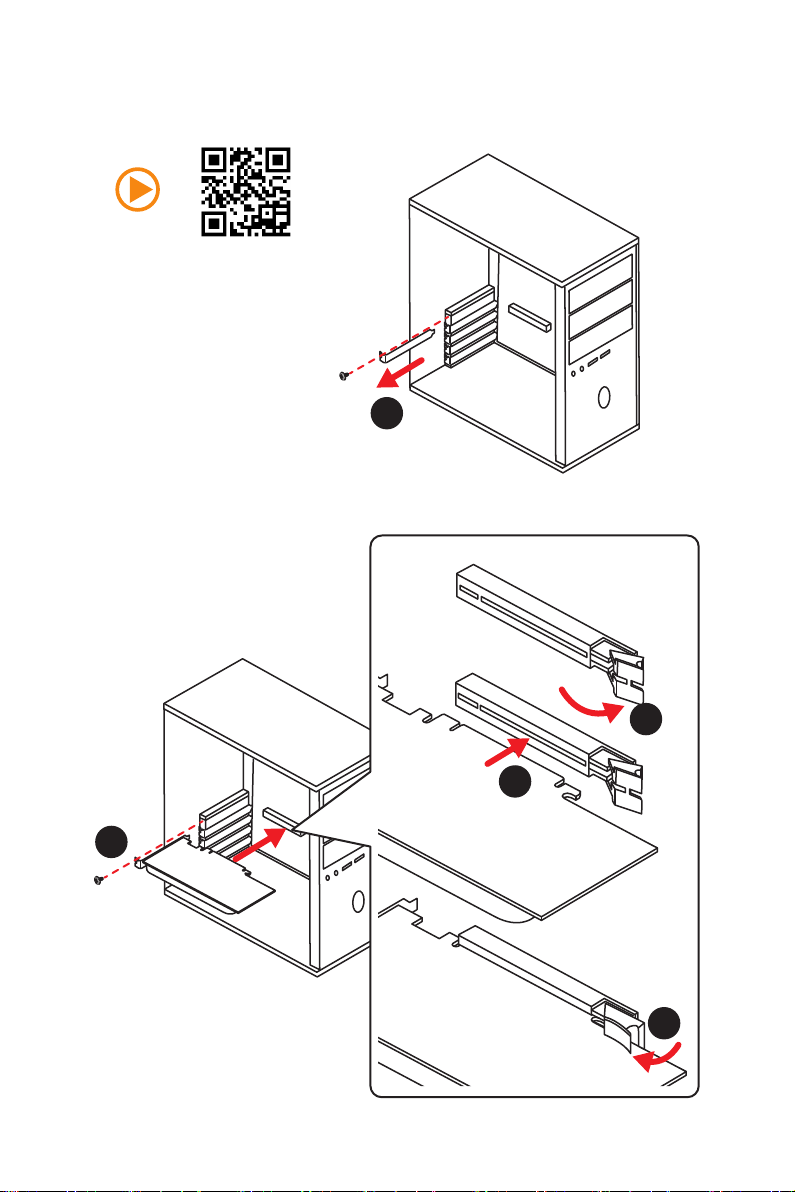

Installing a Graphics Card

http://youtu.be/mG0GZpr9w_A

10 Quick Start

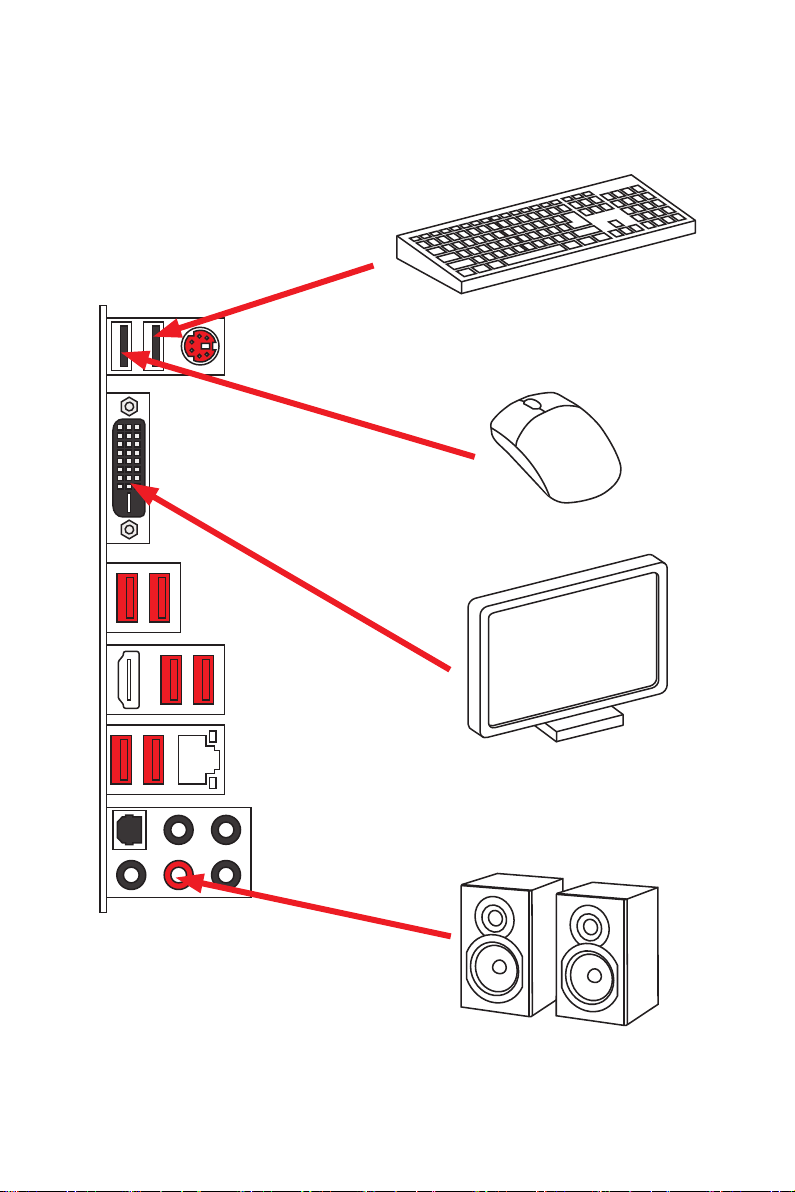

Connecting Peripheral Devices
