CHAPTER 1 INTRODUCTION

1-1

Chapter 1

INTRODUCTION

The694DPRO(MS-6321)ATXmainboardisahigh-performance

computermainboard based on VIA®VT82C694Xchipset. The 694D PRO is

designed for Intel®Pentium®III (FC-PGA) processor for cost-effective

business/personal desktop markets.

TheApolloPro133A(VT82C694X)isaSocket-370systemlogic

north bridge with the addition of 133 MHz capability for both the CPU and

SDRAM interfaces. Apollo Pro133A may be used to implement both desktop

and notebook personal computer systems from 66MHz to 133MHz based on

Socket-370 (Pentium®III processor). The primary features of the Apollo

Pro133A-NorthBridgeare:Slot-1orSocket-370CPU(FrontSideBus)

Interface(66/100/133MHz),DRAMMemoryInterface(66/100 / 133MHz),

AGP Bus Interface (66MHz), PCIBusInterface(33MHz),Mobile Power

Management.

TheVT82C686A PSIPC (PCI Super-I/OIntegratedPeripheral

Controller) is a high integration, high performance, power-efficient, and high

compatibility device that supports Intel and non-Intel based processor to

PCI bus bridge functionality to make a complete Microsoft PC99-compliant

PCI/ISA system.

CHAPTER 1 INTRODUCTION

1-2

1.1 Mainboard Features

CPU

lSupport dual Intel®Pentium®III(FC-PGA) processor.

lSupports533MHz,566MHz,600MHz,667MHz,700MHz,733MHz,

800MHz,866MHz,and933MHz.

Chipset

lVIA®694Xchipset. (510BGA)

-FSB@133MHz

-AGP 4x and PCI plus Advanced ECCMemory Controller

-SupportPC100/133SDRAM & VCM technology

lVIA®VT82C686Achipset.(352BGA)

- Advanced Power Management Features

- DirectSound AC97 Audio

- Dual bus Master IDE Ultra DMA 33/66

l1394PHY Controller(optional)

-TI®TSB41LV02PHY Digital-to-AnalogTransceiver

- Support up to Two 1394/1394A v 2.0 Compatible Data Channels

l1394Link Layer Controller(optional)

-TI®TSB12LV26 1394Link LayerHost Controller

-IEEE1394,1394 OHCIv1.0&1394Av2.0compatible

- Supports 100/200/400 Mbps High Throughput

-3.3V & 5V OperationforPCI-to 1394 Interface

lPromiseATA100

- Dual bus master IDE Ultra DMA/ATA 100

- up to 133MB/sec burst transfer rate (through PCI Bus)

ClockGenerator

l66.6MHz,100MHzand133Mhz clocks are supported.

MainMemory

lSupport eight memory banks using four 168-pin unbuffered DIMM.

lSupportamaximummemorysizeof 2.0GB.

lSupportECC(1-bitErrorCode Correct) function.

lSupport3.3V SDRAM DIMM.

CHAPTER 1 INTRODUCTION

1-3

Slots

lOneAGP 4x(Accelerated Graphics Port) slot.

- AGP specification compliant

- AGP66/133MHz3.3V device support

lOne CNR(Communication Network Riser) slot which support Modem

only.

lFive 32-bit Master PCI Bus slots.

lSupports3.3V/5V PCI bus Interface.

On-BoardIDE

lAnIDE controller on the VIA®VT82C686AChipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.

lCan connect up to eight IDE devices. (If Promise ATA100 driver is

installed)

-4 Ultra DMA100+4 Ultra DMA33/66

On-BoardPeripherals

lOn-BoardPeripherals include:

-1 floppy port supports 2 FDD with360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

-2 serial ports (COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports

-1 IrDA/HP connector for HPSIR.

Audio

lChip integrated

CHAPTER 1 INTRODUCTION

1-4

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

lATX Form Factor

Mounting

l9 mounting holes.

CHAPTER 1 INTRODUCTION

1-5

1.2 Mainboard Layout

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

ATX

Power Supply

VIA

694X

chipset

Socket 370 (2)

DIMM 2

Top: mouse

Top:Port1

USB

DIMM 3

IDE1

IDE2

FDD

VT82C686A

JMDM1

JFP1

JGL1

JBAT1

JWOL1

JPHONE

JAUX1

CPUFAN1

BATT

Top:LPT

Bottom:

COMA\ COM B

Top: Midi/

GamePort

Bottom:

Line-Out

Line-In

Mic

694DPRO(MS-6321)ATXMainboard

JCD1

SYSFAN

CNR

AGP Slot

JRMS1

DIMM 1

PCI SLOT 4

PCI SLOT 5

JCASE1

DiagnosticLED

J13

SW1

Socket 370 (1)

IDE3

IDE4 DIMM 4

CPU

FAN2

ATA100

BIOS

USB2

1394Link

Layer

Controller

(optional)

1394PH

Controller

(optional)

Bottom:

Port2 SW2

Bottom:

keyboard

JDIM1

JDIM2

J11

J12

CHAPTER 2 HARDWARE INSTALLATION

2-1

CPU

Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

The mainboard operates with Intel® Pentium® III(FC-PGA)processor. The

mainboard uses a CPU socket called Socket 370 for easy CPU installation.

The CPU should always have a Heat Sink and a cooling fan attached to

prevent overheating.

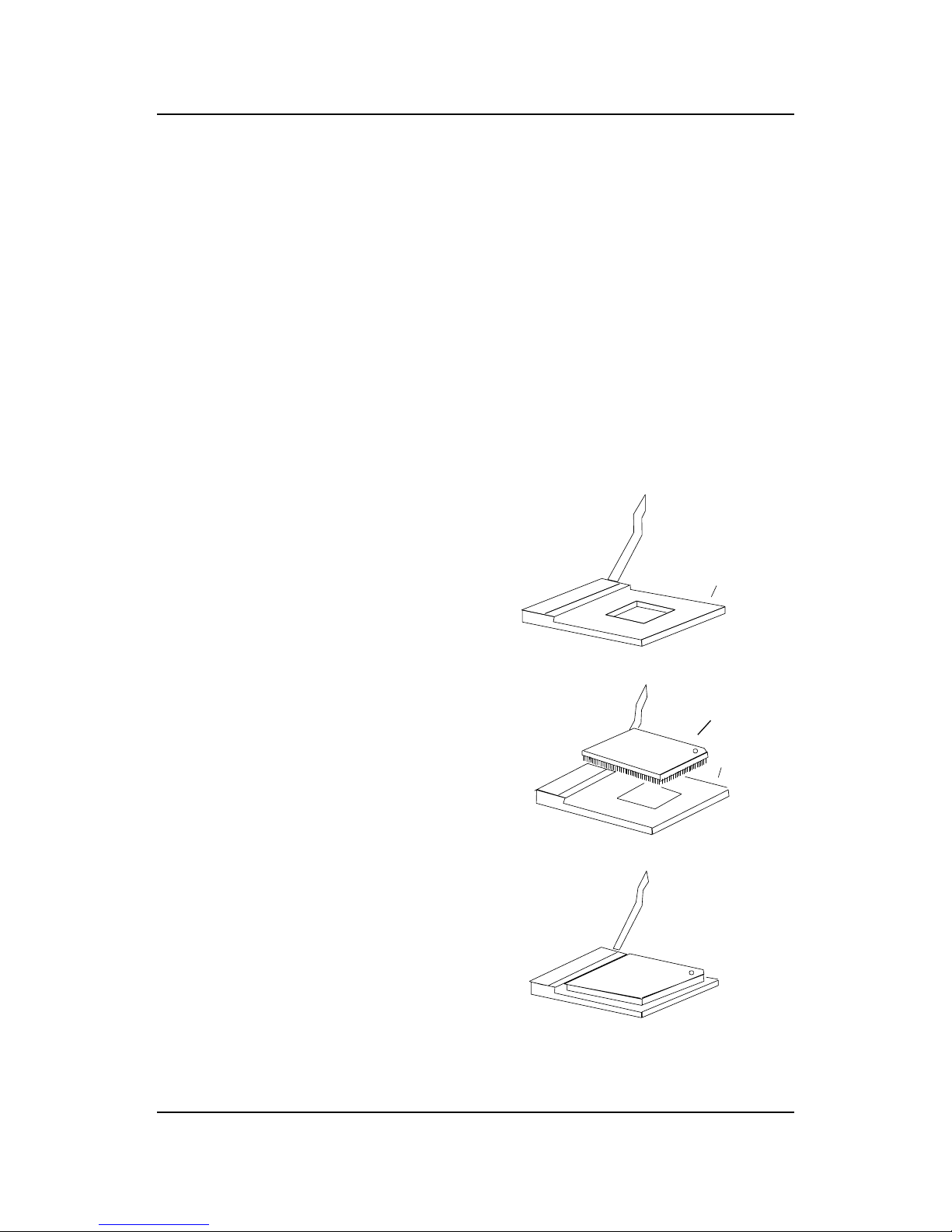

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CPU. Match

Pin 1 with the white dot/cut

edge. Then, insert the CPU.

It should insert easily.

OpenLever

Pin1

Sliding

Plate

White dot/

Cut edge

Lever

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

Pin1

2.1-1 CPU Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION

2-2

The BIOS can be used to set the CPU Host Bus Frequency Clock.

If CPUClock = 66MHz

Core/Bus ratio = 3.5

then CPU core speed = Host Clockx Core/Bus ratio

= 66MHzx3.5

= 233MHz

2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2 HARDWARE INSTALLATION

2-3

2.1-3 CPU Speed Setting: SW1/SW2

To adjust the speed of the CPU, you must know the specification of your

CPU (always ask the vendor for CPU specification). The mainboard can

auto-detect between 66, 100 or 133MHz CPU Bus Frequency.

SW2

SW1

SW1SW2

1-2 1-2

66.6→100MHz1-2 Null

100→133MHz

Null 1-2

2-3 1-2 133→100MHz

Auto

2-3 2-3 133→66.6MHz

100→66.6MHz

Function

CHAPTER 2 HARDWARE INSTALLATION

2-4

2.1-4 Dual Processor or Single Processor Installation

IntelPentium III processor has termination circuitry for the processor’s

AGTL+ bus. In a two processor platform, each end of the bus must be

properly terminated, whether or not both processor socket locations have

processors installed. The 694DPro has implemented 2 methods to meet

Intel Design guide. Please check onboard AGTL+ bus terminator resistor

support at location (1). If there’s no onboard AGTL+ Bus Terminator

Resistor, users should get PGA 370 bus terminator card (MS-6916) from MSI

to plug into CPU 2.

Function

CPU 1 + CPU 2

CPU 1 + PGA 370 Bus Terminator Card (CPU

2) or

CPU 1 + Onboard AGTL+ Bus Terminator

Resistor (located inside CPU 2)

AGTL+ Bus Terminator

Location (1)

Processor

Dual

Processor

Single

Processor

CPU 1

CPU 2

PGA 370 Bus

Terminator Card

(MS-6916)

Onboard

AGTL+Bus

Terminator

Resistor

CHAPTER 2 HARDWARE INSTALLATION

2-5

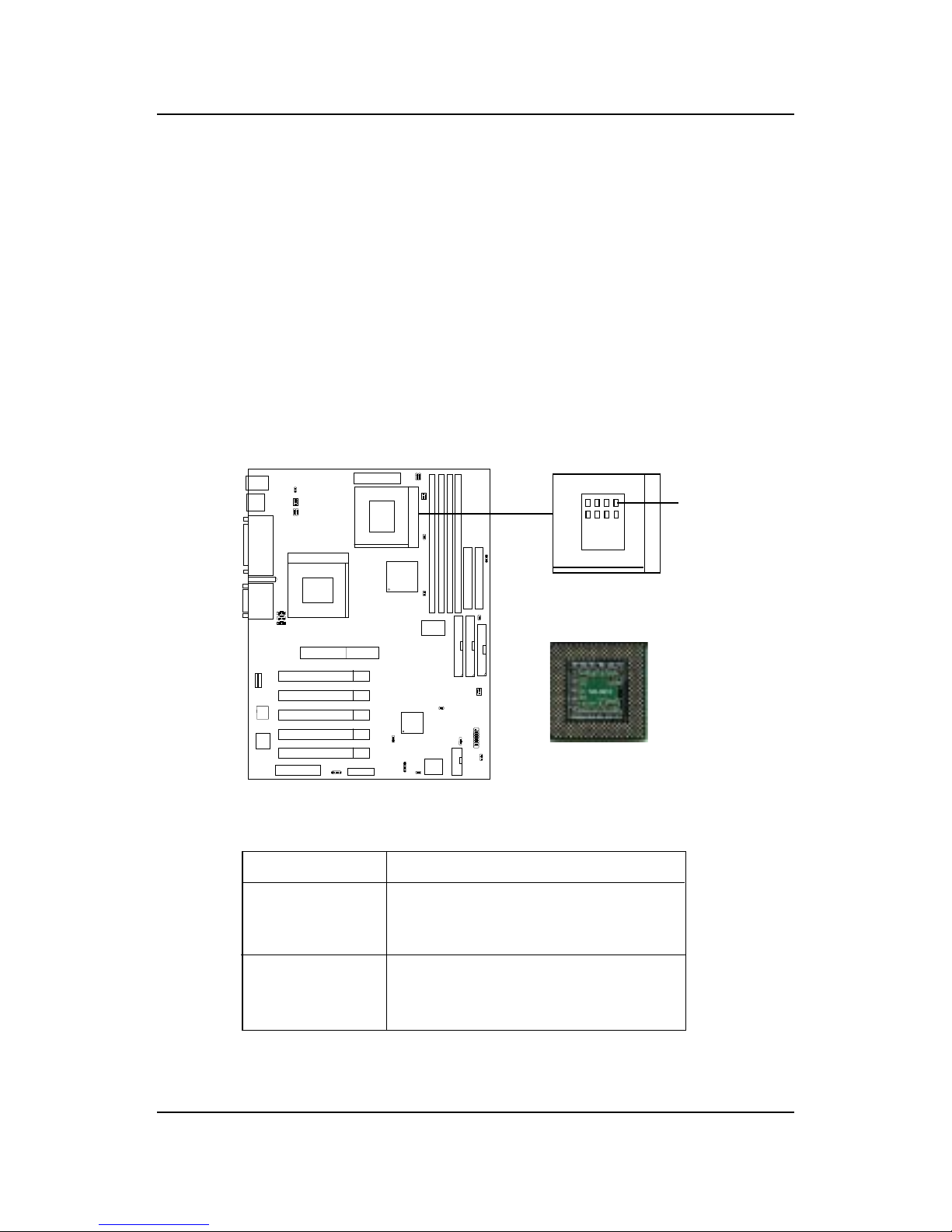

2.1-5 Fan Power Connectors: CPUFAN1/CPUFAN2/SYSFAN

These connectors support system cooling fan with + 12V. It supports three

pin head connector. When connecting the wire to the connector, always

take note that the red wire is the positive and should be connected to the

+12V, the black wire is Ground and should be connected to GND. If your

mainboard has System Hardware Monitor chipset on-board, you must use a

specially designed fan with speed sensor to take advantage of this function.

For fans with fan speed sensor, every rotation of the fan will send out 2

pulses. System Hardware Monitor will count and report the fan rotation

speed.

Note: 1. Always consult vendor for proper CPU cooling fan.

2. CPU FAN supports the FAN control. You can install PC Alert

utility. This will automatically control the CPU FAN Speed according

to the actual CPU temperature.

CPUFAN2

CPUFAN1: Processor Fan 1

CPUFAN2:Processor Fan 2

SYSFAN: System Fan (Non speed report)

SYSFAN

+12V

GND

SENSOR

CPUFAN1

+12V

SENSOR

GND +12V

SENSOR

GND
