Version 5.0

G52-MA00452

MS-6137 (v5.X) Micro ATX Mainboard

MSI

MICRO-STAR INTERNATIONAL

This Manual: http://www.manuallib.com/file/2541279

Manual Rev: 5.0

Release Date: Sept. 2001

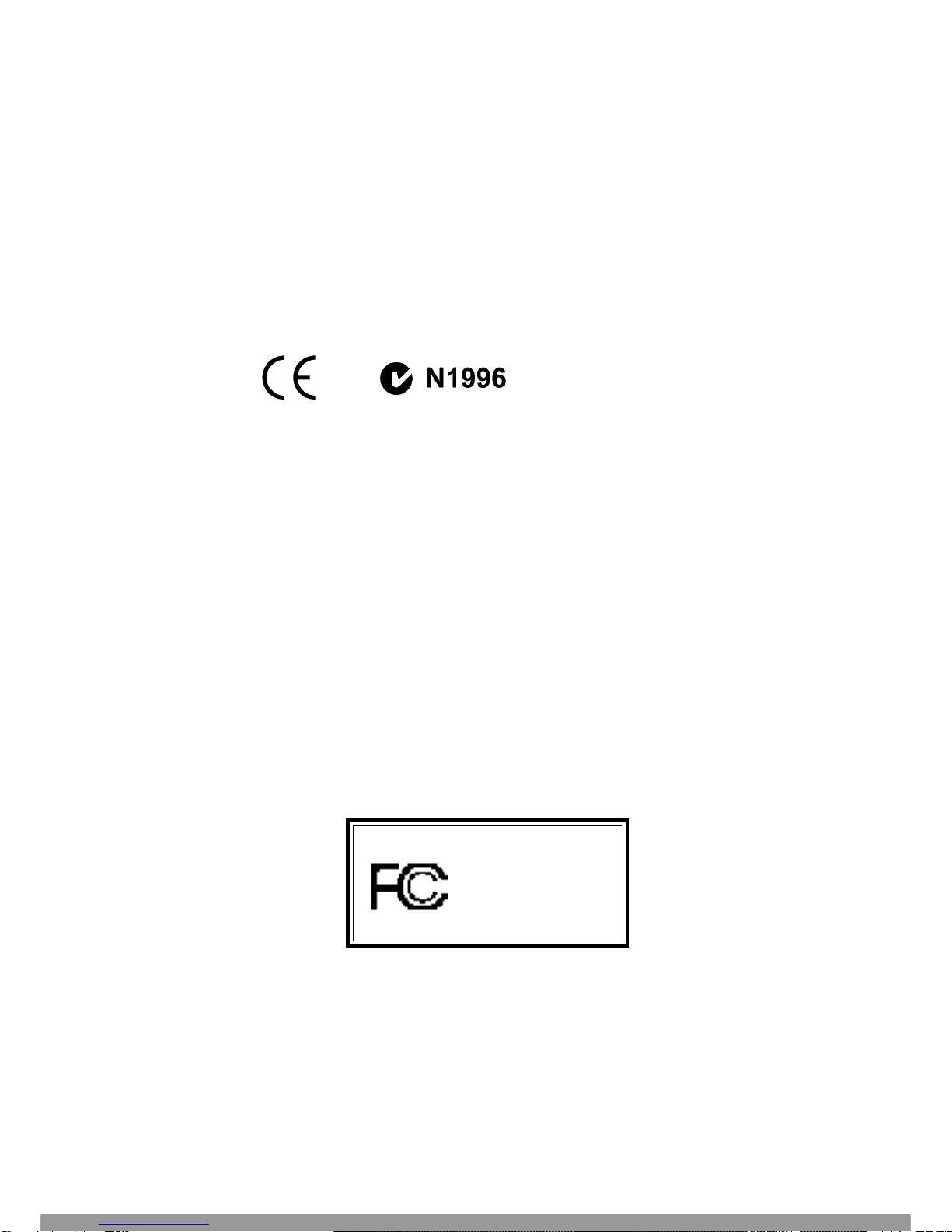

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6137

Tested to comply

with FCC Standard

For Home or Office Use

This Manual: http://www.manuallib.com/file/2541279

iii

Edition

Sept. 2001

The material in this document is the intellectual property of MICRO-

STAR INTERNATIONAL. We take every care in the preparation

of this document, but no guarantee is given as to the correctness of its

contents. Our products are under continual improvement and we re-

serve the right to make changes without notice.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 95/98/2000 and Windows NT are registered trademarks of Microsoft.

Netware is a registered trademark of Novell.

Award is a registered trademark of Award Software Inc.

Revision History

Revision Revision History Date

V5.0 First release for PCB 5.X Sept. 2001

This Manual: http://www.manuallib.com/file/2541279

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

zThe power cord or plug is damaged

zLiquid has penetrated into the equipment

zThe equipment has been exposed to moisture

zThe equipment has not work well or you can not get it work according

to User’s Manual.

zThe equipment has dropped and damaged

zIf the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT

UNCONDITIONED,STORAGETEMPERATUREABOVE600

C(1400F),IT

MAY DAMAGE THE EQUIPMENT.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

This Manual: http://www.manuallib.com/file/2541279

CONTENTS

Chapter 1. Introduction ............................................................... 1-1

Mainboard Specification ............................................................ 1-2

Mainboard Layout ..................................................................... 1-4

Quick Components Guide ......................................................... 1-5

Key Features ............................................................................ 1-6

MSI Special Features ................................................................ 1-7

T.O.P Tech™ (optional) ....................................................... 1-7

PC Alert™ III ....................................................................... 1-8

Chapter 2. Hardware Setup ........................................................ 2-1

Central Processing Unit: CPU ................................................... 2-2

CPU Installation Procedures ............................................... 2-2

CPU Core Speed Derivation Procedure ................................ 2-3

Memory Installation ................................................................... 2-4

Memory Bank Configuration ................................................ 2-4

Memory Installation Procedures .......................................... 2-5

Power Supply ............................................................................ 2-6

ATX 20-Pin Power Connector: JWR1 ................................... 2-6

Back Panel ............................................................................... 2-7

Mouse Connector: JKBMS1 ................................................ 2-7

Keyboard Connector: JKBMS1 ............................................ 2-8

USB Connectors ................................................................. 2-8

Serial Port Connector: COM A & COM B ............................ 2-9

Joystick/Midi Connectors .................................................... 2-9

Audio Port Connectors ........................................................ 2-9

Parallel Port Connector: LPT1 ........................................... 2-10

VGA DB 15 Pin Connector ................................................ 2-11

Connectors ............................................................................. 2-12

Floppy Disk Drive Connector: FDD .................................... 2-12

Power Saving Switch Connector: JGS1 ............................. 2-12

This Manual: http://www.manuallib.com/file/2541279

Hard Disk Connectors: IDE1 & IDE2 ................................. 2-13

Fan Power Connectors: CPUFAN/SFAN1/PSFAN1 ........... 2-14

CD-In Connector: CD_IN ................................................... 2-15

Aux Line-In Connector: AUX_IN ......................................... 2-15

Modem-In Connector: MODEM_IN .................................... 2-15

Wake On LAN Connector: JWOL1 .................................... 2-16

Wake On Ring Connector: JMDM1 ................................... 2-16

Front Panel Connector: JFP1 or JFP2 (optional Intel spec) 2-17

Front Audio Header: JAUD2 or JAUD1 (optional Intel spec) 2-18

USB Front Header: USB3 or USB2 (optional Intel spec) .... 2-19

IrDA Infrared Module Header: IR or IR2 (optional Intel spec)2-20

Chassis Intrusion Switch Connector: J1 ............................ 2-21

Jumpers .................................................................................. 2-22

Clear CMOS Jumper: JBAT1 ............................................. 2-22

BIOS Flash Jumper: JP3 ................................................... 2-23

Onboard Audio Jumper: JP2 .............................................. 2-23

Slots ....................................................................................... 2-24

AMR (Audio Modem Riser) Slot ........................................ 2-24

PCI Slots .......................................................................... 2-24

ISA Slot ............................................................................ 2-24

PCI Interrupt Request Routing ........................................... 2-25

Chapter 3. AWARD®BIOS Setup .................................................. 3-1

Entering Setup .......................................................................... 3-2

Control Keys ............................................................................. 3-2

Getting Help .............................................................................. 3-3

The Main Menu ......................................................................... 3-4

Standard CMOS Features ......................................................... 3-6

Advanced BIOS Features .......................................................... 3-8

Advanced Chipset Features .................................................... 3-12

Integrated Peripherals ............................................................. 3-15

This Manual: http://www.manuallib.com/file/2541279

vii

Power Management Setup ...................................................... 3-20

PNP/PCI Configurations .......................................................... 3-24

PC Health Status .................................................................... 3-26

Frequency/Voltage Control ...................................................... 3-27

Load Fail-Safe/Optimized Defaults .......................................... 3-28

Set Supervisor/User Password ................................................ 3-30

Save & Exit Setup ................................................................... 3-32

Exit Without Saving ................................................................. 3-33

Appendix: Glossary ..................................................................... A-1

This Manual: http://www.manuallib.com/file/2541279

Introduction

1-1

Chapter 1.

Introduction 1

The MS-6137 v5.X Micro-ATX WH1 mainboard is a high-performance

computer mainboard based on Intel®810/810E chipset. It is designed for Intel®

Celeron-TualatinTM, Pentium®III and VIA®C3, Samuel2 processors for inex-

pensive business/personal desktop markets.

The Intel®810/810E chipset is the first generation Integrated Graphics

chipset for Intel®CeleronTM and Pentium®III processors. The graphics accel-

erator architecture consists of dedicated multi-media engines executing in par-

allel to deliver high performance 3D, 2D and motion compensation video capa-

bilities. An integrated centralized memory arbiter allocates memory bandwidth

to multiple system agents to optimize system memory utilization. A new chipset

component interconnect, the hub interface, is designed into the Intel®810/

810E chipset to provide an efficient communication channel between the memory

controller hub and I/O controller hub.

The Intel® 810/810E chipset contains three core components. The GMCH

integrates 66/100/133MHz for 810 and 66/100/133 MHz for 810E, P6 family sys-

tem bus controller, integrated 2D/3D graphics accelerator, 100MHz SDRAM

controller and high-speed hub interface for communication with the ICH0/ICH.

The ICH0/ICH integrates an Ultra ATA/33 (ICH0) or Ultra ATA/66 (ICH)

controller, USB host controller, LPC interface controller, FWH interface

controller, PCI interface controller, AC`97 digital controller and a hub interface

for communication with the GMCH/GMCHO. The Intel®82802 Firmware Hub

(FWH) component is part of the Intel®810E chipset. The FWH is key to ena-

bling future security and manageability infrastructure for the PC platform.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

This Manual: http://www.manuallib.com/file/2541279

Chapter 1

1-2

CPU

zSupports Intel®Socket 370 Pentium III, Celeron-Tualatin, VIA C3, and Samuel2

processors.

zSupports up to 1.1GHz CPU.

Chipset

zIntel®810/810E (GMCH) chipset. (421 BGA)

- Integrated Graphics Controller.

- Intel DDM Architecture.

- SDRAM Memory Independent of System Bus.

zIntel®ICH chipset. (241 BGA)

- AC’97 Controller Integrated.

- 2 full IDE channels, up to ATA66.

- Low Pin Count interface for SIO.

Front Side Bus (FSB)

z66/100/133MHz clocks are supported.

Main Memory

zSupport two 168-pin DIMM sockets.

zSupport a maximum memory size of 256MB(64-bit) or 512MB(128-bit)

SDRAM.

Slots

zOne AMR (Audio Modem Riser) slot.

zThree PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

zOne 16-bit ISA bus slot (optional).

On-Board IDE

zAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA66 operation modes.

zCan connect up to four IDE devices.

On-Board Peripherals

zOn-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COM A + COM B).
