RKS-G4028/

RKS-4028-L3 Series

Quick Installation Guide

Version 1.1, August 2022

Technical Support Contact Information

www.moxa.com/support



2022 Moxa Inc. All rights re served.

- 2 -

Package Checklist

The Moxa RKS-G4028/RKS-G4028-L3 industrial rackmount switch is

shipped with the following items. If any of these items are missing or

dam aged, please contact your customer service representative for

assistance.

•RKS-G4028/RKS-G4028-L3 s witch

•4 protective caps for unused SFP po rts (only for RKS-G4028-GS

m odels)

•2 rackm ount ears

•8 round stickers for module screws

•Quick installation guide (printed)

•Warranty card

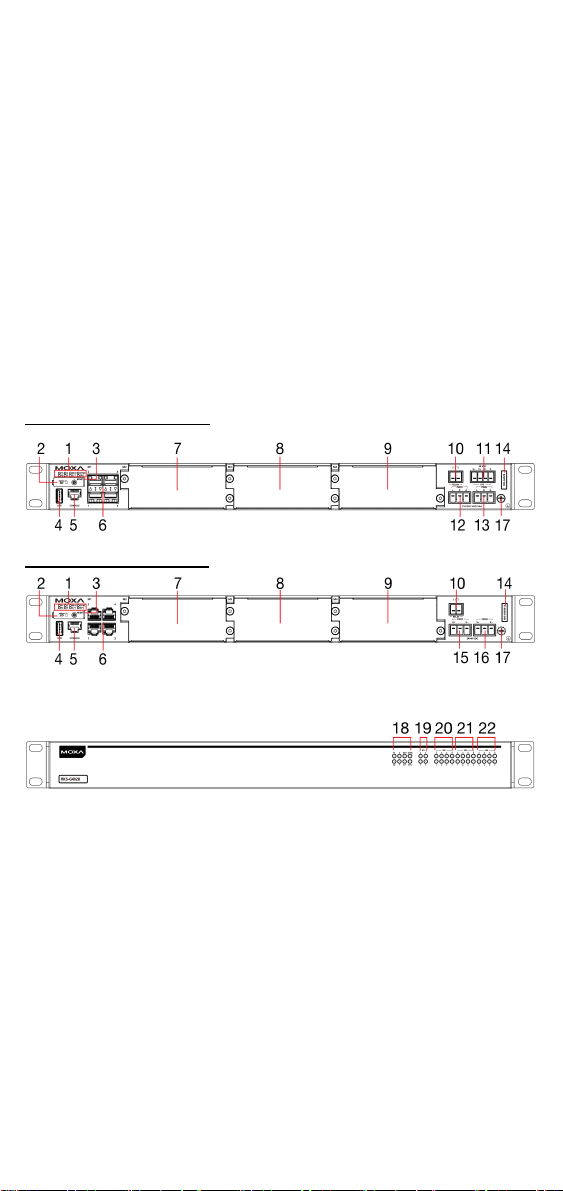

Panel Layouts

Front View

RKS-G4028-4GS Series

RKS-G4028-4GT Series

Rear View

1. System status LEDs

2. microSD card socket cover

3. Reset button

4. USB host (type A)

5. Console port (RS-232, RJ45)

6. Module 1

7. Module 2 socket

8. Module 3 socket

9. Module 4 socket

10.

Relay output

11.

EPS (external power supply)

inputs

12.

Power input 1 for 110/220

VDC/VAC

13.

Power input 2 for 110/220

VDC/VAC

14.

Model name

15.

Power input 1 for 24/48 VDC

16.

Power input 2 for 24/48 VDC

17.

Grounding connector screw

18.

System status LEDs

19.

Module 1 status LEDs

20.

Module 2 status LEDs

21.

Module 3 status LEDs

22. Module 4 status LEDs

- 3 -

Dimensions

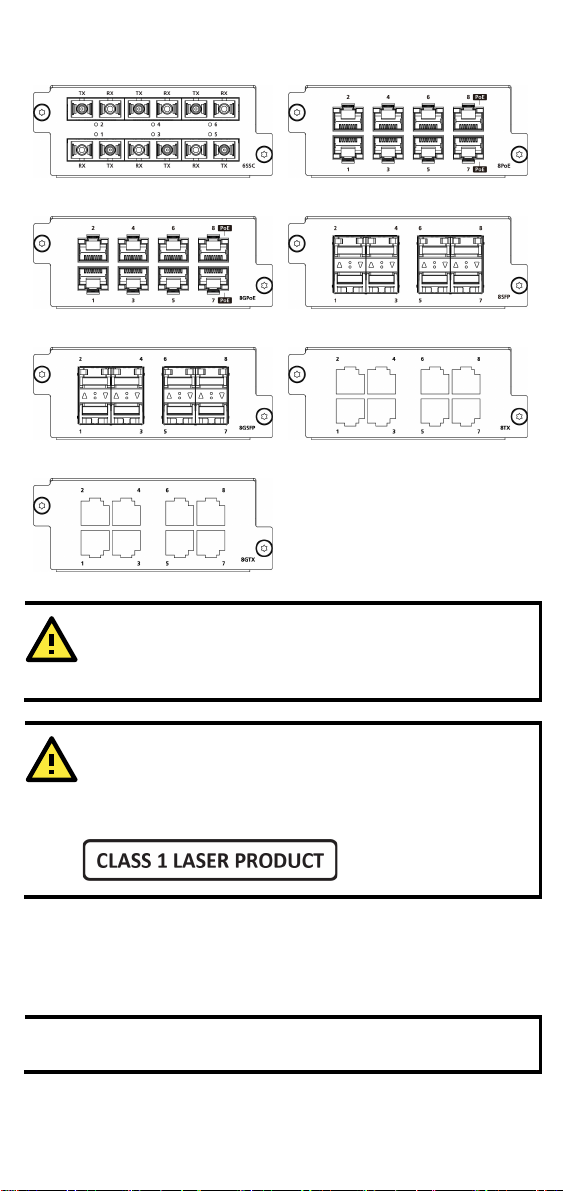

RM-G4000 Ethernet Interface Modules

4MSC2TX

4MST2TX

4SSC2TX

2MSC4TX

2MST4TX

2SSC4TX

6MSC 6MST

- 4 -

6SSC

8PoE

8GPoE 8SFP

8GSFP

8TX

8GTX

WARNING

When end

users are using Optical SFP Communications

m odules, these must be lim ited to Laser Class 1.

WARNING

Use of the controls or adjustments or the performance of

procedures other than those specified herein may result in

hazardous radiation exposure.

Grounding the Moxa Industrial Rackmount Switch

Grounding and wire routing help lim it the e ffects of noise due to

electromagnetic interference (EMI). Run the ground connection from

the ground screw to the grounding surface prior to connecting devices.

NOTE

Using a shie lded cable achieves better electromagnetic

compatibility.

- 5 -

Connecting the Power Inputs

The RKS-G4028 Series switches support various types of power supply.

•LV m odels provide one 24/48 VDC power input

•2LV m odels provide two 24/28 VDC power inputs

•HV m odels provide one 110/220 VDC/VAC power input

•2HV models provide two 110/220 VDC/VAC power inputs

•PoE models provide 1 EPS (e xte rnal power supplies) with 48 VDC

power inputs

Wiring Requirements

WARNING

Do not disconnect modules or wires unless power has been

switched off or the area is known to be non

-hazardous. The

de vice m ay only be connected to the supply voltage shown on

the type plate. The device is designed for ope

ration with a

Safety Extra

-Low Voltage (SELV) or an isolated power supply,

which means that they may only be connected to the supply

voltage connections and to the signal contact with a SELV or an

isolated power supply in compliance with

IEC 62368-1/E N

62368-1/UL 62368-1 or UL 61010.

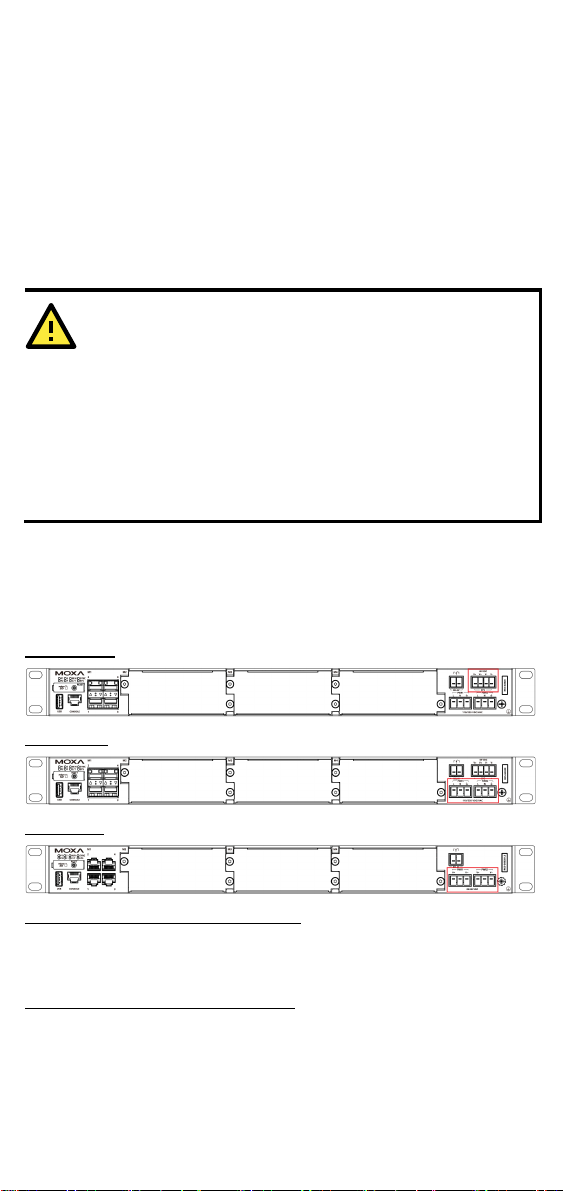

Power Terminal Blocks

The connection for EPS (external power supply) / PWR1 (po we r s upply

1) and PWR2 (po wer supply 2) are located on the fro nt panel as shown

be low.

PoE Models

HV Models

LV Models

PoE Models Power Terminal Blocks

1. Inse rt the negative/positive (-/+) DC wires into the te rminals.

2. Inse rt the terminal block connector prongs into the terminal block

receptor.

HV Models Power Terminal Blocks

1. Insert the line/neutral/ground (L/N/Gro und) AC/DC wire s into the

te rm inals .

2. Inse rt the terminal block connector prongs into the terminal block

receptor.

- 6 -

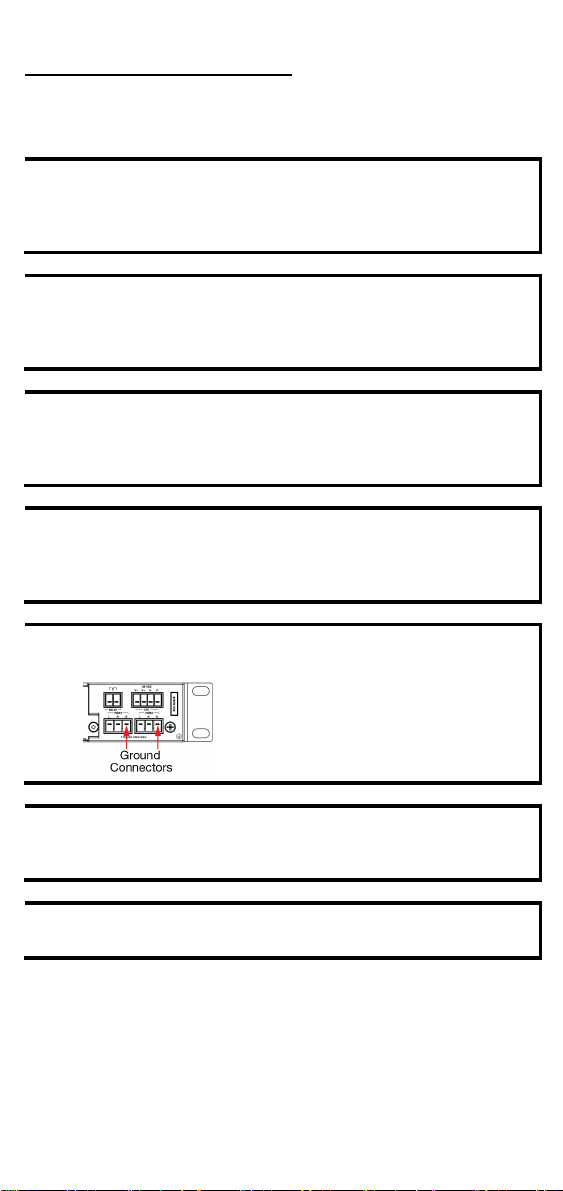

LV Models Power Terminal Blocks

1. Inse rt the negative/positive (-/+) DC wires into the te rminals.

2. Inse rt the terminal block connector prongs into the terminal block

receptor.

NOTE

In orde r to have higher levels of protection against surge, it is

suggested to install a surge protector in front of the power

input of the PoE powered device so that it is suitable for use in

IEC 61850 conditio ns.

NOTE

When wiring the power input, we suggest using the cable type -

AWG (Am erican Wire Gauge) 16

-20 (1.31-0.519 mm2

) and the

corresponding pin type cable te rminals. The rate d temperature

of wiring should be at least 105°C.

NOTE

When wiring the PoE power input, we suggest using the cable

type

- AWG (American Wire Gauge) 16 (1.31 mm2) and the

corresponding pin type cable te rminals. The rate d temperature

of wiring should be at least 105°C.

NOTE

When wiring the grounding connector screw, we

suggest using

the cable type

- AWG (American Wire Gauge) 16 (1.31 mm2)

and the corresponding pin type cable terminals. The rated

tem perature of wiring should be at least 105°C.

NOTE

Whe n HV m o dels are c onnected with an AC power source,

please make sure the Ground wire is well connected.

NOTE

When your purchase a device with two power modules, both

power units will be activated simultaneously, which will enable

powe r re dundancy.

NOTE

The reverse power input connection will not activate the device

or PoE input.

Wiring the Relay Contact

Each power module has one relay output that can be used to detect

user-c onfig ured e vents. Two wires are attached to the relay pins with

‘No rm ally Closed’ and ‘Normally Open’ options.

1. Inse rt the wires into the terminals.

2. Inse rt the terminal block connector prongs into the terminal block

receptor.

- 7 -

FAULT:

The relay contact of the 2-pin terminal block connector is used to detect

user-configured events. The two wires attached to the fault contacts

form an open circuit when a user-configured event is triggered. If a

user-configured event does not occur, the fault circuit remains closed.

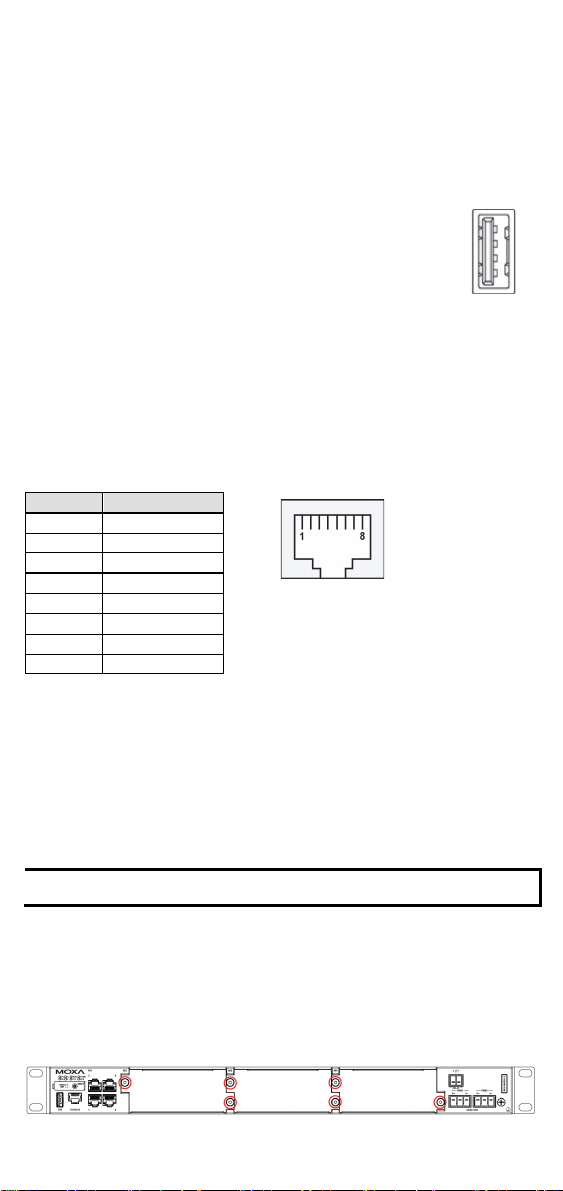

USB Connection

Use Moxa’s USB Automatic Backup Configurator ABC-02-

USB to connect to the USB host port to backup and restore

configuration files, auto

-load configuration file s, upgrade

firm ware, and backup system log files.

Type A

Console Port Connection

The RKS device has one RJ45 console port (RS-232), located on the

front panel. Use an RJ45-based cable to connect the RKS’s console port

to your PC’s COM port. You may then use a console terminal program,

such as Moxa PComm Terminal Emulator, to access the RKS device t h at

has a baud rate of 115200. Refer to the following table figure for the

pin definition.

Description

–

TxD

RxD

GND

–

The Reset Button

Depress the Reset button for five continuous seconds to load the

factory default settings. Use a pointed object, such as a straightened

paper clip or toothpick, to depress the Reset button. When you do so,

the STATE LED will start to blink about once per second. Continue to

depress the STATE LED until it begins blinking m ore rapidly; this

indicate s that the button has been depressed for five seconds and you

can re le ase the Reset button to load factory default settings.

NOTE

Do NOT powe r off the switch when loading default settings

Placing the Round Stickers on Module Screws

Moxa offe rs e ig ht round s tickers in the s hipment package. These

stickers are to be placed on the screws of the modules to avoid

unauthorized persons accessing the modules. If the stickers are broken,

users will know the modules have been accessed by unauthorized

pe rsons. The figure below highlights the locations of the screws.

- 8 -

Follow these steps to place the stickers.

1. Use a cloth to clean the surface of the screws with 75% alcohol

solution.

2. We suggest you use a tweezer to place the stickers.

3. Press the stickers d o wn with 15PSI (po und per square inc h) for at

least 15 seconds.

4. Keep the device at room temperature for 24 hours before

de ploying the devices in hars h environments.

NOTE

1. Place the stickers carefully as they are thin and fragile.

The ideal environment for the stickers to be stored in is

22°C (72°F) and 50% relative humidity.

Keep the extra two stickers in a safe place so that no

unauthorized persons can access them.

LED Indicators

The front/rear panels of the RKS-G4028 switch c ontains several LED

indicators. The function of each LED is described in the table below.

LED

Color

State

Description

System LEDs

(PWR1) Amber

On Power is being supplied to the main

m odule’s power input PWR1.

Off

Power is not being supplie d to the main

m odule’s power input PWR1.

(PWR2) Amber

Power is being supplied to the main

m odule’s power input PWR2.

Off

Power is not being supplie d to the main

m odule’s power input PWR2.

(STATE)

Green

The system passed the self-diagnosis

test on boot up and is ready to run.

Blinking

(1Hz)

1. System service initialization.

2. When pressing the reset button for

5 seconds to re set to fac to ry

de fault s e tt ing .

Blinking

(4Hz)

1. After pressing the re set b utton for 5

seconds and the system is

preparing to do a factory reset.

2. When the external storage ABC-02

automatic backup device is

connected to the switch.

Red On

The system has initially failed in the

boot-up process.

(FAULT) Red On

1. Network loop is detected when loop

protection is enabled.

2. The relay contact is triggered.

3. External storage Loading/Saving

has failed.

4. The port is being disabled be cause

it has exceeded the ingress rate

lim it of the shutdown mode.

5. Invalid Ring port connection.

- 9 -

LED

Color

State

Description

Off

When the s ystem has successfully

booted up and no events have been

triggered.

M/H

(MSTR/

HEAD)

Green

The switch is set as the Master of the

Turbo Ring, or as the Head of the Turbo

Chain, or as the Root of the RSTP.

Blinking

1. The switch has become the Master

of the Turbo Ring after the Turbo

Ring has gone down.

2. The switch is set as the

Head of the

Turbo Chain and the Turbo Chain

has gone down.

3. The switch is set as the Turbo

Ring’s Member and the

corresponding Ring port is d o wn.

4. The switch is set as the Turbo

Chains' Mem ber/Tail and the

corresponding Head-

end Chain port

is down.

Off

When the switch is not the

Master/Head/Root of this Turbo

Ring/Turbo Chain/RSTP Ring.

C/T

(CPLR/

TAIL)

Green

1. The switch’s ring coupling or dual

ho m ing functio n is enabled.

2. The switch is set as the Tail of the

Turbo Chain.

Blinking

1. The switch is set as the Tail of

Turbo Chain and the Chain has

gone down.

2. The switch is set as Turbo Chain’s

Mem ber/Head and the

corresponding Tail-end Chain port

has gone d o wn.

Off

When the switch disables the coupling

or the Tail of Turbo Chain.

SYNC

Amber

The PTP function is enabled.

Blinking

The switch receives sync packets but

the time has not converged yet.

Green

On The PTP function has successfully

converged.

EPS

(External

Power

Supply)

Am be r

Normal operation.

Off No external power supply for PoE.

M1 Copper

(10/100/

1000 Mbps,

4GT model

only)

Green

When the port is active and links at

1,000 Mbps.

Blinking

When the port’s data is being

transmitted at 1,000 Mbps.

Off

When the port is inactive or link down.

Amber

When the port is active and links at

10/100 Mbps.

Blinking

When the port’s data is being

transmitted at 10/100 Mbps.

Off

When the port is inactive or link down.

- 10 -

LED

Color

State

Description

M1 SFP

(100/1000

Mbps, 4GS

model

only)

Green

On When the port is active and links at

1,000 Mbps.

Blinking

When the port’s data is being

transmitted at 1,000 Mbps.

Off

When the port is inactive or link down.

Amber

When the port is active and links at 100

Mbps.

Blinking When the port’s data is being

transmitted at 100 Mbps.

Off

When the port is inactive or link down.

LEDs for RM-G4000 Modules

RM-G4000-8GTX/8GSFP

LED

Color

State

Description

Copper

(10/100/

1000

Mbps)

Green

On The corresponding port’s 1000 Mbps

link is active.

Blinking

Data is being transmitted at 1000

Mbps.

Off

The corresponding port’s link is

inactive.

Amber

On The corresponding port’s 10/100 Mbps

link is active.

Blinking

Data is being transmitted at 10/100

Mbps.

Off

The corresponding port’s link is

inactive.

SFP

(100/1000

Mbps)

Green

The corresponding port’s 1000 Mbps

link is active.

Blinking

Data is being transmitted at 1000

Mbps.

Off

The corresponding port’s link is

inactive.

Amber

The corresponding port’s 100 Mbps link

is active.

Blinking

Data is being transmitted at 100 Mbps.

Off The corresponding port’s link is

inactive.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Changer

Moxa Technologies

Moxa Technologies EDS-G512E-8PoE Manuel

Moxa Technologies

Moxa Technologies PT-7710 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3111 Manuel utilisateur

Moxa Technologies

Moxa Technologies IKS-G6524A Manuel utilisateur

Moxa Technologies

Moxa Technologies PT-G510 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5305 Series Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-510A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PT-7528 Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-405A Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-316 EtherDevice Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-828 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-P206A-4PoE Series Manuel

Moxa Technologies

Moxa Technologies EDS-G2008-EL Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-2016-ML Series Manuel utilisateur

Moxa Technologies

Moxa Technologies PT-7528 Manuel

Moxa Technologies

Moxa Technologies IKS-6726-8PoE Series Manuel

Moxa Technologies

Moxa Technologies UPort 400A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A-PN Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5516A Series Manuel

Moxa Technologies

Moxa Technologies PT-7728 Series Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-728 Series Manuel

Moxa Technologies

Moxa Technologies EtherDevice EDS-518A Series Manuel utilisateur

Moxa Technologies

Moxa Technologies ICS-G7526A Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
