Moxa Technologies PT-7528 Manuel

P/N: 1802075280010

PT-7528

Hardware Installation Guide

Moxa PowerTrans Switch

First Edition, May 2012

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

Package Checklist

The Moxa PowerTrans switch is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

•1 Moxa PowerTrans Switch

•Hardware Installation Guide

•CD-ROM with User’s Manual and SNMP MIB file

•Moxa Product Warranty Statement

•RJ45 to DB9 console port cable

•Protective caps for unused ports

•2 rack-mount ears

Panel Layout

1. System status LEDs

2. Ethernet port LEDs

3. Fast Ethernet port

4. Fiber Ethernet interface module slot

5. Serial console port

6. 10-pin terminal block for power inputs, and relay output

7. Rack Mounting Kit

All manuals and user guides at all-guides.com

- 3 -

Dimensions (unit = mm)

Front Cabling model

Rear Cabling Model

All manuals and user guides at all-guides.com

- 4 -

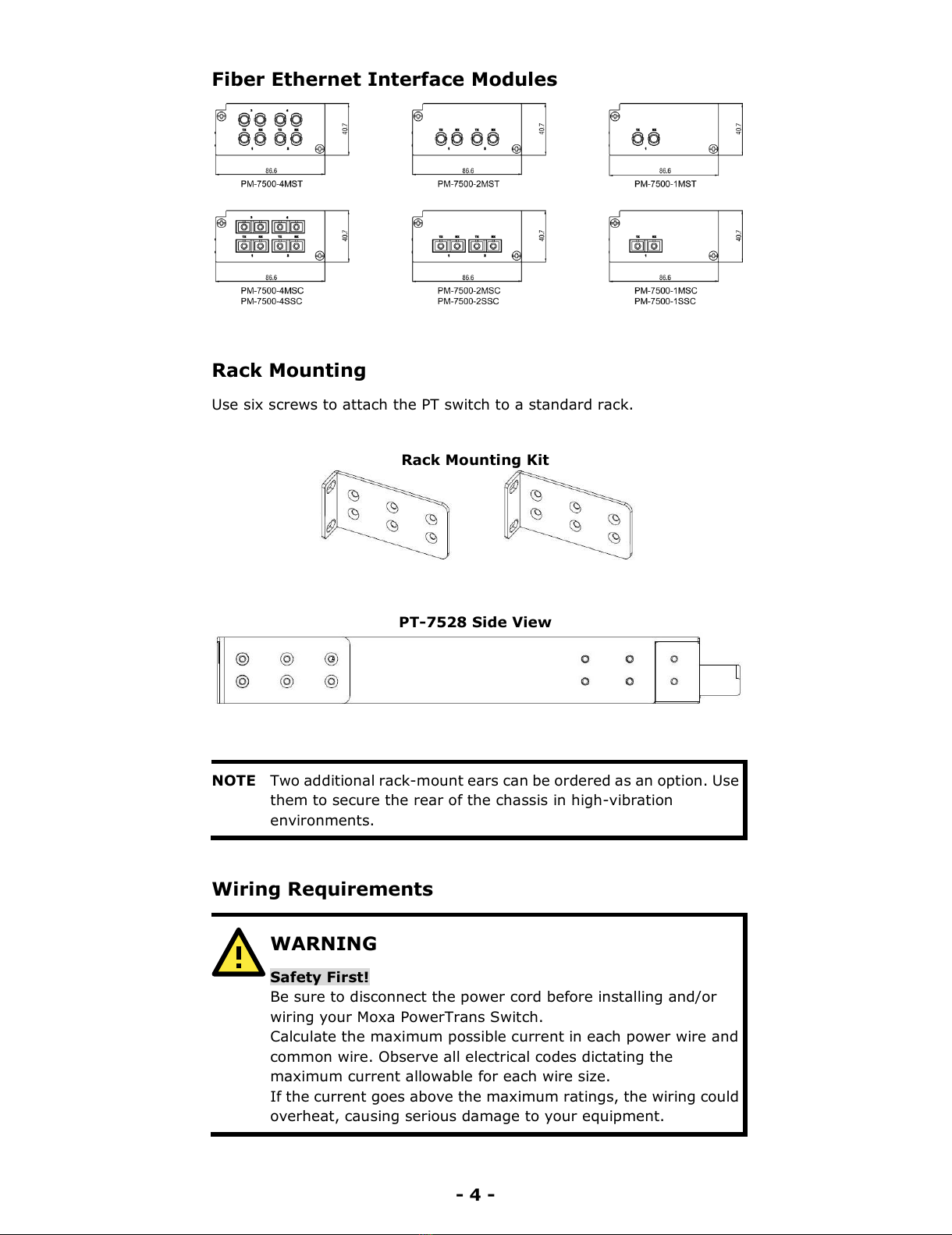

Fiber Ethernet Interface Modules

Rack Mounting

Use six screws to attach the PT switch to a standard rack.

Rack Mounting Kit

PT-7528 Side View

NOTE

Two additional rack-mount ears can be ordered as an option. Use

them to secure the rear

of the chassis in high-vibration

environments.

Wiring Requirements

WARNING

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your Moxa PowerTrans Switch.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size.

If the current goes above the maximum ratings, the wiring could

overheat, causing serious damage to your equipment.

All manuals and user guides at all-guides.com

- 5 -

Grounding Moxa PowerTrans Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

Wiring the Power Inputs

The PT-7528 switches support dual redundant power supplies: “Power

Supply 1 (PWR1)” and “Power Supply 2 (PWR2)”. The connections for

PWR1, PWR2 and the RELAY are located on the terminal block. The front

view of the terminal block connectors are shown below.

Wiring the Relay Contact

Each PT-7528 switch provides two types of relay output, at the user’s

option. Refer below for detailed instructions on how to connect the wires

to the terminal block connector, and how to attach the terminal block

connector to the terminal block receptor.

Normal contact state without power applied to device

The relay contact is used to detect user-configured events. Two wires are

attached to the relay pins. The PT-7528 provides normal open and normal

close circuit at the user’s option. For pin definitions refer to the table

below

Relay pin connection

Power on state

Event trigger

Pin 4 and 6

Close circuit

Open circuit

Pin 8 and 6

Open circuit

Close circuit

Wiring the Redundant Power Inputs

Each PT switch has two sets of power inputs: power input 1 and power

input 2.

All manuals and user guides at all-guides.com

- 6 -

STEP 1: Insert the dual set positive/negative DC wires into PWR1 and

PWR2 terminals (+ pins 1, 7; - pins 3, 9). Or insert the L/N AC wires

into PWR1 and PWR2 terminals (L pin 1, 7; N pin 3, 9)

STEP 2: To keep the DC or AC wires from pulling loose, use a screwdriver

to tighten the wire-clamp screws on the front of the terminal block

connector.

LED Indicators

System LEDs

LED

Color

State

Description

STAT

GREEN

System has passed self-diagnosis

test on boot-up and is ready to run.

Blinking System is undergoing the

self-diagnosis test.

RED On

System failed self-diagnosis on

boot-up.

PWR1 AMBER

Power is being supplied to the main

module’s power input PWR1.

Off

Power is not being supplied to the

main module’s power input PWR1.

PWR2 AMBER

Power is being supplied to the main

module’s power input PWR2.

Off

Power is not being supplied to the

main module’s power input PWR2.

FAULT RED

The corresponding PORT alarm is

enabled and a user-configured

event has been triggered.

Off

The corresponding PORT alarm is

enabled and a user-configured

event has not been triggered, or

the corresponding PORT alarm is

disabled.

MSTR/HEAD GREEN

This PT switch is set as the Master

of the Turbo Ring, or as the Head of

the Turbo Chain.

Blinking

The PT switch has become the Ring

Master of the Turbo Ring, or the

Head of the Turbo Chain, after the

Turbo Ring or the Turbo Chain went

down.

Off

The PT switch is not the Master of

this Turbo Ring or is set as a

Member of the Turbo Chain.

CPLR/TAIL GREEN

The PT switch coupling function is

enabled to form a back-

up path, or

it is set as the Tail of the Turbo

Chain.

Blinking Turbo Chain is down.

Off

This PT switch disabled the coupling

function, or is set as a Member of

the Turbo Chain.

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

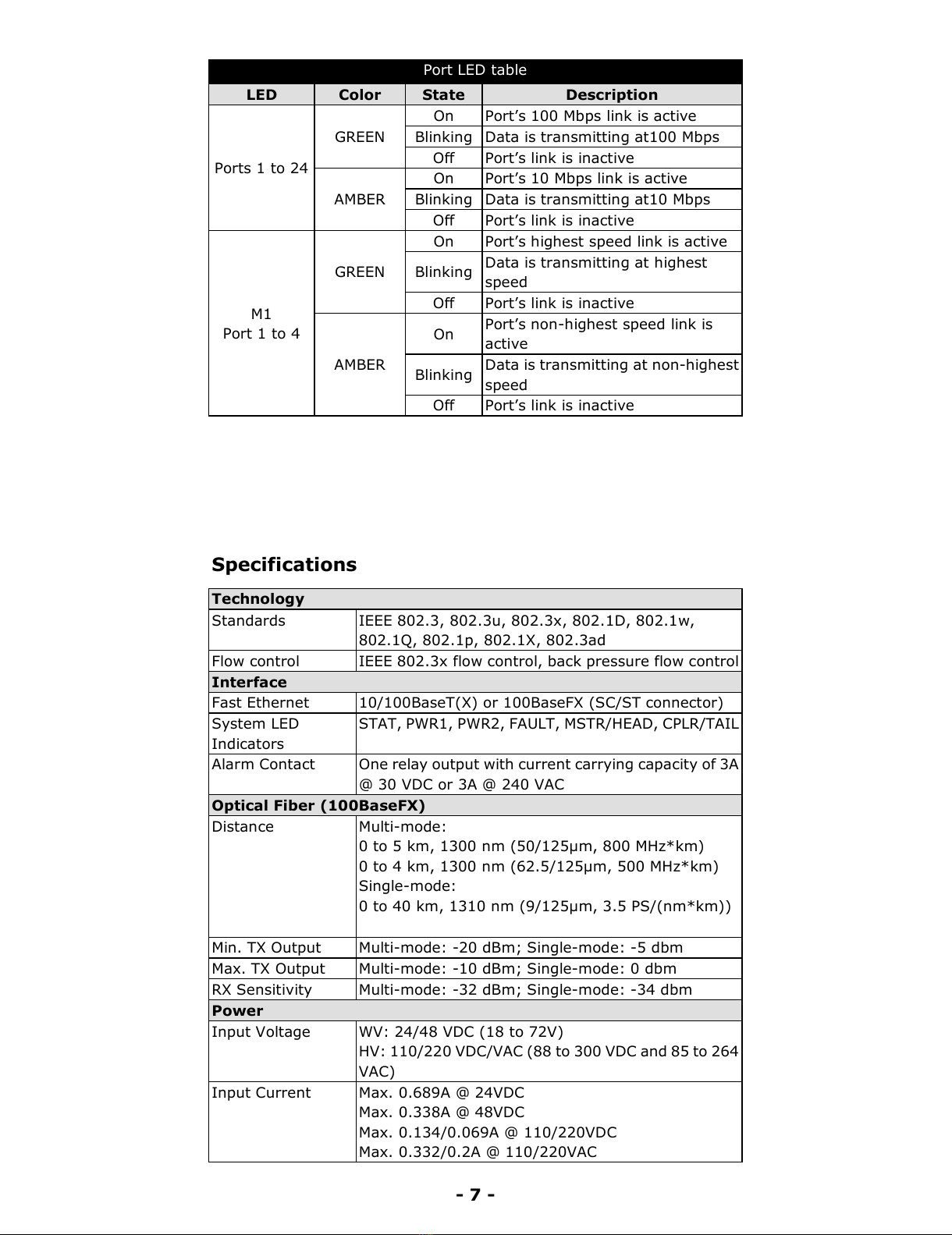

Port LED table

LED

Color

State

Description

Ports 1 to 24

GREEN

Port’s 100 Mbps link is active

Blinking

Data is transmitting at100 Mbps

Off

Port’s link is inactive

AMBER

Port’s 10 Mbps link is active

Blinking

Data is transmitting at10 Mbps

Off

Port’s link is inactive

Port 1 to 4

GREEN

Port’s highest speed link is active

Blinking

Data is transmitting at highest

speed

Off

Port’s link is inactive

AMBER

Port’s non-highest speed link is

active

Blinking

Data is transmitting at non-highest

speed

Off

Port’s link is inactive

Specifications

Technology

Standards IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w,

802.1Q, 802.1p, 802.1X, 802.3ad

Flow control

IEEE 802.3x flow control, back pressure flow control

Interface

Fast Ethernet

10/100BaseT(X) or 100BaseFX (SC/ST connector)

System LED

Indicators

STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL

Alarm Contact

One relay output with current carrying capacity of 3A

@ 30 VDC or 3A @ 240 VAC

Optical Fiber (100BaseFX)

Distance

Multi-mode:

0 to 5 km, 1300 nm (50/125μm, 800 MHz*km)

0 to 4 km, 1300 nm (62.5/125μm, 500 MHz*km)

Single-mode:

0 to 40 km, 1310 nm (9/125μm, 3.5 PS/(nm*km))

Min. TX Output

Multi-mode: -20 dBm; Single-mode: -5 dbm

Max. TX Output

Multi-mode: -10 dBm; Single-mode: 0 dbm

RX Sensitivity

Multi-mode: -32 dBm; Single-mode: -34 dbm

Power

Input Voltage

WV: 24/48 VDC (18 to 72V)

HV: 110/220 VDC/VAC (88 to 300 VDC and 85 to 264

VAC)

Input Current

Max. 0.689A @ 24VDC

Max. 0.338A @ 48VDC

Max. 0.134/0.069A @ 110/220VDC

Max. 0.332/0.2A @ 110/220VAC

All manuals and user guides at all-guides.com

- 8 -

Physical Characteristics

Housing

IP40 protection, metal case

Dimensions

(W x H x D)

440 x 44 x 325 mm (17.32 x 1.73 x 12.76 in.)

Weight

4900 g

Installation

19” rack mounting

Regulatory Approvals

Safety

UL60950-1, CSA C22.2 No. 60950-1, EN60950-1

Power Automaton

IEC61850-3, IEEE 1613

EMI

FCC Part 15, CISPR (EN55022) class A

Environmental Limits

Operating Temp.

-40 to 85°C (-40 to 185°F)

Cold start of min. 100 VAC at -40

Storage Temp.

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity.

5 to 95% (non-condensing)

Warranty

5 years

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231
