MD2380-03 INSTALLATION INSTRUCTION

26"~55" Max:400x400mm/16x16"

Min:75x75mm/3x3"

Für die Installationsanweisungen auf Deutsch, siehe Seite 10~11.

Pour l'instruction en Français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en Español, favor vea la página 14~15.

Per le Istruzioni in Italiano, vedi pagina 16~17.

x3 x1

(DE-C1)

1 2

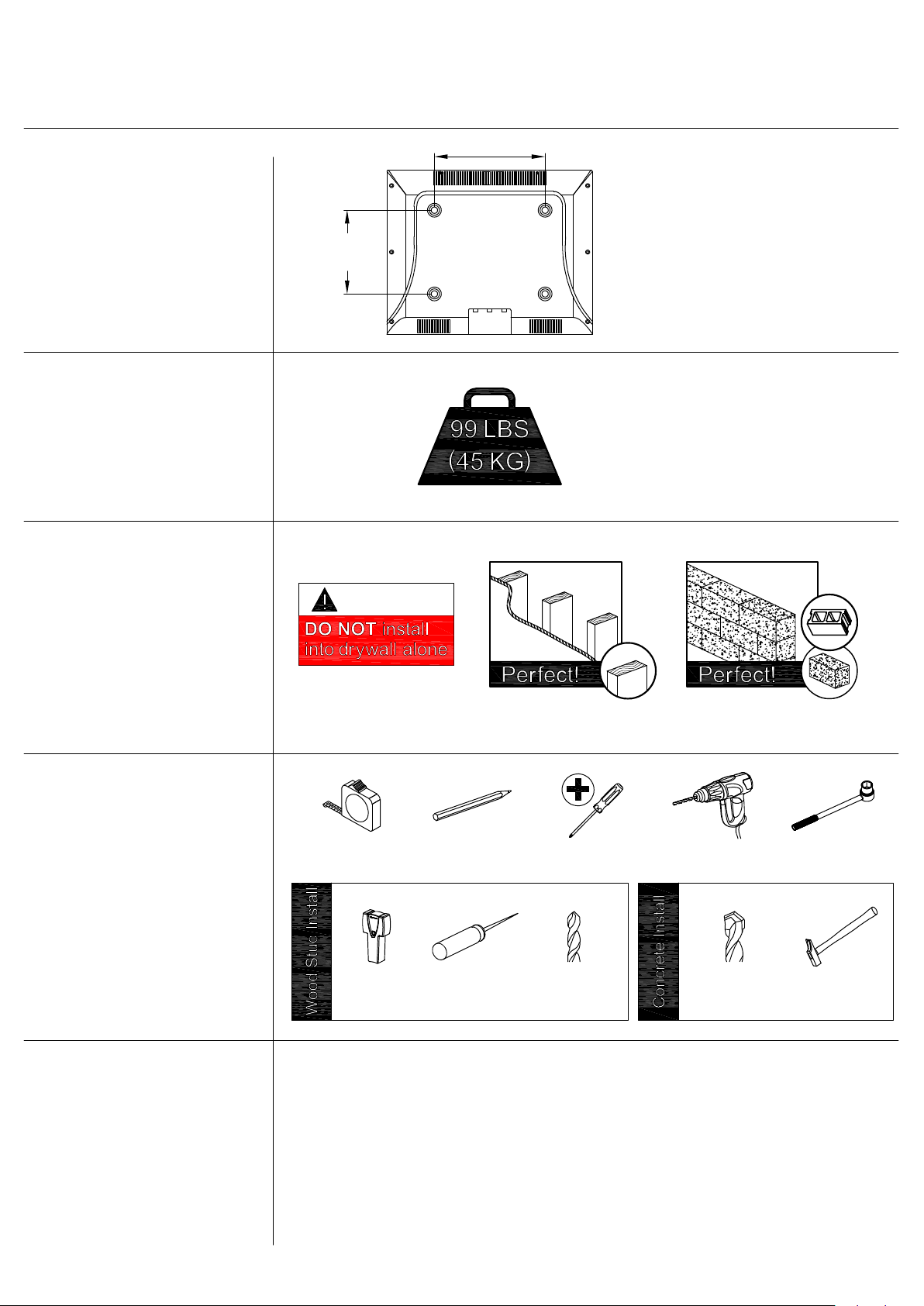

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3" and

equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

99 LBS (45 KG)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

● This product is designed for use in wood stud, solid concrete, and concrete block walls

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete or

concrete block?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

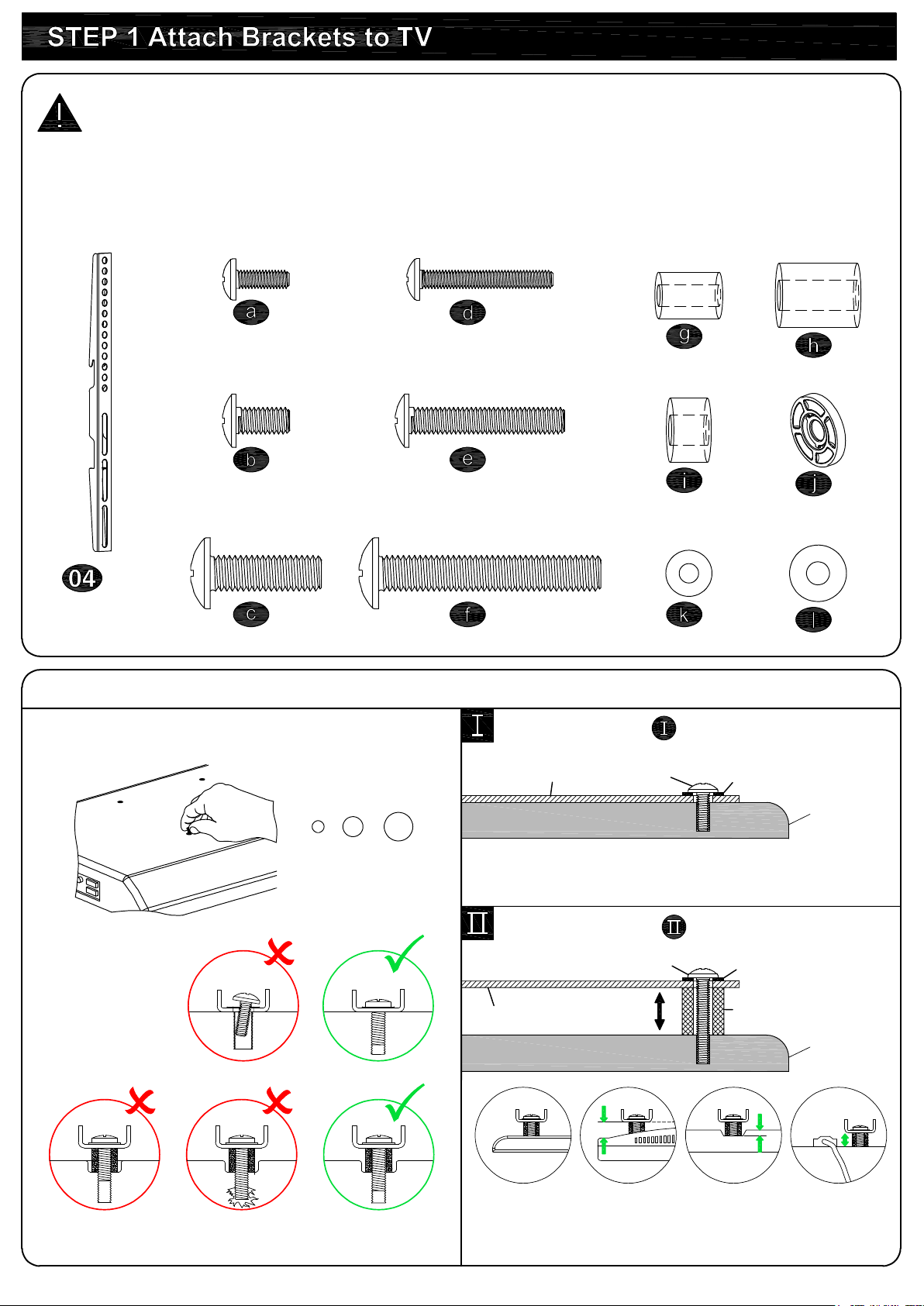

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged.

NOTE: Not all hardware included will be used.

TV Brackets

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

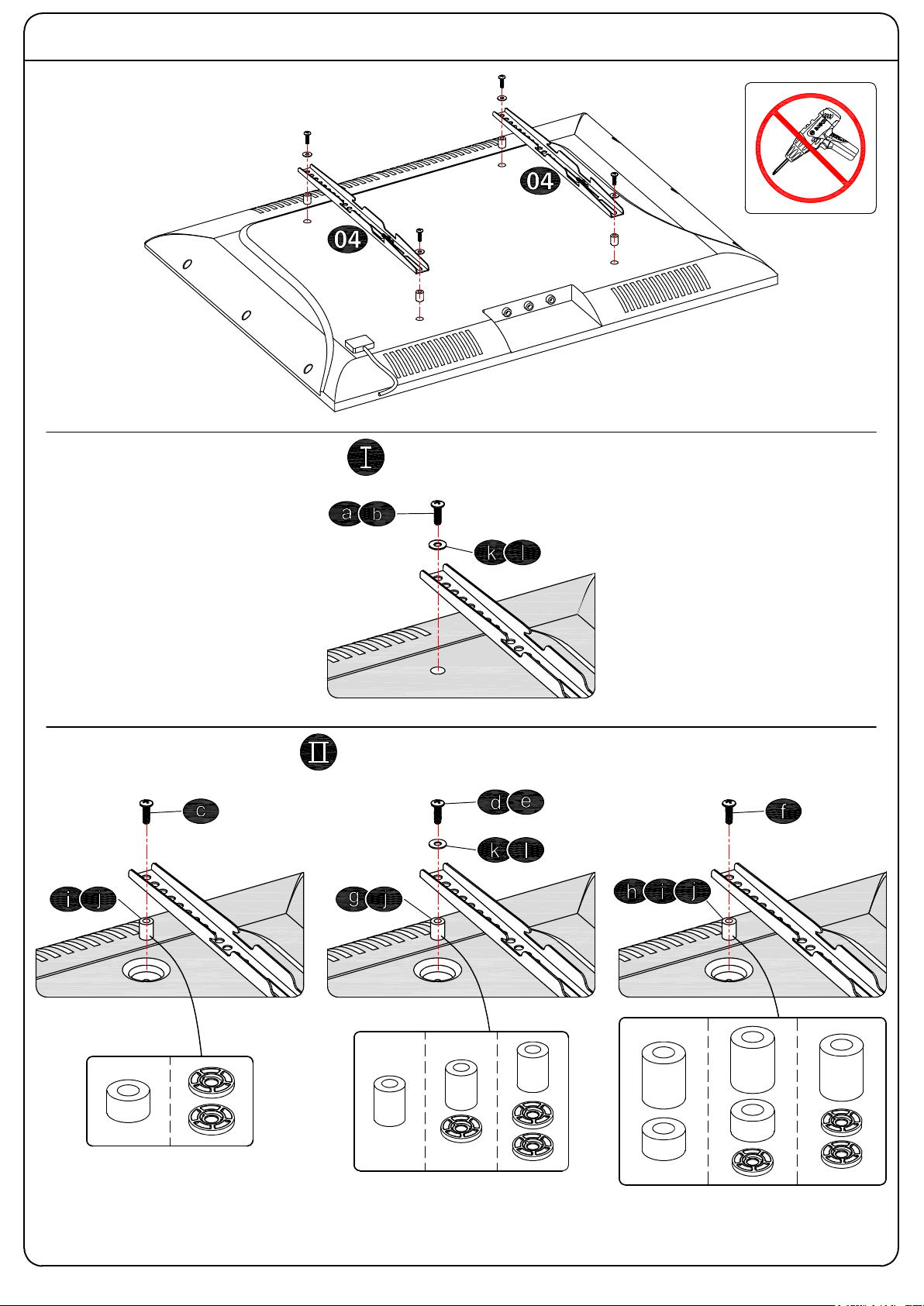

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

For wood stud installations, follow STEP 2A

For concrete installations, follow STEP 2B on PAGE 6

<16mm

(5/8") 16"(406mm)

8"(203mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

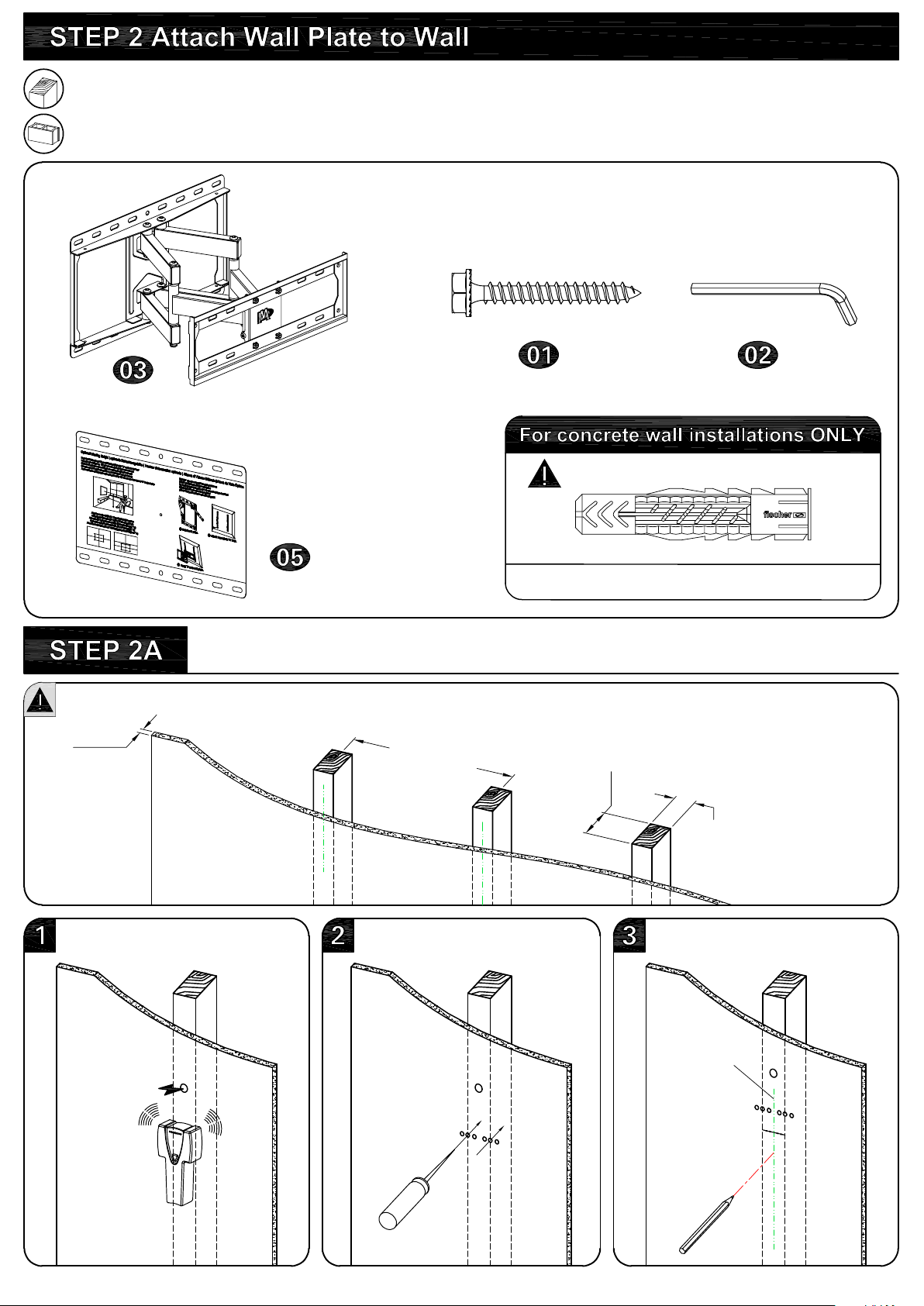

Parts and Hardware

Lag Bolt M8x70mm Allen Key

Concrete Wall Anchor 6pcs

Wood Stud Installations

x6 x1

Centre line

CAUTION:Do not use in drywall or wood

Fischer UX10x60 R

Mounting

Template

Wall Plate

Unit

16"(406mm)

7/32"

(5.5mm)

2.9"(74mm)

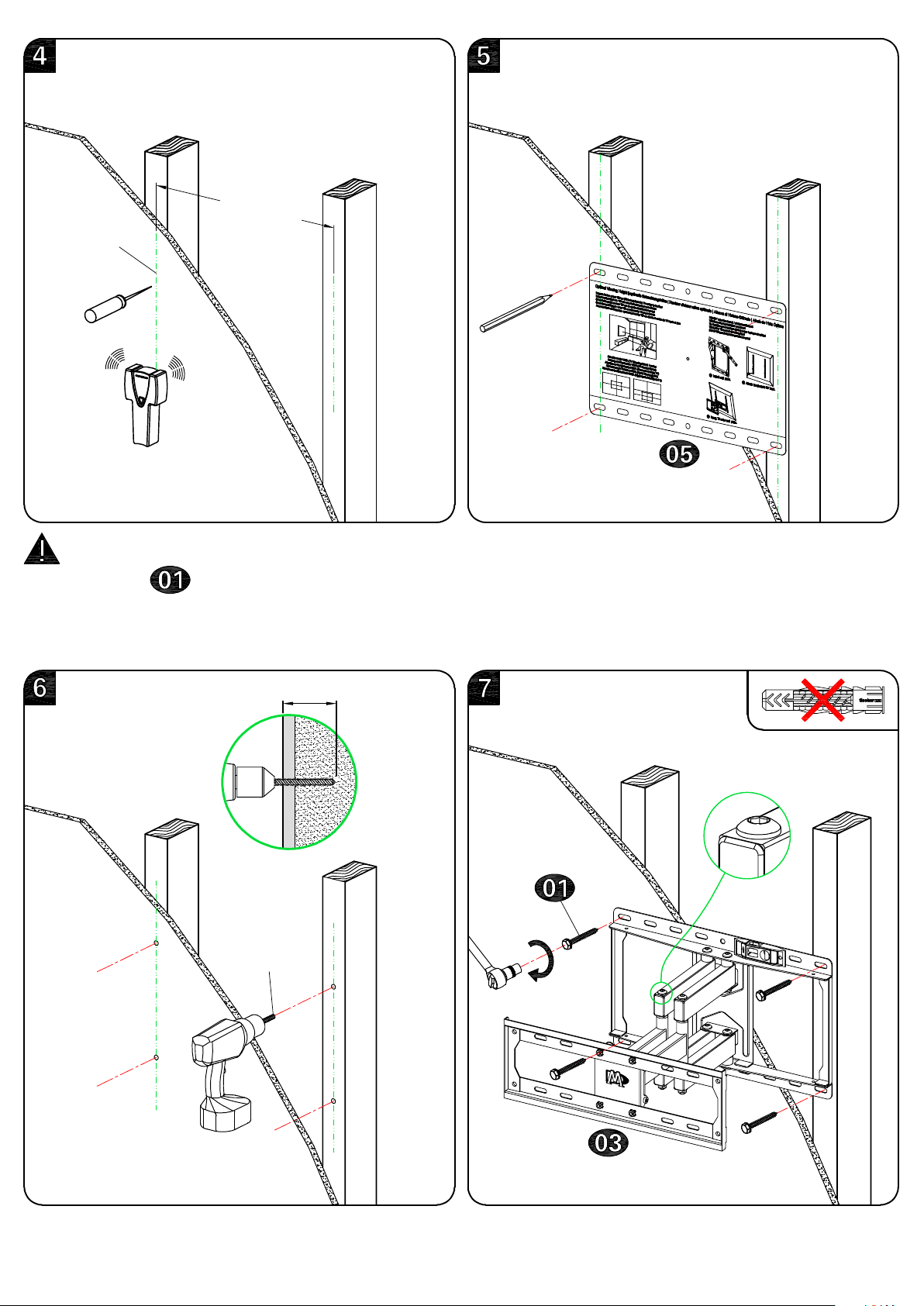

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To avoid potential personal injury or property damage, the Bolt Head Must Keep UP at this step!!

Go to Step 3 on PAGE 7.

Centre line

Again, find another wood stud

Bolt Head UP!

Level

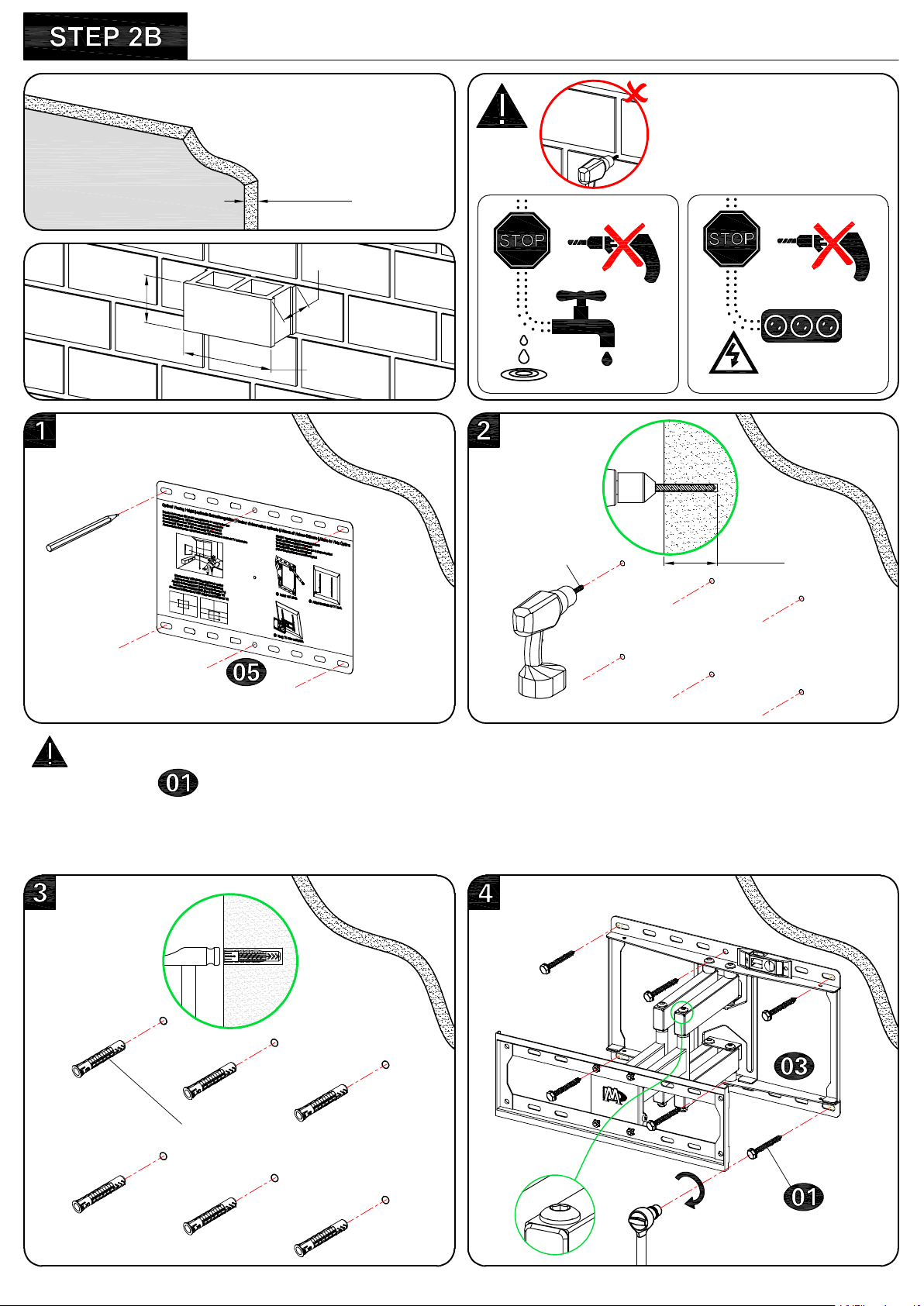

Solid Concrete or Concrete Block Installations

DANGER

2.9"

(74mm)

3/8"

(10mm)

IMPORTANT: Never drill into

the mortar between blocks.

8"(203mm)

16"(406mm)

8"(203mm)

Concrete Wall

Anchor

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 6 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To avoid potential personal injury or property damage, the Bolt Head Must Keep UP at this step!!

Bolt Head

UP!

Level

99 LBS (45 KG)

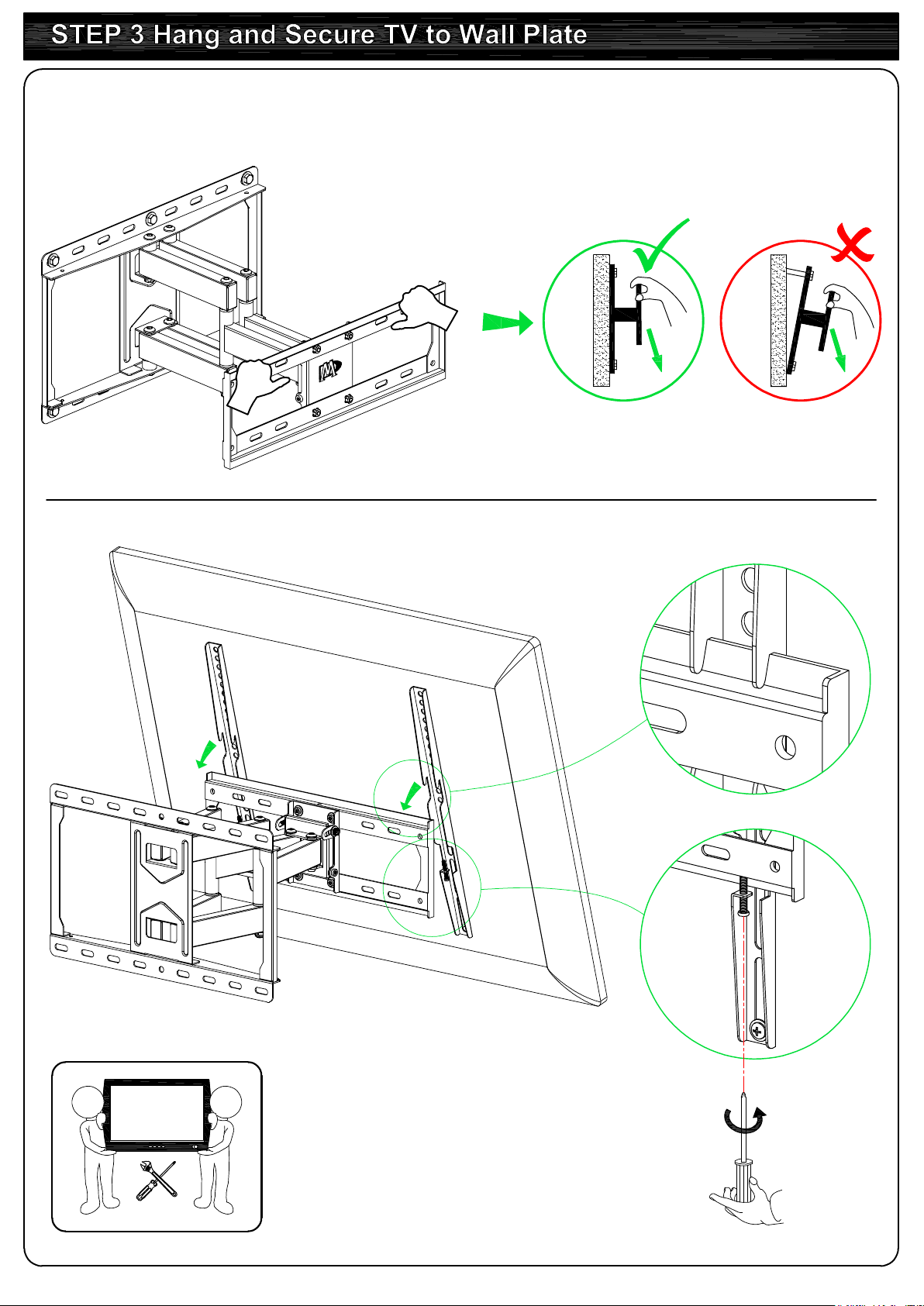

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

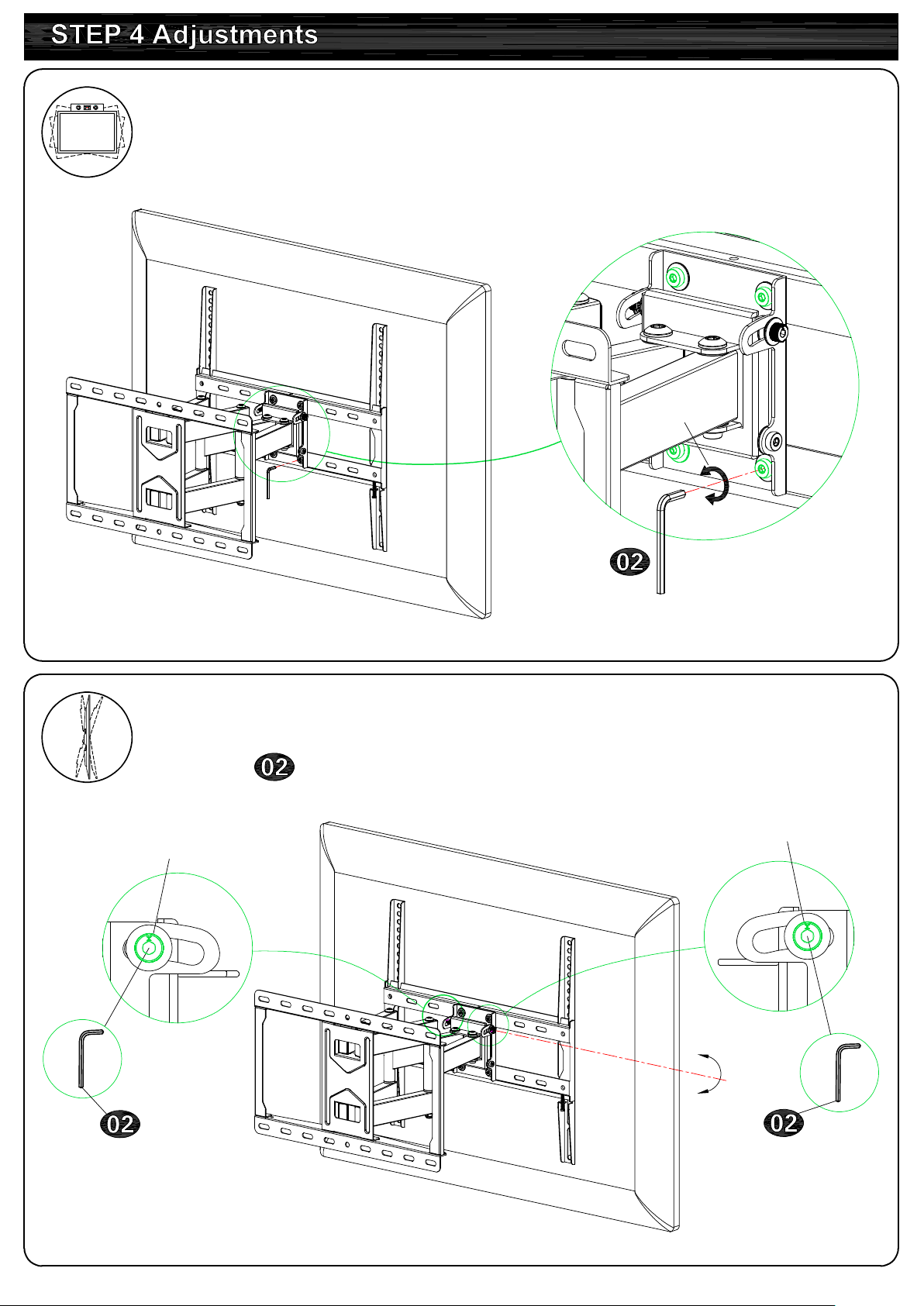

4-1 TV leveling adjustment (±3°):

Loosen 4 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

4-2 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

Tilting bolts Tilting bolts

-15°

+5°

Loosen

Tighten

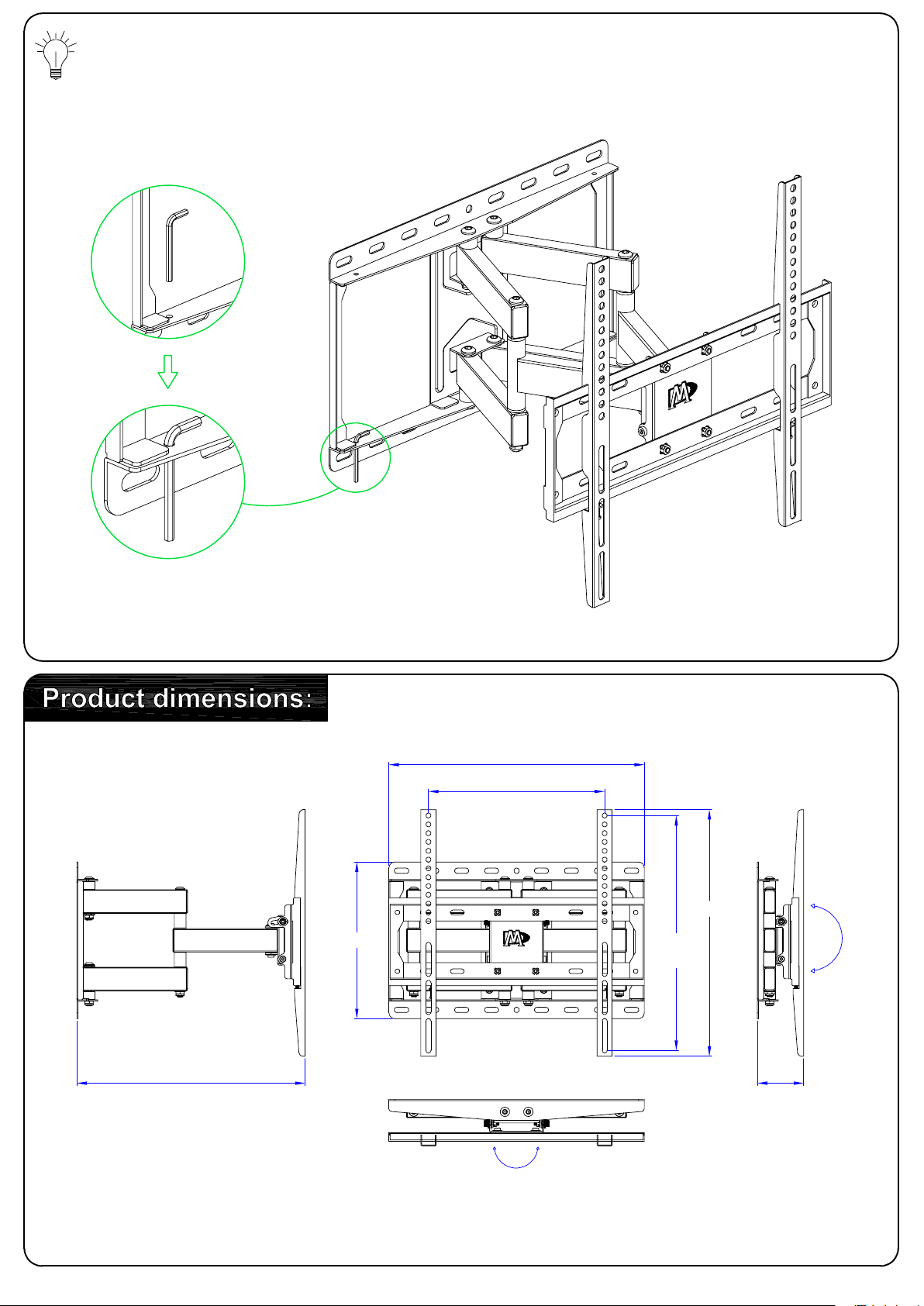

Allen key storage: For easy adjustment, you might put the Allen key on

the wall plate as illustration.

+5°

-15°

+45°/-45°

389mm 79mm

MAX:400mm

435mm

267mm MAX:

400mm

420mm
