Motorola SURFboard SB4000 Manuel utilisateur
High-Speed Access to the Internet
SURFboard
R
Cable Modem
SURFboard SB4000 User Guide
TM
i
Regulatory Information
Federal Communications Commission Radio and Television Interface Statement for a Class 'B' Device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in the
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
!Increase the separation between the equipment and the affected receiver
!Connect the equipment on a circuit different from the one the receiver is on
You may find the following booklet, prepared by the Federal Communication Commission, helpful:
How to Identify and Resolve Radio-TV Interference Problems
Stock No. 004-000-0342-4,
U.S. Government Printing Office
Washington, DC 20402
ii
Changes or modification not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This product was FCC compliant under test conditions that included the use of the supplied cable between system
components. To be in compliance with FCC regulation, the user must use this cable and install it properly.
Declaration of Conformity
According to 47CFR, Parts 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU Boards and Power
Supplies used with Class B Personal Computers, Motorola BCS, 6450 Sequence Drive, San Diego, CA 92121,
1-800-225-9446, declares under sole responsibility that the product identifies with 47CFR Part 2 and 15 of the FCC
Rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be
compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected
to be within the variation accepted, due to quantity production and testing on a statistical basis as required by 47CFR
2.909. Operation is subject to the following condition: This device must accept any interference received, including
interference that may cause undesired operation. The above named party is responsible for ensuring that the
equipment complies with the standards of 47CFR, Paragraph 15.101 to 15.109. The Class B digital apparatus meets
all requirements of the Canadian Interference-Causing Equipment Regulations.
iii
The SB4000 meets one or more of the standards listed:
Declaration of Conformity
We
Motorola, Inc.
Broadband Communications Sector
6450 Sequence Drive
San Diego, CA, U.S.A.
Declare under our sole responsibility that the
SURFboard Cable Modem Model SB4000
To which the declaration relates is in conformity with the following standards:
EN55022 EN55024 EN60950
CISPR 22 CISPR 24 IEC950: 1991 + A1 : 1992 + A2 : 1993 + A3 : 1995 + A4 : 1996
Following the provisions of the Directive(s) of the Council of the European Union:
EMC Directive 89/336/EEC Low Voltage Directive 73/23/EEC
iv
Canadian Compliance
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respects toutes les exigences du Règlement sur le matériel brouilleur du
Canada.
Warning
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Caution
THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO REDUCE THE RISK
OF ELECTRICAL SHOCK, DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
INSTALLATION AND TROUBLESHOOTING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO. REFER
ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
Repairs
If this falls within the Motorola warranty, contact Motorola (see the Limited Warranty in the back of this User Guide).
v
© 2001 by Motorola, Inc. All rights reserved.
No part of this publication may be reproduced in any form or by any means or used to make any derivative work (such
as translation, transformation or adaptation) without written permission from Motorola, Inc.
Motorola, Inc. reserves the right to revise this publication and to make changes in content from time to time without
obligation on the part of Motorola, Inc. to provide notification of such revision or change. Motorola, Inc. provides this
guide without warranty of any kind, either implied or expressed, including, but not limited, to the implied warranties of
merchantability and fitness for a particular purpose. Motorola, Inc. may make improvements or changes in the
product(s) described in this manual at any time.
MOTOROLA, the stylized M logo and SURFboard are registered trademarks, and the SURFboard logo is a trademark
of Motorola, Inc.
Acrobat Reader software is provided subject to the Adobe Systems, Inc. Software End User License Agreement
included on the CD-ROM. Acrobat is a registered trademark of Adobe Systems, Inc. in the United States and/or other
countries. Acrobat Reader 4.0. ©1987-1999 Adobe Systems Incorporated. All Rights Reserved.
All other product or service marks are the property of their respective owners.
Introduction Get Started Installation Diagnostics Troubleshooting Glossary/FAQ Legal
X
Home Print Exit
1
Open your PC once -
clear your desk forever!

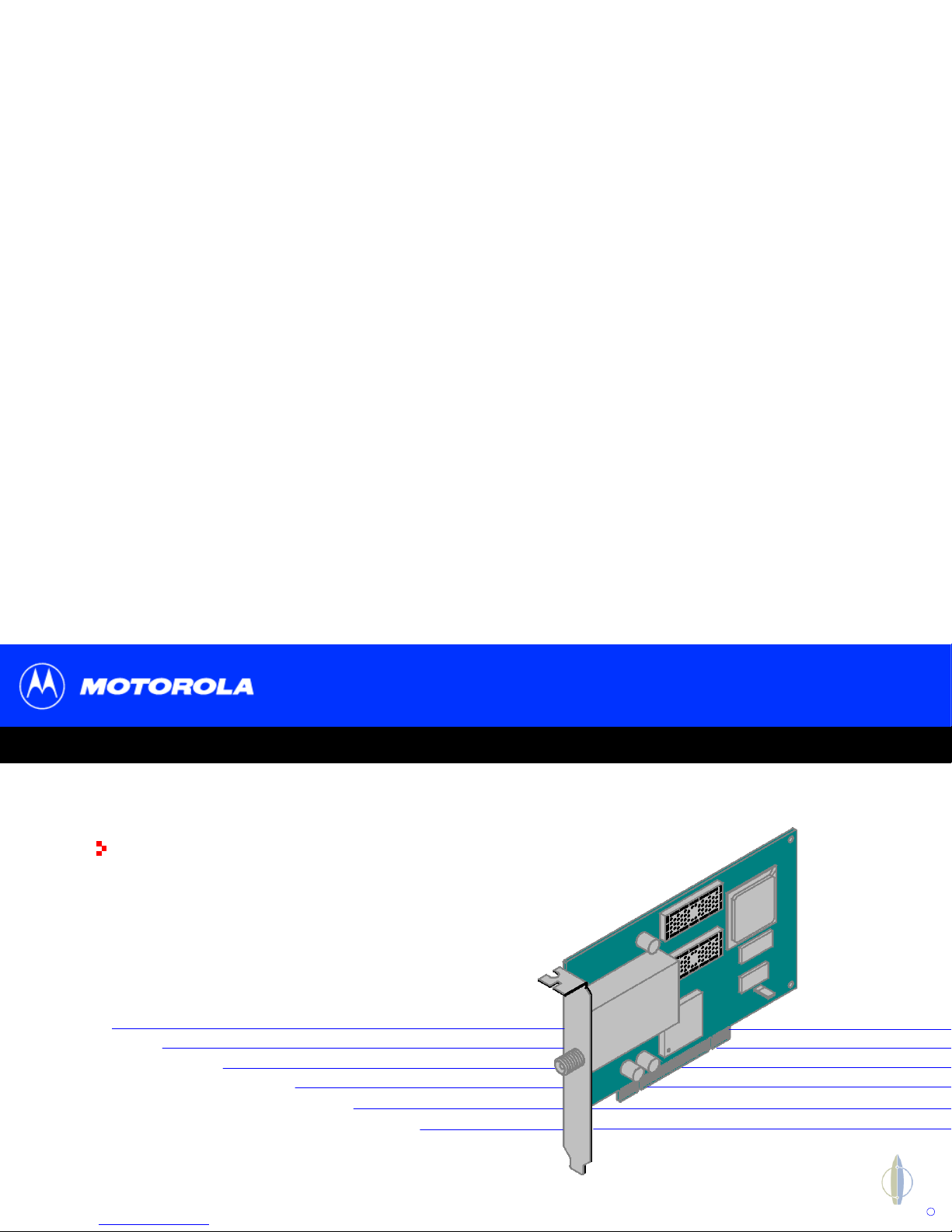

Introduction
Congratulations, you now have the newest innovation in Internet access, a cable modem
inside your computer. This cable modem is easy to install, has all the functionality of an
external cable modem, and saves valuable work space.
More than that, the SB4000 SURFboard internal cable modem is better than traditional
telephone or ISDN modems:
!Built on leading edge hardware that supports automatic software upgrades through
your cable service provider
!Doesn’t tie up your telephone line
!Fast and always on
!Runs on computer power, no extra power plugs
!Install in just three easy steps
Introduction Get Started Installation Diagnostics Troubleshooting Glossary/FAQ Legal
X
Home Print Exit
2
Get Started
We know that not everyone is familiar with the technical terms in this User Guide, so we
have included a Glossary in the back of this manual for your convenience.
Contact Your Cable Service Provider
Before you begin installing your SB4000 internal cable modem, take a few minutes to:
1 Record the media access control (MAC) address and serial numbers from the bar
code label marked HFC MAC ID on the cable modem, or on the box it came in.
The address format is 00:20:40:xx:xx:xx.
Keep this in a safe place, you may need it at a later date.
2 Sign up for Internet cable service with your local service provider. They will ask you
for the MAC address and serial numbers you’ve recorded.
Introduction Get Started Installation Diagnostics Troubleshooting Glossary/FAQ Legal
X
Home Print Exit
3
Questions for Your Cable Service Provider
!When can you begin using your cable modem?
!Do you need a new browser or plug-in to use their service?
!Do you need a user name or password to access the Internet or use Email?
Gather These Items
Gather these items before you begin installing the cable modem:
!PCI cable modem in its protective sleeve
!Your PC User Guide
!Your PC Operating System disk (may be required)
!75-ohm coaxial cable with F-type connectors to connect the cable modem to the
cable outlet
!5-900 MHz cable splitter (may be required if connecting additional electronics to the
same cable outlet)
!Phillips screwdriver and/or a flat-blade screwdriver
Introduction Get Started Installation Diagnostics Troubleshooting Glossary/FAQ Legal
X
Home Print Exit
4
If you plan to video conference, check with your
cable service provider for minimum computer
requirements.
Check Your PC
The SB4000 is compatible with Microsoft®operating systems:
!Windows®98
!Windows 2000
!Windows Me
We do not support use of this product with MacIntosh, UNIX, Microsoft operating
systems before Windows 98, or other operating systems.
Check that your PC meets these minimum requirements:
!Pentium®133 MHz processor
!32 MB RAM for Windows 98 or Windows Me
!64 MB for Windows 2000
!CD-ROM drive
!One free PCI slot
!VGA resolution monitor (640 x 480)
If you are not sure if your computer meets these requirements, check your PC manual.
