iM1000 -Data Modem

Motorola

iM1000

Data Modem

for Windows

95,

Windows

and Windows

User Guide

August 5, 1999

68P02953C65-O

iModem/user Page 0 Thursday, October 7, 1999 7:46 PM

IM1000 - DATA MODEM

iM1000 - DATA MODEM

ongratulations on purchasing your Motorola iM1000 stand-alone

data modem.

Your iM1000 offers wireless access to the internet. This data modem

offers the following features:

• Packet Data transfer for IP DTE.

• Fax and Data Transfer for circuit data faxes and ﬁle transfer.

The iDEN Wireless Data Services solution provides you with the capability

of connecting to the Internet and corporate intranets using your laptop

computer (or compatible hand-held computing device) and your iM1000

stand-alone data modem.

With wireless data services, you can perform your most important laptop

computer activities outside your ofﬁce or home.

Figure 1. iM1000 Data Modem

iModem/user Page 1 Thursday, October 7, 1999 7:46 PM

iM1000 -Data Modem

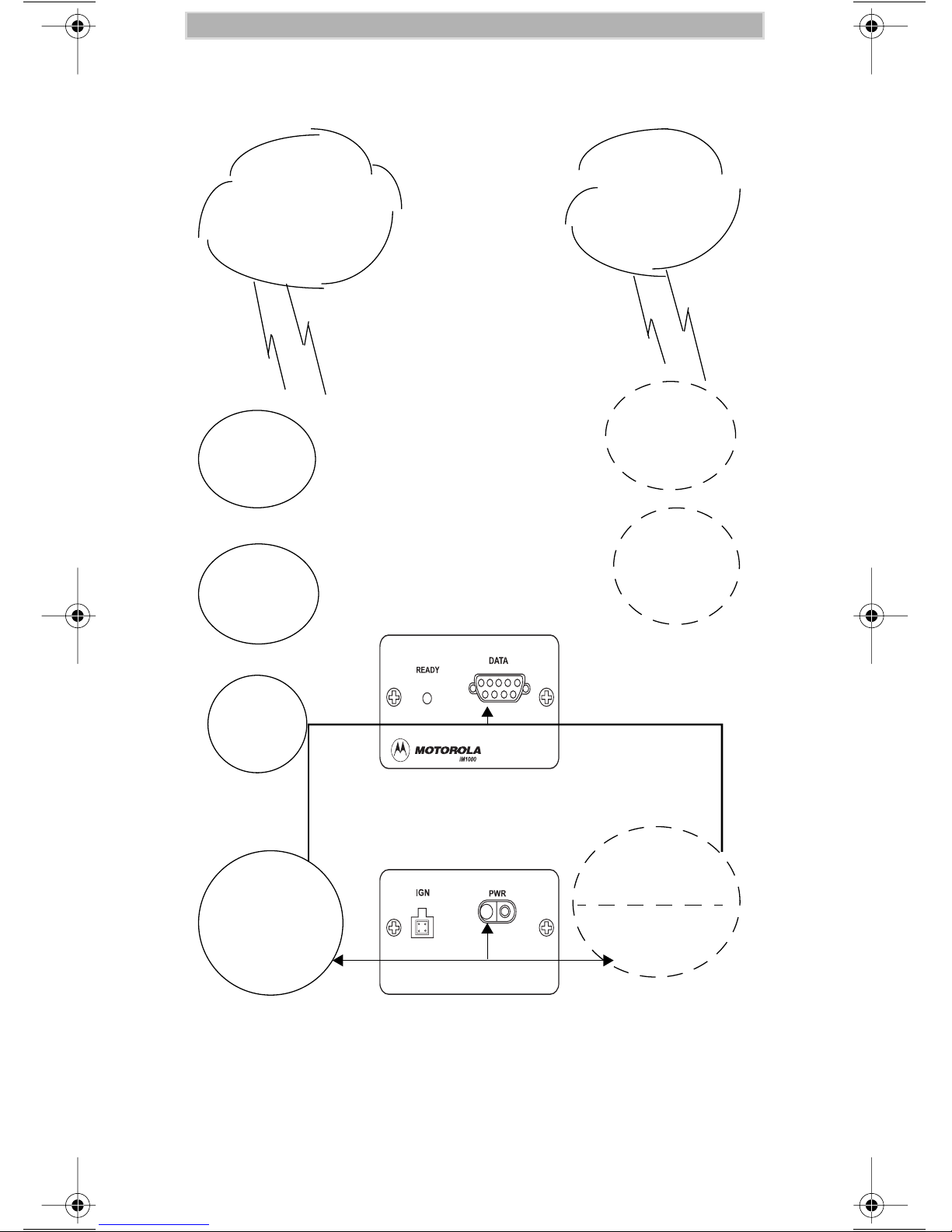

Overview

Packet Data

Internet

E-Mail

Circuit Data

Faxes

Connect

to the

Internet

Install the

Packet Data

Software

Connect

the Data Cable

and insert

pwr on plug

Connect

the Data Cable

and insert the

pwr on plug

Define the

Data Modem

Start the

Communication

Software

Configure

the

modem

the

Front Panel

Back Panel

iModem/user Page 2 Thursday, October 7, 1999 7:46 PM

IM1000 - DATA MODEM

The iM1000 enables packet and circuit-data connections.

•

Packet data:

A wireless modem connection

for accessing the Internet,

sending and receiving e-mail, and transferring small ﬁles over the packet

data network using standard IP protocols.

Data is sent in bursts. Packet data transmits packets (blocks) of data at

high speed. After the data is transmitted, you can remain connected

indeﬁnitely without being charged for the idle time

•

Circuit data:

A wireless modem connection for sending and receiving

faxes over the circuit-switched cellular channel.

Data is sent as a continuous stream through the network to another

modem.

To prepare your computer and iM1000 data modem for wireless data use,

the following procedures are necessary.

•

Connect the cable.

Connect the modem to the computer via the data cable.

For more information see “INSTALLATION INSTRUCTIONS” on

page 16.

•

Turn on the Modem.

Turn on the modem before you proceed with the installation and

conﬁguration.

•

Set up Windows Components.

Use these instructions to verify that Dial-Up Networking and the TCP/IP

protocol are installed on your computer. If not, follow the procedure

provided to install them.

For more information, see “Verifying and Installing Dial-Up

Networking” on page 10 and “Verifying and Installing the TCP/IP

Protocol” on page 13.

•

Install the software.

Use the installation software to install the modem conﬁguration data

software.

For more information, see “Installing the Software” on page 17.

•

Conﬁgure your iM1000 data modem.

Enter settings provided by your iDEN carrier.

For more information, see “CONFIGURINGYOUR MODEM” on

page 31.

Connect to the Internet.

Start the Dial-Up Networking session. Be sure that the modem is

connected to the computer with the data cable.After successful

installation, you can surf the Internet, send and receive faxes and e-mail

messages, and transfer ﬁles.

NOTE

You may use the following information as a fast path to

installation.

iModem/user Page 3 Thursday, October 7, 1999 7:46 PM

iM1000 -Data Modem

The LED indicators located on the front panel of the iM1000 shows the

service state

Table 1: Status Light (LED) Indicator

Installation Requirements

To run the installation program, you need the following:

• An iM1000 unit

• A PC data cable for your data modem

• An IBM

-compatible PC with:

- An Intel

586 (or higher) processor

- Microsoft

Windows

95 installed, Windows

98 or Windows

- Minimum 8 MB of addressable RAM

- CD-ROM drive

- 6 MB free hard-disk space

- Recommended: Mouse or compatible pointing device

• The installation software that came with your package

• Communication software

• An account with an iDEN carrier

LED Indicator Status ofYour iM1000

Alternating Red

and Green A fatal error has been detected

during power-up

Flashing Red Registering - your iM1000 is signing

on to your carrier’s network. Please

wait.

Solid Red No service -your iM1000 cannot

sign on. It will continue trying to

every two minutes as long as it is

turned on.

Flashing Green In service - your iM1000 has

successfully completed Packet Data

registration.

Solid Green In use - your iM1000 is currently

being used

iModem/user Page 4 Thursday, October 7, 1999 7:46 PM

HARDWARE INSTALLATION

Introduction

Hardware installation has to be carried out by experienced technicians

familiar with installing similar types of equipment.

BeforeYou Start Installing

Ignition Sense Cable

Installation Planning

Planning is the key to fast, easy iM1000 installation. Before a hole is drilled

or a wire is run, inspect the vehicle and determine how and where you

intend to mount the antenna, iM1000, and accessories. Plan wire and cable

runs to provide maximum protection from pinching, crushing, and

overheating.

Recommended Tools For Installation

The following tools, screws, and washers are recommended for proper

installation of your iM1000.

• Portable Drill

• Hammer

• Center Punch

• Four screws M4

• Four self drilling screws M4

• Four ﬂat washers M4

• Four spring washers M4

• Phillips #2 Screwdriver

NOTE

The iM1000 will not operate without the Ignition

Accessories Cable installed or a power on plug connected.

iModem/user Page 5 Thursday, October 7, 1999 7:46 PM

iM1000 -Data Modem

iM1000 Mounting

The standard mounting of the iM1000 can be mounted on different types of

mounting surfaces. Be sure the mounting surface is able to adequately

support the weight of the iM1000.Allow sufﬁcient space around the

iM1000 for free air ﬂow for cooling. Be sure the unit is close enough to the

vehicle operator to permit easy access to operating indicators.Although the

iM1000 can be mounted to a plastic dashboard, it is recommended that the

mounting screws be located so they penetrate the supporting metal frame of

the dashboard.

Antenna Mounting

The best mounting location for the antenna is in the center of a large, ﬂat

conductive surface. In almost all vehicles, these requirements are best

satisﬁed by mounting the antenna at the center of the roof. Some vehicles

have a large trunk lid that provides a good antenna location. If the trunk lid

is used, connect grounding straps between the trunk lid and vehicle chassis

to ensure the trunk lid is at chassis ground.

Three types of antennas can be used:

1. RAFU136A - MagneticAntenna

2. FAD5524A - Mobile Window Antenna

3. HAF9067A - Mobile Roof MountAntenna

Make sure that you refer to the antenna installation instructions according to

the kit number.

DC Power Cable Installation

The iM1000 must be operated only in negative ground electrical systems.

Reverse polarity does not damage the iM1000; however, iM1000 protection

circuits cause the cable fuse to blow. Check the ground polarity before you

begin installation.

The DC power cable (FKN4448A) is long enough for installation in most

vehicles. Begin the power cable installation in the following manner.

1. Determine a routing plan for the power cable with reference to where

the iM1000 is to be mounted.

2. Locate the nearest available chassis ground mounting point and shorten

the black lead to remove excess cable length.

3. Locate the fuse holder as close to the battery as possible and away from

any hot component. Mount the fuse holder using the provided mounting

hole and dress wires as necessary. Connect the fuse holder red adapter

lead plus to the mating receptacle on the red lead of the power cable.

See Figure 3..

4. Connect the power cable black lead directly to the chassis ground.

5. Connect the power cable red lead from the fuse holder to the positive (+)

battery terminal. Make sure the adapter cable is connected to the main

power cable red lead.

6. Plug fuse into in-line fuse holder as shown in Figure 3..

iModem/user Page 6 Thursday, October 7, 1999 7:46 PM

HARDWARE INSTALLATION

Figure 2. - Power Cable Routing into the Engine Compartment

Figure 3. - Power Cable Assembly

Mounting iM1000 - Vehicle Installation

1. Select the location to mount your iM1000 - either on the transmission

hump or under the dashboard. When mounting the iM1000 on the

transmission hump, ensure that the transmission housing is not

affected.

2. Use the iM1000 mounting bracket as a template, mark the positions

of the holes on the mounting surface.

3. Secure the iM1000 mounting ﬂinges to the surface with the four

(M4) screws provided.

4. Mount the antenna using the instructions provided with the antenna

kit. Run the coaxial cable to the iM1000 mounting location.

Black Lead

Red Lead

Firewall

Grommet

Engine Compartment

To Radio

FKN4448A

Fuse

Cover

Red Lead

Mounting

Hole

Molded In-Line

Fuse Holder

To Vehicle

Chassis Ground

Engine

Compartment To Battery (+)

Adapter

Firewall

Red Lead

Black Lead Ring

Lugs

iModem/user Page 7 Thursday, October 7, 1999 7:46 PM

iM1000 -Data Modem

If necessary, cut off the access cable and install the cable connector.

5. To assure compliance with United States FCC regulations on RF

exposure, position the antenna in such a way to maintain a

separation distance of at least 8 inches (20 cms) between the

antenna and the body of any user and nearby person. Connect the

antenna cable connector to the radio antenna connector on the rear

of the iM1000. See Figure 4.

6. Plug the power cable into the iM1000 power connector.

Figure 4. - Connections to iM1000 Rear Panel

Power Conﬁguration

To turn ON the iM1000 modem, an ignition signal is required at the ignition

connector. It can be supplied in two ways.

Switched Power Connection

When installed in a vehicle, the modem receives the ignition signal from the

vehicle’s ignition switch.

NOTE

The modem operates only when the car switch is turned

ON.

iModem/user Page 8 Thursday, October 7, 1999 7:46 PM

HARDWARE INSTALLATION

Figure 5. Switched Power Connection

Perform the following steps to install the iM1000 modem in a vehicle:

1. Prepare a routing plan for the ignition cable after determining where

the iM1000 is to be mounted.

2. Connect the free end of the ignition cable to the vehicle ignition

switch, and the other end (with the plug) to the iM1000 ignition

connector.

Continuous Power Connection

A power on plug is permanently plugged into the ignition connector. When

the power is supplied to the iM1000 DC Power Connector, the modem turns

ON.

Figure 6. Continuous Power Connection

Data Cable Installation

Connect one side of the 9-pin cable (FKN4369A) to the iM1000

communication connector and the other side to the DTE. Since the iM1000

is a modem, it can be connected only to DTE equipment, using a 9-pin to

9-pin cable.

IGN Ignition Cable

PWR

Car

Switch

Vehicle

Battery

iM1000

Antenna

Pwr Cable FKN4448A

FKN4868A

Antenna

iM1000

Power Source

Power On Plug

IGN

PWR

FLN9400A

FKN4448A

iModem/user Page 9 Thursday, October 7, 1999 7:46 PM

Autres manuels pour iM1000

Table des matières

Autres manuels Motorola Modem

Motorola

Motorola MG7700 Manuel utilisateur

Motorola

Motorola MT7711 Manuel utilisateur

Motorola

Motorola SURFboard SB4000 Manuel utilisateur

Motorola

Motorola WSM6300 Manuel utilisateur

Motorola

Motorola Premium Motorola 3347 Manuel utilisateur

Motorola

Motorola SB5101 - SURFboard - 30 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola SURFboard SB4100 Manuel utilisateur

Motorola

Motorola Codex 3500 DSU/CSU Manuel utilisateur

Motorola

Motorola SURFboard SB3100 Manuel utilisateur

Motorola

Motorola iM1000 Manuel utilisateur

Motorola

Motorola V3229 - 14.4 Kbps Modem Manuel utilisateur

Motorola

Motorola SURFboard SB4100 Manuel utilisateur

Motorola

Motorola SB5101 - SURFboard - 30 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola SB5100 - SURFboard - 38 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola SBV5322 SURFBOARD DIGITAL VOICE MODEM - annexe... Guide de démarrage rapide

Motorola

Motorola SURFboard SBV5222 Guide de démarrage rapide

Motorola

Motorola CPEI 150 series Manuel utilisateur

Motorola

Motorola VML750 Manuel utilisateur

Motorola

Motorola B12 Manuel utilisateur

Motorola

Motorola SB5101 - SURFboard - 30 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola SURFboard SBV5222v2 Manuel utilisateur

Motorola

Motorola SB6120 - SURFboard - 160 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola VT2442 - VONAGE Manuel utilisateur

Motorola

Motorola SBG1000 Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
