USER’S MANUAL

PID 10530

May 14, 2013

TABLE OF CONTENTS

1.0 INTRODUCTION ................................................... 3

2.0 FEATURES............................................................ 4

3.0 SETUP................................................................... 5

3.1 Plug It In................................................................ 5

3.2 Setup Your iDevice .............................................. 5

3.3 Bluetooth Connection ......................................... 7

4.0 OPERATION.......................................................... 9

4.1 Basic Control ....................................................... 9

4.2 Near Field Control.............................................. 10

4.3 Schedule Timer.................................................. 11

4.3.1 Add New Timer .......................................................................12

4.3.2 Edit Timer ...............................................................................13

4.4 Settings............................................................... 13

4.4.1 Device Name..........................................................................13

4.4.2 Setting the Password (PIN Code)...........................................14

1.0 INTRODUCTION

Installing a Home Automation solution is as easy as 1-2-3 with this Home Automation

Switch and your Apple iPhone® or iPad®!

This switch uses Bluetooth™ technology to allow for remote control of the device

using the free app and your iPhone or iPad. This provides for three valuable functions:

1. Remote Control - You can turn the switch on or off using the app. This prevents you

from having to bend over to reach the wall outlet to turn it on or off manually.

2. Multiple Timers - You can use the iPhone app to set multiple timers for control of

the power outlet. You can maintain multiple timers, which allows for a more complex

timer operations that can vary from day to day.

3. Full Automation - The switch uses the Near Field Communications standard to

allow for full automation of power outlet. By pairing your iPhone or iPad with the

switch, you can automatically power devices on or off based on the proximity of your

phone or tablet to the switch. You can use the app to fine tune the proximity range so

the right devices turn on or off as you move through your home.

2.0 FEATURES

Home Automation Switch with Timer

Electrical Rating: 15A, 120VAC, 60Hz, 1800Watts Resistive.

Bluetooth: version 3.0 EDR Compliant

App Support OS: iOS 5.0 or higher

Near Field Control (NFControl) Support

Manual, Timed, or Remote Control of the Power Outlet

Wireless Range: up to 10 meters in open space

Multi-Function Timer: Weekly/Daily/Hourly

Power Outlet Manual On/Off Button (Reset)

Bluetooth/Power

Indicator

3.0 SETUP

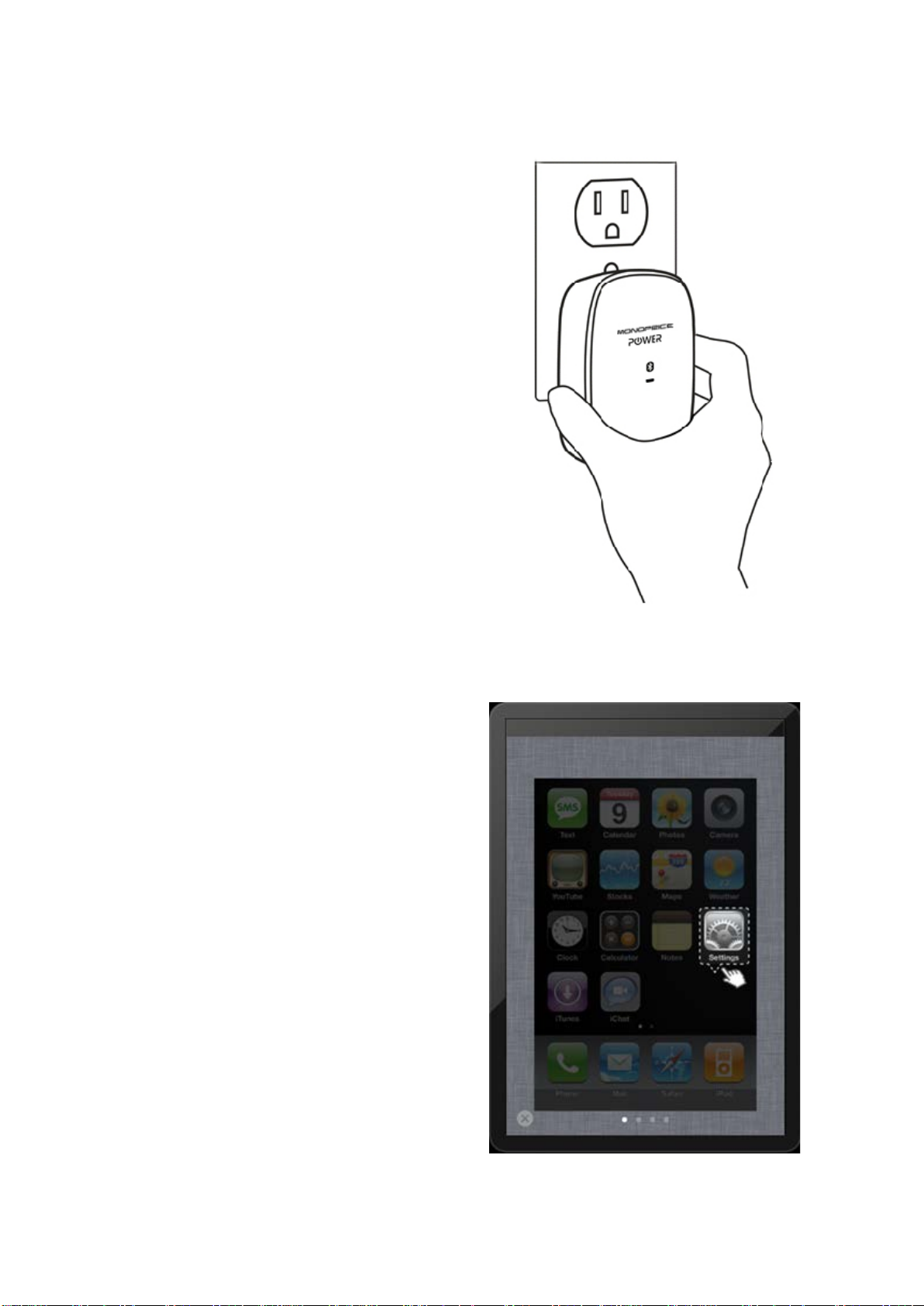

3.1 Plug It In

Plug the switch into a wall outlet. Do not plug

it into another switch, surge protector, UPS,

or extension cord.

3.2 Setup Your iDevice

Open the Settings app on your iPhone or

iPad.

3.3 Bluetooth Connection

1. If it isn’t already enabled, turn the

Bluetooth function ON.

2. Search for nearby Bluetooth devices.

3. When the search is completed, select the

APPSPOWER_XX device.

4. If you do not already have the app

installed, you will be notified that you

need to download and install the app.

Select Yes from the dialog to the right.

5. Follow the on-screen instructions to

download and install the app from the App

Store.

4.0 OPERATION

4.1 Basic Control

Rather than relying on the NF Control to

activate the power outlet, you can turn it on or

off directly using the "INSTANT" button in the

app:

Using the "INSTANT" option does not delete

or change the settings you already have in

place for the Timer and NF Control functions.

OFF

4.2 Near Field Control

Click the NFControl button to enter

the NFControl Setting page.

When the NFControl (Near Field Control)

feature is enabled, the NF Control power

outlets will automatically turn on whenever

your iDevice comes within range and will

automatically turn off when your iDevice goes

out of range.

Use the slider to fine tune the range setting.

Use the slider to set the NFControl

proximity range.
