Monoprice 38298 Manuel utilisateur

1

2x4 USB 3.1 Gen1 Peripheral Sharing Switch

P/N 38298

Quick Start Guide

ONLINE SUPPORT

Monoprice is pleased to provide free online support. For order related

issues, contact the Customer Service department through the Live Chat

link on our website www.monoprice.com during normal business hours

(Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-6pm PT) or via email at

support@monoprice.com

For technical issues, contact the Technical Support department through

the online chat button on our website www.monoprice.com during

regular business hours, 7 days a week. You can also get assistance

through email by sending a message to [email protected]m

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all

the items listed below. If anything is missing or damaged, please contact

Monoprice Customer Service for a replacement.

1x USB 3.1 Gen Peripheral Sharing Switch

2x USB 3.1 Gen 1 Type-B to Type-A Cables

1x USB 3.1 Gen 1 Type-B to Type-C™ Cable

1x Remote Port Selector

1x User's Manual

2

PRODUCT OVERVIEW

1. Console Indicator LEDs

2. USB 3.1 Gen 1 Ports

3. Micro USB Power Port

4. Remote Port Selector

5. PC Ports

6. Remote Port Selector Jack

OPERATION

Press the button on the Remote Port Selector to switch from one

computer to the other.

3

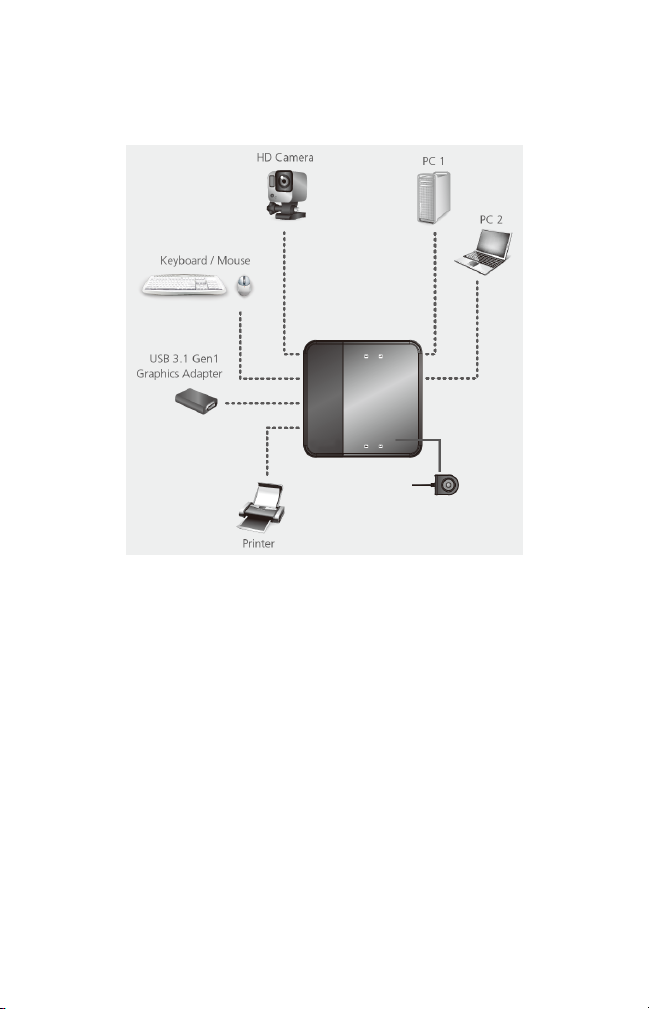

INSTALLATION

Perform the following steps to install this KVM switch.

1. Using one of the included cables, plug one end into the USB Type-A

or Type-C™ port on your computer, then plug the other end into

one of the PC Ports. Repeat for the second computer.

2. Plug up to four USB peripherals into the USB 3.1 Gen 1 Ports on the

switch.

3. Plug the included Remote Port Selector into the Remote Port

Selector Jack on the switch.

4. (Optional) Using a Micro USB cable (not included), plug one end into

the Micro USB Power Port on the switch, then plug the other end

into a USB power source.

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum,

Inc.
