Monoprice 33416 Manuel utilisateur

Blackbird 4K 2x1 HDMI® 2.0 Switch

P/N 33416

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

This device is intended for indoor use only.

Do not expose this device to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

Do not touch the device or any connected cables with wet hands.

Do not expose this device to excessively high temperatures. Do not place it in, on,

or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct

sunlight.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

INTRODUCTION

This Blackbird™ 4K 2x1 HDMI® Switch features two HDMI video inputs and a single HDMI

video output. It is compatible with the HDMI 2.0 and HDCP 2.2 specifications and supports

video resolutions up to 4K@60Hz 4:4:4, as well as High Dynamic Range (HDR) video. It

requires no AC power adapter as it draws all necessary power from the HDMI connections.

FEATURES

Compliant with the HDMI® 2.0 and HDCP 2.2 specifications

Supports video resolutions up to 4K@60Hz 4:4:4

18 Gbps video bandwidth

Supports High Dynamic Range (HDR) video

Supports the Consumer Electronics Control (CEC) pass-through feature

Requires no external power source

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at [email protected]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x Blackbird™ 4K HDMI® 2x1 Switch

1x Velcro® tape

1x User's manual

PRODUCT OVERVIEW

Front Panel

1. SOURCE: Press the button to switch between the two inputs.

2. HDMI OUT: HDMI® connector for connecting the video display.

3. 1-2: The LEDs illuminate to indicate which of the two inputs is active.

Rear Panel

1. HDMI IN 1-2: HDMI connectors for connecting the video source devices.

123

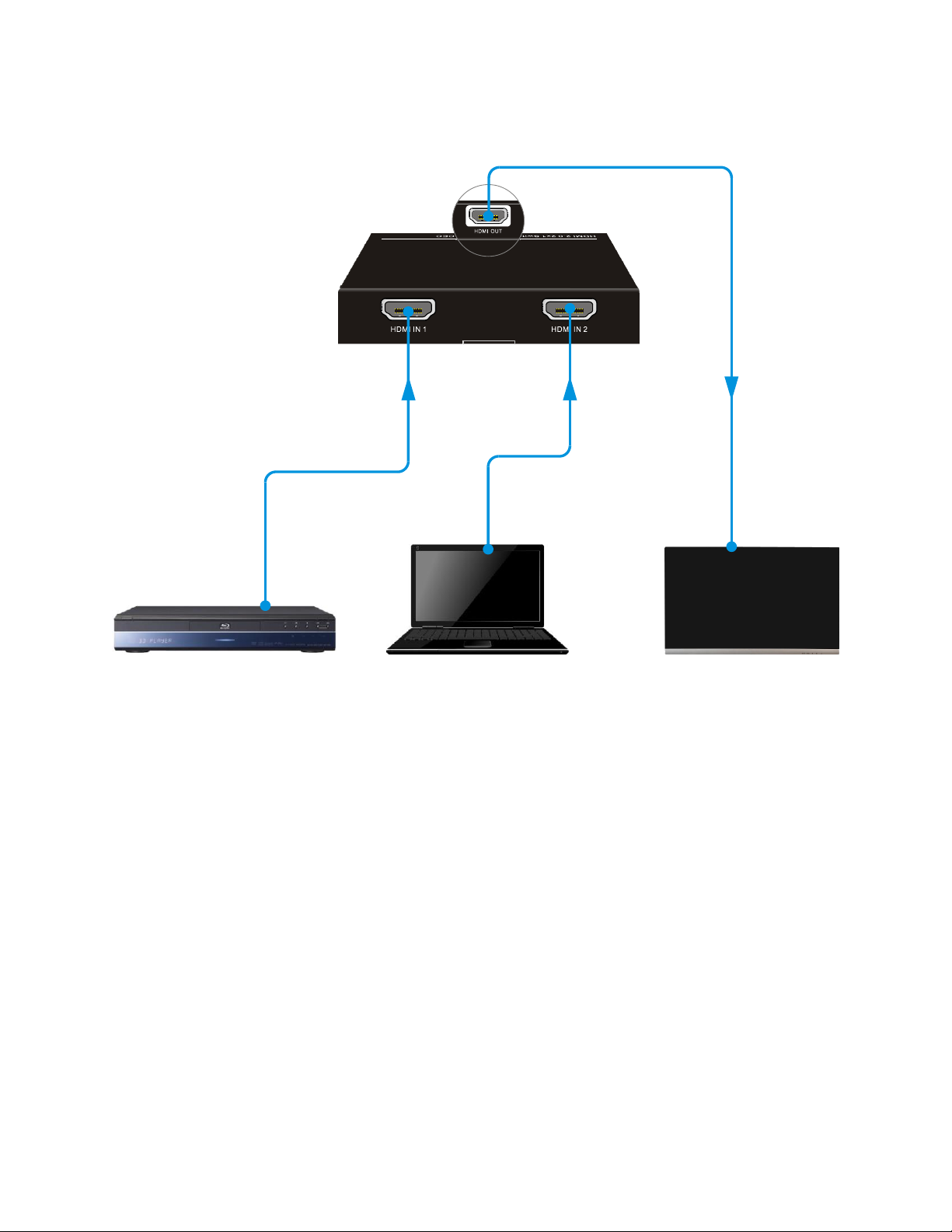

SAMPLE CONNECTION DIAGRAM

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with any

questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come online

to talk to one of our friendly and knowledgeable Tech Support Associates. Technical

support is available through the online chat button on our website www.monoprice.com

during regular business hours, 7 days a week. You can also get assistance through email by

sending a message to tech@monoprice.com

HDTV

Blu-Ray Laptop

SPECIFICATIONS

Model

33416

Video Inputs

2x HDMI®

Video Outputs

1x HDMI

HDMI Version

2.0

HDCP Version

2.2

Maximum Video Resolution

4K@60Hz 4:4:4

Video Bandwidth

18 Gbps

Maximum Power Consumption

90 mW

Operating Temperature

+14 ~ +131°F (-10 ~ +55°C)

Storage Temperature

-13 ~ +158°F (-25 ~ +70°C)

Relative Humidity

10 ~ 90% RH, non-condensing

Dimensions

3.4" x 0.6" x 2.2" (86 x 16 x 55 mm)

Weight

4.8 oz. (135 g)

Blackbird™ is a trademark of Monoprice Inc.

HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and other countries.

VELCRO® is a registered trademark of Velcro Industries B.V.

Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association.
