Blackbird™ 4x1 HDMI® Switch with Multiview

P/N 24740

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

This device is intended for indoor use only.

Do not expose this device to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

Do not touch the device, the power cord, or any other connected cables with wet

hands.

Do not expose this device to excessively high temperatures. Do not place it in, on,

or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it in direct

sunlight.

This device ventilates excessive heat through the slots and openings in the case. Do

not block or cover these openings. Ensure that the device is in an open area where

it can get sufficient airflow to keep from overheating.

Do not place or install this device in an area where it can be exposed to excessive

amounts of dust, humidity, oil, smoke, or combustible vapors.

Prior to operation, check the unit and power cord for physical damage. Do not use if

physical damage has occurred.

Before plugging the unit into a power outlet, ensure that the outlet provides the

same type and level of power required by the device.

Unplug this device from the power source when not in use.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that the

power cord does not present a tripping hazard.

Never unplug the unit by pulling on the power cord. Always grasp the connector

head or adapter body.

Ensure that power is turned off and disconnected before making any electrical

connections.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This device has no user serviceable parts. Do not attempt to open, service, or

modify this device.

INTRODUCTION

Thank you for purchasing this Blackbird™ 4x1 HDMI® Switch with Multiview! This switch

features four HDMI inputs and a single HDMI output. It supports video resolutions up to

1080p@60Hz and supports multichannel, high-definition audio. It includes five display

modes, three of which can display all four inputs at the same time. It can be controlled

using the front panel buttons, the included IR remote control, or RS232 computer control.

FEATURES

Includes four HDMI® inputs and one HDMI output

Supports video resolutions up to 1080p@60Hz

Features five display modes, three of which show all four inputs on screen at the

same time

Supports multichannel, high-definition audio

Includes front panel, IR remote control, and RS232 control options

Complies with the HDMI version 1.4b specification

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at [email protected]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x 4x1 HDMI® switch with multiview

1x IR remote control

1x AC power adapter

1x User's manual

PRODUCT OVERVIEW

Front Panel

1. POWER: The LED illuminates when power is applied.

2. IR: IR "eye" for receiving signals from the included IR remote control.

3. AUDIO: Press the button to cycle the audio through the inputs or to turn it off.

4. MAIN: Press the button to select the video source.

5. MODE: Press the button to cycle through the five display modes.

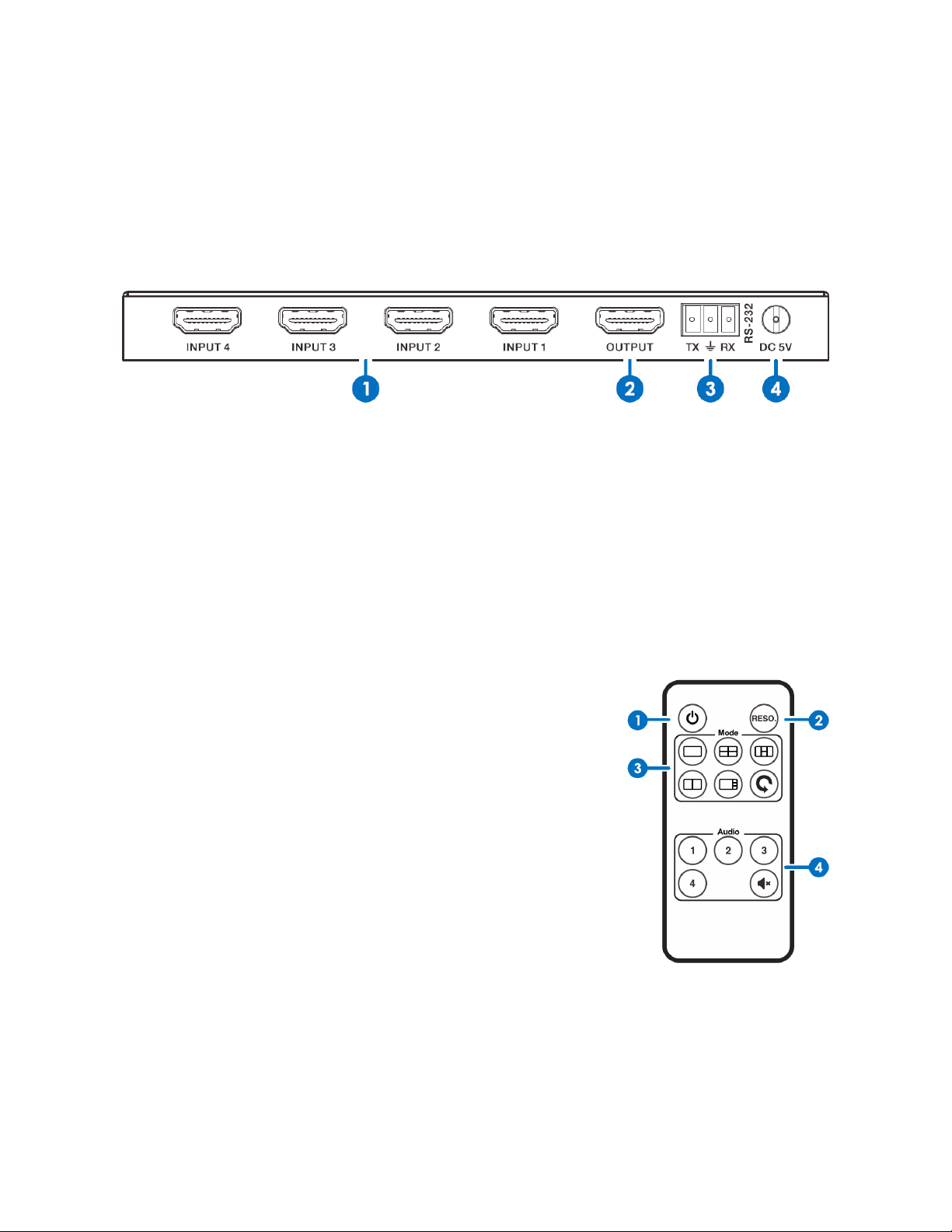

Rear Panel

1. INPUT: HDMI® ports for connecting up to four video source devices.

2. OUTPUT: HDMI port for connecting the video display.

3. RS-232: 3-pin terminal block for connecting to a computer for RS232 control.

4. DC 5V: DC barrel connector for connecting the included AC power adapter.

IR Remote Control

1. Power: Press the button to turn the unit on or to put

it into standby mode.

2. RESO.: Press the button to switch the output

resolution between 720p and 1080p.

3. Mode: Press one of the five display buttons to set the

display mode. Pressing the last button causes the unit

to continuously cycle through the five display modes.

4. Audio: Press a button to select which of the four

inputs is the audio source or to mute audio.

DISPLAY MODES

This switch feature five display modes, arranged as shown below.

1. Mode 1 displays one of the four video inputs. Press the MAIN button on the front

panel to cycle through the four inputs. The cycle order is INPUT 1 > INPUT 2 > INPUT

3 > INPUT 4 > INPUT 1, etc.

2. Mode 2 displays all four video inputs in equal sized screen quadrants.

3. Mode 3 displays all four video inputs, with INPUTS 1 and 4 occupying more screen

space than INPUTS 2 and 3.

4. Mode 4 displays two of the four video inputs. Press the MODE button on the front

panel to switch between displaying INPUTS 1 and 2 and INPUTS 3 and 4.

5. Mode 5 displays all four inputs, with one input occupying more screen space than

the others. Press the MODE button on the front panel to select which of the four

inputs is displayed in the larger portion of the screen.

SAMPLE CONNECTION DIAGRAM

INSTALLATION

Perform the following steps to install this switch.

1. Ensure that all equipment to be connected is powered off and unplugged from its

power source.

2. Place or mount the switch in its intended location.

3. Using a High Speed HDMI® Cable (not included), plug one end into the HDMI input

on your display, then plug the other end into the OUTPUT port on the switch.

4. Using a High Speed HDMI® Cable (not included), plug one end into one of the

INPUTS on the switch, then plug the other end into the output on your video source

device. Repeat for up to three additional source devices.

5. (Optional) If you want to control the switch with your computer via an RS232

connection, construct a serial control cable, then plug one end into your computer's

serial port and the other end into the RS-232 terminal block on the switch.

6. Plug the DC barrel connector on the included AC power adapter into the DC 5V jack

on the switch, then plug the adapter into a nearby AC power outlet.

7. Plug in and power on all connected equipment. Start video playback on all four

source device. Press the MODE button on the front panel to put the switch into

MODE 2. Alternatively, press the button on the remote control corresponding to

MODE 2. Verify that the video from each of the four sources is displayed on screen.

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with any

questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come online

to talk to one of our friendly and knowledgeable Tech Support Associates. Technical

support is available through the online chat button on our website www.monoprice.com

during regular business hours, 7 days a week. You can also get assistance through email by

sending a message to tech@monoprice.com

SPECIFICATIONS

Model

24740

Inputs

4x HDMI®

Outputs

1x HDMI

Maximum Video Resolution

1080p@60Hz

Video Bandwidth

6.75 Gbps

Color Depth

12-bits/channel (36-bits total)

Color Spaces

RGB, YCbCr 4:4:4, YCbCr 4:2:2

HDMI Version

1.4b

Input Power

5 VDC, 2A

AC Adapter Input Power

100 ~ 240 VAC, 50/60 Hz

Maximum Power Consumption

6 watts

Operating Temperature

+32 ~ +104°F (0 ~ +40°C)

Storage Temperature

-4 ~ +140°F (-20 ~ +60°C)

Operating Humidity

20 ~ 90% RH, non-condensing

Dimensions

6.3" x 3.3" x 0.6" (160 x 84 x 16 mm)

Weight

11.9 oz. (337 g)

REGULATORY COMPLIANCE

Notice for FCC

Modifying the equipment without Monoprice’s authorization may result in the equipment

no longer complying with FCC requirements for Class B digital devices. In that event, your

right to use the equipment may be limited by FCC regulations, and you may be required to

correct any interference to radio or television communications at your own expense.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Notice for Industry Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Blackbird™ is a trademark of Monoprice Inc.

HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing LLC in the United States and other countries.
