Modus M-247 Manuel utilisateur

DOG TRAINING COLLAR

TABLE OF CONTENTS

S/N CONTENTS

WORK PRINCIPLE

FIT THE COLLAR

COMPONENTS

HOW TO CHARGE THE DEVICE

PAIRING OF THE RECEIVER AND REMOTE

WARRANTY

TECHNICAL SPECIFICATIONS

FUNCTION INTRODUTION

FCC CAUTION

SCENARIOS

TURN ON AND OFF

HINTS AND TIPS

WARNING

WHAT'S IN THE BOX

15 CONTACT US

Thank you for choosing MODUS Dog Training Collar M-247.

MODUS, Pets Intelligent Training Expert.

Please read this manual carefully before using the device.

WORK PRINCIPLES

MODUS Dog Training Collar is specially developed and designed for dog training, which

mainly has two parts: the remote and receiver. It establishes signal connection between

the remote and the receiver through wireless communication technology (the eﬀective

distance is up to 300 meters),and realizes the purpose of long-distance one-click dog

training through the remote sending instruction to the receiver. When the dog behaves

uncivilized, the owner only needs to operate the remote, which can correct the bad

behavior through the functions of sound instruction, recording playback, vibration and

static shock. After a period of time, dogs will gradually develop good civilized behavior.

SCENARIOS

1. The device is suitable both indoor and outdoor.

2. The device can be used as a dog training auxiliary means.

3. The device is not suitable for dogs with any skin lesions around the neck.

4. The device is not suitable for dog under 6 months of age.

5. The device is suitable for all breeds of small, medium and large dogs.

TECHNICAL SPECIFICATIONS

Brand Name: MODUS

Model Number: M-247

Product Material: ABS Flame Retardant

Power: 0.78 W

Remote Battery: 300 mAh Lithium Battery

Receiver Battery: 450 mAh Lithium Battery

Charging: Input 5V DC/1A

Product Dimensions: 4.02*2.37*1.05 inch

Collar Size: 2.95*1.48*1.30 inch

Product Weight: 0.43 lb

Operating Temperature: -4 ℉~104 ℉

Max Operating Distance: 350 yd

Waterproof Level: IP67

WHAT’S IN THE BOX

Collar

3Test Light

USB Cable

Contact Points

Remote Control

1Receiver

Wrist Strap

Note: If you buy two-dog system, there will be 2 receivers,2 longer contact points and 2 collars.

COMPONENTS

Remote

Receiver

Sensor Port / Antenna

Indicator Light

Beep Button

Play Record 1

Shock Button

Turn oﬀ Shock

/Lock Button

Play Record 2

Vibration Button

Screen

Channel Button

+/- Button

Contact Points

Charging Port

On/oﬀ

Indicator Light

Record 2

Record 1

Microphone

Speaker

INSTRUCTIONS

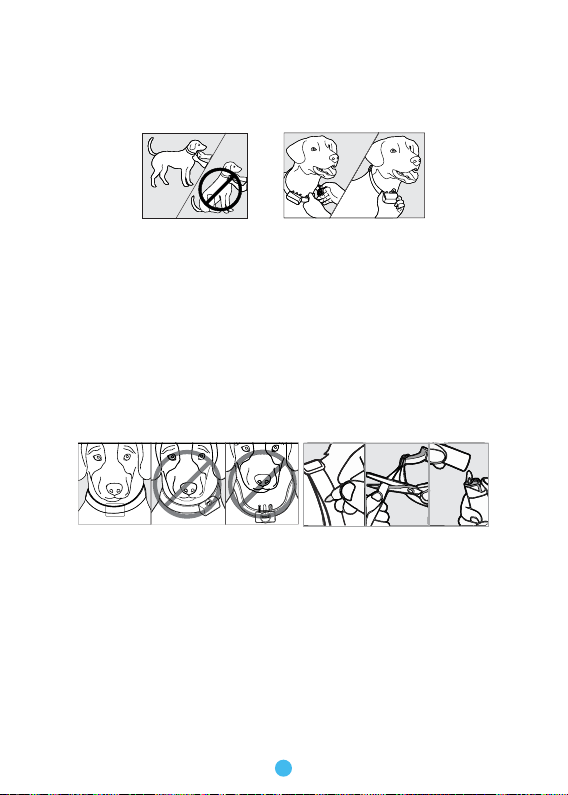

Ⅰ. FIT THE COLLAR

Note: Please make sure the collar is put on dog’s neck ﬁrmly, not too tight and

not too loose. The probes must be touching the skin of the dog in order for

eﬀective electric shock.

1. Make sure your dog is relaxed before wearing it (Figure A).

2. Open the collar buckle, adjust the appropriate length to completely surround

the dog's neck, and align the inner microphone with the dog's pronunciation part

(Figure B).

Note: Make sure that both metal detectors pass completely through the dog's

hair and make contact with the dog's skin. If necessary, trim the dog's hair to

ensure good contact.

3. Buckle the dog collar. When the collar is buckled, the collar should be behind

the dog's ear (the uppermost part of the neck).

4. Adjust the collar to the appropriate length until you can put one ﬁnger

between the dog's neck and collar. Also make sure that the collar is stable, but

not too tight.

5. Give your dog enough time to adapt to wearing a collar. This step is to ensure

that the collar is still safe and secure in your dog's daily activities.

6. Remove the collar from the dog's neck, cut oﬀ the excess material, and

reserve a length of about 1 inch.

7. Seal the edge of the cut collar with ﬂame (Figure C).

8. Put the collar on your dog again and use it after it is installed.

Figure A Figure B

Figure C

Ⅱ.Turn On and Oﬀ

1. How to turn on/oﬀ the remote :

Turn on: press any key to turn on the device, LCD display and backlight will turn on, the

device will be into the normal working mode.

Turn oﬀ: the backlight will turn oﬀ in 20 seconds without operation, and turn oﬀ display

and the device in 40 seconds without operation.

2. How to turn on/oﬀ the receiver.

Turn on: After a brief touch with the remote's antenna sensor, it turns on with a “beep”.

Turn oﬀ: After a brief touch with the remote's antenna sensor, it turns oﬀ with two

“beep”.

Note: In standby mode, green LED of the receiver ﬂashes once every 5 seconds.

Short touch to start up

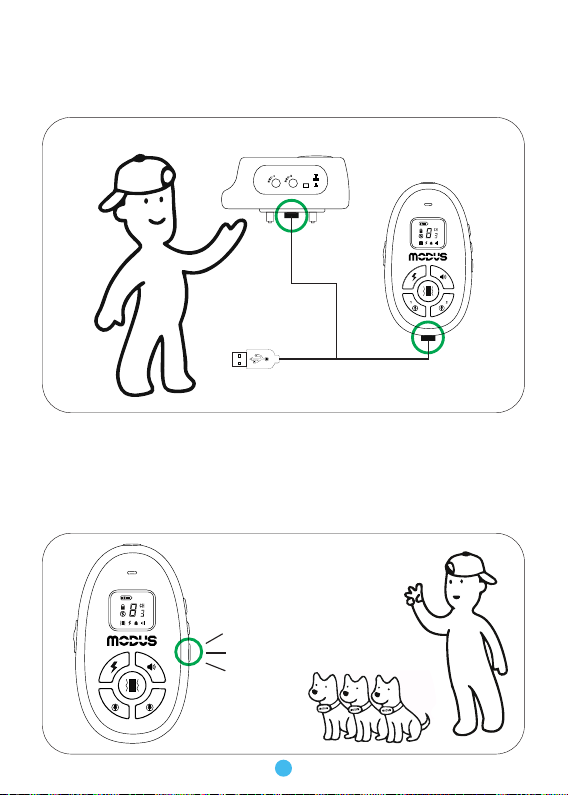

Ⅲ.How to charge the device?

When purchasing the device, there is a USB cable attached in the packing box. Please

connect the USB cable with the adapter, and then insert it into a charge port like power

transformer, power strip, power bank or computer port to charge the device.

Ⅳ. Switch Channels

Press the “CH” key, you can select the receiver that you want to control. After pairing,

the receiver will only work under this channel. When “ALL” is displayed on the remote

screen, you can control receivers of all channels. (If you purchase the receiver version

separately, you need to manually pair them.)

120 Minutes

Complete charging in 2 hours.

Oﬀer only one wire in the package.

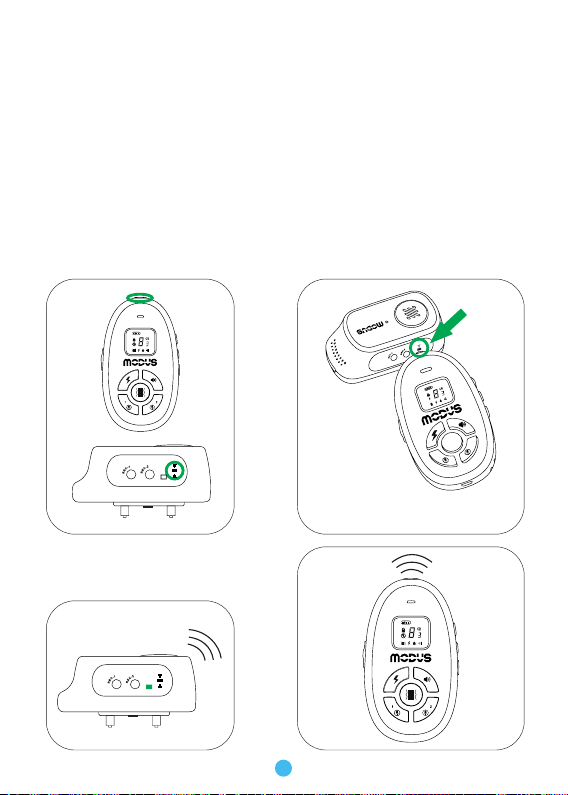

Ⅴ.Pairing Of The Receiver And Remote

The device works by radio channel communication. The remote and receiver need to be

on the same channel to work properly. Before delivery, we will pair the remote with the

receiver. If remote has lost contact with receiver because of signal interruption or

power outage, please pair manually.

1. Use the remote's antenna sensor to touch the receiver's sensor for about 3-5

seconds until the receiver issues a “beep” and a green light ﬂashes, indicating that it is

waiting for pairing.

2. The receiver will wait for the pairing state for 10 seconds.During this period, it will

quickly ﬂash the green light, then please press the vibration key of the remote within 10

seconds, and the receiver will emit a “beep” when receives the signal, which means the

pairing is completed.

To turn the remote and receiver on.

OPERATING INSTRUCTION

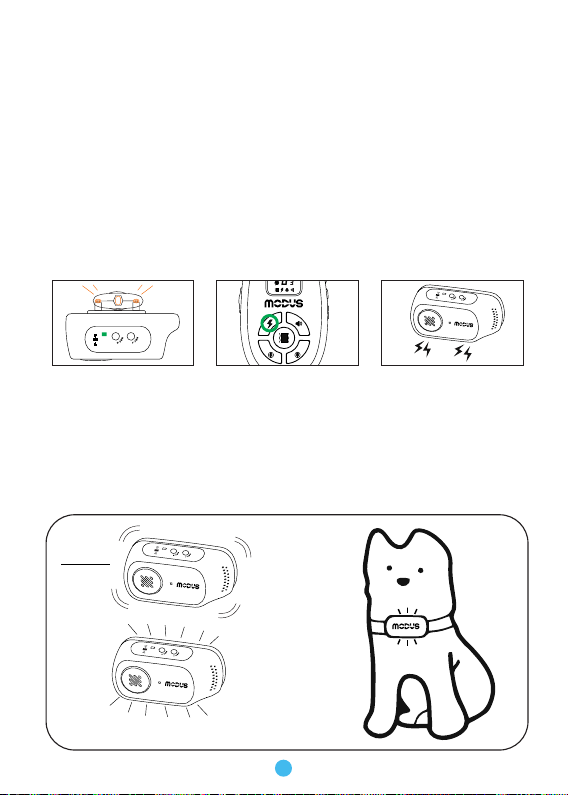

Function Introduction

1. Static Shock Mode

Before using for the ﬁrst time, you can use the test bulb to test whether it works

properly.

Diﬀerent dogs have diﬀerent resistance values. You can gradually use the equipment

when you start to ﬁnd appropriate electric shock level for your dog.

For initial use, select the minimum static shock for the pet and watch his reaction. If

any adverse reactions occur, please stop immediately.

Press the shock key with remote, and the receiver will release the shock.

2. Vibration & “Beep” Sound Mode

Before using the static shock, you can use the sound and vibration ﬁrst, which allows

the dog to form a conditioned reﬂex. It is the safest method of training and helps to

improve the eﬀect of training. You can combine reward training to train your dog to

make a series of actions by vibration or sound. The vibration is divided into level 1-

9,and intensity of the sound is not adjustable. Press the vibration or sound key with the

remote, and the receiver will vibrate or send out a “beep".

level 1-9

Use electric shock and vibration as needed
