Minolta MAGICOLOR 6100 Manuel utilisateur

 











Crown, magicolor, the MINOLTA-QMS logo, and the Crown-II logo are registered trademarks of MINOLTA-

QMS, Inc., registered in the United States Patent and Trademark Office.



in any form or in any manner or on any media, in whole or in part, without the express written permission

of MINOLTA-QMS, Inc.



Rights Reserved. This manual may not be copied in whole or in part, nor transferred to any other media or

language, without the express written permission of MINOLTA-QMS, Inc.



 



This kit includes all the hardware necessary to convert a

magicolor

6100 DeskLaser to

magicolor

6100 Crown Print System.

MINOLTA-QMS Crown is a proprietary, multitasking printer operating system, which

allows MINOLTA-QMS to adapt advanced printer software to the evolving printing

needs of users in many different environments. Crown provides true multitasking

capabilities, Emulation Sensing Processor (ESP) technology, simultaneous interface

operation (SIO), compile-ahead technology, compressed data formats, automatic jam

recovery, and context switching. For a complete discussion of Crown features, refer to

your magicolor

6100

Print System Reference

manual.



In addition to this guide, the upgrade kit contains the following items. Make sure that

you have all of these items before proceeding with the installation. Report any dis-

crepancies to your MINOLTA-QMS vendor.



magicolor

6100 Crown Print System controller board

Controller memory (DIMM)

Anti-static wrist strap

Product labels

magicolor

6100

Print System Installation Guide

magicolor 6100

Print System Operation

manual

magicolor

6100

Documentation

CD-ROM (includes the

Installation Guide

Opera-

tion

Options

, and

Reference

manuals in PDF format as well as other MINOLTA-

QMS information)



Software Utilities

CD-ROM

See the README.TXT file in the root directory of the CD-ROM for more informa-

tion.

Warranty card









Converting your

magicolor

6100 DeskLaser printer to a magicolor 6100 Crown Print

System involves two steps:

1 Replacing the controller board.

2 Applying the new product labels.

▲Caution

It’s very important to protect the printer controller board from electrostatic

damage while performing this conversion.

If you have an anti-static wrist strap, attach one end of it to your wrist and the other

end to any convenient electrical ground. The bare metal chassis of equipment, such

as on the back of a computer, is suitable if it is plugged in but turned off. Never attach

the wrist strap to any piece of equipment with an electrical current present. Turn off all

power switches first. Plastic, rubber, wood, painted metal surfaces, and telephones

are not acceptable grounding points. The printer isn’t an acceptable grounding point

either because it must be unplugged before you perform this task.

If you don’t have an anti-static wrist strap, discharge your body’s static electric

charge by touching a grounded surface before you handle any printer boards or

components and before removing the controller board cover. Handle the controller

board carefully, and try to handle it by the edges only. If you must walk around before

completing this task, discharge your body’s static electric charge again before

touching the printer controller board.



1 Turn off the printer, remove the power cord, and disconnect all interface

cables from the printer.





 

2 Remove the controller board from the printer.

Loosen two screws, one on each end of the I/O connector panel, and, using the

tab on the lower side of the connector panel, pull the controller board from the

printer.

3 Position the controller board on a flat surface so the controller board lies

flat and the I/O connector panel is facing you.

4 Remove the new controller board from its packaging.

5 Carefully remove the RAM DIMMs from the old controller board.

a Using both thumbs, pull the

latches (one on each side of

the DIMM connector) outward.

b Lift the DIMM straight out of the

DIMM connector.

6 Remove any DIMMs you pur-

chased separately from their

packaging.

»Note:

Observe the keyed side of

the DIMM to align it with the

connector.







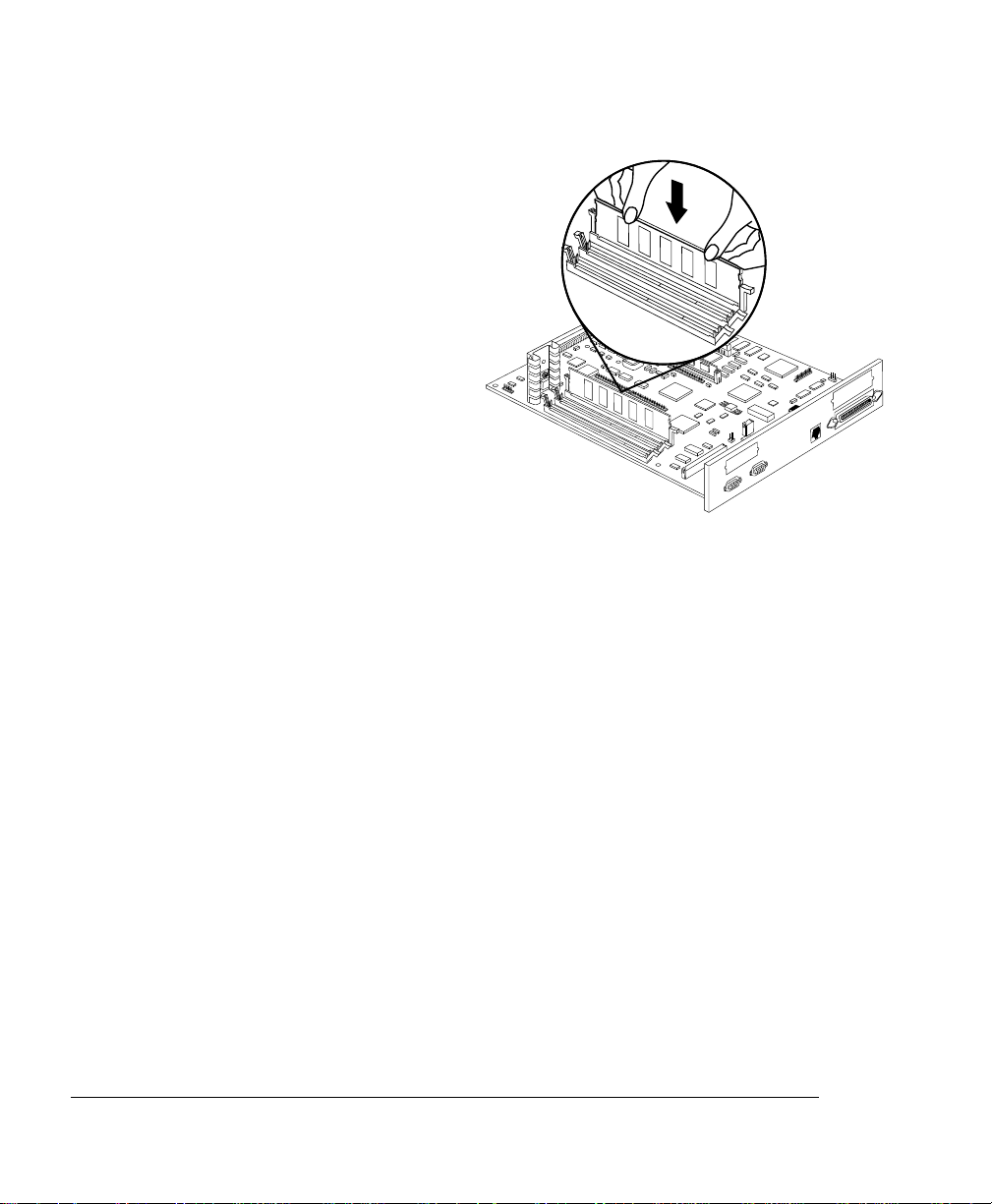

7 Insert each DIMM straight down

into the DIMM connector until

the latches snap into the locked

position.

When seated, the DIMM stands

upright, firmly in place. If you can-

not snap the DIMM into place, do

not force it. Reposition it, making

sure that the bottom of the DIMM is

seated completely in the connector.

8 Repeat steps 6–7 for each

additional DIMM that you install.

9 If you purchased any other

options, such as an internal hard

disk or Time-of-Day Clock, install

them now.

Refer to the appropriate chapter(s) of your

magicolor 6100 Print System Options

manual for instructions.

10 Reinstall the controller board into the printer.

Gently slide the controller board into the printer until it is fully seated, and then

tighten the two screws.

11 Reconnect all interface cables.

12 Reconnect the power cord, and turn on the printer.

»Note:

In compliance with UL guidelines, “The appliance inlet is considered to be

the main disconnect device.”

9brdmti.eps

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIII

................................................ ........................ ..........

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIIIIIIII

................................................ ........................ ..........





 

13 Check the startup page.

After the printer warms up, a startup page similar to the one shown below prints.

The startup page indicates that the printer has successfully been converted from a

magicolor

6100 DeskLaser to a

magicolor

6100 Crown Print System. Verify that

the memory and options that were installed are correctly identified on the startup

page.













Remove existing labels and apply the

magicolor

6100 logo and the

dataplate label to the printer as shown in the following diagram:









 

!"""

 #



If you have any questions or problems during the conversion, refer to appendix A,

“Customer Support,” in your new

magicolor

6100 Print System documentation to find

out how to contact MINOLTA-QMS.



 !"#

If you haven’t already done so, install the

magicolor

6100 Print System printer driver.

The printer driver is located on the magicolor 6100

Software Utilities

CD-ROM. See

the

Connecting Your MINOLTA-QMS Print System

manual for instructions on installing

the printer driver.

$ % "#

If you don’t have a

magicolor

6100 DeskLaser printer connected to you PC or net-

work, you can remove the installed printer driver. To do so:

1 From the Start menu select Programs, and then select MINOLTA-QMS

Printer Utilities.

2 From the submenu select Uninstall.

3 Select the

magicolor

6100 DeskLaser from the list box, and then select

Uninstall.

4 Follow the on-screen instructions to complete the printer driver removal.


