Minolta Magicolor 2210 Manuel utilisateur

magicolor 2210

User’s Guide

1800669-001B

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Trademarks

The following are registered trademarks of MINOLTA-QMS, Inc.: QMS, the MINOLTA-

QMS logo, Crown, CrownNet, and magicolor.

Minolta is a trademark of Minolta Co., Ltd. Other product names mentioned in this

guide may also be trademarks or registered trademarks of their respective owners.

Proprietary Statement

ified, displayed, transferred, or copied in any form or in any manner or on any media,

in whole or in part, without the express written permission of MINOLTA-QMS, Inc.

part, nor transferred to any other media or language, without written permission of

MINOLTA-QMS, Inc.

Notice

MINOLTA-QMS, Inc. reserves the right to make changes to this guide and to the

equipment described herein without notice. Considerable effort has been made to

ensure that this guide is free of inaccuracies and omissions. However, MINOLTA-

QMS, Inc. makes no warranty of any kind including, but not limited to, any implied

warranties of merchantability and fitness for a particular purpose with regard to this

guide. MINOLTA-QMS, Inc. assumes no responsibility for, or liability for, errors

contained in this guide or for incidental, special, or consequential damages arising

out of the furnishing of this guide, or the use of this guide in operating the equipment,

or in connection with the performance of the equipment when so operated.

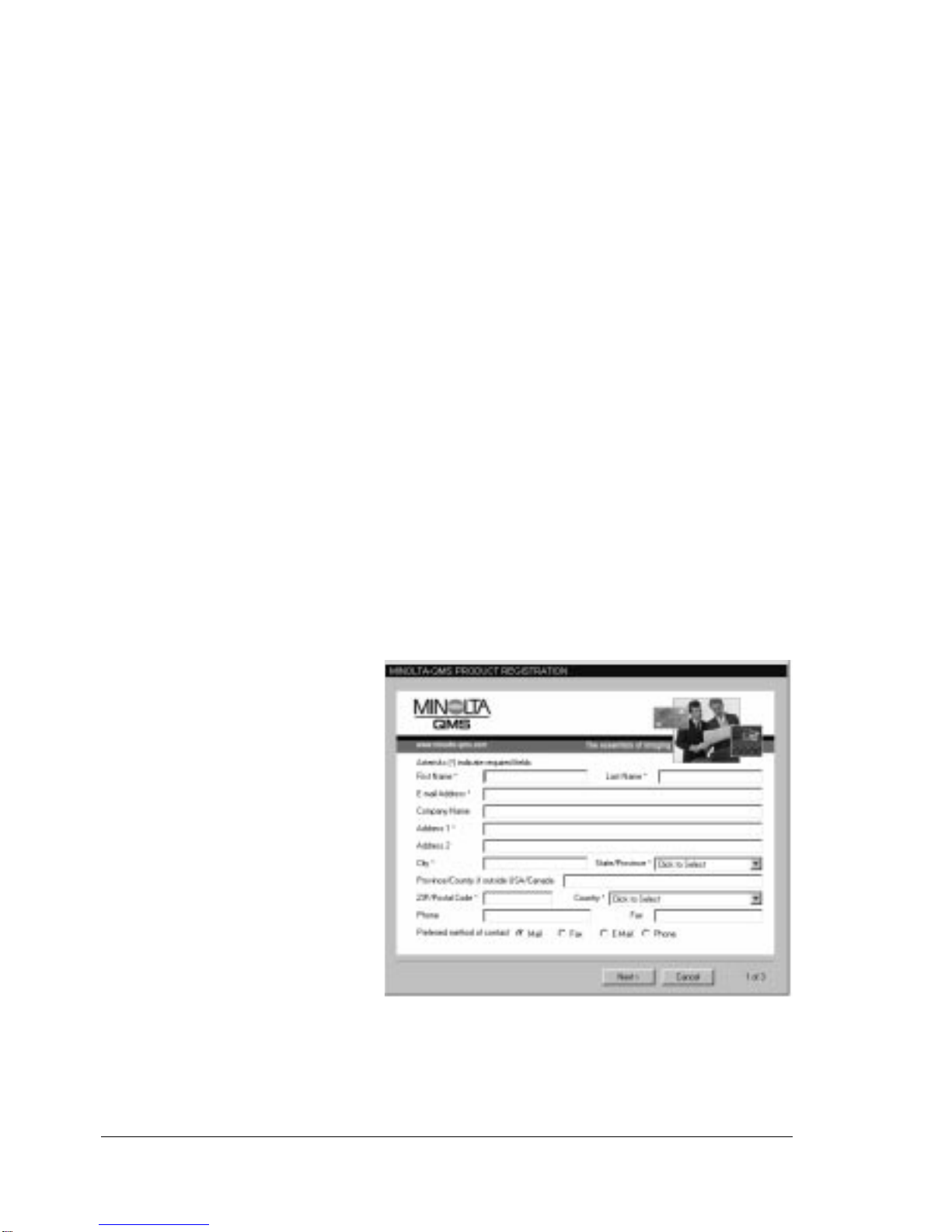

Registering the Printer

Mail—Fill out and send in the

registration card enclosed in

your shipment or downloaded

from www.onlineregister.com/

minolta-qms/

Internet—Follow the

instructions on

www.onlineregister.com/minolta-

qms/

Software Utilities

CD-ROM—

Follow the instructions on the

CD-ROM.

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Contents

45HSODFLQJ&RQVXPDEOHV11111111111111111111111111111111111111111111111111111111111111111111111111111111118

&RQVXPDEOH/LIH([SHFWDQFLHV 9

5HSODFLQJ&RQVXPDEOHV9

2UGHULQJ&RQVXPDEOHV ;

5HSODFLQJ7RQHU&DUWULGJHV ;

7RQHU&DUWULGJH/LIH;

7RQHU&DUWULGJH+DQGOLQJ <

7RQHU&DUWULGJH5HSODFHPHQW 43

5HILOOHG7RQHU&DUWULGJHV45

5HSODFLQJWKH23&'UXP.LW 46

:DVWH7RQHU3DFN/23&'UXP&DUWULGJH/DQG/DVHU/HQV&RYHU 46

5HPRYLQJWKH8VHG:DVWH7RQHU3DFN 46

5HPRYLQJWKH8VHG23&'UXP&DUWULGJH48

5HSODFLQJWKH/DVHU/HQV&RYHU49

,QVWDOOLQJWKH1HZ23&'UXP&DUWULGJH 4:

,QVWDOOLQJWKH1HZ:DVWH7RQHU3DFN 4<

5HSODFLQJWKH)XVHU8QLWDQG7UDQVIHU5ROOHU.LW 4<

5HSODFLQJWKH)XVHU8QLW 53

5HSODFLQJWKH7UDQVIHU5ROOHU8QLW 57

5HSODFLQJWKH)XVHU2LO5ROOHU59

5HSODFLQJWKH7UDQVIHU%HOW 5;

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Contents2

2 Using Media .....................................................................................................33

Introduction 34

Media Handling 34

Media Types 35

Plain Paper 35

Letterhead and Memo Media 35

Thick Stock 36

Envelopes 37

Labels 37

Postcards 38

Transparencies 38

Loading Media 40

Autoduplexing 40

Upper and Optional Media Trays 41

Multipurpose Tray 43

Printing Envelopes from the Multipurpose Tray 45

Printing Area 46

Media Storage 46

3 Maintaining the Printer ....................................................................................47

Maintaining the Printer 48

Cleaning 50

Outside the Printer 50

Inside the Printer 50

4 Troubleshooting ..............................................................................................51

Introduction 52

Printing a Status Page 52

Preventing Media Jams 52

Automatic Jam Recovery 53

Understanding the Media Path 54

Media Tray (Standard Upper Tray and Optional Tray) 55

Lower Feed Unit (LFU) Tray(s) 55

Multipurpose Tray 55

Duplex Unit (Optional) 55

5-bin Mailbox (Optional) 55

Clearing Media Jams 55

Handling Media Jams by Location 56

Clearing Misfeed (Upper or Optional Tray) Jams 57

Clearing Misfeed (Multipurpose Tray) Jams 58

Clearing Inner Jams, Outer Jams, and Drum Jams 58

Media Jams in the Output Tray 66

Solving Problems with Media Jams 66

Make sure that you are using only plain paper (or recycled plain paper). 66

Make sure that you are using only letter/A4 plain paper. 66

Solving Other Problems 69

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Contents 3

Solving Problems with Printing Quality 74

Status, Error, and Service Messages 85

Status and Error Messages 85

Service Messages 94

HP-GL, HPXL, and PCL Error Codes 97

PostScript Errors 98

Additional Assistance 98

5 Installing Other Accessories ..........................................................................99

Introduction 100

Accessories 101

Antistatic Protection 101

BuzzBox 101

What's in the Kit? 102

Installing BuzzBox 102

Using BuzzBox 103

Dual In-Line Memory Modules 103

How Much Memory Do You Need? 104

Minimum System Memory Requirements (in MB) 104

Installing a Duplex Unit 107

Emulations, Fonts, and Other Software 112

Emulations 112

Fonts 114

Kanji Font Internal IDE Hard Disk 115

5-bin Mailbox 117

QFORM 122

PlanetPress 122

Interfaces and Daughterboards 123

Interfaces 123

SCSI Interface 125

Internal IDE Hard Disk Drive 127

Lower Feeder Unit 130

Installing a Lower Feeder Unit (LFU) 130

Media Trays 134

Installation 134

Printer Stand/Cabinet 135

SC-210 Convenience Copier 135

Time-of-Day Clock 135

6 Color Printing ................................................................................................139

Introduction 140

Color Management and Control 140

MINOLTA-QMS QCOLOR Technology 140

Further Information 141

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Contents4

7 Repacking the Printer ...................................................................................143

Storing the Printer 144

Relocating Your Printer 144

Repacking the Printer 145

What's Involved? 145

Remove the Cables 146

Remove the Fuser Oil Roller 146

Remove the Toner Cartridges 146

Remove the Waste Toner Pack 147

Remove OPC Drum Cartridge 147

Remove Transfer Belt 147

Remove the Duplex Unit 147

Remove the 5-bin Mailbox 148

Remove the Lower Feeder Unit 148

Repack the Printer 149

Strapping/Buckling Kit Contents 150

A Technical Specifications .................................................................................153

Requirements 154

Space Requirements 154

Power Requirements 155

Location Requirements 155

Engine and Controller Specifications 157

Engine 157

Print Speed—Simplex 157

Print Speed—Autoduplex 158

General 158

Controller 159

Electrical 160

Physical 162

Print Media 162

Document Option Commands 163

Supported DOCs 163

Header/Trailer Page Commands 163

HP-GL Emulation Commands 163

HP PCL 5e Emulation Commands 164

Lineprinter Emulation Commands 164

CCITT Groups 3 and 4 Commands 164

Document Formatting 165

Job and Subjob Boundary Commands 165

LN03 Plus Commands 166

Index......................................................................................................................167

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Replacing

Consumables

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Consumable Life Expectancies6

Consumable Life Expectancies

The stated life expectancy of each consumable is based on printing under

specific operating conditions, such as media type, number of color planes,

page size, and page coverage (@ normal 5% coverage of letter/A4-size

media). The actual life expectancy will vary depending on these and other

printing variables, including continuous or intermittent printing, ambient tem-

perature, and humidity. For further information about the consumables statis-

tics page and replacement menus, refer to the

CrownBook

Replacing Consumables

Attention

Failure to follow instructions as outlined in this manual could result in

voiding your warranty.

The following messages indicate that a consumable needs to be replaced.

Item/Message

Display This item needs replacing by user

after... Page Reference

Fuser oil roller

REPLACE

OIL

ROLLER

FUSER OIL LOW, FUSER OIL

EMPTY, or REPLACE OIL ROLLER

displays in the message window (after

up to 21,000 single- sided continuous

monochrome or 7,500 continuous

color pages*, or 7,000 intermittent

monochrome or 5,000 intermittent

color pages). Heavy coverage, inter-

mittent printing, and different media

types can use up oil at an accelerated

rate, reducing fuser oil roller life.

“Replacing the

Fuser Oil Roller”

on page 26

Fuser unit/trans-

fer roller kit

REPLACE

FUSER

UNIT

100,000 single-sided pages maximum

at an equal mix of black and 4-color

pages, all with 5% coverage of each

color; however, fuser unit life is cover-

age and media dependent).

“Replacing the

Fuser Unit and

Transfer Roller

Kit” on page 19

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Replacing Consumables 7

OPC drum kit**

REPLACE

OPC DRUM

REPLACE

WASTE

TONER

WASTE

TONER

NEAR

FULL

Up to 30,000 continuous monochrome

or 7,500 continuous four-color pages,

or 10,000 intermittent [one-page jobs]

monochrome or 5,000 intermittent

[one-page jobs] color pages). Other

factors also affect consumables life.

“Replacing the

OPC Drum Kit”

on page 13

Toner

<COLOR>

TONER

EMPTY

Approximately 6,000 single-sided

pages per cartridge—black, yellow,

magenta, cyan at 5% coverage of

each color.

“Replacing Toner

Cartridges” on

page 8

Transfer belt

REPLACE

TRANSFER

BELT

107,000 single-sided images (1:1

color/monochrome printing) “Replacing the

Transfer Belt” on

page 28

*A plane (also called an image) is a single pass of the OPC drum (one

toner color). For example, a black-only, single-sided (simplex) print job

makes one pass per page. A single-sided color page (also called a face)

consists of up to four passes of the OPC drum, since most color print jobs

use all four toner colors. A two-sided color page may consist of up to eight

passes of the OPC drum, since most color print jobs use all four toner col-

ors. Stated consumable life is expressed at 5% in simplex letter/A4 pages.

A duplex page is equivalent to two simplex pages.

The number of sheets/faces printed shown on the startup page differs from

the number of sheets/faces printed statistics in CrownView and on the con-

sumables statistics page (Operator Control/Consumables/Print Statistics).

The numbers on the startup page refer to number of sheets/faces printed

during the lifetime of the printer. The numbers in CrownView and on the

consumables statistics page refer to the number of sheets/faces printed to

date during the current consumables tracking period (Administration/Con-

sumables/Start Period menu).

**Three items (OPC drum, laser lens cover, waste toner pack) are included

in the OPC drum kit. If one needs replacing, replace all three items.

Item/Message

Display This item needs replacing by user

after... Page Reference

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Replacing Toner Cartridges8

Ordering Consumables

Choosing the right consumables for your magicolor

2210 printer not only

increases its reliability and performance, but also minimizes the risk of

damage. For example, only MINOLTA-QMS toner cartridges are designed to

meet the exact specifications of your MINOLTA-QMS printer, giving maximum

performance, efficiency, and long life.

Toner cartridges and other consumables for the magicolor

2210 are available

from your local vendor or Q-SHOP (www.q-shop.com). See the

Service &

Support Guide

for the telephone number of the MINOLTA-QMS office nearest

you for information on ordering.

Replacing Toner Cartridges

Characters and images are created in your laser printer through a process

that applies toner to the photosensitive (OPC) drum (which functions like pho-

tographic film). Your printer uses four toner cartridges: black, yellow,

magenta, and cyan. Handle the toner cartridges carefully to avoid spilling

toner inside the printer or on yourself.

The carbon-particle toner is nontoxic. If you get toner on your hands,

wash them in cool water or a neutral detergent. If you get toner on

your clothes, lightly dust them off as much as possible. If some toner

remains on your clothes, use cool, not hot water, to rinse the toner off,

provided your clothing is washable.

WARNING!

If you get toner in your eyes, wash it out immediately and consult a

doctor. Material Safety Data Sheets (MSDS) information can be found at

www.minolta-qms.com (click on the Answer Base).

ACHTUNG! Sollte Toner in Ihre Augen gelangen, die Augen unbedingt

sofort mit kaltem Wasser ausspülen und einen Artzt aufsuchen.

MSDS-Informationen (Material Safety Data Sheets; Datenblätter zur

Materialsicherheit) finden Sie im Internet unter www.minolta-qms.com

(klicken Sie auf “Answer Base”).

Toner Cartridge Life

A toner cartridge contains enough toner (yellow, magenta, cyan, or black) to

print a maximum of 6,000 (at normal 5% page coverage) simplex letter/

A4-size pages. With heavier coverages, the approximate maximum

EDNord - Istedgade 37A - 9000 Aalborg - telefon 96333500

Table des matières

Autres manuels Minolta Imprimante

Minolta

Minolta PagePro 25 Manuel utilisateur

Minolta

Minolta PAGEPRO EX Manuel utilisateur

Minolta

Minolta Di181 Manuel utilisateur

Minolta

Minolta PageWorks PageWorks Pro L Manuel utilisateur

Minolta

Minolta Di552 Manuel utilisateur

Minolta

Minolta magicolor 330 Manuel utilisateur

Minolta

Minolta Magicolor 3100 Series Manuel utilisateur

Minolta

Minolta DI450 Manuel utilisateur

Minolta

Minolta Magicolor 3100 Series Manuel utilisateur

Minolta

Minolta MAGICOLOR 2350 Manuel utilisateur

Minolta

Minolta PagePro 1200 Series Manuel utilisateur

Minolta

Minolta magicolor 7300 Manuel utilisateur

Minolta

Minolta CF2001P Manuel utilisateur

Minolta

Minolta PageWorks Pro 18L Manuel utilisateur

Minolta

Minolta PagePro 1100 Manuel utilisateur

Minolta

Minolta PAGEPRO PS PLUS Manuel utilisateur

Minolta

Minolta MAGICOLOR 6100 Manuel utilisateur

Minolta

Minolta PagePro 1100L Manuel utilisateur

Minolta

Minolta DEClaser 2200 Manuel utilisateur

Minolta

Minolta MAGICOLOR 2 PLUS Manuel utilisateur

Minolta

Minolta Color PageWorks 0990-7701-02 Manuel utilisateur

Minolta

Minolta PagePro 1250E Manuel utilisateur

Minolta

Minolta PageWorks Pro 25 Manuel utilisateur

Minolta

Minolta Demand Print System C6501 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

Minolta magicolor 2210 Manuel utilisateur

Manuels Imprimante populaires d'autres marques
