•A new member, JFX200-2513, joined the JFX family
•JFX200-2513
•The low entry model of the JFX line,
having the high quality print technology
of the Mimaki JFX product line
3
Machine Width Depth Height Weight
JFX200-2513 4,400mm 2,250mm during installation
2,450mm during operation 1,250mm 650kg
JFX500-2131 4,100mm 4,462mm 1,490mm 1,353kg
Mimaki Europe B.V.
Industrial Products
Product Information

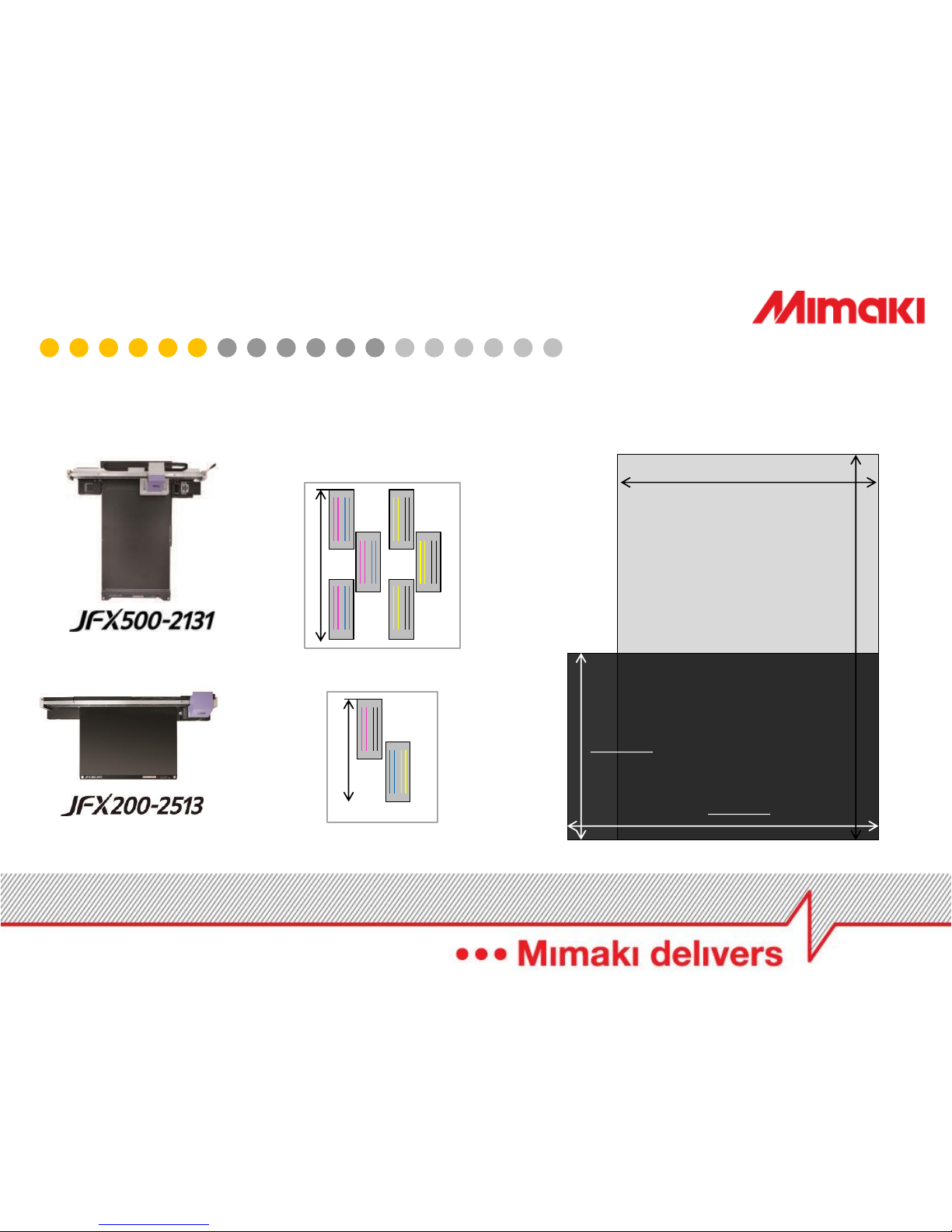

•New layout
4
JFX500-2131
JFX200-2513
2100mm
3100mm
2500mm
1300mm
106mm
Print area
159mm
Head configuration
Mimaki Europe B.V.
Industrial Products
JFX200-2513 Features
•The balance between quality and speed with the technology from the JFX
series
•High quality by Mimaki’s image quality control technology including MAPS2 and
variable dot printing
•High productivity is accomplished by the new print head technology and high speed
curable ink
•Able to print full-Color and Clear ink in one job production
•High productivity printing of, fast and beautiful clear finish, productions with less
dust attachments
•Easy operation, by an operator friendly new design
•Operation panel, Vacuum valve and Ink system are all located on the front side
Most operations such as operating machine, switching vacuum ON/OFF,
replacement of inks and setting of media can be done at the front of machine
•Layout pins are helpful for setting the media at the origin
5
Mimaki Europe B.V.
Industrial Products
JFX200-2513 Features
•Reliability accomplished by stable printing
•Ink circulation system prevents white ink from settling
•Nozzle recovery function allows for continuous printing even if nozzles
are clogged by using other normal nozzles
•Environmentally-friendly LED-UV curing light
•Long life UV lamps with low power consumption
•Eliminating risks associated with heat such as
media deformation and media discoloration
•Ink supply system
•The low cost ink supply system
•The ink bottle (1L) is directly usable
6
Mimaki Europe B.V.
Industrial Products
JFX200-2513 Features
•Print speed
•With the CMYK configuration: maximum 25m²/h
•With the CMYK plus White configuration: maximum 12.5 m²/h
•With the CMYK plus White and Clear configuration: maximum 12.5 m²/h
•New table with internal honeycomb structure for extra stability
•An reduction of the weight by unifying vacuum area
•Rack and pinion feeding method is implemented
•Stable transportation system
•The installation time is reduced
•New integrated packing
7
Mimaki Europe B.V.
Industrial Products
Environmentally conscious LED-UV curing unit
•Little VOC (Volatile organic compound), no ozone production
•Little VOC and less odor, no special ventilation systems are required
•Energy-efficient and cost reduction
•Generates less heat and turns on only when needed
•Reduction of the total cost by less energy consumption
•The reduction of the heat impact
•The material reaches an temperature of 70⁰C, when using metal halide lamps, causing media deformation
•LED-UV enables to print on cheaper media
•No need for special expensive ventilation and installation costs
•The improvement of production circumstances
•The long-life LED UV lamp (approx. 5000 hours), which needs less maintenance, permits the increase in
productivity. *The life-time of the metal halide lamp is about 700 hours
•The LED UV lamps turn on and off instantly
•LED UV lamps are ready to be used immediately, directly after the printer is turned on
•An metal halide lamp requires warm up and cool down time
8
Mimaki Europe B.V.
Industrial Products
Configuration
9
USB 2 0
5m (15ft) cable is recommended
Corresponds with PS,EPS,TIFF,BMP,JPEG, etc.
Output / Installation
Basic Configuration
&
Recommended hardware specifications
CPU: Core i5 3.1GHz
Memory: 4GB
HDD: 500GB
I/F : USB2.0 4 ports or more
ODD: DVD-ROM
OS: Windows7 / 32bit / Pro
Monitor: 1366x768
Mimaki Europe B.V.
Industrial Products
Introduction of MCC
•MCC, Mimaki Clear Control
•MCC is the new function added to the JFX200-2513
•MCC enables to do full color printing and Clear printing at the same
time
•Advantage1, Reducing the attachment of dust
•Previously, dust attached easily to the surface of materials
during clear ink printing
•MCC reduces the risk that dust could attach
•Advantage2, Easier process
•In the past it was needed to divide the printing process into 2 stages:
clear-printing and full color printing
•MCC enables to print these together in 1 go and reduces the
production time
10
