RouterBOARD 1100/AH Series User's Manual

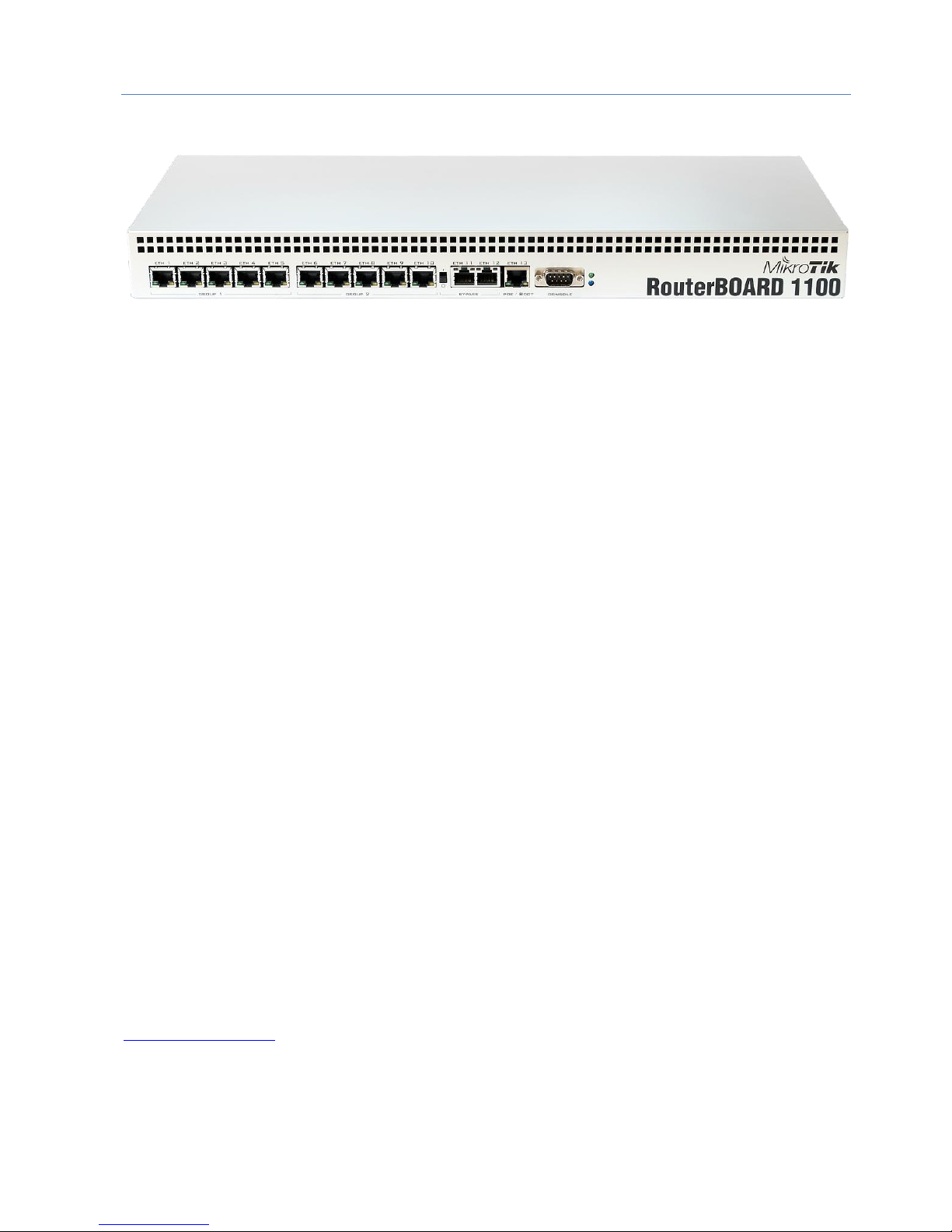

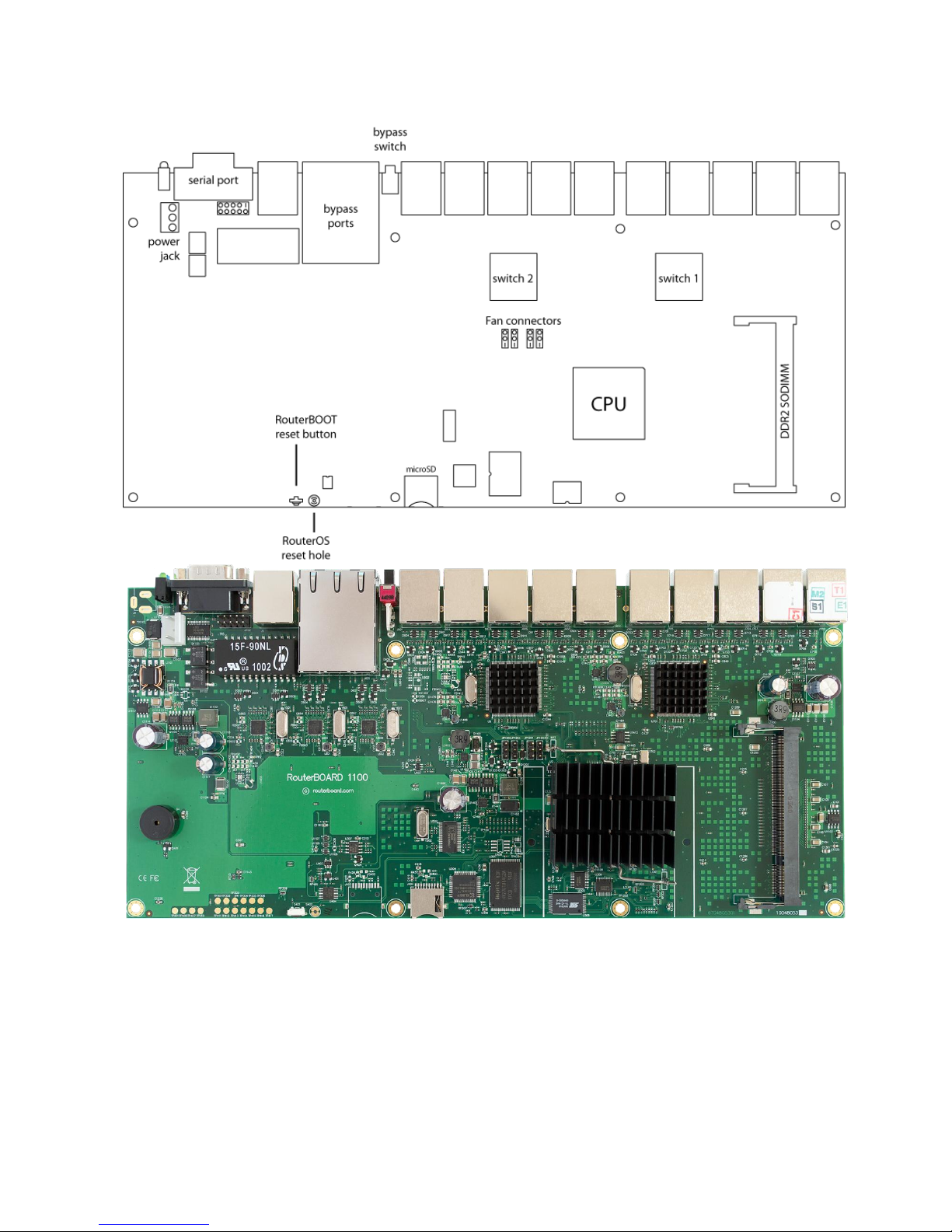

System Board View and Layout

You can download the board dimensions and case design files (PDF and DXF) from www.routerboard.com

Specifications

RouterBOARD 1100/AH

CPU

RB1100: MPC8544 800MHz

RB1100AH: P2010 1066MHz

RB1100AHx2: P2020 1066MHz dual core CPU with IPsec acceleration

Memory

SODIMM slot, no onboard module

Boot loader

RouterBOOT

Data storage

onboard NAND memory chip

Ethernet

Thirteen 10/100/1000 Mbit/s Ethernet ports supporting Auto-MDI/X

MiniPCI slot

Expansion

CompactFlash slots

One microSD card slot on board, accessible by opening the case

Serial port

One DB9 RS232C asynchronous serial port

LEDs

Power and User LED

Beeper

Power at the board

Power jack: 12-24VDC; PoE on Ether13: 12-24VDC

Power at the case

IEC C14 jack: 110-220VDC

Fans

JP1202 and JP1204 - 12V; 0,2A max.

JP1201 and JP1203 - 3,3V; 0,3A max.

Only one Fan in each pair will rotate, other will start when first fails.

Only one pair can be connected at the same time (two fans).

Dimensions

Board: 135 mm x 291 mm

1U rackmount case: 44 x 176 x 442 mm

Weight

365g board only, 1275g assembled with case

Temperature

Operational: -20°C to +65°C (-4°F to 149°F)

Humidity

Operational: up to 70% relative humidity (non-condensing)

Power consumption

12W min/25W max

Hardware Guide

Memory and Storage Devices

Memory

There is no onboard memory, but the device has a SODIMM slot for one DDR2 module, it is recommended to

use modules with at least 667MHz (PC-4200). The RB1100 device supports modules of up to 2GB, but due to

software limitations, RouterOS will be able to use only 1.5GB of it.

microSD slot

The board has one microSD card slot which supports microSD and microSDHC cards for expanding the storage

in RouterOS

RouterBOARD 1100/AH Series User's Manual

Input/Output Ports

Ethernet ports

There are thirteen ethernet ports. There are two switch groups, five ports each. The Ether13 port supports

Power over Ethernet.

The RB1100 device also has two Ethernet bypass ports (Ether11 and Ether12). The bypass mode can be

activated by turning the bypass switch next to them to the position 1. Position 0 turns off the bypass mode and

ports work as usual.

All cables made to EIA/TIA 568A/B cable specifications will work correctly (see Connector Index for pinout).

Note that this port supports automatic cross/straight cable correction (Auto MDI/X), so you can use either

straight or cross-over cable for connecting to other network devices.

Ethernet bypass mode

Bypass mode is used to cross-connect the two RJ45 connectors (Ether11 and Ether12) electrically thus creating

an extended Layer 1 network. Traffic present on either network (Internal or External) is seen on the other

network immediately.

If the router would stop working for some reason, the ports would be connected together as if there would be

no router in between. You could configure your network to allow this, and in case of hardware failure, the

communications would still work, as if the (broken) router wouldn't exist there.

DB9 Serial Port

The RS232C standard male DB9 asynchronous serial port may be used for initial configuration, or for attaching

a modem or any other RS232 serial device. TxD (pin 3) of this port has -5V DC power when idle. Some signals

are not connected, so this implementation may not be considered to support full hardware flow-control, so

software flow-control (XON/XOFF) or none at all should be used.

Fan Connectors

You can connect up to four fans to the RouterBOARD, but only two of them will work at a time. They will

receive 12V DC power. The board supports fan speed feedback signaling. RouterOS can be configured to

change the active fan, if the current active one is not rotating (note that if a fan does not have rotation sensor,

it will be considered failed).

LEDs

Power LED

Power LED is on when the board is powered.

User LED

User LED may be programmed at user's option. It is lit by default when the board starts up, then it is turned off

when the bootloader runs kernel.

User's Guide

Assembling the Hardware

In most cases you do not need to use any additional boot devices, as you can boot the RouterBOARD from the

onboard NAND memory. You can also install one microSD card which you can use as an alternative boot device

(not for RouterOS) or additional storage media;

To disassemble the case, you will need a Phillips P2 screwdriver.

Powering

Power options:

1. PoE on Ether13 supports 12-24V DC powering with a passive PoE injector. The device does not support

power over datalines.

2. J11 power connector, used when device installed in a rackmount case, 12-24V DC. Connects to the

built-in PSU.

Booting options

First, RouterBOOT loader is started. It displays some useful information on the onboard RS232C asynchronous

serial port, which is set to 115200bit/s, 8 data bits, 1 stop bit, no parity by default. Also supports hardware

(RTS/CTS) flow control. The loader may be configured to boot the system from the onboard NAND module or

from Ethernet network. See the respective section of this manual for how to configure booting sequence and

other boot loader parameters.

Onboard NAND Storage Device

The RouterBOARD may be started from the onboard NAND storage chip. As there is no partition table on the

device, the boot loader assumes the first 4MiB form a YAFFS filesystem, and executes the file called “kernel”

stored in the root directory on that partition. It is possible to partition the rest of the medium by patching the

kernel source.

Internal Storage Device

The RouterBOARD may be started from a microSD card slot, although RouterOS doesn't support this. At least

two partitions must exist on the device, first of which being the ELF image the board is to be booted from

(normally, it is a Linux kernel, appended with the kernparm ELF section that specifies the root partition name

and, optionally, other kernel parameters of your choice).

Booting from network

Network boot works similarly to PXE or EtherBoot protocol, and allows you to boot a RouterBOARD 1100

series boards from an executable image stored on a TFTP server. It uses BOOTP or DHCP (configurable in boot

loader) protocol to get a valid IP address, and TFTP protocol to download an executable (ELF) kernel image

combined with the initial RAM disk (inserted as an ELF section) to boot from (the TFTP server's IP address and

the image name must be sent by the BOOTP/DHCP server).

To boot the RouterBOARD computer from Ethernet network you need the following:

An ELF kernel image for the loader to boot from (you can embed the kernel parameters and initrd image

as ELF sections called kernparm and initrd respectively)

A TFTP server which to download the image from

A BOOTP/DHCP server (may be installed on the same machine as the TFTP server) to give an IP address,

TFTP server address and boot image name

See the RouterBOOT section on how to configure loader to boot from network.

Note that you must connect the RouterBOARD you want to boot, and the BOOTP/DHCP and TFTP servers to

the same broadcast domain (i.e., there must not be any routers between them).

RouterBOARD 1100/AH Series User's Manual

Operating System Support

MikroTik RouterOS, starting from version v5, is fully compatible with RouterBOARD 1100 series embedded

boards. If your device is preinstalled with an earlier RouterOS release, please upgrade RouterOS to v4.9 or

newer.

RouterBOOT

The RouterBOOT firmware (also referred as Bootloader here) provides minimal functionality to boot an

Operating System. It supports serial console via the onboard serial port at the boot time. The loader supports

booting from the onboard NAND device and from a network server (see the respective section for details on

this protocol).

Boot Loader Configuration

Loader parameters may be configured through the onboard RS232C DB9 asynchronous serial interface. To

connect to it, use a standard null-modem cable. By default, the port is set to 115200bit/s, 8 data bits, 1 stop

bit, no parity. Note that the device also implements the hardware (RTS/CTS) flow control.

To enter the loader configuration screen, press any key (or only [Delete] key (or [Backspace] key –see the note

for the respective configurable option), depending on the actual configuration) just after the boot loader is

asking for it:

RouterBOOT booter 2.27

RouterBoard 1100

CPU frequency: 800 MHz Memory size: 512 MB

Press any key within 2 seconds to enter setup

RouterBOOT-2.27

What do you want to configure?

d - boot delay

k - boot key

s - serial console

o - boot device

r - reset configuration

e - format nand

g - upgrade firmware

i - board info

p - boot protocol

t - do memory testing

x - exit setup

your choice:

To select a menu point, press the key written at the beginning of this line. Pressing [Enter] selects the option

marked with '*'.

boot delay –how much time to wait for a key stroke while booting (1..9 seconds; 2 second by default).

boot key –which key will cause the loader to enter configuration mode during boot delay (any key | <Delete>

key only; any key by default). Note that in some serial terminal programs, it is impossible to use the [Delete]

key to enter the setup –in this case it might be possible to do this with the [Backspace] key.

serial console –to configure initial serial console bitrate (1200 | 2400 | 4800 | 9600 | 19200 | 38400 | 57600

| 115200; 115200 bps by default).

boot device –initial boot device (boot over Ethernet | boot from NAND, if fail then Ethernet | boot from

CompactFlash only | boot Ethernet once, then NAND | boot Ethernet first, then CompactFlash | boot from

NAND only; boot from NAND, if fail then Ethernet by default). You can also select boot chosen device option

to boot from the device selected immediately, without saving the setting.

reset configuration –whether to reset all the boot loader settings to their respective default values (yes | no;

no by default).

format nand –perform a low-level NAND format. During this operation, all previously marked bad sectors are

retested to find out if they are faulty indeed.

upgrade firmware –receive a new boot loader image using XModem protocol over serial line or using

DHCP/BOOTP and TFTP protocols through the Ethernet network (upgrade firmware over ethernet | upgrade

firmware over serial port).

board info –prints the serial number, boot loader version, CPU frequency, memory size and MAC addresses of

the onboard Ethernet ports

boot protocol –network booting protocol (bootp protocol | dhcp protocol; bootp protocol by default).

do memory testing –performs a full memory test.

cpu-frequency -

a - MEM:333DDR CPU:333MHz

b - MEM:333DDR CPU:500MHz

c - MEM:333DDR CPU:667MHz

d - MEM:333DDR CPU:833MHz

e - MEM:400DDR CPU:400MHz

f - MEM:400DDR CPU:600MHz

g - MEM:400DDR CPU:800MHz

h - MEM:400DDR CPU:1000MHz

i - MEM:533DDR CPU:533MHz

*j - MEM:533DDR CPU:800MHz

k - MEM:533DDR CPU:1067MHz

l - MEM:533DDR CPU:1333MHz

Boot Loader Upgrading

The boot loader is needed to initialize all the hardware and boot the system up. Newer loader versions might

have support for more hardware, so it's generally a good idea to upgrade the loader once a newer version is

available.

The boot loader upgrading is possible from MikroTik RouterOS, from within the “/system routerboard” menu.

Updates are included with each RouterOS update. The procedure is described in the MikroTik RouterOS

manual: http://wiki.mikrotik.com/wiki/Manual:Bootloader_upgrade

You can also upgrade the loader through the onboard serial port using XModem protocol (programs available

for all major OSs). For example, you can use HyperTerminal for Windows or Minicom for Linux to upload the

boot loader. Alternatively if you have a DHCP/BOOTP and TFTP servers available, you can specify the loader

image as a boot image and choose the bios upgrade over ethernet option in the boot loader configuration

menu. The loader will get the image from the TFTP server and upgrade itself. The most current loader image is

available for download on www.routerboard.com.

RouterBOARD 1100/AH Series User's Manual

Primary Boot Loader

There are two boot loaders present on the NOR flash memory chip. Secondary is the main one, that is

executed by default. This is the one that can be upgraded. In case something goes wrong in the upgrade

process, or you have set some incorrect settings that render it unusable, you can load the Primary boot loader

by holding the Software Reset 1 button (S1), connecting the power, and then releasing the button/jumper. The

Primary boot loader has the default settings, which can not be changed. It is also not possible to upgrade it.

RouterOS functions

Health monitor

This menu shows the current fan status.

[admin@MikroTik] /system health> print

fan-mode: auto

use-fan: main

active-fan: auxiliary

voltage: 12V

current: 861mA

fan-speed: 9878RPM

temperature: 32C

cpu-temperature: 40C

power-consumption: 10.3W

RB1100AH doesn’t have any fans. All Fan options apply to RB1100Ahx2 only.

fan-mode –whether to use automatic fan failover (auto | manual; manual by default).

use-fan –which fan to use in manual mode (main | auxiliary; main by default).

The RB1100Ahx2 also features a fan RPM monitor and fan RPM control by CPU temp ( less noise ).

Firmware information

This menu displays RouterBOARD model number, serial number, the current boot loader version and the

version available in the current software packages installed.

[admin@MikroTik] > system routerboard print

routerboard: yes

model: "rb1100"

serial-number: "154201C1DD3C"

current-firmware: "2.27"

upgrade-firmware: "2.27"

[admin@MikroTik] >

The firmware version can be upgraded using “/system routerboard upgrade”command.

Firmware Settings

Boot loader settings are also accessible through this menu.

[admin@MikroTik] > system routerboard settings print

baud-rate: 115200

boot-delay: 2s

boot-device: nand-if-fail-then-ethernet

enter-setup-on: any-key

boot-protocol: bootp

enable-jumper-reset: yes

[admin@MikroTik] >

The Software Reset 2 button (TP12) reset hole, which resets both boot loader settings and RouterOS setting by

default, can be disabled in this menu (it will still reset the boot loader settings).

Software Reset

It is possible to reset all software configuration by using the Software Reset 2 button hole (C229, see

schematic) during the power-up. No confirmation or passwords will be asked, so use with caution. This feature

can be disabled in the “system routerboard settings” menu by switching the “enable-jumper-reset”

parameter to “no”. Simply use a metal object to short circuit the metallic reset hole (TP12) while booting.

Appendix

Connector Index

J404

MicroSD slot (bootable)

J401

RS232C male DB9 serial port

RxD (Receive Data)

TxD (Transmit Data)

GND

RTS (Request to Send)

CTS (Clear to Send)

J402

Alternate serial port (see 11 for pinout)

J701-J705

(Group one)

J901-J905

(Group two)

RJ45 Gigabit Ethernet 1000Base-T ports in two switch groups

J501

Bypass port group

RJ45 Gigabit Ethernet 1000Base-T port with PoE (Ether13)

J10

Power jack (12 V DC, positive contact is the central pin)

J11

Alternative power Jack (12 V DC, positive contact is the leftmost pin, closer to J10)

JP1201

JP1202

JP1203

JP1204

DC Fan 1 connector

GND

+5.5 V DC

Rotation speed feedback

Autres manuels pour RouterBOARD 1100

Table des matières

Autres manuels MikroTik Routeur réseau

MikroTik

MikroTik hEX lite Manuel utilisateur

MikroTik

MikroTik cAP Manuel utilisateur

MikroTik

MikroTik Wireless Wire Cube Pro Manuel utilisateur

MikroTik

MikroTik CCR2116-12G-4S+ Manuel utilisateur

MikroTik

MikroTik RouterBOARD SXT 5HnD Manuel utilisateur

MikroTik

MikroTik RBD53GR-5HacD2HnD Manuel utilisateur

MikroTik

MikroTik RB750Gr3 Manuel utilisateur

MikroTik

MikroTik RouterBOARD 711-2Hn Manuel utilisateur

MikroTik

MikroTik hAP ax3 Series Manuel utilisateur

MikroTik

MikroTik RB4011iGS+RM Manuel utilisateur

MikroTik

MikroTik S53UG+5HaxD2HaxD-TC&EG18-EA Manuel utilisateur

MikroTik

MikroTik RB4011iGS+5HacQ2HnD-IN Manuel utilisateur

MikroTik

MikroTik RouterBOARD RB5009 Manuel utilisateur

MikroTik

MikroTik PowerBox Manuel utilisateur

MikroTik

MikroTik RB3011UiAS-RM Manuel utilisateur

MikroTik

MikroTik RBLDFR&R11e-LTE6 Manuel utilisateur

MikroTik

MikroTik C52iG-5HaxD2HaxD-TC Manuel utilisateur

MikroTik

MikroTik CRS317-1G-16S+RM Manuel utilisateur

MikroTik

MikroTik RB911G-2HPnD-12S Manuel utilisateur

MikroTik

MikroTik LHGGM&EG18-EA Manuel utilisateur

MikroTik

MikroTik 912UAG Series Manuel utilisateur

MikroTik

MikroTik RouterBOARD 411U Manuel utilisateur

MikroTik

MikroTik LHG R Manuel utilisateur

MikroTik

MikroTik RouterBOARD RB2011UAS-IN Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
