Operating and Installation

Instructions

Ventilation System

DA 252-4 U

DA 259-4 U

To prevent accidents

and machine damage,

read these instructions

before

installation or use. M.-Nr. 06 937 210

en-US

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning on the fan .................................................10

Selecting the power level............................................10

Delayed Shut Down ................................................12

Turning off the fan .................................................12

Turning the lighting on / off ..........................................13

Dimming the lighting ...............................................13

Indirect lighting ...................................................13

Grease filter timer .................................................14

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning the casing................................................16

Grease filters .....................................................17

Active charcoal filters ..............................................18

Changing the light bulbs ............................................19

After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installation accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Plywood backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Appliance dimensions and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Installation instructions .............................................30

Contents

Read these Operating Instructions carefully before installing or

using the Ventilation System.

This appliance is intended for

residential use only. Use the

appliance only for its intended

purpose. The manufacturer cannot

be held responsible for damages

caused by improper use of the

hood.

This appliance complies with current

safety requirements. Improper use

of the appliance can lead to

personal injury and material

damage.

READ AND SAVE THESE

INSTRUCTIONS

,CAUTION

Use only for general ventilation.

Do not use to exhaust hazardous or

explosive materials and vapors.

~This appliance is designed to vent

cooking smoke and odors only.

~Be certain your appliance is

properly installed and grounded by a

qualified technician.

To guarantee the electrical safety of this

appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician. The manufacturer

cannot be held responsible for

damages caused by the lack, or

inadequacy, of an effective grounding

system.

~Before connecting the appliance to

the power supply make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This data

must correspond to prevent machine

damage. If in doubt consult a qualified

electrician.

~Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and other work by unqualified

persons could be dangerous and the

manufacturer will not be held

responsible.

IMPORTANT SAFETY INSTRUCTIONS

~This equipment is not designed for

maritime use or for use in mobile

installations such as recreational

vehicles or aircraft. However, under

certain conditions it may be possible for

installation in these applications. Please

contact the nearest Miele dealer or the

Technical Service Department with

specific requirements.

~Before servicing or cleaning the unit,

switch power off at the service panel

and lock the service disconnecting

means to prevent power from being

switched on accidentally. If the service

disconnecting means cannot be

locked, securely fasten a prominent

warning device, such as a tag, to the

service panel.

~Before discarding an old appliance,

unplug it from the power supply and

remove the power cord and any doors

to prevent hazards.

Use

~Do not allow children to play with or

operate the appliance or its controls.

Supervise its use by the elderly or

infirm.

~Never operate gas burners without

cookware. Turn the burner off when not

in use. Adjust the burner so that the

flames do not extend beneath the

cookware. Do not overheat the

cookware, e.g. when using a wok. The

hood can be damaged due to

excessive heat from the burners and

the cookware.

~Do not use the hood without the

grease filters in place.

~Clean the grease filters regularly.

Dirty filters are a fire hazard.

~Do not use a steam cleaner to clean

the hood. Steam could penetrate the

electrical components and cause a

short circuit.

~Always turn on the hood when using

the cooktop to prevent damage from

condensation.

IMPORTANT SAFETY INSTRUCTIONS

,WARNING - TO REDUCE

THE RISK OF A COOKTOP

GREASE FIRE:

~Never leave surface units

unattended at high settings. Boilovers

cause smoking and greasy spillovers

may ignite. Heat oils slowly on low or

medium settings.

~Always turn the hood on when

cooking at high heat.

~Clean ventilation fans frequently.

Grease should not be allowed to

accumulate on the fan or filter.

~Use the proper pan size. Always use

cookware appropriate for the size of the

surface element.

,WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS IN THE EVENT OF A

COOKTOP GREASE FIRE, OBSERVE

THE FOLLOWING:

~SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal tray

then turn off the burner.

BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE

DEPARTMENT.

~NEVER PICK UP A FLAMING PAN

-You may be burned.

~DO NOT USE WATER, including

wet dishcloths or towels - a violent

steam explosion may result.

~Use a fire extinguisher

ONLY if:

– You have a Class ABC extinguisher

and know how to operate it.

– The fire is small and contained in the

area where it started.

–The fire department has been called.

–You can fight the fire with your back

to an exit.

IMPORTANT SAFETY INSTRUCTIONS

Installation

~,WARNING

To reduce the risk of fire only use

metal ductwork.

~Provided a larger distance is not

given by the manufacturer of the

cooktop, follow the minimum safety

distances between a cooktop and the

bottom of the hood:

–22" (550 mm) above electric

cooktops,

–30" (762 mm) above gas cooktops,

– 26" (650 mm) above an open electric

grill or an open electric boiler/fryer.

If local building codes require a greater

safety distance, follow their

requirement.

If there is more than one appliance

beneath the hood and they have

different minimum safety distances

always select the greater distance.

~Be careful not to damage hidden

electrical wiring or plumbing when

cutting or drilling into the wall or ceiling.

~Do not use an extension cord to

connect the appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance,

(e.g. danger of overheating).

~Do not install this hood over

cooktops burning solid fuel.

~Any fittings, sealant, or materials

used to install the ductwork must be

made of approved non-flammable

materials.

IMPORTANT SAFETY INSTRUCTIONS

This hood ventilates by recirculating the

room air.

Air is drawn through the grease filters

and active charcoal filters. The cleaned

air is then recirculated back into the

kitchen through a vent in the hood’s

chimney.

Before using the hood make sure

the active charcoal filters are in

place, see "Cleaning and Care".

Functional description

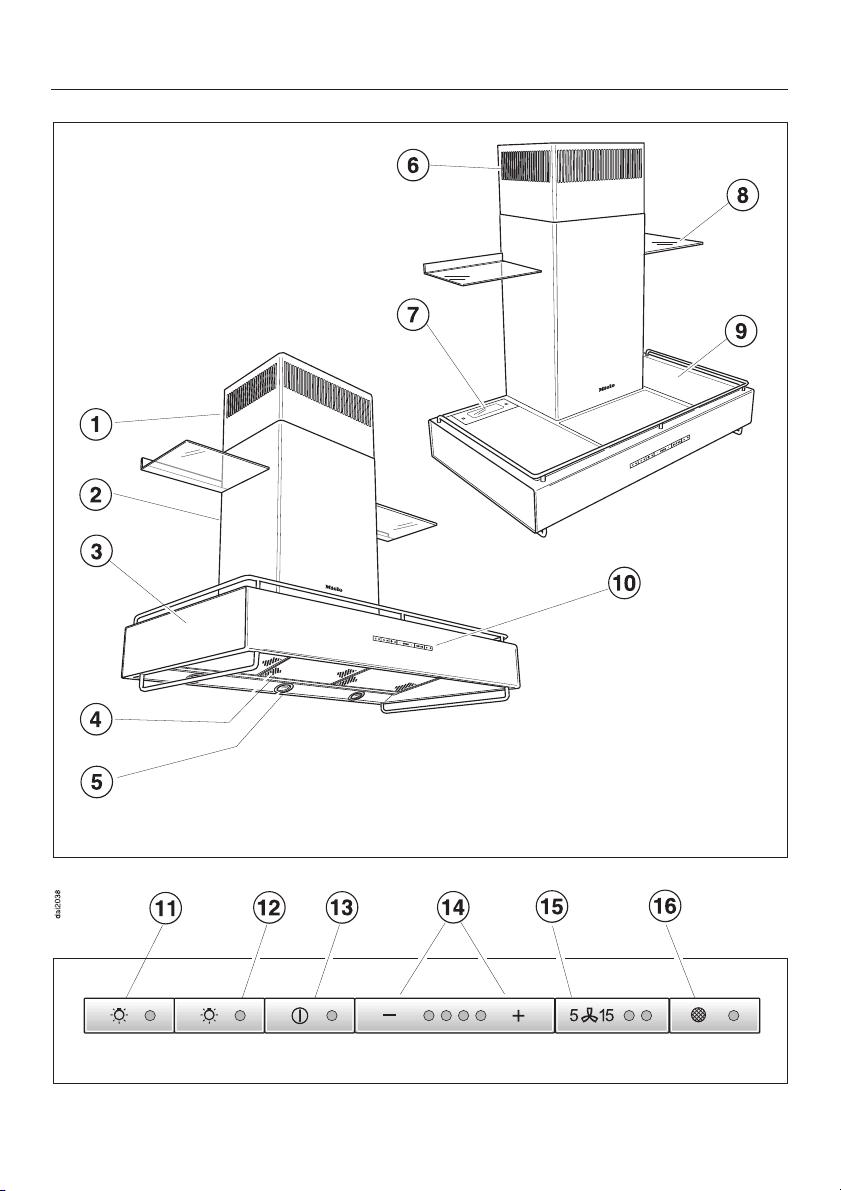

Guide to the appliance

aChimney extension

bChimney

cCanopy

dGrease filter

eOverhead lighting

fRecirculation vent

gIndirect lighting

hGlass shelves

Each holds up to 8 lbs.

iCanopy storage surface

Max weight on entire surface not to

exceed 17 lbs.

jControl panel

kIndirect light button

lOverhead light button

This button turns the light on and off

and also dims the light.

The lighting can be used independently

of the fan.

mOn/Off button

nFan power level buttons

Four fan speed selection.

oDelayed Shut Down

This button activates the Delayed Shut

Down feature. The fan can be set to

turn off automatically after either 5 or

15 minutes.

pGrease filter button

The indicator next to the grease filter

button lights when the grease filters

need to be cleaned. This button is also

used:

–to reset the grease filter timer after

cleaning the grease filters (see

"Cleaning and Care").

–to show how long the grease filters

have been in use (see "Operation /

Grease filter timer").

–to change the number of hours

counted by the grease filter timer

(see "Operation / Reprogramming the

grease filter timer").

Guide to the appliance

Turning on the fan

^Press the On/Off button.

The fan runs at power level "2".

The On/Off indicator lights.

Selecting the power level

^Use the "–/+" controls to select the

desired power level.

+= increases the fan speed

–= decreases the fan speed

Level "1" to "3" (green indicators) are

usually sufficient for normal cooking.

Intensive setting

Level "4" (yellow indicator) should be

used for a short period when frying or

cooking food with a strong aroma.

Automatically switching back the

Intensive power level

The intensive level "4" can be

programmed to automatically switch

back to level "3" after 10 minutes.

^Turn the fan and the lights off.

^Press and hold the Delay Shut Down

button for 10 secs. The first indicator

of the fan power levels lights.

^Press the following buttons one after

another,

– the right light button,

–the "–" button, and

–the right light button again.

Operation

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Miele hotte de ventilation

Miele

Miele DAH 2660 Manuel utilisateur

Miele

Miele DA 5960 W Manuel utilisateur

Miele

Miele DA 422-6 EXT Manuel utilisateur

Miele

Miele Imperial DWW 1250 Fiche technique

Miele

Miele DA 6480 Manuel utilisateur

Miele

Miele PUR 88 W Manuel utilisateur

Miele

Miele DUU 2900 Instructions de montage

Miele

Miele DA 2906 EXT Manuel utilisateur

Miele

Miele Ventilation Hood Manuel utilisateur

Miele

Miele DA 3360 Manuel utilisateur

Miele

Miele DA 68 Manuel utilisateur

Miele

Miele DA 6698 D Manuel utilisateur

Miele

Miele Ventilation System Manuel utilisateur

Miele

Miele DA 270-4 Manuel de la liste des pièces

Miele

Miele DA 5100 D Manuel utilisateur

Miele

Miele DA 5196 W EXT Manuel utilisateur

Miele

Miele DA 2250 EXT Manuel utilisateur

Miele

Miele DA 2558 Manuel utilisateur

Miele

Miele DA 424 V EXT Fiche technique

Miele

Miele DA 402 Manuel utilisateur

Miele

Miele DA 396-7 Manuel utilisateur

Miele

Miele DA 1867 Manuel utilisateur

Miele

Miele DA 6698 W Manuel utilisateur

Miele

Miele DA 289-4 EXT Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur

Nibe

Nibe S Series Guide de l'utilisateur

Caple

Caple CCH100 Manuel
