Microtek ScanMaker 3880 Manuel utilisateur

Table of Contents for ScanMaker 3880

Table of Contents Page No.

Table of Contents

SCANNER FEATURE OF ScanMaker 3880 2

ELECTRICAL PARTS LIST OF ScanMaker 3880

MECHANICAL PARTS LIST OF ScanMaker 3880

MECHANICAL DRAWING OF ScanMaker 3880

OPTICAL DRAWING IN REFLECTIVE MODE

HOW YOU REMOVE UPPER HOUSING ASSEMBLY FROM SM 3880

REPAIR FLOW OF ScanMaker 3880

FEATURE LIST OF ScanMaker 3880

THE LOGO OF SAFETY MARK AND EMI FROM POWER LABEL OF

ScanMaker 3880

SYSTEM WIRING DIAGRAM OF ScanMaker 3880

SYSTEM BLOCK DIAGRAM OF ScanMaker 3880

WHERE YOU FIND MODEL CODE OF SM 3880 IN S/W DRIVER :

ScanWizard 5 V6.113 20

ScanMaker 3880 designs

with USB2.0 interface and

its optical resolution is

2400dpi (V) x 1200dpi (H)..

Its driver : ScanWizard 5

V6.113 or its later version

can support SM 3880 to do

photo scanning under PC

Windows system only, and

SM 3880 can also e

quip with

LightLid-35 for 35mm film

scanning.

SCANNER FEATURE OF ScanMaker 3880

SCANNER TYPE : flatbed scanner offer 3 buttons function ( Scan / Copy / E-mail ).

One pass , 48Bit ( R,G,B ) color scanner with USB2.0 interface.

The following S/W driver can support ScanMaker 3880 to do photo scanning under PC Wins system.

ScanWizard 5 V6.113 or its later version ( PC version ) : PC WinXP / 2K / Me / 98 system.

OPTICAL RESOLUTION : 1200dpi (H) * 2400dpi (V)

SCAN AREA : 8.5” (W) * 11.7” (L) in Reflective mode,

CCD TYPE : 2905D ( Toshiba CCD ) , 5400 PIXELS ( 5100 EFFECTIVE PIXELS ).

TCD-2905D is a stack CCD with 6 rows of line sensors ( R1,R2, B1,B2, G1 & G2 ),

each of line sensor has 5400 pixels totally, but R1 and R2 has 0.5 pixel shift in alignment

each other ( G1and G2, B1and B2 have the same design also. ). This reason can make

scanner resolution was enhanced from 600dpi ( 600dpi * 8.5” ( W ) = 5100 effective pixels )

to 1200dpi ( R1 + R2 = 10200 effective pixels = 1200dpi * 8.5” ( W ) ).

A/D CONVERTER : Chip Scan113 (16BIT/Pixel ) on Main Board ( MARCH-0503 ).

SENSOR : HOME SENSOR *1 ( IN THE BUTTON BOARD, MARCH-BUT ).

STEPPING MOTOR : 12Vdc/0.5A ( NEOCENE 2T3542142 ), MOTOR STEP=3.75 DEGREE/STEP

MICRO STEPPING RATE = FULL, HALF

FULL STEP = 1200 dpi ( V )

HALF STEP = 2400 dpi ( V ) ( ScanMaker 3880 run at 2400dpi )

STEPPING MOTOR DRIVER : IC CHIP ( 6219 ) ON MAIN BOARD ( MARCH-0503).

LAMP TYPE : COLD CATHODE LAMP *1 IN CARRIAGE ASSEMBLY OF ScanMaker 3880

AC-INVERTER : DC INPUT VOLTAGE = 12V

LAMP START-UP AC VOLTAGE = 550VP-P ( MINIMUM )

LAMP AC CURRENT = 10mA (APPROXIMATELY)

VIDEO MEMORY BUFFER : 1M WORD ON MAIN BOARD ( MARCH-0503 ).

DATA PROCESSING CHIP : SCAN CHIP : SQ113 ON MAIN BOARD ( MARCH-0503 ).

SCANNER CONTROLLER : SCAN CHIP : SQ113 ( 8 BIT PROCESSOR ) ON MAIN BOARD.

USB INTERFACE : SCAN CHIP : SQ113 ( USB CONTROLLER ), USB 2.0 INTERFACE.

DATA TRANSMISSION SPEED CAN BE UP TO 4M BYTE/SECOND

SCANNER POWER ADAPTER, O/P : 12Vdc/1.25A ( VENDOR : DVE or HARD )

R1 Line sensor has 5400 Pixels totally.

G1 Line sensor has 5400 Pixels totally.

B1 Line sensor has 5400 Pixels totally.

B2 Line sensor has 5400 Pixels totally.

Rear View OF ScanMaker 3880

Accessory of SM 3880 : LightLid-35 ( P/N :1108-03-520041 )

If your SM 3880 equips with LightLid 35 for film scanning, then we suggest you to do Lightlid 35

calibrator before you start ScanWizard to scan slide / negative film with Lightlid 35 for better quality.

USB 2.0 interface

connector *1

Power jack of scanner

( 12Vdc / 1.25A )

Power Label

( P/N : 219-21-820000 )

15 pin conne

ctor

for LightLid 35

The Label of scanner S/N.

Attention Tag for power use

LightLid 35

Calibrator is an

AP and support

to do lamp

calibration for

your LightLid 35.

Left illustration is

a windows

message after

you start

LightLid 35

calibrator. You

can click

“ calibrate “ to

do lamp

calibration after

lamp in Lightlid

35 is warmed up

for 3 minutes.

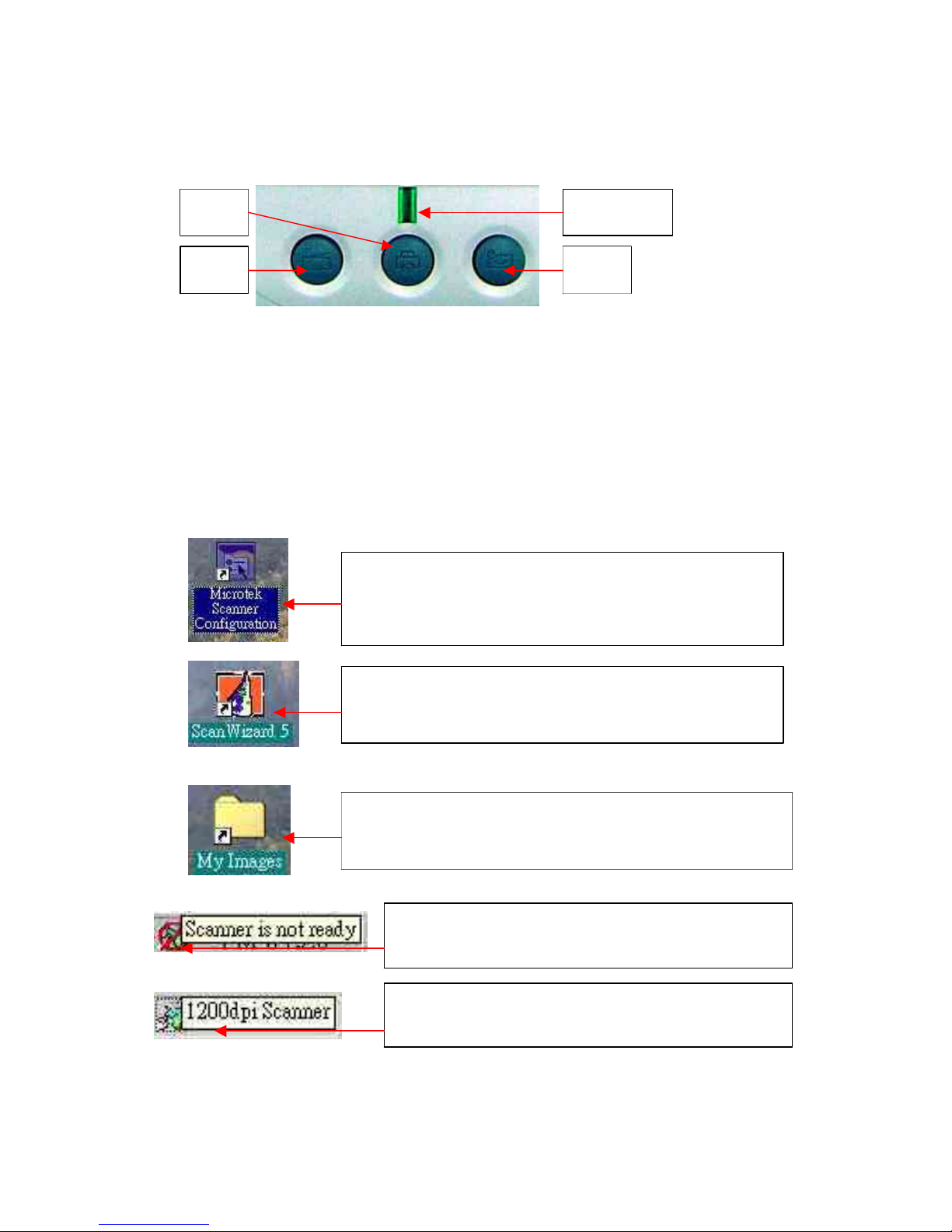

Button Function OF ScanMaker 3880

Status LED Indicator : When scanner is powered up and link with PC via USB interface well, and

then LED indicator will light up in Green steadily while scanner is ready.

Scan Button : Scan to saved as file, or sent it to another application for further image processing.

Copy Button : Scan an image and send it to your printer for print-out directly.

E-mail Button : Scan an image and deliver it to your e-mail editor ( Outlook Express / Lotus Notes

/ Hotmail / Microsoft Outlook ) directly.

Above Button Function can be set or defined in Microtek Scanner Configuration ( MSC ) utility.

Scan

Button

Copy

Button

mail

Button

Status LED

Indicator

After you complete to install scanner driver : ScanWizard 5

into PC Windows system, and then you can find the icon of

“ Microtek Scanner Configuration “, “ ScanWizard 5 “, and

“ My Image “ will list you on the Desktop of Windows system.

Click the icon of ScanWizard 5 from the Desktop of Windows

system, and then you can get into the stand alone version of

ScanWizard 5 to do image scanning with Microtek scanner.

All of scanned images in ScanWizard 5 will be saved into My

images, its default path in PC Windows system located at "

C:\Program Files \ Microtek \ ScanWizard 5 \ My Images ".

This icon is

Micortek Scanner Finder

, is resident in PC

Windows system, it means PC Windows system can

not find the scanner is linking with PC wel

l via interface.

This icon is

Micortek Scanner Finder

, is resident in PC

Windows system, it means PC Windows system has

found the scanner is linking with PC well via interface.

ELECTRICAL PARTS LIST OF ScanMaker 3880

1. MAIN BOARD : MARCH-0503 ( P/N : 1108-01-820000 )

2. CCD BOARD : MARCH-2905BFG ( IN CARRIAGE ASSEMBLY )

3. AC-INVERTER BOARD : HDDA4W101 ( P/N : 545-00-520005, locate in carriage assembly )

4. BUTTON BOARD : MARCH-BUT ( P/N : 1108-01-820002 )

5. POWER ADAPTER ( O/P : 12Vdc/1.25A ) : THE VENDOR IS DVE./ HARD.

type : HDAD15W101

124

( EU, 220VAC, P/N : 545-00-580001 )

EU type : DSA-0151A-12 UP

( EU / AP, 220VAC, P/N : 545-00-520016 )

UK type : HDAD15W101-126

( UK, 240VAC, P/N : 545-00-580003 )

Australia type : DSA-0151A-12 AS

( AUS, 220VAC, P/N : 545-00-520018 )

The function of AC

Inverter Board is to convert

the DC input ( 12Vdc ) to AC output ( 550VP-P ),

and then light up the lamp ( for photo scanning )

in the carriage assembly of scanner.

The vendor is HARD.

The function of CCD board is to

convert the optical signal to analogue

signal, and each of line sensor in the

CCD has 5,400 pixels totally.

The home sensor is positioned

in the button board.

LED is In Button Board.

MECHANICAL PARTS LIST OF ScanMaker 3880

A. DRESS UNIT ( P/N :I41-013141 )

a. BOOK COVER ASSEMBLY ( P/N : 215-01-820002 )

b. UPPER HOUSING ASSEMBLY ( P/N : I41-013142 )

b1. BUTTON BOARD, MARCH-BUT ( P/N : 1108-01-820002 )

c. BASE ASSEMBLY ( P/N : I41-013143 )

c1. MAIN BOARD : MARCH-0503 ( P/N : 1108-01-820000 )

c2. BOTTOM HOUSING ( P/N :215-01-820000 )

c3. CARRIAGE ASSEMBLY ( P/N :I41-013144 )

aa. CCD ASSEMBLY : ( P/N : I41-013145 )

bb. AC-INTERTER BOARD IN CARRIAGE ASSEMBLY ( P/N : 545-00-520005 )

cc. COLD CATHODE LAMP x 1pcs ( P/N : 570-19-520000 )

c4. MOTOR ASSEMBLY ( P/N : 215-17-820000 )

c5. IDLE PULLEY ASSEMBLY ( P/N : I41-009984 )

c6. SLIDING ROD ( P/N : 215-31-520000 )

c7. TIMING BELT, 388mm ( P/N : 404-88-000388 )

c8. CCD Flexible Flat Cable 19 pin, 404mm ( P/N :121-80-820000 )

c9. Button Flexible Flat Cable 9 pin, 434mm ( P/N : 121-80-820001 )

B. CARTON FOR SM 3880 ( AP / EU, P/N : 219-31-820000 ),

C. BOTTOM CUSHION ( P/N : 219-44-520012 )

D. TOP CUSHION ( P/N : 219-44-520013 )

E. POWER ADAPTER ( 12Vdc/1.25A ),

HDAD15W101-124 ( EU / AP, 220VAC, P/N : 545-00-580001 ).

DSA -0151A-12 UP ( EU / AP, 220VAC, P/N : 545-00-520016 ).

HDAD15W101-126 ( UK, 240VAC, P/N : 545-00-580003 ).

DSA -0151A-12 AS ( AUS, 220VAC, P/N : 545-00-520018 ).

F. USB2.0 GRAY Cable, 1.5m/4Pin with Core ( P/N : 121-44-150504 )

G. S/W BUNDLE ( P/N : I41-013151, AP VERSION ).

S/W BUNDLE ( P/N : I41-013150, EU VERSION ).

H. LIGHTLID 35 : 1108-03-520041

Mechanical Drawing of SM 3880

A. Dress Unit :I41-013141

B. Book Cover Assembly : 215-01-820002

C. Upper Housing Assembly : I41-013142

Book Cover Assembly :

215-01-820002

Upper Housing Assembly :

I41-013142

Base Assembl

y :

I41-013143

This center mark is for scanner CCD

center alignment during calibration.

The white area in this white stripe is

doing white calibration for the sc

anner.

This glass is glued and taped on the

upper housing.

D. Base Assembly : I41-013143

E. Idle Pulley Assembly ( P/N : I41-009984, not include Spring )

F. Motor Assembly : 215-17-820000 ( Step Motor : 12Vdc / 0.5A, NEOCENE 2T3542142 )

Carriage Assembly :

I41-013144

Bottom Housing :

215-01-820000

Pin Button

Flexible Cable :

121

820001

Button Board :

1108-01-820002

Sensor Bar

Timing Belt :

404-88-000388

Sliding Rod :

215-31-520000

Motor Assembly :

215-17-820000

Cold Cathode Lamp :

570-19-520000

Idle Pulley

Assembly :

I41-009984

Spring :

215-30-520000

Idle Pulley :

215-00-540018

Pulley

Bracket

215-20-520000

Base Lock is in the

bottom housing

Main Board :

1108-01-820000

19 Pin CCD Fl

Cable :

121

820000

ring, 4mm, Ni :

142-80-504000

G. Carriage Assembly -1 :I41-013144

Carriage Assembly-2 :I41-013144

Cold Cathode Lamp : 570-19-520000

Timing Belt, 388MXL : 404-88-000388

LOCK Mechanism of ScanMaker 3880

Cold Cathode Lamp : 570-19-520000

CCD Assembly

I41-013145

Lens Cover :

215-00-520002

Carriage Roller :

215-00-520003

Inverter Board :

545-00-520005

Timing Belt Clamp

Sensor Bar

Carriage is in lock position.

Carriage is in unlock position.

Core for 9 pin flat cable : 141-10-520000

Core for19 pin flat cable : 141-10-520001

CCD Flexible Cable 19 pin, 435mm : 121-80-820001

Insulation Film for main board : 215-00-520008

I. USB2.0 Gray Cable : 121-44-150504

Button

Flexible Flat Cable 9 Pin, 404mm

121-80-820000

Core

, M5W ZP33, 5*6.5*12

141-10-520000

Core, M5W ZP18, 9*6.5*12

141-10-520001

This

insulation film

is positioned

underneath main board.

Autres manuels Microtek Scanner

Microtek

Microtek ArtixScan M2 Mode d’emploi

Microtek

Microtek Artix Scan1100 Manuel d'installation

Microtek

Microtek ScanMaker 9700XL Manuel utilisateur

Microtek

Microtek ArtixScan 2500 Manuel utilisateur

Microtek

Microtek ScanMaker 3600 Manuel utilisateur

Microtek

Microtek ScanMaker s430 Mode d’emploi

Microtek

Microtek ArtixScan 120tf Manuel utilisateur

Microtek

Microtek ScanMaker 5700 Manuel utilisateur

Microtek

Microtek ScanMaker i480 Mode d’emploi

Microtek

Microtek ScanMaker V6UPL Manuel utilisateur

Microtek

Microtek ScanMaker s460 Mode d’emploi

Microtek

Microtek ADF-700 Manuel utilisateur

Microtek

Microtek ScanMaker 4 Manuel utilisateur

Microtek

Microtek ScanMaker 4600 Manuel utilisateur

Microtek

Microtek ScanMaker 9800XL Plus Mode d’emploi

Microtek

Microtek XT5750 HS Manuel utilisateur

Microtek

Microtek ScanMaker i450 Manuel du propriétaire

Microtek

Microtek ArtixScanDI 6240S Manuel utilisateur

Microtek

Microtek ScanMaker i460 Mode d’emploi

Microtek

Microtek ArtixScanDI 3130c Manuel utilisateur

Microtek

Microtek ScanMaker V6USL Manuel utilisateur

Microtek

Microtek ScanMaker i280 Manuel du propriétaire

Microtek

Microtek ScanMaker 4850 Manuel utilisateur

Microtek

Microtek ScanMaker 4 Mode d’emploi

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
