Step 2: Install Software

Start Here

Installing your Microtek ScanMaker 1000XL Plus

Important: Do not remove the yellow stickers from your scanner

until you are told to do so.

You must install software before connecting your scanner. Always

close any open programs, and turn off Anti-virus utilities before

installing software.

Step 1: Unpack Contents

I49-004945 B, September 2013

Unpack your scanner package and

check for major components.

1. ScanMaker 1000XL Plus

2. USB cable

3. Power cord

4. Software CDs/DVDs

5. TMA 1600-III (Optional)

5-1. TMA 1600-III unit

5-2. Black Plate

5-3. 35mm Slide Template

5-4. 35mm Filmstrip Template

5-5. 120 Film Template with Black Plate

5-6. 4" x 5" Film Template

5-7. Film Alignment Ruler

MAC:

A. Place the Adobe DVD into a drive, and install

the software. Skip this step if you have a newer

version of Photoshop Elements already installed

on your computer.

B. Place the Microtek Software CD/DVD

(ScanPotter) into a drive, and double-click the

ScanPotter installer icon to install ScanPotter.

C. Install the remaining software components, then

restart your computer at the end of all software

installation.

NOTE: After rebooting your Macintosh, the Microtek

software will attempt to locate your scanner on the

system. Since this is your first install and you have not yet

connected the scanner, simply ignore the message that

appears and proceed to the next step.

PC:

A. Place the Adobe DVD into a drive, and install

the software. Skip this step if you have a

newer version of Photoshop Elements already

installed on your computer.

B. Place the Microtek Software CD/DVD into a

drive, and follow the on-screen instructions to

install the scanner driver and software.

C. Restart your computer at the end of all

software installation.

NOTE: If the Microtek Software Installer screen does not

come up automatically, double-click the following in

succession: “My Computer”; the CD-ROM (or DVD-ROM)

icon; then cdsetup.exe to start the installer program.

For TMA 1600-III only

5-1 5-2

5-3

5-4

5-5

5-6

5-7

Step 3: Unlock Scanner

A. Remove the yellow “Step 3” sticker from your scanner.

B. With the scanner power off, tilt the front right corner of

the scanner to see the locking screw at the bottom.

C. Using a screwdriver, push and turn the locking screw

counterclockwise to the unlock position. When successfully

unlocked, the screw will push out a little, protruding

slightly from the bottom of the scanner.

NOTE: To lock the scanner (for shipping and other reasons), refer to the

ScanMaker 1000XL Plus User Guide.

Step 4: Connect Scanner

To the power adapter

A. Remove the yellow “Step 4” sticker from your scanner.

B. Connect the power cord to the back of the scanner.

C. Plug the power cord into a power source.

To the Hi-Speed USB cable

D. Connect one end of the cable to your computer.

E. Connect the other end of the cable to the scanner.

F. Press the power switch at the back of your scanner, and wait

for the indicator light on the front panel to stop blinking and

stay on steady.

The system will detect your

scanner automatically.

Using theTMA 1600-III

NOTE: If you purchased a standard ScanMaker 1000XL Plus without the TMA 1600-III, see only the section on

positioning reflective materials without the TMA 1600-III, on page 5.

I. Installing theTMA 1600-III

1. Make sure that the scanner power is turned off.

2. Remove the scanner lid, then attach the TMA 1600-III by sliding the posts at the rear of the TMA 1600-

III into the holes.

3456

654321

Scanner lid

321

3456

654321

TMA 1600-III

3. Plug the connector of the TMA 1600-III into the scanner’s

15-pin accessory port.

II. Unlocking the TMA 1600-III

1. Remove the yellow “Step 3” sticker from the TMA

1600-III.

2. Look for the locking knob at the base of the TMA

1600-III.

3. Turn the locking knob counterclockwise to the

unlock position “ ”.

NOTE: If you need to transport your TMA 1600-III, you will have to

lock it back. For more details, please see the ScanMaker 1000XL

Plus User Guide.

Positioning the Scan Material

A. Positioning Transparencies

• To scan standard-size transparent film such as 35mm slides, 35mm filmstrips, 4”x5” film, or 120 film:

Use the individual film templates included with the TMA 1600-III package. Make sure the templates are

oriented correctly on the scanner glass surface, with the Microtek logo on the templates facing up. Keep

the calibration strip on the glass surface clear and free of obstruction at all times.

3456

654321

Important:

When using the templates, make sure

you use the correct side up. The correct

side up is the side showing the

“Microtek” logo facing up.

Calibration strip

(Keep clear and unobstructed)

3456

654321

3456

654321

3456

654321

3456

654321

Using the 35mm Filmstrip Template

Using the 120 Film Template Using the 4” x 5” Film Template

Using the 35mm Slide Template

456

54321

Film Alignment Ruler

Calibration strip

(Keep clear and unobstructed)

With TMA 1600-III Without TMA 1600-III

3456

654321

3456

654321

• To scan non-standard-size transparent film, use the Film Alignment Ruler included with the TMA 1600-

III package. Place the Film Alignment Ruler on the scanner glass surface. Then place the film to be

scanned face down on the scanner glass surface, centering the film along the Film Alignment Ruler.

Make sure you keep the calibration strip on the glass surface clear and free of obstruction at all times.

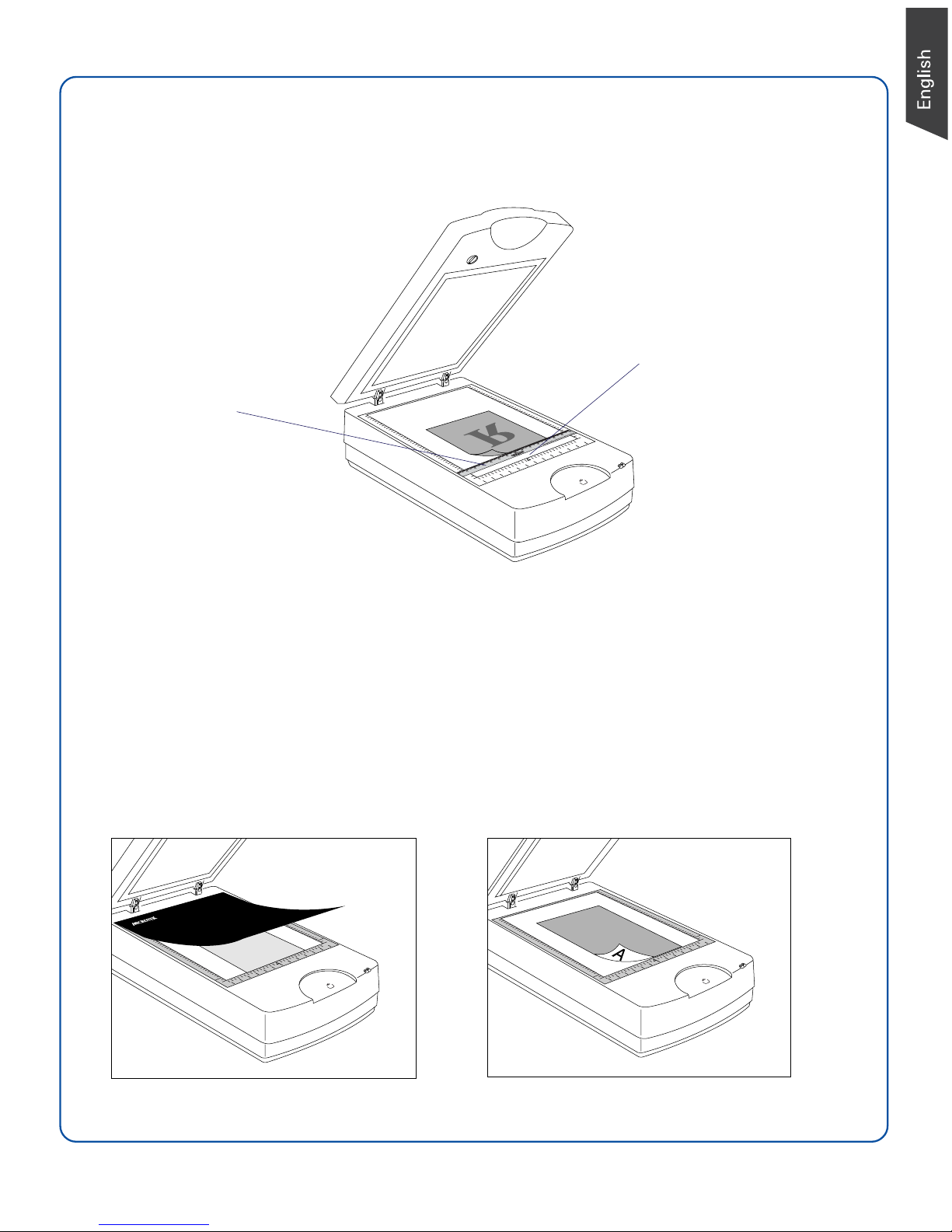

B. Positioning Reflective Materials

To scan reflective materials such as photos or prints, you can use the ScanMaker 1000XL Plus with or

without the TMA 1600-III.

• To scan with the TMA, you will need to use the Black Plate included with your TMA 1600-III package

to shield unwanted light.

• To scan without the TMA, simply lift the scanner lid, and place the reflective original to be scanned on

the glass surface. Center the photo along the U-shaped ruler of the scanner.

Basic Scanning for PC Users

Scanning Photos

1. Position the photo face down on the scanner glass surface,

towards the front of the scanner. Center the top along the U-

shaped ruler on the scanner.

2. Launch ScanWizard Pro.

• If asked to calibrate your scanner, you can skip this section

for now and come back to it later. Or, if you wish to perform

calibration, see the ScanMaker 1000XL Plus User Guide in

your Microtek Software CD/DVD for more details.

• If prompted to set up Color Matching, click OK for now to accept the settings. You can always

change the settings at a later time. For more details, see the ScanMaker 1000XL Plus User Guide

in your Microtek Software CD/DVD.

3. In the Preview window of ScanWizard Pro, choose Reflective from the Scan Material menu.

4. Click the Overview button in the Preview window to see a preliminary scan of the image.

5. Select the Scan Frame tool, and choose the area to be scanned by sizing the marquee around the

targeted area.

6. Specify your scanning requirements in the Settings window. Choose the desired image type and

resolution, and adjust the scan frame settings if necessary.

7. Adjust image quality if necessary, using the Advanced Image Correction tools.

8. Click the Scan (or “Batch”) button in the Preview window or on the scanner unit to start scanning.

Window

Expansion button

Preview window

Settings window

Smart-Touch

button (Scan)

3456

654321

Scanning Positive or Negative Film

1. Select the film you wish to scan, then follow the procedures for

positioning transparent films detailed in the “Positioning the Scan

Material” section of this Guide.

2. Launch ScanWizard Pro.

3. If scanning positive film such as 35mm slides:

a) Go to the Preview window of ScanWizard Pro and from the

Scan Material menu, choose Positive / Positive Film.

b) Follow steps 4 to 7 of the procedures detailed in “Scanning

Photos”.

If scanning negatives:

a) Go to the Preview window of ScanWizard Pro and from the Scan Material menu, choose Negative /

Negative Film. The Negative Scan Settings window appears.

b) Go to the Negative Scan Settings window, choose the film brand, film type, and ISO settings that

match the film you use. For more details, refer to a PDF document called “ScanWizard Pro

Reference Manual” in your Microtek Software CD/DVD and see the Addendum to ScanWizard Pro

section.

c) Follow steps 4 to 7 of the procedures detailed in “Scanning Photos”.

4. Click the Scan (or “Batch”) button in the Preview window or on the scanner unit to start scanning.

Preview window

Settings window

Negative Scan Settings window

Basic Scanning for PC Users (cont.)

3456

654321

Smart-Touch

button (Scan)

Basic Scanning for Mac Users

1. Place the scan material.

•To scan a photo, place the photo on the upper glass bed, as detailed in the “Positioning Reflectives”

section in this guide.

•To scan film, use the film holder, as detailed in the “Positioning Transparencies” section in this

guide.

2. Launch ScanPotter as a stand-alone by clicking on the program icon, or by selecting it from the

application folder in your Mac OS X system.

3. In the Scan Source options menu, depending on the scan material you are using, choose either Reflective

for photos, Negative Film for negatives, or Positive Film for transparencies and slides.

4. Specify your scanning requirements in the Scanner Settings column.

a) Select the appropriate image type (e.g., RGB Color) in the Color Type as your image output type.

- Select Color to scan the image in color.

- Select Grayscale to scan the image in grayscale.

- Select Black & White to scan the image in black-and-white.

b) Select a desired resolution in the Resolution for your image output resolution.

c) Select Automatic Detection or a desired dimension in the Scan Frame as your preview image size.

5. Click the Preview button to perform a preliminary scan of the image in the Preview window.

6. If necessary, resize the scan frame (floating dotted rectangle) around the image by dragging on the

square spots on the edge or on the corner of the scan frame to determine the final size of the actual

scan.

7. If necessary, specify file settings for your output image files, using the options offered in the File Saving

Settings column.

8. If necessary, click the Image Settings button to switch to a window in which you can select a preset

image effect to the image directly or adjust image quality manually by using the additional image

correction tools.

9. Click the Scan button to start scanning.

NOTE: For details on scanning photos and film, see the ScanMaker 1000XL Plus User Guide in the Microtek Software CD/

DVD.

Basic Scanning for Mac Users (cont.)

Click the Image Settings button

to switch to a window where

contains a composite display of

nine-image-effects (Filter

column) and additional image

correction tools (Additional

Adjustment column) for your

scanned image.

Click the Scan Settings button to

switch back to the default control

panel of ScanPotter

Scan frame

(enclosed by dotted lines)

Preview window when

scanning slides

Preview window

when scanning

photos

Problems?

The green LED on the front panel indicates the status of

the scanner. The orange LED beside it stands for power

and should always stay on steady when the scanner is

on.

First, make sure that you have followed installation

steps 1 through 4. If your problem is listed here, try

the suggested solution.

1. No light comes on when the scanner is turned on.

Make sure your scanner is connected to your

computer and plugged into a power source.

2. Add/Remove Hardware Wizard appears on your

screen.

Click the “Cancel” button and close the Control Panel.

Disconnect the USB cable from the back of your computer,

and refer to the installation instructions in this guide.

3. When trying to scan, an error message appears on

your screen that reads, “Can’t Find Scanners”.

Make sure your scanner is unlocked (see Step 3).

Make sure your scanner is connected to your computer

and plugged into a power source (see Step 4).

Uninstall and reinstall the ScanWizard Pro or ScanPotter

software.

On - Ready to scan Flashing - Scanning Off - Call Tech Support

4. After clicking scan, a blank screen appears.

Make sure your scanner is unlocked (see Step 3).

Uninstall and reinstall the ScanWizard Pro or ScanPotter

software.

5. Having trouble scanning negatives or slides?

Make sure that you have properly inserted the templates,

as indicated in the “Positioning the Scan Material” section

of this guide. The templates should be placed correctly on

the scanner glass surface, with the “Microtek logo” on the

templates facing up.

From the Preview window of ScanWizard Pro, choose

Positive or Negative from the Scan Material menu.

From the ScanPotter, go to the Scanner Settings column,

then click the Scan Source drop-down menu to select

either the Positive Film or Negative Film option.

Make sure that the calibration strip is unobstructed. For

location of the calibration strip, see the “Positioning the

Scan Material” section.

Uninstall and reinstall the ScanWizard Pro or ScanPotter

software.

Calibration

Reflective target

Transparency target

345

654321

READY indicator (Green)

POWER indicator (Orange)

NOTE: This section is only available for the PC users who have installed the Microtek’s MSP utility,

and use the IT8 color target to generate scanner ICC profiles.

The Microtek Scanner ICC Profiler (MSP) program

included with your scanner package is used to calibrate

your scanner to achieve consistent and accurate color.

The industry-standard IT8 color target for MSP program

you received depends on the scanner configuration that

you purchased. If the IT8 color target is included with

your scanner package, you may use the IT8 color target

to calibrate the scanner for scanning photos or film.

You will be asked to calibrate your scanner the first

time you run ScanWizard Pro to try to scan. You may

skip calibration to proceed directly to scanning, and

then choose to come back at a later time to perform

calibration.

3212

For more details on calibration, refer to the section “Using the

Microtek Scanner ICC Profiler (MSP)” in the scanner’s User Guide in

your Microtek Software CD/DVD.

Autres manuels pour ScanMaker 1000XL Plus

Table des matières

Autres manuels Microtek Scanner

Microtek

Microtek ScanMaker 3630 Manuel utilisateur

Microtek

Microtek ScanMaker V6UPL Manuel utilisateur

Microtek

Microtek SCAN-IN-DEX 1000 Manuel utilisateur

Microtek

Microtek ScanMaker 5950 Manuel utilisateur

Microtek

Microtek XT3500 Manuel utilisateur

Microtek

Microtek ScanMaker 1000XL Mode d’emploi

Microtek

Microtek ScanMaker 1000XL Manuel utilisateur

Microtek

Microtek ArtixScan 6000XY Manuel utilisateur

Microtek

Microtek Bio-5050 Mode d’emploi

Microtek

Microtek FileScan 3125c Mode d’emploi

Microtek

Microtek ScanMaker 4 Manuel utilisateur

Microtek

Microtek ScanMaker i450 Manuel du propriétaire

Microtek

Microtek Vantas 3000 Manuel utilisateur

Microtek

Microtek ArtixScanDI 6240S Manuel utilisateur

Microtek

Microtek ScanMaker 3700 Manuel utilisateur

Microtek

Microtek ScanMaker X12USL Manuel utilisateur

Microtek

Microtek ScanMaker 3600 Manuel utilisateur

Microtek

Microtek XT5750 HS Manuel utilisateur

Microtek

Microtek ObjectScan 1600 Manuel utilisateur

Microtek

Microtek ScanMaker 3700 Manuel utilisateur

Microtek

Microtek LightLid EL Manuel utilisateur

Microtek

Microtek Artix Scan1100 Manuel d'installation

Microtek

Microtek ScanMaker 1000XL Plus Manuel utilisateur

Microtek

Microtek ArtixScan 120tf Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
