Microtek LightLid 35 Manuel utilisateur

I49-00 200 A, May 2001

Microtek LightLidTM 35

Installing and Getting Started

The LightLid 35 is a bonus accessory

included with your Microtek scanner. It gives

you the versatility to scan 35mm slides on

your flatbed scanner.

Microtek recommends the use of this

accessory to scan slides for on-screen display

purposes or where high resolution is not

critical. For high-quality print reproduction,

we recommend purchasing a dedicated slide

scanner or a Microtek scanner with built-in

film-scanning features.

Please note: Scanning of color negatives may vary, depending on the quality of your

film original.

Insert slide front side up

Grip prong for securing slide

A. Installing the LightLid 35

1. Unpack the LightLid 35.

2. Remove the scanner lid.

3. Connect the LightLid 35 to your scanner. To do this:

Connect the 15-pin connector (A in diagram) of your

LightLid 35 to the accessory port (B) at the back panel

of your scanner.

B. Operating the LightLid 35

1. Mount the 35mm slide or filmstrip on the LightLid 35.

A. Mounting a slide:

Turn the LightLid 35 over. Insert the

35mm slide front side up into the

recessed area at the center of the

LightLid. Secure the slide by gripping it

with the grip prong provided at the

connector side of the recessed area.

For added stability, you may wish to

secure the slide with a piece of

adhesive tape.

B. Mounting filmstrips:

Turn the LightLid 35 over. Insert the

35mm filmstrip front side up along the

recessed area, with one perforated side

of the filmstrip tucked under the mylar

sheets. For added stability, secure the

other perforated side of the filmstrip

with a piece of adhesive tape.

2. Place the LightLid 35 (with the secured filmstrip or slide to be scanned) on the glass

surface of the scanner. The LightLid 35 can be placed either horizontally or

vertically on the scanner surface, as shown below.

Filmstrip front side up

Mylar

sheets

Horizontal

Vertical

3. Select your Scan Material and start scanning.

Launch the ScanWizard 5 scanning software in stand-alone mode or from your

image-editing software, then select your scan material and start scanning. For details

on how to do this, see other documentation included in your scanner package.

ScanWizard 5 has two modes — Standard and Advanced — and each mode has its

own way of selecting the scan material and scanning. Each mode of operation is

shown below.

• Standard Mode: In the Preview

window, click on the Original

button, and choose Positive Film or

Negative Film, depending on the

material you are scanning. When you

are ready to scan, click on the Scan

To button, and select where the

scanned image will be sent (to image

or OCR editing application, to disk, to

printer, or to e-mail or website

program). For more details, see your

ScanWizard 5 documentation.

• Advanced Mode: In the Preview

window, click on the Scan Material

icon, and choose Positive Film or

Negative Film, depending on the

material you are scanning. When you

are ready to scan, click on the Scan

to button, and select where the

scanned image will be sent (to image

or OCR editing application, to disk, to

printer, or to e-mail or website

program ). For more details, see your

ScanWizard 5 documentation.

Scan

Material icon

2 Microtek LightLid 5 Installing and Getting Started

ScanWizard 5 - Standard Mode

Set Scaling

here to

100%

ScanWizard 5 - Advanced Mode

Set Scaling here to 100%

Set Resolution here to 600 dpi

Click the Purpose button to

select your Resolution value.

When the drop-down menu

appears, select Custom, and

type 600 at the dpi box, as

shown below.

C. Getting the best results

To obtain the best results when scanning with the LightLid 35, set the scan Resolution

to a minimum 600 dpi and the Scaling to 100%. Refer to the diagrams below for more

information on how to set these values in ScanWizard 5 Standard and Advanced Modes.

Microtek LightLid 5 Installing and Getting Started

Using the LightLid 35 Calibrator

The LightLid 35 Calibrator is a program designed for calibrating your LightLid 35 to

ensure that it captures colors accurately when scanning slides and filmstrips. Although

calibration is an optional step, it is helpful towards optimizing your scanned image.

A. o install the LightLid 35 Calibrator on Windows:

1. Place your Microtek software CD into your CD-ROM drive. When the Installer

screen comes up, click Exit.

2. Double-click the My Computer icon on the desktop.

3. Locate your CD-ROM drive icon, and right-click on it to bring up the Context

menu.

4. Choose Open, then double-click the LL35 Calibrator folder to open it.

5. Double-click the setup.exe icon to install the Calibrator. Follow the on-screen

instructions until installation is complete.

B. o install the LightLid 35 Calibrator on Macintosh systems:

1. Place your Microtek software CD into your CD-ROM drive.

2. Open the folder LL35 Calibrator, and double-click on the Installer icon.

Follow the on-screen instructions until installation is complete.

C. Launch the LightLid 35 Calibrator.

Make sure that ScanWizard 5 is already installed on your system and that your scanner

is powered up. Launch the Calibrator from your desktop (PC or Macintosh).

Alternatively, you can launch the Calibrator from the ScanWizard 5 folder (PC) or from

the LighLid 35 Calibrator folder (Macintosh).

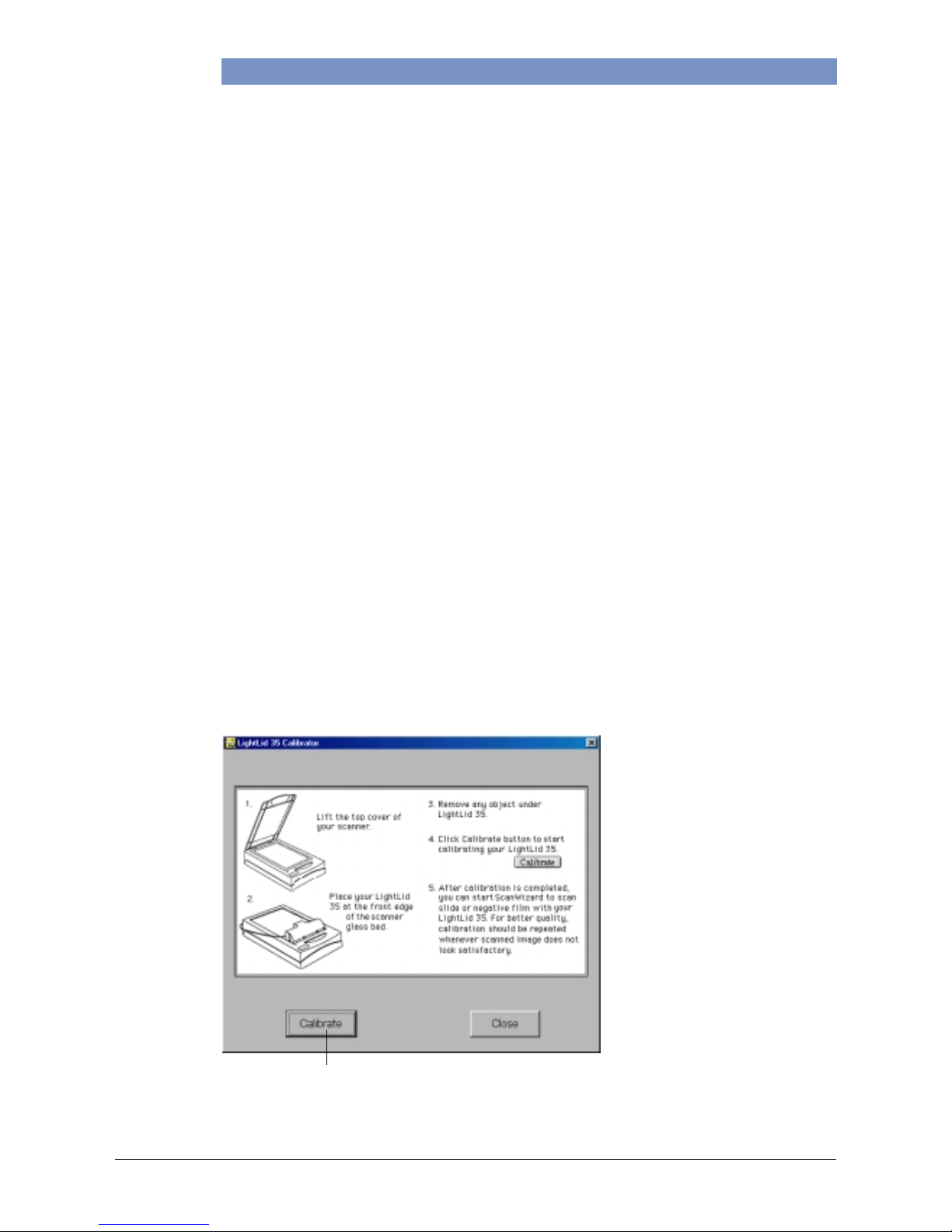

Follow the on-screen instructions as shown in the Calibrator window below (sample

taken from Windows version, which is identical to the Macintosh except for the Title

bar).

Click the Calibrate button

to start calibration

4 Microtek LightLid 5 Installing and Getting Started
