Quick Installation Guide

8-Port 10/100M PoE Switch

Model No.: SP6008P

http://www.micronet.info

Introduction

The SP6008P supports IEEE 802.3af at standard for Power over

Ethernet (PoE) with the maximum power delivery up to 130 Watts.

That makes it suitable to various applications that demand for

remote power feeding and meet high level requirement for power.

SP6008P is totally equipped with 15.4 Watts per PoE port, which

effectively helps allocate power for connected multiple devices and

enhances network management.

Key Features

yCompliant with IEEE 802.3af standard

ySupports Power over Ethernet on 8 RJ-45 ports of 10/100M

yProvides 130W (max) feeding power to 8 PDs: 15.4W for each

ySupports Auto-MDI/MDI-X

ySupport Non-Blocking Data Forward

ySupports Auto-Negotiation and feature of store-and-forward

yLED indicators for PoE activity

Package Contents

Before you start installing SP6008P, please verify the following

package contents:

ySP6008P 10/100M PoE Switch

yQuick Installation Guide

yPower Cord

yMounting Kits

Tour of the System

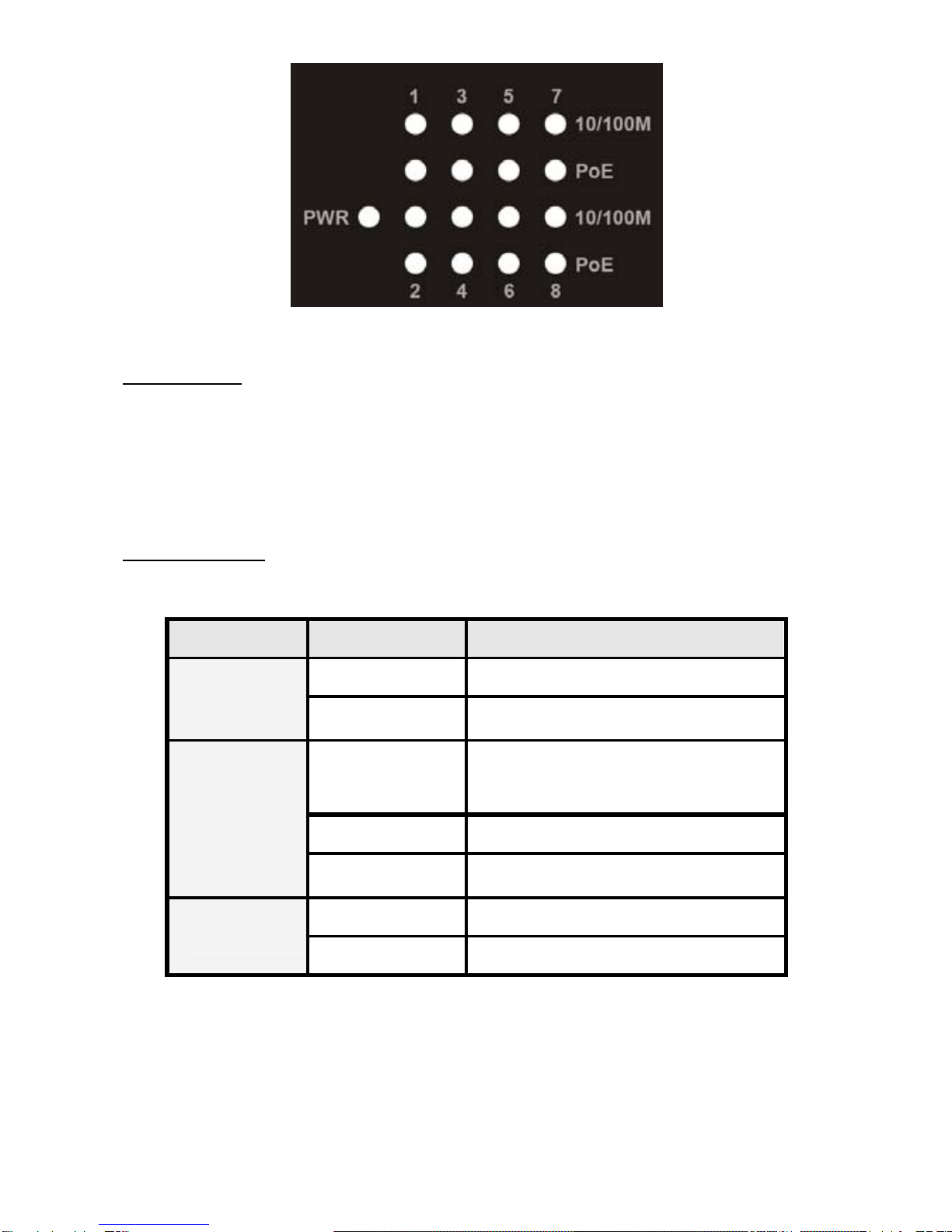

Front Panel

LED indicators

Back Panel

Power Switch and Power Cord Connector

LED Indicator

For definitions of LED indicators, please refer to the following table:

LED Status Description

On/Green Power is On.

PWR Off Power is off.

On/Green The Ethernet port is connecting with

the device.

Blink/Green Receiving or transmitting data.

10/100M,

LINK

Off No device attached.

On/Orange PoE port is active.

PoE Off PoE port is not active.

Hardware Installation

The setup of the switch can be performed using the following steps:

Step 1: Connect the Power Cord to SP6008P and then to a power

outlet.

Step 2: :Connect a RJ-45 Ethernet cable from

IEEE802.3af-compliant devices (PD) to an available PoE

port of SP6005P8.

Note:

Port 1 to Port 8 are used for connecting to PD or PoE splitter for end

devices.

For cable selection, refer to the following table:

Network Speed Cable Type Max. Length

10M Cat. 3,4,5,5e UTP/STP 100 meters

100M Cat. 5,5e UTP/STP 100 meters

Note: To prevent costly equipment damage and downtime, please

consider installing a surge suppression device or a UPS

(Un-interrupted Power Supply).

Specification

Standards IEEE 802.3af

IEEE 802.3 10 BaseT

IEEE 802.3u 100 BaseTX

IEEE 802.3x Flow Control

Features Number of Ports: 8 PoE/PSE ports

MAC Address: 1k

Buffer Memory: 512 bits

Transmission Method: Store and Forward

Filtering/

Forwarding

Rates

100Mbps port-148,800pps

10Mbps port-14,880pps

Transmission

Media

10 BaseT Cat 3,4,5 UTP/STP

100M BaseTx CAT 5 UTP/STP

LED

Indicators

Per Port: Link/Act, PoE Act/Status

Per Unit: Power

Power

Input/Output

Input: 100~240V/AC, 50~60 Hz

Output: 48V/DC Per Port Output- 15.4W

Max Per Port, 8 Ports at Full 15.4 W Output

orted

Power

Consumption

130 Watts (Max)

Dimension 20(H) x 58(W) x 87(D) mm

Temperature Operating: 0~60oC, Storage: -20~90oC

Humidity Operating: 10~90% (Non-Condensing)

FCC Certifications

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and

radiates radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to

correct the interference at own expense. This device complies with

Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received; including

interference that may cause undesired operation.

CE Mark Warning

This equipment complies with the requirements relating to

electromagnetic compatibility of the essential protection requirement

of Council Directive 89/336/EEC on the approximation of the laws of

the Member States. Company has an on-going policy of upgrading

its products and it may be possible that information in this document

is not up-to-date. Please check with your local distributors for the

latest information. No part of this document can be copied or

reproduced in any form without written consent from the company.

P/N: 2300-xxxx
