MG 17PE Manuel utilisateur

BEFORE USE ....

Thank you for choosing us. Before use, please check con-

tents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact our sales ofﬁce or representatives.

■PACKAGE INCLUDES:

Signal conditioner ...............................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■AUXILIARY POWER SUPPLY RATING & OPERATIONAL RANGE

• Locate the auxiliary power supply rating marked on the

product and conﬁrm its operational range as indicated

below:

24V DC rating: 24V ±10%, approx. 35mA

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and input signal for safety.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -5 to +55°C

(23 to 131°F) with relative humidity within 40 to 85% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

COMPONENT IDENTIFICATION

Body

Specifications

Front Cover

(Connection diagram

behind)

■FRONT VIEW (with cover open)

Span Adj.

Zero Adj.

INSTALLATION

Use Standard Rack (model: 17BXE).

PT TRANSMITTER MODEL 17PE

EM-2938 Rev.2 P. 1 / 3

MG CO., LTD. www.mgco.jp

5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

INSTRUCTION MANUAL

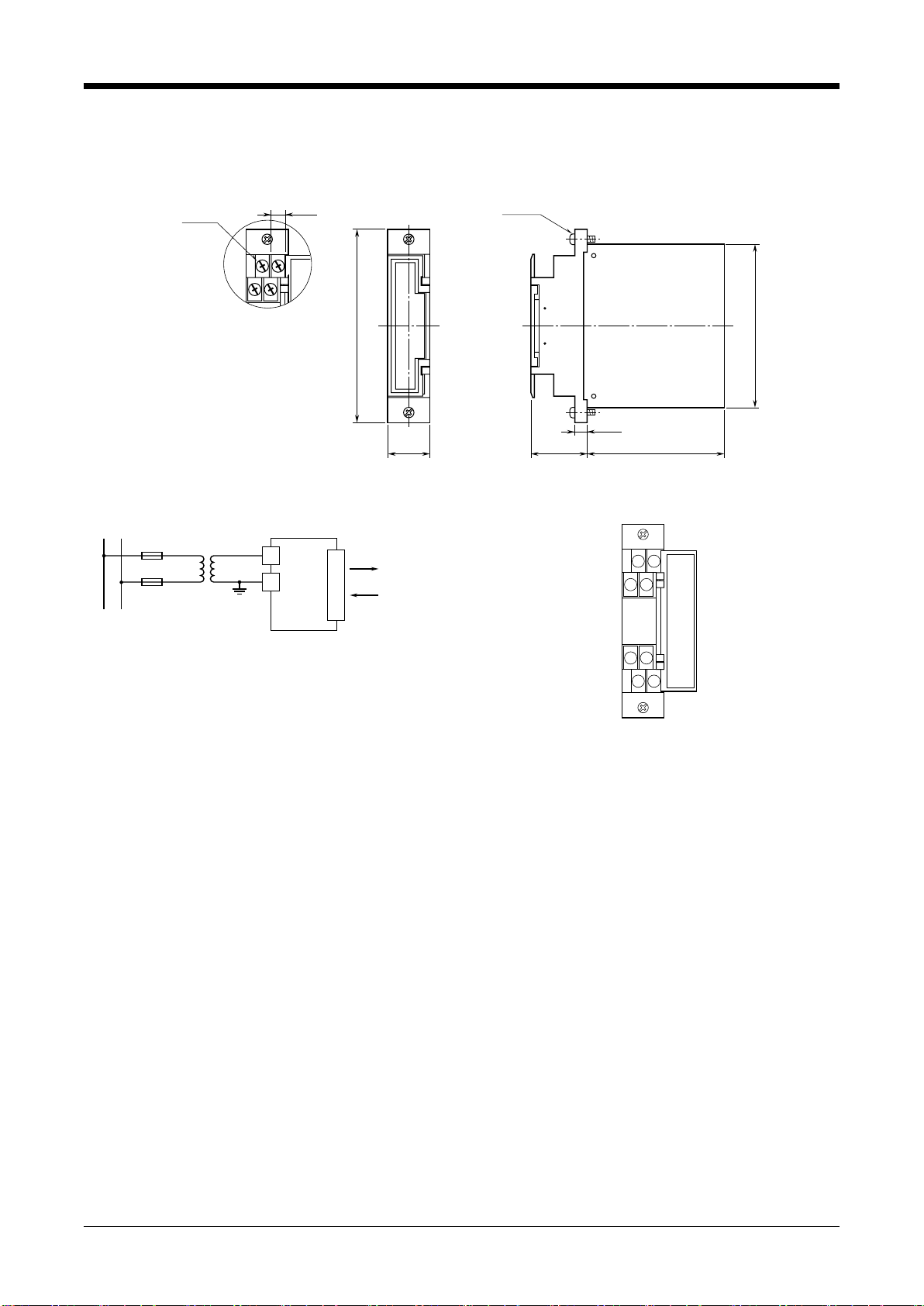

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the connection diagram behind the front cover.

■EXTERNAL DIMENSIONS unit: mm (inch)

110 (4.33 )

93 (3.66)

24 (.94)

7 (.28)

78 (3.07)32 (1.26)

8–M3.5

SCREW

7 (.28)

2–M3

SCREW

■CONNECTION DIAGRAM

LOAD

SOURCE

FUSE

OUTPUT

AUXILIARY

POWER

CONNECTOR

■TERMINAL ASSIGNMENTS

17PE

EM-2938 Rev.2 P. 2 / 3

MG CO., LTD. www.mgco.jp

5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.8 N·m

CHECKING

1) Terminal wiring: Check that all cables are correctly con-

nected according to the connection diagram.

2) Auxiliary power input voltage: Check voltage supplied

to the rack (model: 17BXE). For the DC power source, be

sure that the ripple level is within 10% p-p.

3) Input: Check that the input signal is within 0 – 120% of

the full-scale.

4) Output: Check that the load resistance meets the de-

scribed speciﬁcations.

ADJUSTMENT PROCEDURE

This unit is calibrated at the factory to meet the ordered

speciﬁcations, therefore you usually do not need any cali-

bration.

For matching the signal to a receiving instrument or in case

of regular calibration, adjust the output as explained in the

following.

■HOW TO CALIBRATE THE OUTPUT SIGNAL

Use a signal source and measuring instruments of sufﬁ-

cient accuracy level. Turn the auxiliary power supply on

and warm up for more than 10 minutes.

1) ZERO: Apply 0% input and adjust output to 0%.

2) SPAN: Apply 100% input and adjust output to 100%.

3) Check ZERO adjustment again with 0% input.

4) When ZERO value is changed, repeat the above proce-

dure 1) – 3).

MAINTENANCE

Regular calibration procedure is explained below:

■CALIBRATION

Warm up the unit for at least 10 minutes. Apply 0%, 25%,

50%, 75% and 100% input signal. Check that the output

signal for the respective input signal remains within accu-

racy described in the data sheet. When the output is out of

tolerance, recalibrate the unit according to the “ADJUST-

MENT PROCEDURE” explained earlier.

LIGHTNING SURGE PROTECTION

We offer a series of lightning surge protector for protec-

tion against induced lightning surges. Please contact us to

choose appropriate models.

17PE

EM-2938 Rev.2 P. 3 / 3

MG CO., LTD. www.mgco.jp

5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
