METHVEN ROUND DRY RAIL Manuel utilisateur

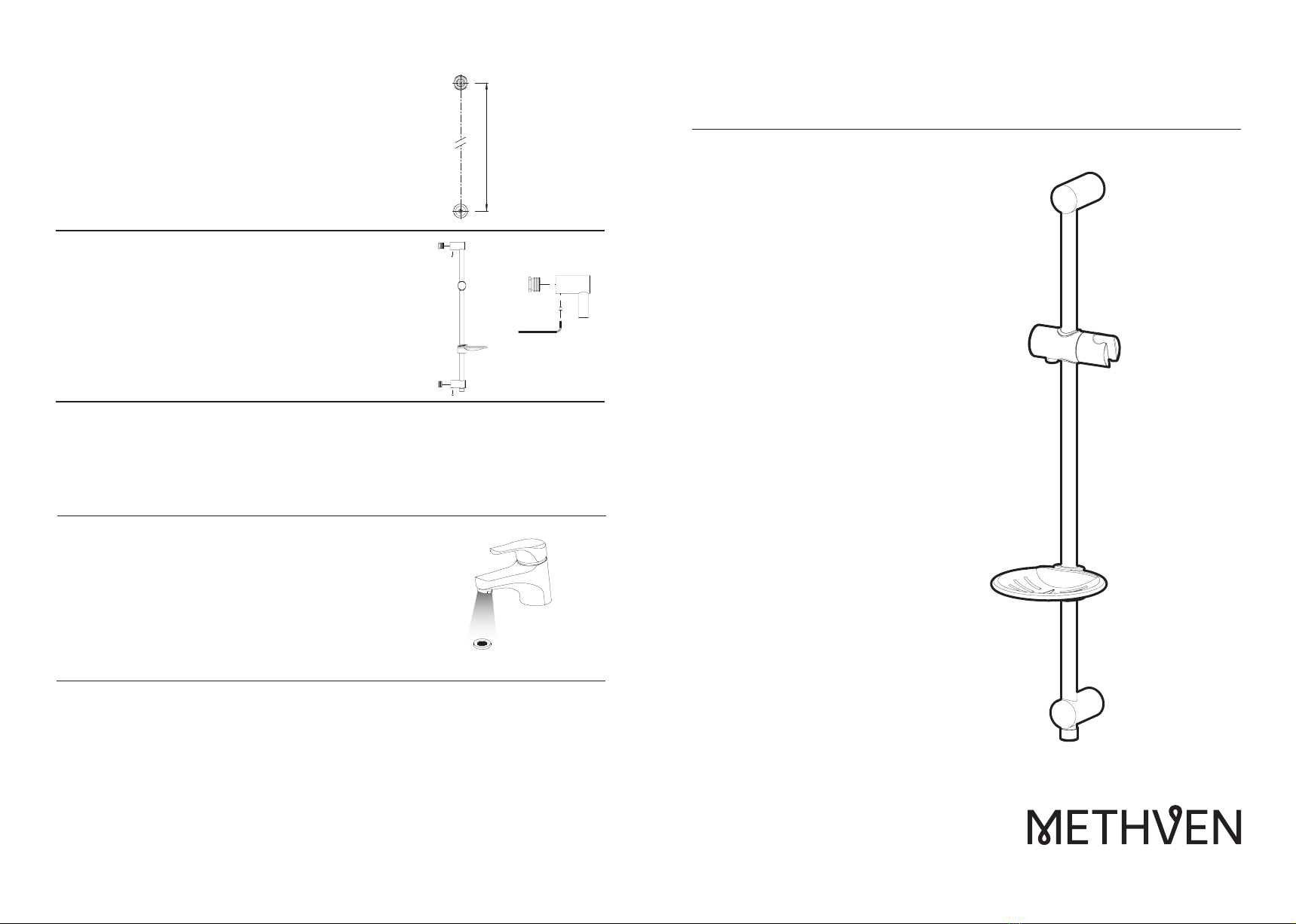

Step 4

• Fix the bottom rail connector to the wall at the

desired position using the mounting screw provided.

Check the top and bottom connectors are vertically

aligned.

Maximum centre distance between the

connectors is 650mm.

Step 5

• Screw the top end of the rail (with o-ring) into the top rail

bracket.

• Check the grub screws in the rail brackets are wound out.

• Match the rail brackets to the connectors and push rail

into place.

• Tighten grub screws top and bottom.

Step 6

• Connect one end of the hose to the bottom of the rail or the elbow.

• Screw the other end of the hose to the shower handset.

• Ensure there is a washer in both ends of the hose.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

0800 804 222

Australia

1300 638 483

0800 195 1602

www.methven.com

Never use abrasives or abrasive cleaning agents to clean this

product. Clean regularly with contamination free warm soapy

water and a damp soft cloth.

Periodically the ﬁlter washer should be removed from the end of

the shower hose and cleaned.

Care and Cleaning:

439982 ISSUE B

Technical Speciﬁcations:

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

ROUND WET/DRY RAIL

Installation Guide

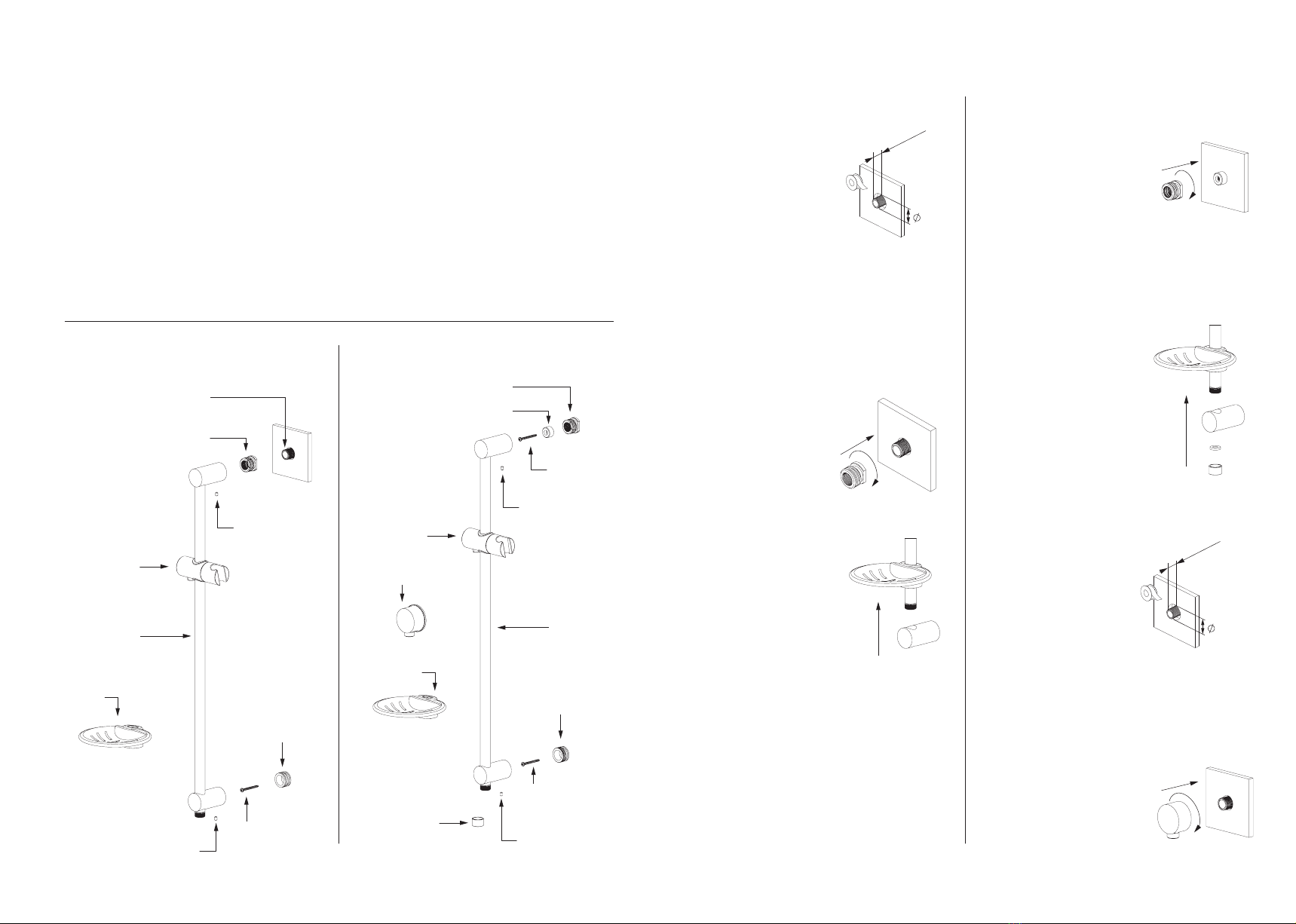

450 - 650mm

Inlet Connector

Rail Rail

Slider

Rail End Cap

Grub Screw

Mounting

Screw

Bottom Rail

Connector

Elbow

Grub Screw

Soap Dish

½" BSP Nipple

(Not Supplied) Connecting Nipple

Grub Screw

Mounting

Screw

Inlet Connector

Bottom Rail

Connector

Mounting

Screw

• This product must be installed in compliance with all relevant regional regulations.

• It is the responsibility of the installer to ensure a waterproof seal is achieved between the

product and mounting surface. If in doubt about the quality of the seal, remove the product

and reinstall using silicone to ensure a seal is achieved.

• All pipe work must be thoroughly ﬂushed prior to the installation of the hose.

• After installation all connections must be checked for leaks.

• All outlets used primarily for personal hygiene shall deliver water at a safe temperature as

per regional regulations.

Wet Rail

Step 1

• Install ½” BSP nipple

at the desired top

bracket position.

• Wall lining hole should

be cut or ﬁnished as

per the dimension

shown in the diagram

on the right.

• Cut oﬀ the threaded

nipple 13±2mm from

the wall lining and

apply thread seal tape

to ensure a good seal.

Step 2

• Screw the inlet

connector onto the

nipple.

Step 3

• Slide the soap dish and

bottom rail bracket

onto the rail. Check the

grub screw is located

on the bottom side of

the rail bracket.

Dry Rail

Step 1

• Fix the connecting nipple

to the wall at the desired

top bracket position using

the mounting screw

provided.

• Screw the inlet connector

onto the nipple.

Step 2

• Slide the soap dish and

bottom rail bracket onto

the rail. Check the grub

screw is located on the

bottom side of the rail

bracket.

• Ensure that the washer is

in the rail end cap and

screw it to the bottom of

the rail.

Step 3

• Install ½” BSP

nipple at the desired

elbow position.

• Wall lining hole should be

cut or ﬁnished as per the

dimension shown in the

diagram on the right.

• Cut oﬀ the threaded

nipple 13±2mm from the

wall lining and apply

thread seal tape to ensure

a good seal.

• Screw the elbow onto the

nipple ensuring that the

o-ring is suﬃciently

compressed to create a

watertight seal.

IMPORTANT: Please read all of the instructions before installation.

General:

Installation:

13±2mm

26mm

max

13±2mm

26mm

max

Wet Rail Installation Dry Rail Installation

www.methven.com

Technical Speciﬁcations:

Operating Pressure:

Min: 35kPa/0.35bar

Max: 500kPa/5bar*

Optimum: 150kPa/1.5bar - 500kPa/5bar

Operating Temperature:

Hot: Max 70°C*

Cold: Min 5°C

Inlet Connections:

½" BSP

Operating Pressure:

Min: 150kPa/1.5bar

Max: 500kPa/5bar*

Optimum: 150kPa/1.5bar - 500kPa

Operating Temperature:

Hot: Max 70°C*

Cold: Min 5°C

Inlet Connections:

½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

HANDSET

Installation Guide

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

0800 804 222

Australia

1300 638 483

0800 195 1602

Removal of the ﬂow restrictor in the handset may be necessary to optimise ﬂow

performance in low or unequal pressure systems only.

•

IMPORTANT: Please read all of the instructions before installation.

General:

Methven recommends this product is installed by a licensed plumber in compliance with all

relevant regional regulations.

After installation all connections must be checked for leaks.

All outlets used primarily for personal hygiene shall deliver water at a safe temperature as per

regional regulations.

It is the responsibility of the installer to ensure a waterproof seal is achieved.

NOTE: Some showers may not provide an eﬀective shower when used with gravity fed heated

water systems or where pressures are less than 150kPa/1.5bar at the outlet. Additionally showers

with ﬂow rates of less than 9L/min may not allow the following to function correctly:

- some instantaneous water heaters

- some tempering valves

- some thermostatic mixing valves

Low and Unequal Pressure:

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

A ﬁlter washer should be installed in the hose cone on the water outlet and it should be

cleaned periodically.

If shower performance is compromised by the build-up of lime-scale, soak in limescale

remover for up to 10 minutes. Do not use products containing chlorine bleach or

hydrochloric acid as these can damage the shower. Always rinse the shower thoroughly after

cleaning to remove cleaning products that can damage the shower.

Care and Cleaning:

•

439902 ISSUE A
