Allen + Roth 1142VA-30-201 Manuel utilisateur

ITEM #1083180

ATTACH YOUR RECEIPT HERE

Serial Number__________________ Purchase Date__________________

allen + roth® is a registered trademark of LF,

welcoming • sophisticated • inspiring

Français p. 9

Español p. 17

Questions, problems, missing parts? Before returning to your retailer, call our customer service

department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Friday.

Vanity with Top

MODEL #1142VA-30-201

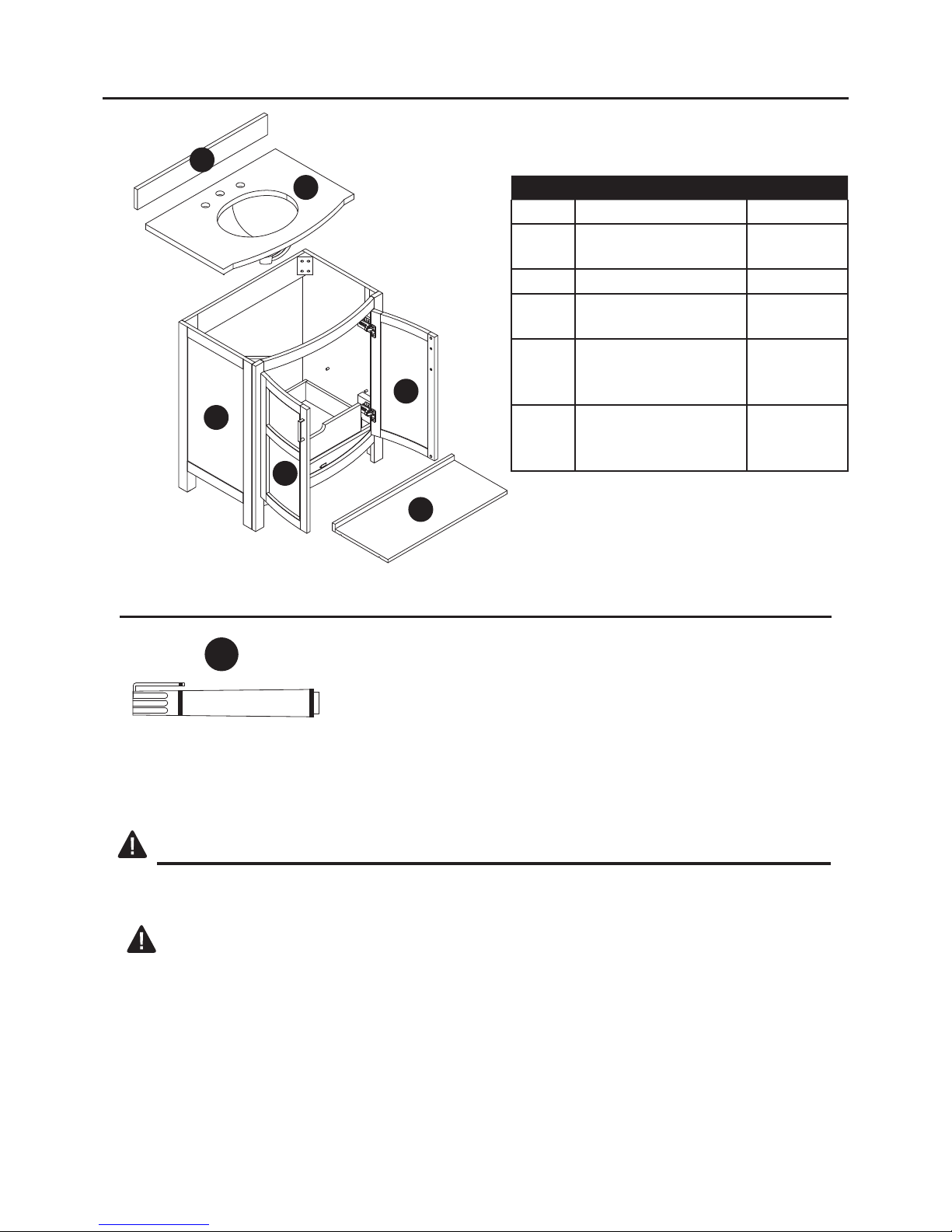

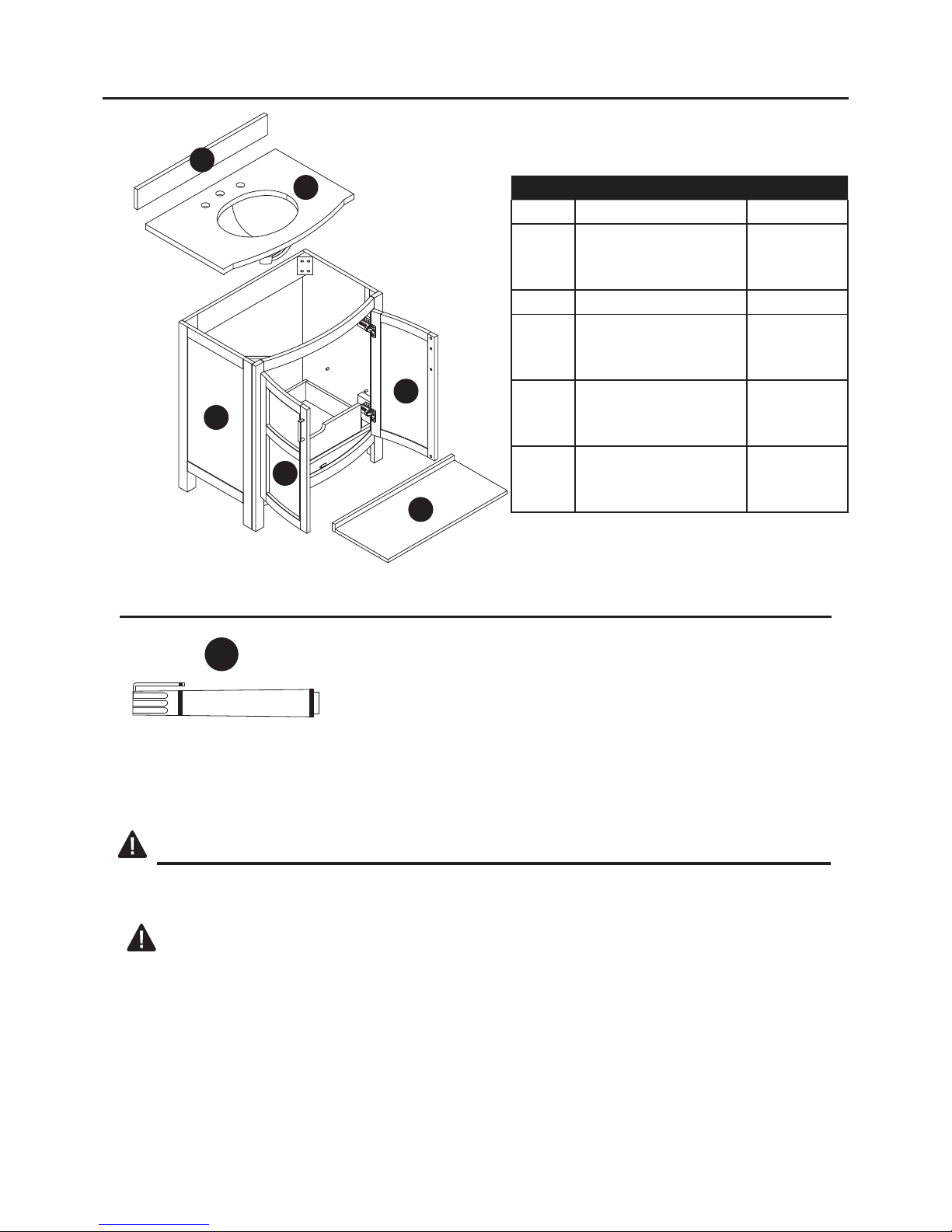

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

A Vanity 1

BTop (preassembled

to Vanity (A)) 1

C Backsplash 1

D Shelf (preassembled

to Vanity (A))

E Left Door

(preassembled

to Vanity (A))

F Right Door

(preassembled

to Vanity (A))

SAFETY INFORMATION

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Please read and understand this entire manual before attempting to assemble, operate or

install the product.

WARNING

• Some steps are more easily handled with two adults.

CAUTION

Touch-Up Pen

Qty: 1

HARDWARE CONTENTS (not shown actual size)

• Use care when assembling the vanity, take your time and follow the assembly instructions

closely.

Estimated Assembly Time: 20-30 minutes (24 hours for adhesive to dry).

Helpful Tools (not included): Measuring tape, level

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with

package contents list and hardware contents list. If any part is missing or damaged, do not

attempt to assemble the product.

Tools Required for Assembly (not included): Phillips screwdriver, utility knife or scissors,

adhesive, power drill with drill bit

VANITY INSTALLATION INSTRUCTIONS

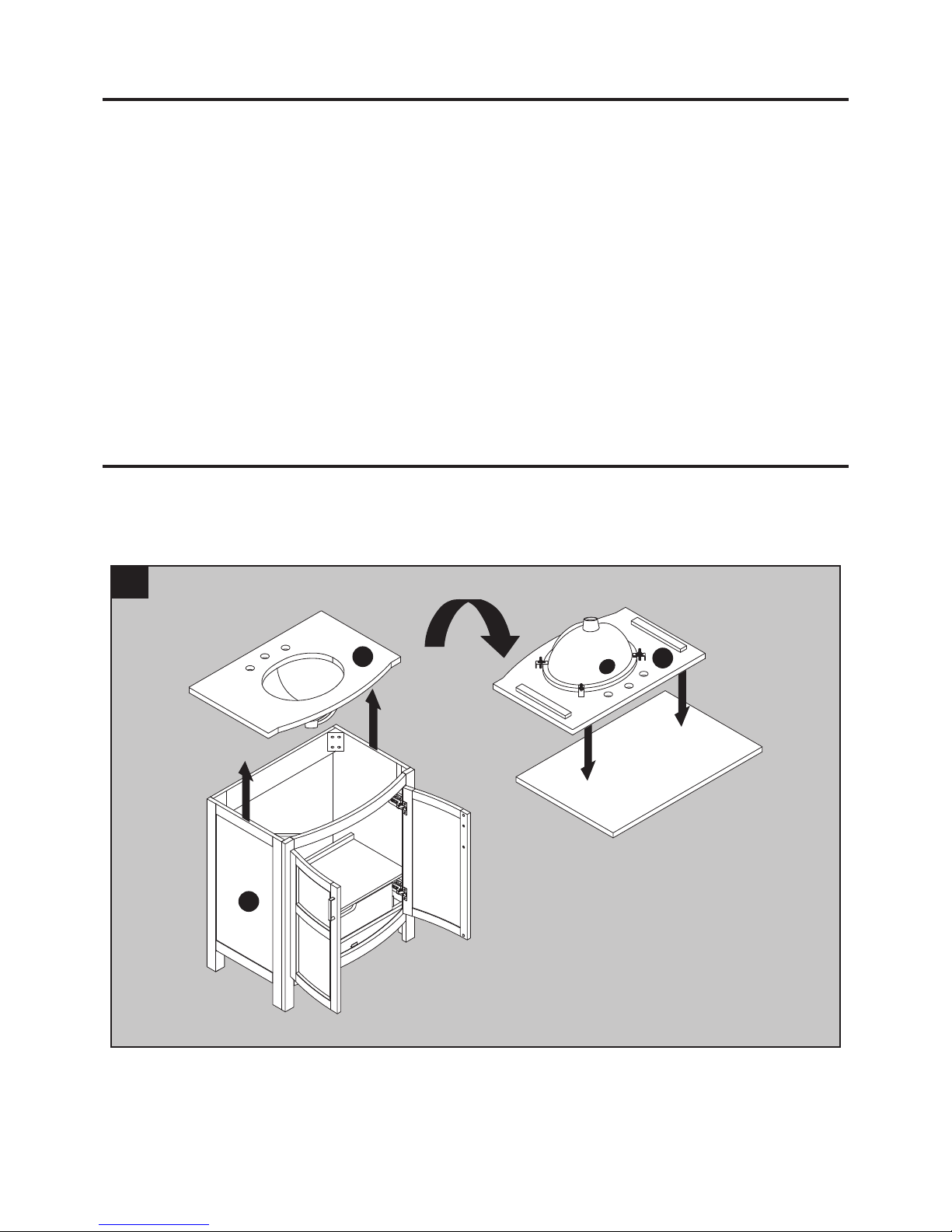

1. To remove the top (B) from vanity (A), please use scissor to snip the zip ties that hold top (B)

to Vanity (A), remove the Top (B) and Backsplash (C) and place them face onto a scratch- free

surface such as a foam sheet that came in the packaging.

BACK

VANITY INSTALLATION INSTRUCTIONS

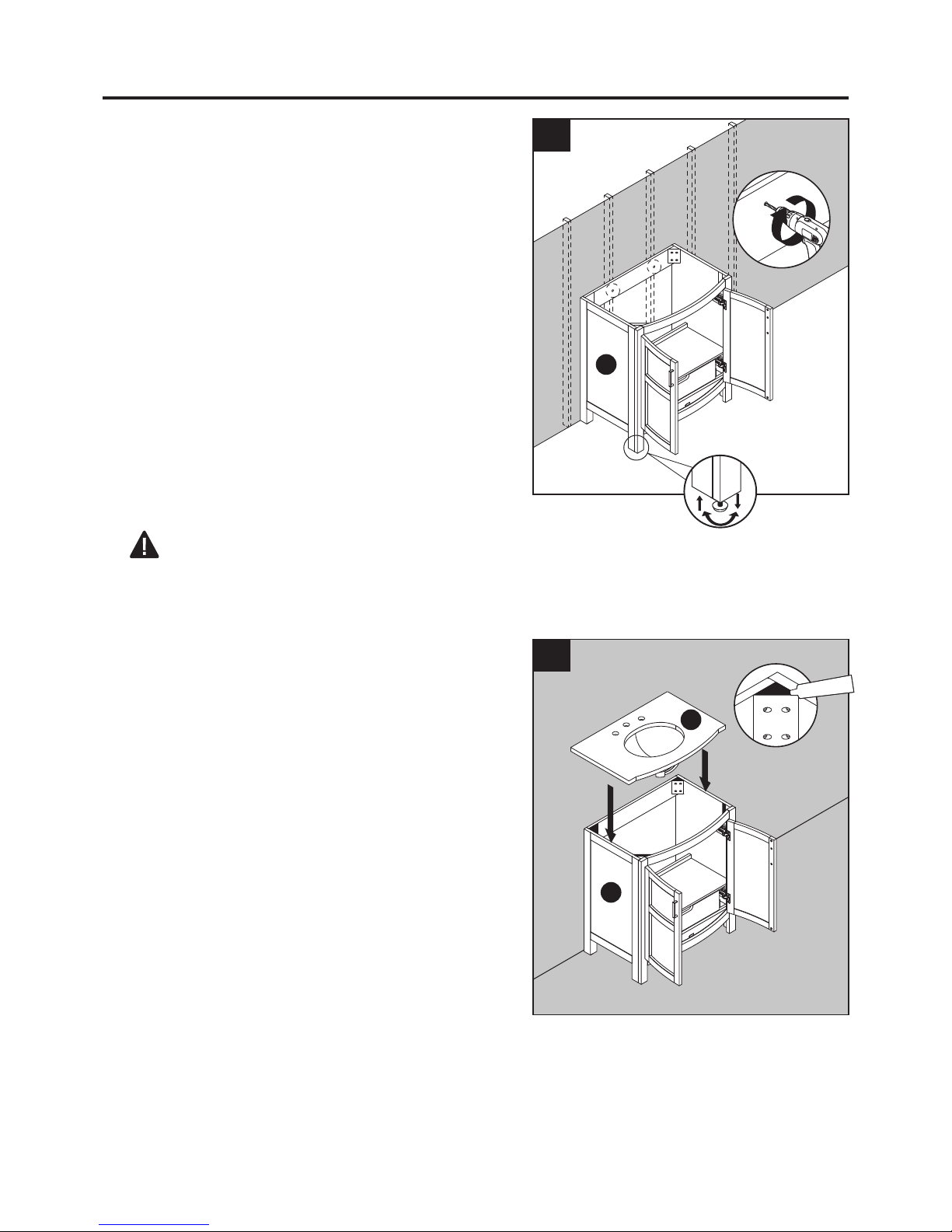

2. Clean area where the vanity (A) will be

permanently located prior to beginning

installation, ensuring the vanity (A) will not

interfere with any water supply and drain lines

once mounted.

Locate wall studs and mark locations. With the

help of another adult, place completed Vanity

Cabinet Assembly to its final location. Adjust

the height of the Vanity Cabinet (A) by

twisting the adjustable leveler foot pins on the

bottom of each leg. Twist clockwise to

decrease height or twist counter-clockwise to

increase vanity height.

Using hardware appropriate for your wall type

(not included), secure Vanity Cabinet (A) to

two wall studs anywhere through the Vanity

Mounting Plates. Be careful not to disturb

any electrical or water lines that may be

concealed in the wall.

3. Apply silicon adhesive (not included) to the top

of triangle connection blocks, With the help of

another adult, gently lower the stone top with

assembled sink onto the cabinet, make sure

the stone top is flush with the back side of the

wood cabinet and the stone overhang is equal

on both sides over the wood cabinet left and

right side walls.

Tip: it may be easier to install the faucet and/or

drain assembly (not included) before

securing the stone top to the wood cabinet.

WARNING

Vanity (A) MUST be secured to the wall.

1328VB-48-242

2026VA-36

VANITY INSTALLATION INSTRUCTIONS

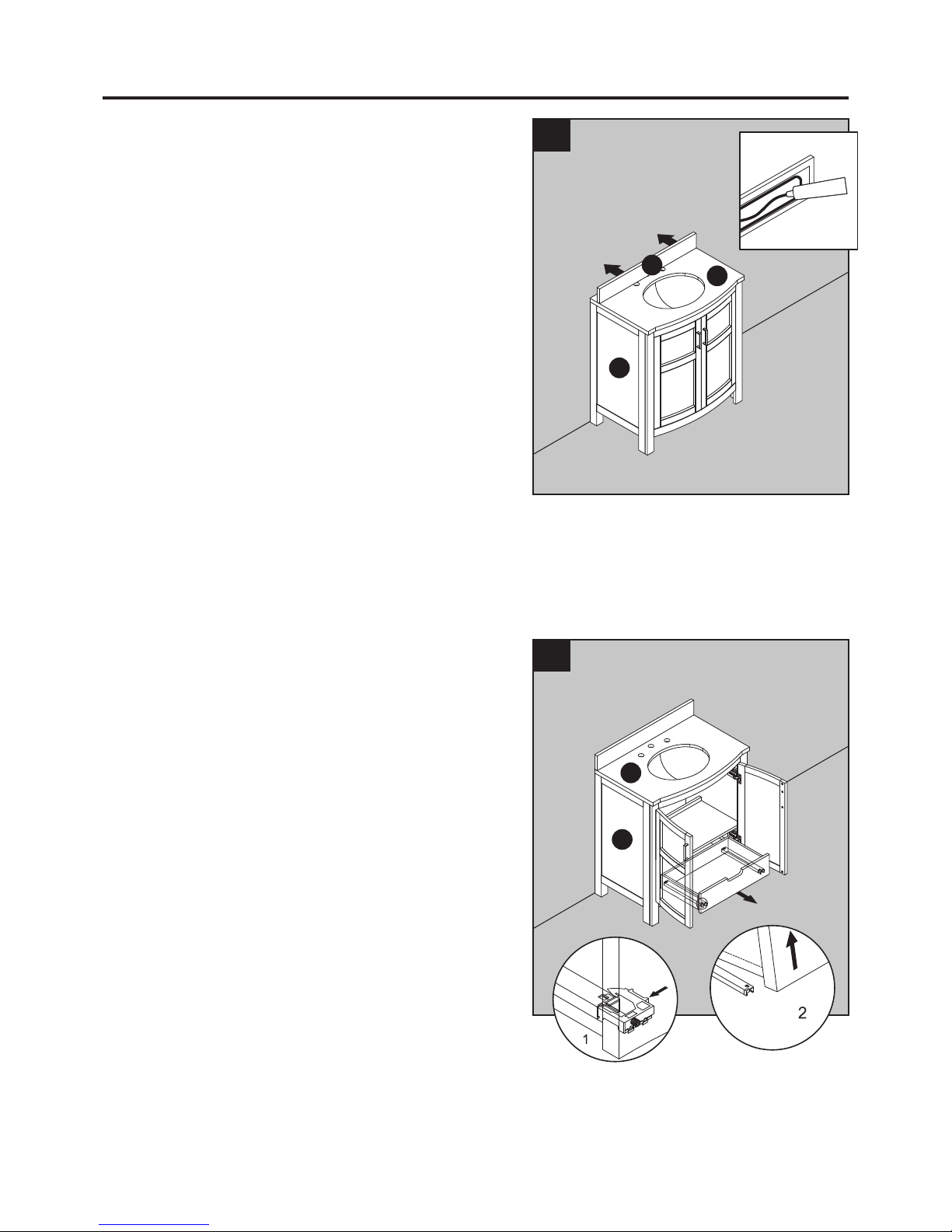

4. Apply adhesive (not included) to unpolished

side and bottom of backsplash (C). Position

backsplash (C) on top (B) and against wall.

Clean any excess adhesive before allowing

to dry.

5. To remove drawer preassembled in vanity (A).

Fully extend drawer, locate plastic levers on

metal glide tracks at left and right sides of

drawer box, push on plastic levers on both

sides at the same time, to disengage drawer

box from the glides, Then gently lift the drawer

up to remove it from vanity (A).

1328VB-48-242

2026VA-36-200

VANITY INSTALLATION INSTRUCTIONS

CAUTION

7. To reinstall drawer into vanity (A), fully extend

metal glide tracks. Gently lower and slide

drawer box into rear glide catch. Next lower

drawer box down to completely rest on

extended glides. Then, push plastic levers to

lock the drawer box in place.

Note: To Adjust the drawer box height, Spin

the adjustment wheel to the left to raise the

drawer box or spin the adjustment wheel to

the right to lower the drawer box. You can

adjust the left and right side glide heights

independently in order to find the drawers best

alignment position.

DO NOT force drawer or damage to glide may

occur. If drawer does not slide in with ease,

remove and try again from the start.

Assembly is now complete. Install desired

faucet and drain assemblies (neither included)

per the manufacturers’ instructions to complete

the installation.

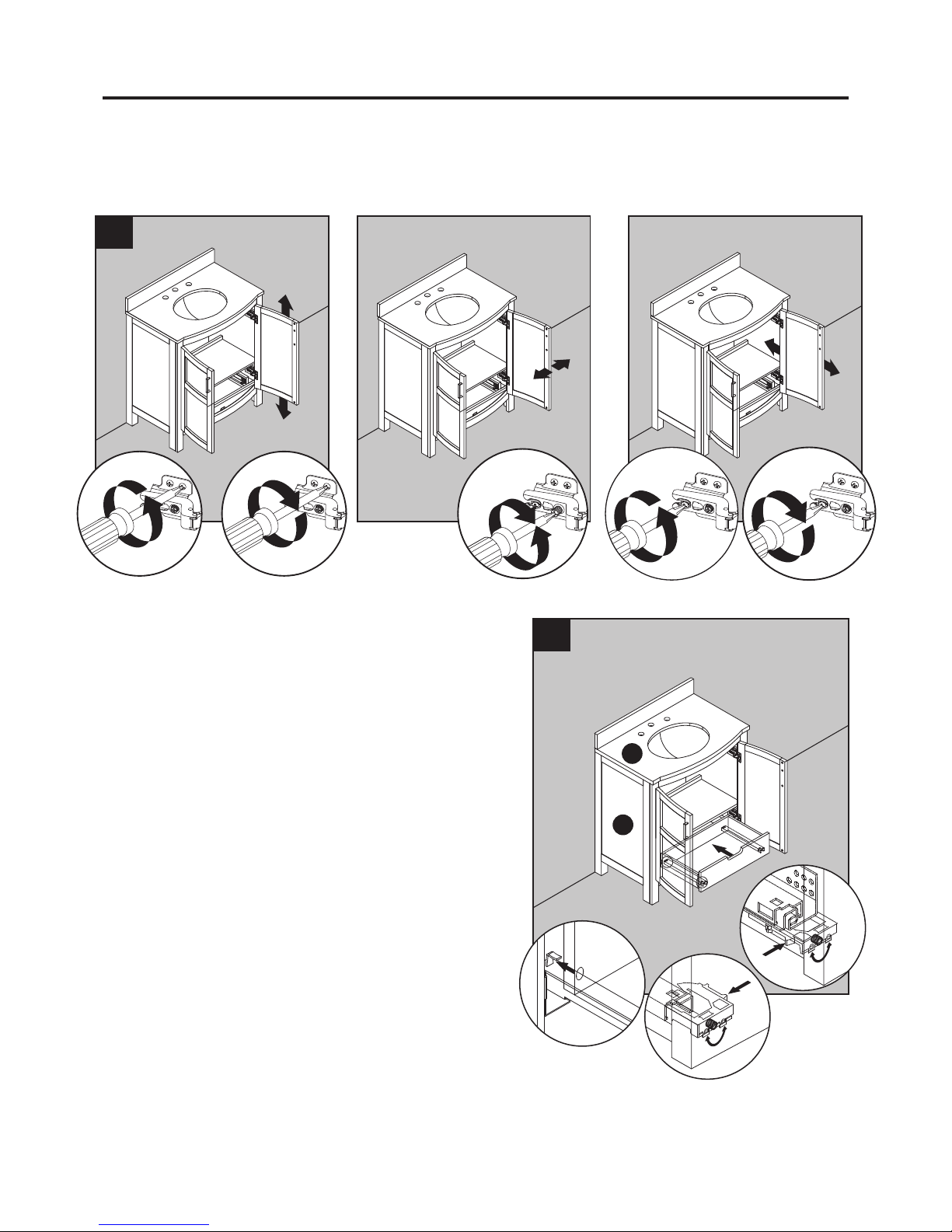

If you need to adjust the doors, do so in the following manner.

To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.

To adjust door left or right, turn screws (b) on both hinges, in or out.

To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.

1328VB-30-242

2026VA-36-200

1116VA-48

CARE AND MAINTENANCE

WARRANTY

IMPORTANT

• Shade variations and patterns are an inherent characteristic of stone (e.g. granite, marble,

engineered stone). Stone tops will vary from product to product. Use caution placing items

such as soap or any fragranced material on the stone surface. Use a soap dish, coaster or

similar item to protect the surface if placing any soap or fragranced products on the stone.

• If soap or fragranced products come in contact with the stone top, rinse the surface with

water and dry using a soft non-abrasive cloth.

• WARNING: Must use cleaning agents safe for stone. Check your cleaning agents use

restrictions before using on any stone. Damage to the stone may result. Vanity manufacturer

not responsible for damage caused by improper cleaning agents or soaps used. Warranty

will not cover damage caused by the use of improper soaps or cleaning agents.

• DO NOT use products to clean the stone top that contain acetone, lemon, vinegar or other

acids as these may cause damage to the stone surface.

• Periodically reseal the stone top using an appropriate stone sealer available from your

local home store. Follow the manufacturer’s directions on how to apply.

• Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product.

• You can clean the vanity with a gentle, non-abrasive household cleaner.

• Make sure to dry the wood immediately with a soft cloth or towel.

• The stone top can be cleaned using standard marble cleaning agents available at your

local supplier.

• Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch. Rub off

excesscolorant promptly with a soft cloth.

• The manufacturer warrants this item against defects in materials and workmanship for a

period of one (1) year from the date of original retail purchase. This warranty applies only

to the original purchaser. This warranty does not apply to any damage on the product by

accident, misuse, or modified, improper installation or by affixing accessories not produced

by the manufacturer. The manufacturer is not accountable whatsoever for product

installation during the warranty period. There is no further expressed warranty. The

manufacturer shall not be legally responsible for incidental, consequential or special

damages arising at or in connection with product use or performance except as may

otherwise be accorded by law. The manufacturer disclaims any and all implied warranties.

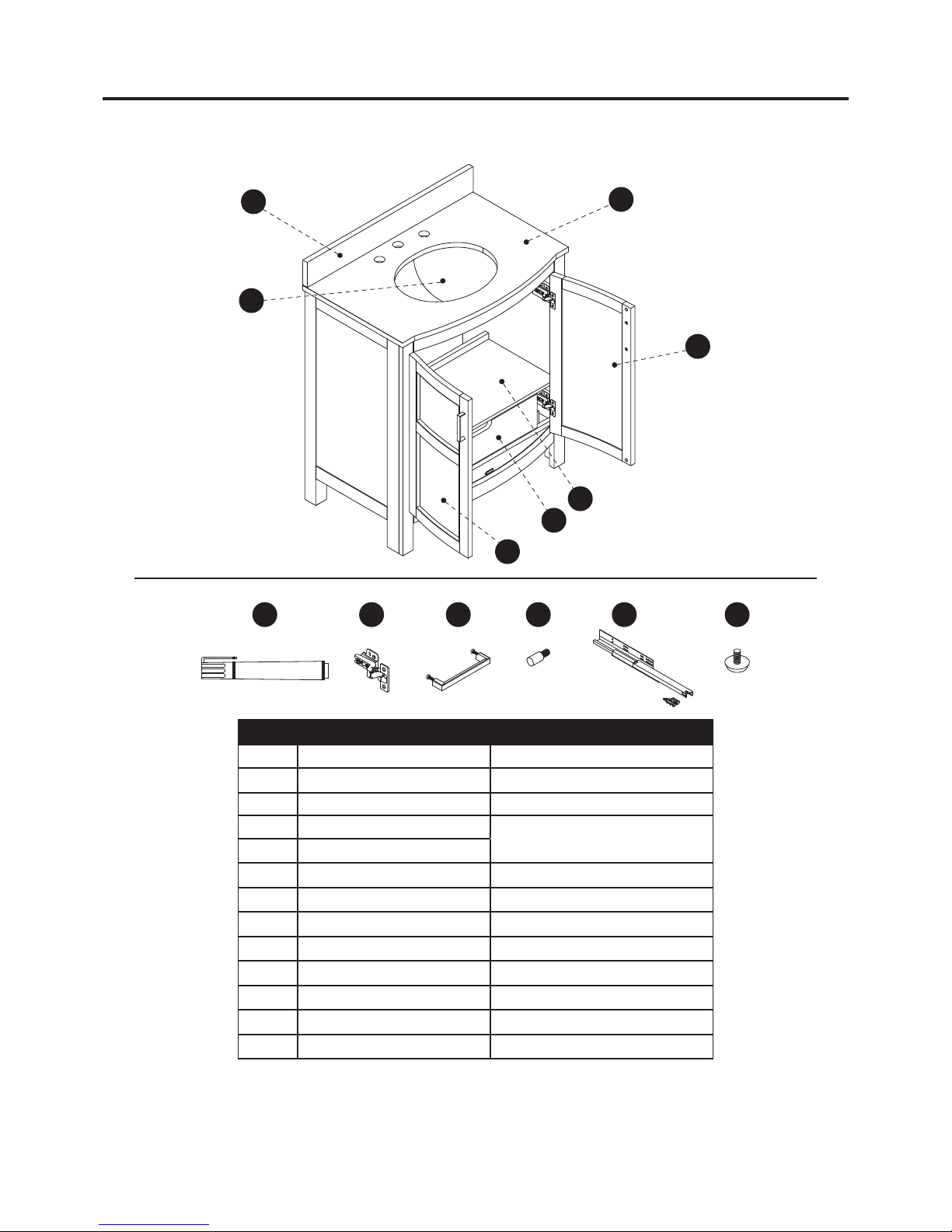

REPLACEMENT PARTS LIST

PART DESCRIPTION PART#

C Backsplash PUBS-25-900-30

B Top 1142VA-30-201 Carrara Top

E Left Door 1142VA-30-201-002/003

D Shelf 1142VA-30-201-001

F Right Door

G Drawer Front 1142VA-30-201-004

H Sink PU18-17x14-Oval

AA Touch-Up Pen OF-0010

BB Hinge 1142-ESC

CC Handle

DD Shelf Pin

CF-96-1142-BN

PU17-SP-002

EE Glide Track Set PUDTC-12x3-Handle

FF Leveler T-1007

Printed in China

For replacement parts, call our customer service department at 1-866-439-9800,

8 a.m. - 8 p.m., EST, Monday - Friday.

AA BB CC DD EE FF
