METER ATMOS 41W Manuel utilisateur

ATMOS 41W

TABLE OF CONTENTS

1. Introduction..............................................................................................1

2. Operation ...................................................................................................3

2.1 Installation ................................................................................................3

2.2 Connecting............................................................................................... 13

2.2.1 Bluetooth Connection .................................................................... 13

2.2.2 Configuration................................................................................. 15

2.2.3 Communication Test ...................................................................... 17

2.2.4 Instantaneous Sensor Measurements (Refresh)............................ 19

3. System....................................................................................................... 21

3.1 Specifications.......................................................................................... 21

3.2 Components ............................................................................................ 25

3.2.1 Pyranometer (Solar Radiation)....................................................... 26

3.2.2 Rain Funnel (Precipitation) ............................................................ 28

3.2.3 Electrical Conductivity (EC) ........................................................... 34

3.2.4 Vapor Pressure and Relative Humidity........................................... 34

3.2.5 Barometric Pressure ...................................................................... 36

3.2.6 Air Temperature ............................................................................. 36

3.2.7 Wind Speed and Direction.............................................................. 38

3.2.8 Tilt Sensor...................................................................................... 41

3.2.9 Solar Panels................................................................................... 41

3.2.10 GPS Receiver................................................................................ 42

3.2.11 Timekeeping ................................................................................ 42

3.2.12 Data Storage ................................................................................ 43

3.2.13 Batteries...................................................................................... 45

18498-00

11.2022

3.2.14 TEST Button ................................................................................. 48

3.2.15 Status Lights................................................................................ 50

3.2.16 Cellular Communications............................................................. 51

3.3 Limitations .............................................................................................. 52

3.3.1 Snow and Ice Accumulation ........................................................... 52

3.3.2 Heavy Wind and Strong Wind ......................................................... 52

3.3.3 Electromagnetic Interference........................................................ 52

4. ZENTRA Software................................................................................ 53

4.1 ZENTRA Utility Mobile ............................................................................. 53

4.2 ZENTRA Cloud.......................................................................................... 53

5. Service....................................................................................................... 55

5.1 Uninstalling ............................................................................................. 55

5.2 Calibration............................................................................................... 55

5.3 Recalibration Recommendations............................................................. 57

5.4 Cleaning and Maintenance....................................................................... 57

5.5 Update Firmware ..................................................................................... 62

5.6 Troubleshooting....................................................................................... 62

5.7 Customer Support.................................................................................... 65

5.8 Terms and Conditions .............................................................................. 66

APPENDIX A. Compliance Certifications..................................... 67

A.1 USA.......................................................................................................... 67

A.2 Canada .................................................................................................... 67

A.3 European Union ....................................................................................... 68

A.4 Japan....................................................................................................... 69

References .................................................................................................... 70

1. INTRODUCTION

Thank you for choosing the ATMOS41W from METER Group. The ATMOS41W is part of the

ZENTRA System, a collection of data loggers, software, and compatible sensors to measure

environmental parameters accurately and cost effectively.

The ATMOS41W All-in-One Wireless Weather Station is designed for continuous monitoring

of environmental variables, including all standard weather measurements (Section3). The

ATMOS41W measures the following:

• Solar radiation

• Precipitation

• Precipitation electrical conductivity

• Relative humidity / Vapor pressure

• Barometric pressure

• Air temperature (min, max, average)

• Wind speed

• Wind direction

• Maximum wind gust

• Tilt

All sensors and wireless cloud communications are integrated into a single, small

form-factor unit, requiring minimal installation effort. A robust design that prevents

errors because of wear or fouling make the weather station ideal for long-term, remote

installations. ATMOS41W can be used for a variety of applications:

• Weather monitoring

• Microenvironment monitoring

• Spatially-distributed environmental monitoring

• Crop weather monitoring

• Fire danger monitoring

• Weather networks

Additional advantages include its low-power design that supports the integrated battery-

operated wireless cloud communication that uploads data straight to ZENTRA Cloud. A tilt

sensor warns the user of out-of-level condition, and no configurations are necessary.

INTRODUCTION

Prior to use, verify all ATMOS41W system components are included and appear in good

condition.

• ATMOS41W

• V-bolt with 2 washers and 2 nuts

• 13-mm (1/2-in) wrench

• 8-mm (5/16-in) wrench

• ZENTRA Cloud Device Subscription information (orange card)

• 6 AA batteries, installed (NiMH rechargeable)

When evaluating where to install the ATMOS 41W, METER recommends verifying adequate

cellular signal for the chosen location. The cellular signal must be strong enough for data to

be transmitted to ZENTRA Cloud.

ATMOS 41W

2. OPERATION

Please read all instructions before operating the ATMOS41W to ensure it performs to

its full potential. Prior to field installation, please verify all ATMOS 41W components

arrived intact.

Please carefully follow the information in Power On and Connect With ZENTRA Utility

Mobile on page 4 and Add ATMOS 41W toZENTRA Cloud on page 7 (Table1)

before taking the device into the field for installation. Test the ATMOS41W sensor and

communications functionality in a lab or office prior to field installation to verify the

correct operation of the system.

When moving the device to the field, follow Field Site Preparation on page 10 to ensure a

successful installation.

PRECAUTION

METER sensors are built to the highest standards, but misuse,improper protection,or improper installation may

damage the sensor and possibly void the manufacturer’s warranty. Before integrating the ATMOS41W into a system,

make sure to follow the recommended installation instructions and have the proper protections in place to safeguard

sensors from damage.

2.1 INSTALLATION

Follow the steps listed in Table1 to set up the ATMOS41 and start collecting data.

CAUTION

Never immerse the ATMOS41W in liquids.This and other misuse, improper protection,or improper installation may

damage the ATMOS41W and void the warranty.

Table1 Installation

Tools Needed

Wrench 13 mm (0.51 in) and 8 mm (0.31 in) (included with the instrument)

Mounting pole 31.80 to 50.80-mm (1.25 to 2.00-in) diameter

Smaller mounts are compatible if washers are added to the V-bolt. United

States standard pipe sizes that are compatible are 1.00, 1.25, and 1.50-in.

Square tubing with a width of 1.25 to 2.00-in or T-posts can also work as

mounting options.

Software

ZENTRA Utility Mobile using Apple®iPhone®(iOS 11.0 or newer) or Google

AndroidTM smartphone (Android 7.0 or newer). For best results, use the latest

versions of ZENTRA Utility Mobile software and ATMOS 41W ﬁrmware.

ZENTRA Utility Mobile will prompt with available updates for software and

ATMOS41W ﬁrmware. Consult Section5.6 for more troubleshooting tips.

OPERATION

Table 1 Installation (continued)

Preparation

Verify Cellular Signal

METER recommends verifying that the chosen location has adequate

cellular signal.

The cellular signal must be strong enough for data to be transmitted to

ZENTRA Cloud.

Data Access

Data are accessed online via ZENTRA Cloud, a web application used to

download, view, and share data as well as to change conﬁgurations.

The ATMOS 41W requires a paid subscription to use ZENTRA Cloud.

Save the orange Device Subscription card included with the ATMOS 41W in a

safe location. This card contains the following information for the subscription:

• Device serial number

• Password

• Server name/address where sensor data is stored.

Device Subscription

Device Serial Number: A4100000

Device Password: password

Server: zentracloud.com

Use this unique Device Serial Number and Device

Password to subscribe to this device on zentracloud.com

Keep this information in a safe place.

Do not leave it inside the device case.

Power On and

Connect With

ZENTRA Utility

Mobile

Install ZENTRA Utility Mobile

Install on a smartphone or tablet:

• Scan the QR code below to open the applicable app store for the mobile

device (Apple App Store®online store or Google Play™ store).

• Download the application.

Apple Store App Google Play Store

Remove Rain Funnel

Press the rain funnel down to compress the internal spring. Twist the

funnel counter-clockwise to unlock from the ATMOS41W base as shown in

Section3.2.4.

CAUTION

The rain funnel is connected to the ATMOS41W by a wire to the main unit—DONOT

disconnect the wire.Carefully move the rain funnel to the side,keeping the wire connected.

ATMOS 41W

Table 1 Installation (continued)

Power On and

Connect With

ZENTRA Utility

Mobile (continued)

Power Up Device

Pull and remove the clear, plastic pull tab that protrudes from the battery

compartment. This will allow contact with the installed batteries and will

activate the Bluetooth®connection to allow for communication with ZENTRA

Utility Mobile.

Pull

Remove

Before Use

Pull tab

The status lights on the blue overlay will start blinking, indicating power

isavailable.

NOTE: The status lights will settle to a short, single green blink every 5 s, signaling the

dataacquisition component isready for use.

Test Bluetooth Module

With the ZENTRA Utility Mobile app open and the ATMOS 41W rain funnel

removed, push the TEST button on the blue overlay (see image below).

The status lights located on the blue overlay will eventually settle to a single,

short, green ﬂash approximately every 5 s. This signals the instrument is ready

for use (Section3.2.10). The ATMOS41W will now be able to collect and report

data to ZENTRA Cloud according to settings in ZENTRA Utility Mobile.

OPERATION

Table 1 Installation (continued)

Power On and

Connect With

ZENTRA Utility

Mobile (continued)

Connect the ATMOS 41W

In ZENTRA Utility Mobile (Section2.2), tap Connect. Select the desired

device. Bluetooth connection will be established and ATMOS 41W and sensor

information will be retrieved.

Replace Rain Funnel

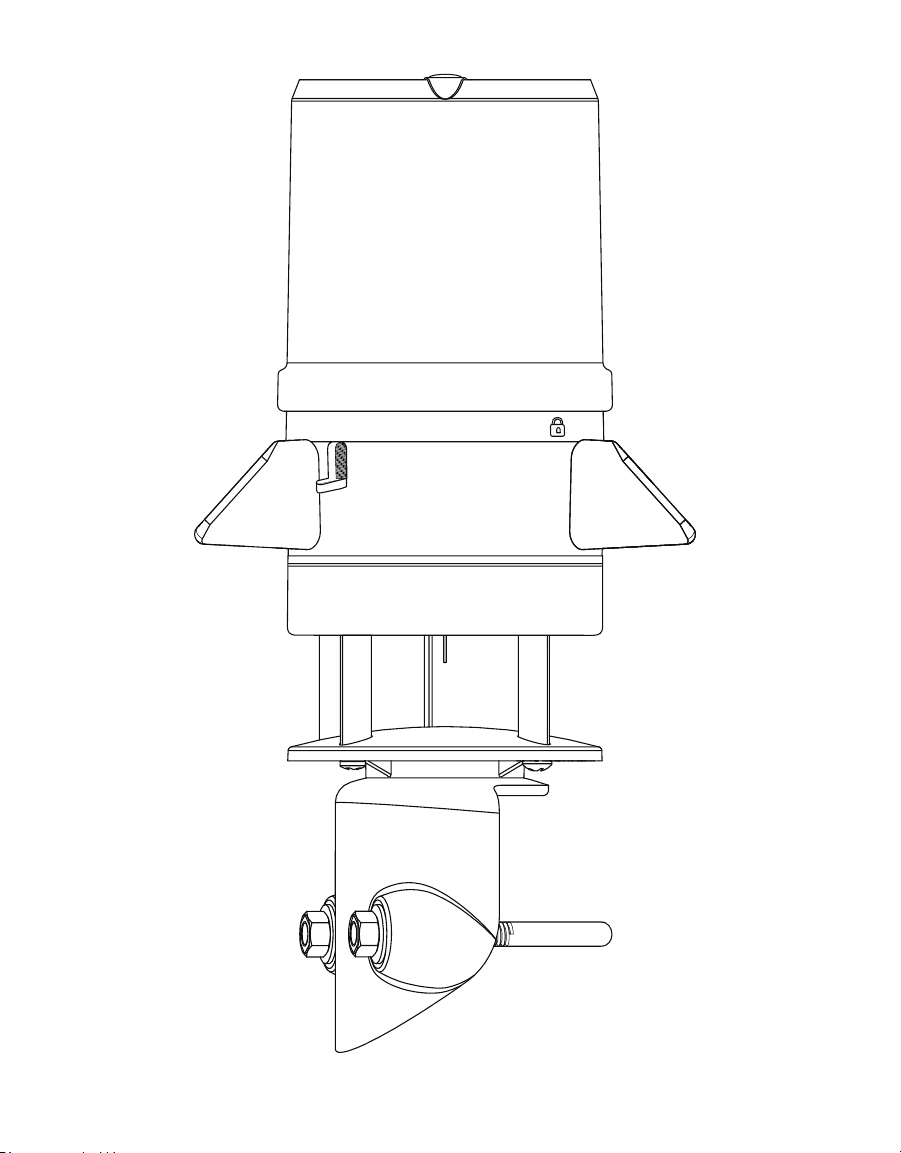

Replace the rain funnel by lining up the recesses, press down, and twist

clockwise until the padlock icons align and the funnel locks (Figure17).

Be sure the funnel cable and connector are clear of the internal spring and are

not pinched before closing. The ATMOS41W is now ready for use.

Conﬁgure the ATMOS41W Using ZENTRA Utility Mobile

In ZENTRA Utility Mobile, tap on Conﬁgure.

Review the cellular data upload setting and the sensor measurement interval.

Make changes if desired and save changes (Section2.2.2).

Factory default conﬁguration is 15 min logging interval and 1 h upload.

Verify Readings

In ZENTRA Utility Mobile, tap Refresh to show a list of readings. Verify the

readings are within expected ranges (Section2.2.3).

Add ATMOS 41W

toZENTRA Cloud

Create User Account

Using a web browser, navigate to the server address listed on the orange

Device Subscription card. Keep the Device Subscription card close by for use

later in this section or if device needs to be added if deleted from the system.

Device Subscription

Device Serial Number: A4100000

Device Password: password

Server: zentracloud.com

Use this unique Device Serial Number and Device

Password to subscribe to this device on zentracloud.com

Keep this information in a safe place.

Do not leave it inside the device case.

Autres manuels pour ATMOS 41W

Table des matières

Autres manuels METER Station météorologique
