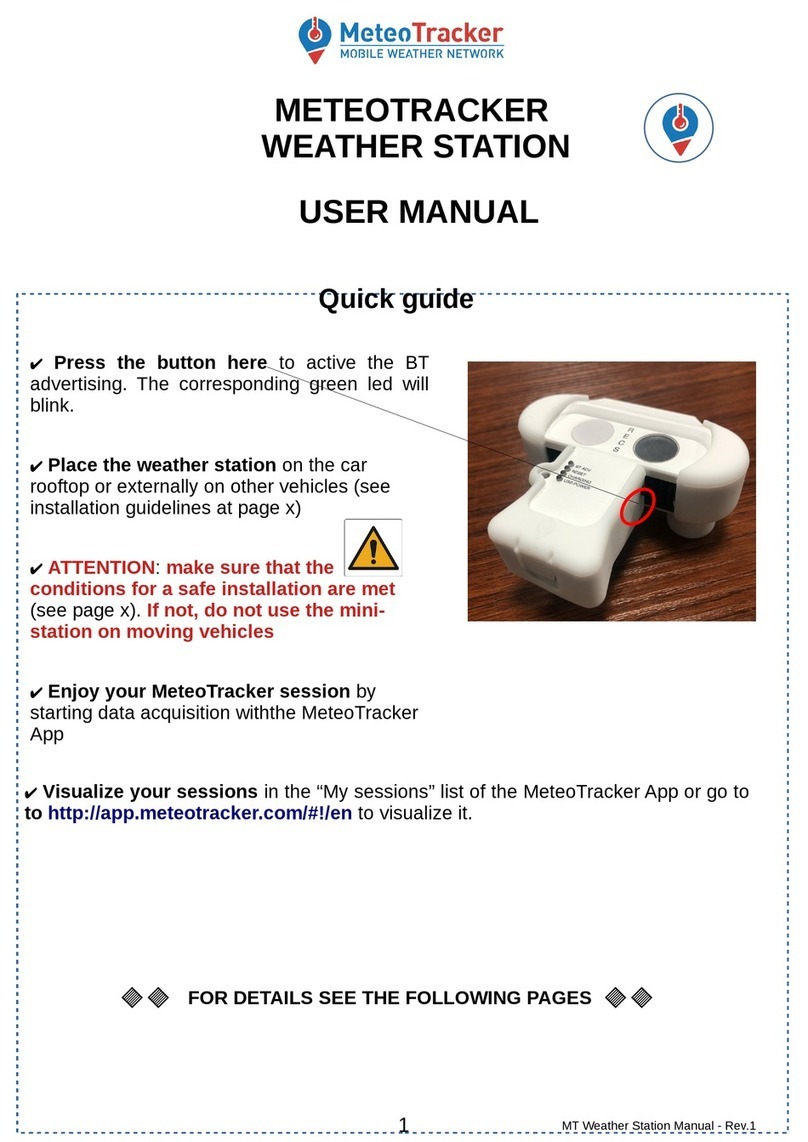

METEOTRACKER MT01 Manuel utilisateur

✔Press the button here to active the BT

advertising. The corresponding green led will

blink.

✔ Place the weather station on the car

rooftop or externally on other vehicles (see

installation guidelines at page x)

✔ ATTENTION: make sure that the

conditions for a safe installation are met

(see page 2). If not, do not use the mini-

station on moving vehicles

✔Enjo our MeteoTracker session by

starting data acquisition withthe eteoTracker

App

METEOTRACKER

WEATHER STATION

USER MANUAL

✔Visualize our sessions in the “ y sessions” list of the eteoTracker App or go to

to http://app.meteotracker.com/#!/en to visualize it.

🔶🔶 FOR DETAILS SEE THE FOLLOWING PAGES 🔶🔶

Quick guide

T Weather Station anual - Rev.3

The mini-station is provided with a 3-magnets base for installation on

ferromagnetic surface, like car rooftop.

Guideline:

✔place the mini-station so that the air flow enters the two openings in front of

the device. Keep the frontal openings

perpendicular to the air flow

Installation

SAFETY

ake sure that the surface where the mini-station is installed:

-is made of ferromagnetic material

-is flat and clean

-no ice or snow is present

-no obstacle or object is present that may reduce the

magnetic strength of the 3 magnets placed in the

mini-station base

-if all of the above conditions are not met to not or if for

other reasons the installation is not safe do not use the

mini-station while the vehicle is moving.

In case of snowfall and/or freezing rain the abrupt decrease

of the friction coefficient may cause wide slip of the device,

that may led to its detachment. If such a condition is

encountered, the device must be ensured through a wire

passing through the hole located in the left side of the device

(close to the 4 led).

✔make sure that both

sensors are equally exposed

to the sun radiation

✔keep the mini-station

aligned with air-flow

direction

T Weather Station anual - Rev.3

Device status (LED signalling)

Bluetooth

advertising ON

Reset (keep the

Adv button pressed

for more than 10

seconds)

Charging ongoing

Power source OK

T Weather Station anual - Rev.3

Batter charging

✔Open the USB-C port in the rear of the

device

✔ Attach the batter charger through a USB-

C cable

✔ Charging related LED will switch-on

✔When charging is completed, the charging

related LED will switch-off (charging duration:

2-3 hours)

4T Weather Station anual - Rev.3

Technical specifications and features (1/2)

👉SAMPLING FREQUENCY

1 sample per second

👉CONNECTIVITY

•Bluetooth Low Energy

•Cellular by smartphone (Smartphone version)

•Cellular by cellular module (Standalone version)

👉POWER AND INSTALLATION

•Battery life: 250+ hours (rechargeable, 200 mAh)

•Cellular module (standalone version only) power:USB-C plug-in to vehicle

power source

•Installation: magnetic base

👉MEASURED PARAMETERS

✔Temperature

•° C or °F

•accuracy: +/- 0.2° C (typ, sensors) | +/- 0.5° C (under solar radiation with

speed > 7 km/h --> patented Radiaton Error Correction S stem RECS)
