MD SPORTS 1639021 Manuel utilisateur

MODEL: 1639021

ASSEMBLY INSTRUCTIONS

VM Innovations

ATTENTION

DO NOT RETURN

TO THE STORE

Contact

MD Sports

Customer Service

* For additional resources and Frequently

Ask Questions, please visit us at

themdsports.com

LIMITED 90 DAYS WARRANTY

NOTICE!

STAPLE YOUR RECEIPT HERE

This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during

the limited warranty period, a part is found to be defective or breaks, we will offer replacement parts at no

cost to you, the customer. The only exceptions to the warranty include mainframes, table tops, playing

surfaces, batteries or tools.

The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse,

accidental damage or neglect.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from one

State (province) to another.

A PURCHASE RECEIPT (or other proof of purchase) will be required before any warranty service is initiated.

For all requests for warranty service, please feel free to contact our Consumer Service Department at :

Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Medal

Sports, can not handle the product which is out of product’s limited warranty since we only provide available

parts. Thank you!

PLEASE CONTACT US BEFORE RETURNING

THE PRODUCT TO THE STORE.

WEBSITE: www.themdsports.com

1 - Please leave your name, address, phone number, model number, parts needed on the answering

machine if there is no attendant. Failure to do so will result in a delay in shipping parts to you.

2 - Please review the replacement parts list and make sure that you have all of your parts before begin-

ning assembly. For questions that may arise or for missing/damaged parts, please contact us.

3 - Since you build all tables upside down, please inspect tabletops or playing surfaces right away before

putting together, all damaged table tops/playing surfaces need to be returned to the store. Please

contact with retailer for their return policy.

www.themdsports.com

1639021 1

(Continued on the next page.)

CAUTION !

ASSEMBLY TIPS

TOOLS REQUIRED

Phillips Screwdriver - Not Included

Standard (Flat Head Screwdriver) - Not Included

Wrench - Included

Allen Wrench - Included

WARNING:





WARNING: Adult Assembly Required.

IMPORTANT NOTICE!

Power Tools

-Set Low Torque

High Torque

over tightened

1 - Please read the instructions carefully, and follow all assembly, operation and safety

instructions properly in order to avoid damage and injury. For the assembly, at least four

adults are required.

2 - Some figures or drawings may not look exactly like your product. Please read and under-

stand the text before beginning each assembly step.

Do not use or keep product

outdoors. For indoor use only.

No wet/humid conditions.

Keep away from petsNo Children in

Assembly Area

Electric Screwdrivers may be helpful during assembly; however,

please set a low torque and use extreme caution.

1 - This product is intended for INDOOR use only.

2 - Please do not sit, climb or lean on the product.

3 - Please do not drag the product when moving it in order to avoid damaging the legs.

4 - Please only use spray furniture polish to clean the exterior surfaces of the product.

5 - This is not a child's toy, adult supervision is required for children playing this game.

Strong Adults Needed

www.themdsports.com

1639021 2

(Continued on the next page.)

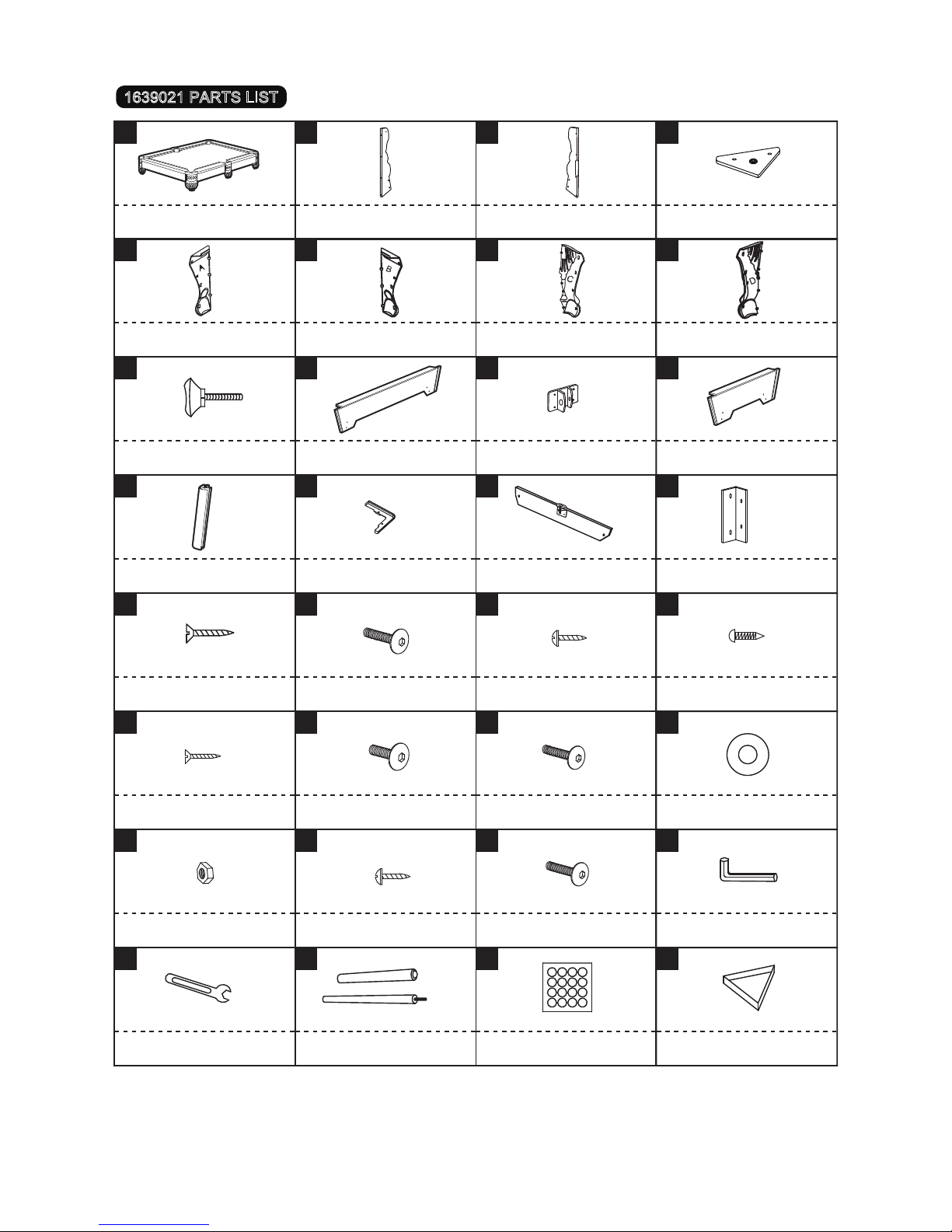

1639021 PARTS LIST

2 3 41

x1 x4 x4 x4

6 7 85

x4 x4 x4 x4

10 11 129

x2 x2

14 15 1613

x4 x4 x2 x8

18 19 2017

22 23 2421

26 27 2825

30 31 3229

Mainframe Inside Leg - A Inside Leg - B Leg Base

Plastic Leg - A Plastic Leg - B Plastic Leg - C Plastic Leg - D

Lower Side Apron Lower End Apron

Apron Corner Leg Top Panel Support Board

“U” Plastic

Bracket

Steel Bracket

x16

P3 x 1/2” Screw

x13

T4 x 1/2” Screw

x20

T4 x 5/8” Screw

F3 x 5/8” Screw

x16

5/16” x 1” Bolt

x16

5/16” x 1/2” Bolt

1/4” x 1-1/2” Bolt

1/4” Nut

x12

1/4” x 1” Bolt

1/4” Washer

Cue

www.themdsports.com

1639021 3

(Continued on the next page.)

Leg Leveler

x40

F4 x 1-3/4” Screw

Allen Key

Wrench

Billiard Ball Set

Triangle

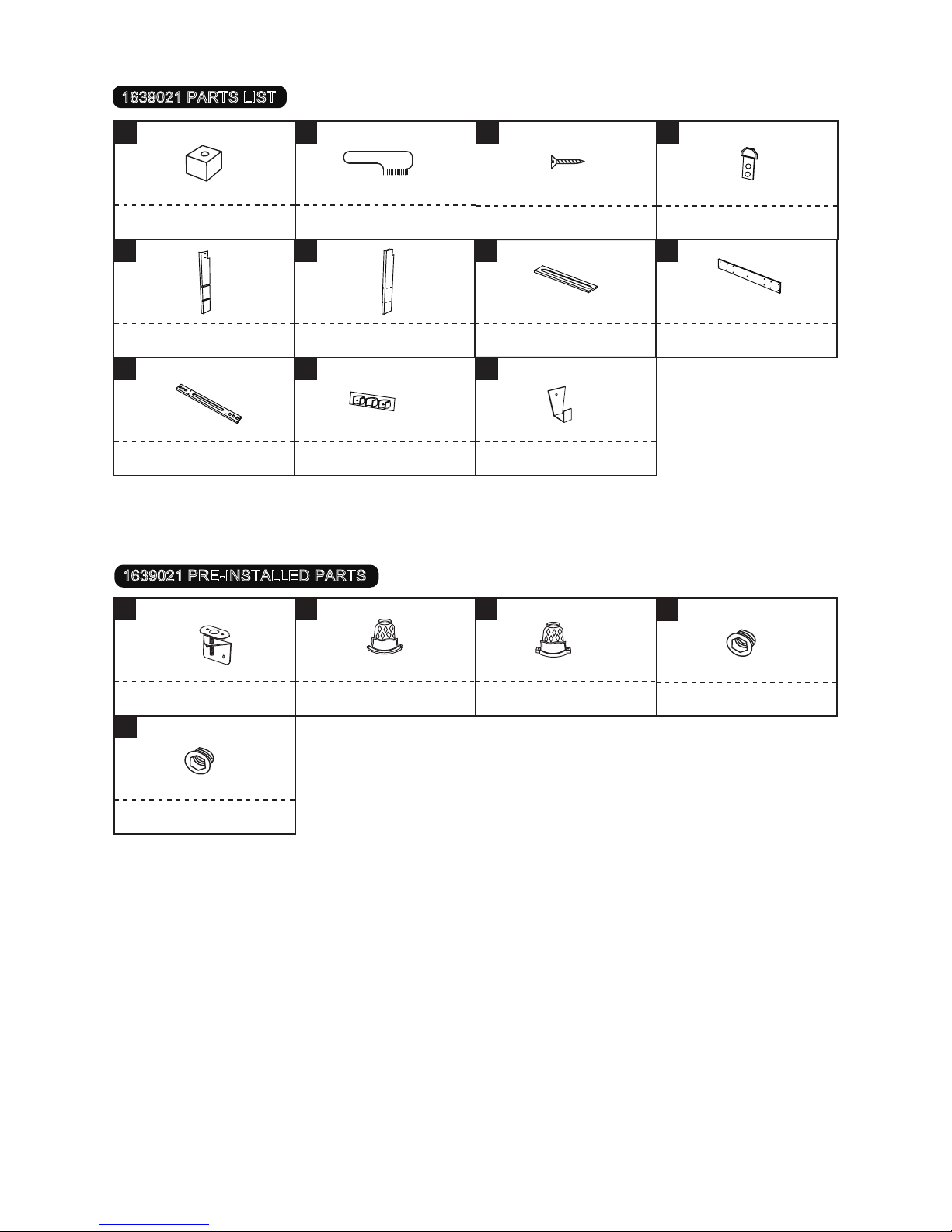

1639021 PARTS LIST

3433

x2 x1

Chalk Brush

P1 P2

x2 x4 x2

P3 P4

x16

1639021 PRE-INSTALLED PARTS

Adjustable

"L" Bracket Corner Pocket Side Pocket 5/16” Nut

x12

1/4” Nut

www.themdsports.com

1639021 4

(Continued on the next page.)

ASSEMBLY INSTRUCTIONS:

1. Find a clean, level place to begin the assembly of your Billiard Table. The table will be assembled

upside down and then turned over on its legs once the assembly completed. This game table is heavy,

and turning it over will require at least four strong adults.

2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts list page.

Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work surface.

F3 x 1/2” Screw

37 38 39

x1 x1 x2

Cue Rack-Left Side Cue Rack-Right Side Cue Rack-Middle Shelf

Cue Rack-Top Panel

Cue Rack Hook

Triangle Holder

Cue Rack-Base Panel Cue Holder

www.themdsports.com

1639021 5

(Continued on the next page.)

FIG.1

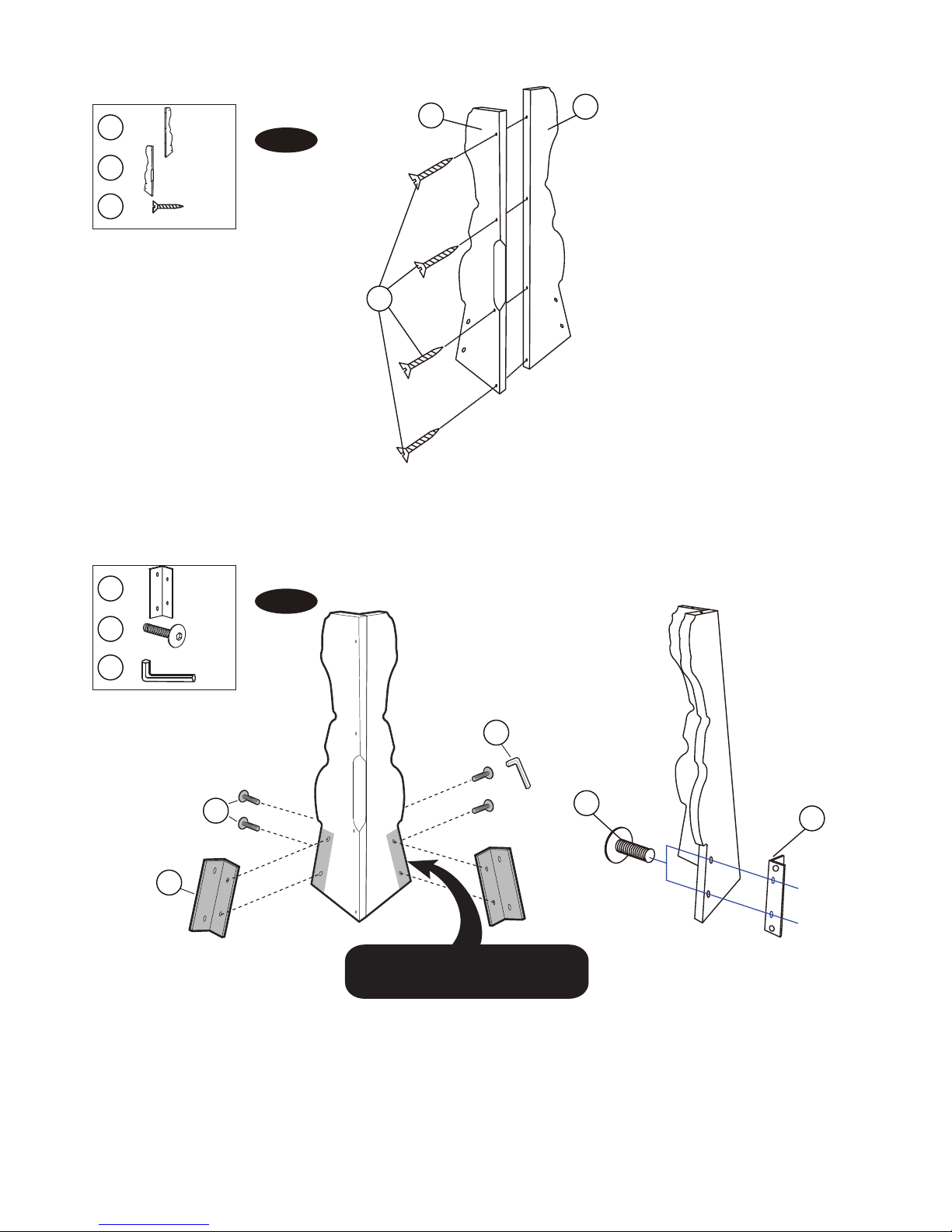

3. Attach the Inside Legs - B (#3) to the Inside Legs - A (#2) using four Screws (#17) per Inside Leg - B. See FIG. 1.

FIG.2

4. Attach the Steel Brackets (#16) to the legs using two Bolts (#18) per Leg. See FIG. 2.

X 4

X 16

FIG. 1

X 8

X 16

X 1

FIG. 2

Side View

NOTE: Outer edge of Steel Bracket

should be flush with edge of Leg.

www.themdsports.com

1639021 6

(Continued on the next page.)

FIG.3

5. Attach the Leg Bases (#4) to the grooves using two Screws (#17) per Leg Base. See FIG. 3A.

6. Screw the Leg Levelers (#9) into the Leg Bases (#4). See FIG. 3B.

X 4

X 8

FIG. 3

IMPORTANT:

Male portion of Leg Base

points down on Leg.

(As shown above).

FIG. 3A FIG. 3B

X 4

FIG. 4

5 6

Locking piece

IMPORTANT: Listen for “CLICK” sound when snapping Legs

together. This will indicate that the Legs are locked firmly in

place. NO “CLICK” = NOT LOCKED.

FIG.4

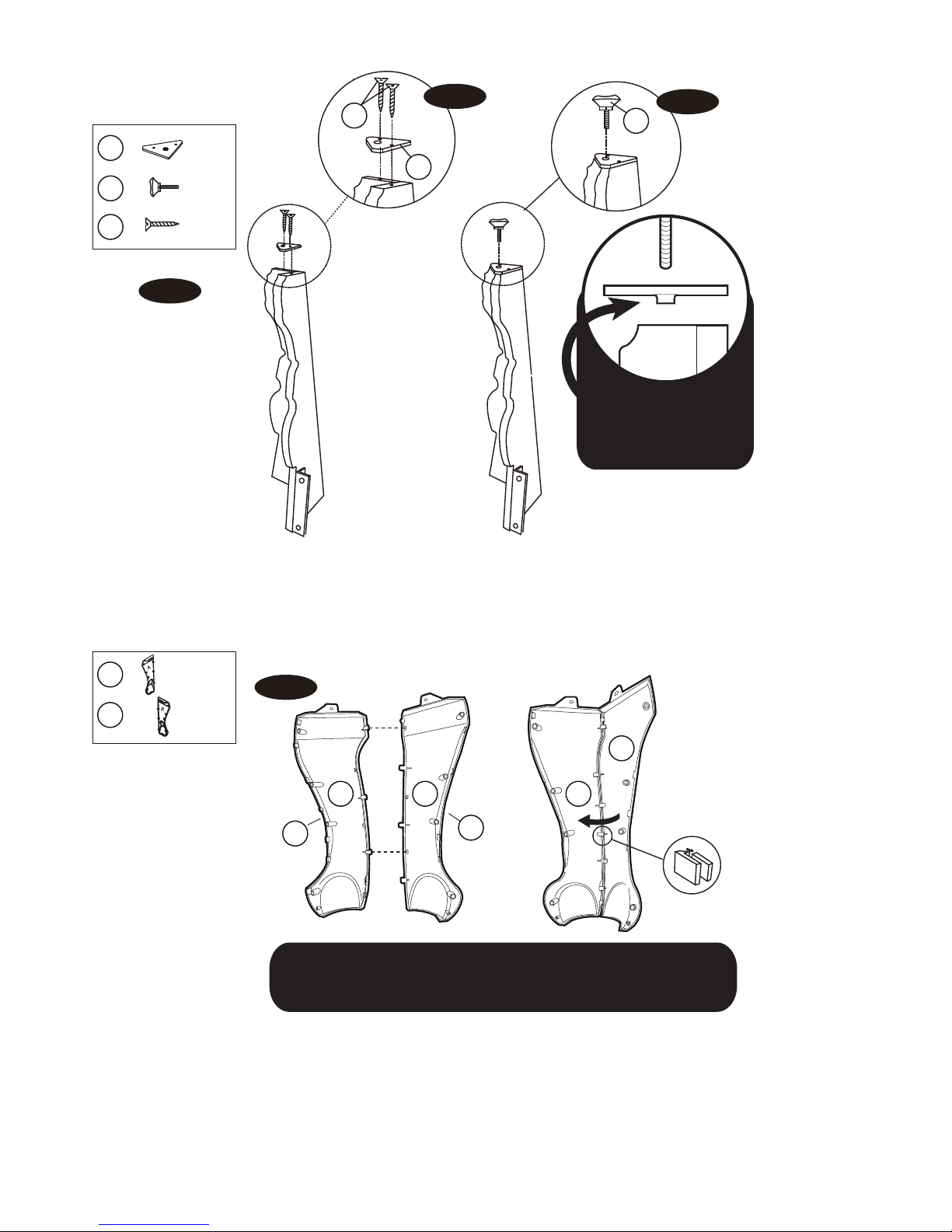

7. Carefully align the seams of the Plastic Legs - A (#5) and Plastic Legs - B (#6); lock them together using the locking

pieces in the legs. See FIG. 4.

www.themdsports.com

1639021 7

(Continued on the next page.)

FIG.5

8. Lock the Plastic Legs - C (#7) and Plastic Legs - D (#8) together in the same way. See FIG. 5.

FIG.6

9. Attach the Plastic Legs (#5 & #6) to the Inside Legs (#2 & #3) and then place the other Plastic Legs (#7 & #8)

around the other side. See FIG. 6.

10. Align the holes of the Plastic Legs (#5 & #6, #7 & #8),then attach together using four Screws (#20) per Leg.

Note: it is not recommended to use a power screwdriver when assembling the Plastic Legs.

Over - tightening of the screw can cause damage to the legs.

X 4

FIG. 5

X 16 FIG. 6

Locking piece

IMPORTANT: Listen for “CLICK” sound when snapping Legs

together. This will indicate that the Legs are locked firmly in

place. NO “CLICK” = NOT LOCKED.

5 & 6

7 & 8

2 & 3

www.themdsports.com

1639021 8

(Continued on the next page.)

FIG.7

11. Tighten the pre-assembled Legs using two screws (#19) per Leg. See FIG. 7.

FIG.8

12. Align the Lower Side and End Aprons (#10 & #12) with Top Boards as shown in FIG. 8. Slide the Apron

Corners (#13) onto the Lower Side and End aprons (#10 & #12). See FIG. 8A.

X 8 FIG. 7

FIG. 8

X 2

X 4

10 12

TOP VIEW: Part # 13

SIDE VIEW: Part # 13

NOTE: Flush with Aprons

FIG. 8A

NOTE: Arrow on the backside of Apron Corners

shows direction to slide the Apron Corners down.

www.themdsports.com

1639021 9

(Continued on the next page.)

FIG.9

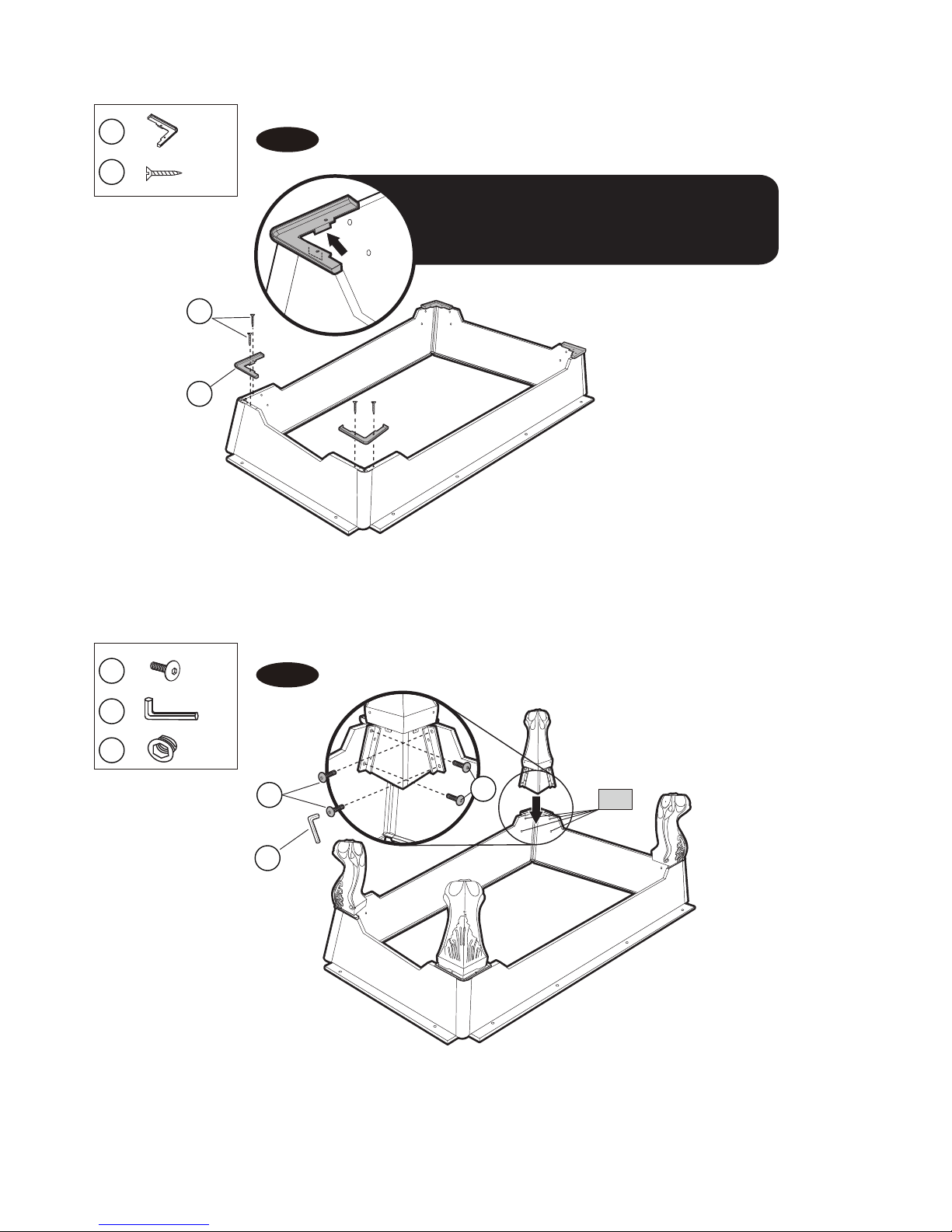

13. Attach the Leg Top Panels (#14) to the corners of the Aprons using two Screws (#21) per Leg Top Panel.

See FIG. 9.

FIG.10

14. Attach the pre-assembled Legs to the Aprons using four Bolts (#22) per Leg. See FIG. 10.

FIG. 9

FIG. 10

X 16

X 1

X 4

X 8

NOTE: Make sure “FLAPS” on Leg Top Panels are

FLUSH AGAINST APRONS before inserting Screws.

X 16
