MD SPORTS 1556306 Manuel utilisateur

Please contact us before returning the product to the store.

MODEL: 1556306

BJ’S

ASSEMBLY INSTRUCTIONS

LIMITED 90 DAYS WARRANTY

This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If,

during the limited warranty period, a part is found to be defective or breaks, we will offer replacement

parts at no cost to you, the customer. The only exceptions to the warranty include mainframes, table

tops, playing surfaces, batteries or tools.

The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse,

accidental damage or neglect.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from

one State (province) to another.

A PURCHASE RECEIPT (or other proof of purchase) will be required before any warranty service is

initiated. For all requests for warranty service, please feel free to contact our Consumer Service

Department at :

Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at

Medal Sports, can not handle the product which is out of product’s limited warranty since we only provide

available parts. Thank you!

PLEASE CONTACT US BEFORE RETURNING

THE PRODUCT TO THE STORE.

WEBSITE: www.themdsports.com

NOTICE!

STAPLE YOUR RECEIPT HERE

1 - Please leave your name, address, model number and parts needed on the answering machine if there

is no attendant. Failure to do so will result in a delay in shipping parts to you.

2 - Please review the replacement parts list and make sure that you have all of your parts before

beginning assembly. For questions that may arise or for missing/damaged parts, please contact us.

www.themdsports.com

1556306 1

(Continued on the next page.)

CAUTION !

ASSEMBLY TIPS

WARNING:

CHOKING HAZARD -- This item contains small parts or /

and small balls.Not suitable for children under 3 years.

WARNING: Adult Assembly Required.

IMPORTANT NOTICE!

1 - Please read the instructions carefully, and follow all assembly, operation and safety instructions

properly in order to avoid damage and injury. For the assembly, at least two adults are required.

2 - Some figures or drawings may not look exactly like your product. Please read and understand

the text before beginning each assembly step.

1 - This product is intended for indoor use only.

2 - Please do not sit, climb or lean on the product.

3 - Please Do Not drag the product when moving it in order to avoid damaging the legs.

4 - Please only use spray furniture polish to clean the exterior surfaces of the product.

5 - This is not a child's toy, adult supervision is required for children playing this game.

Changes or modifications not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

www.themdsports.com

1556306 2

(Continued on the next page.)

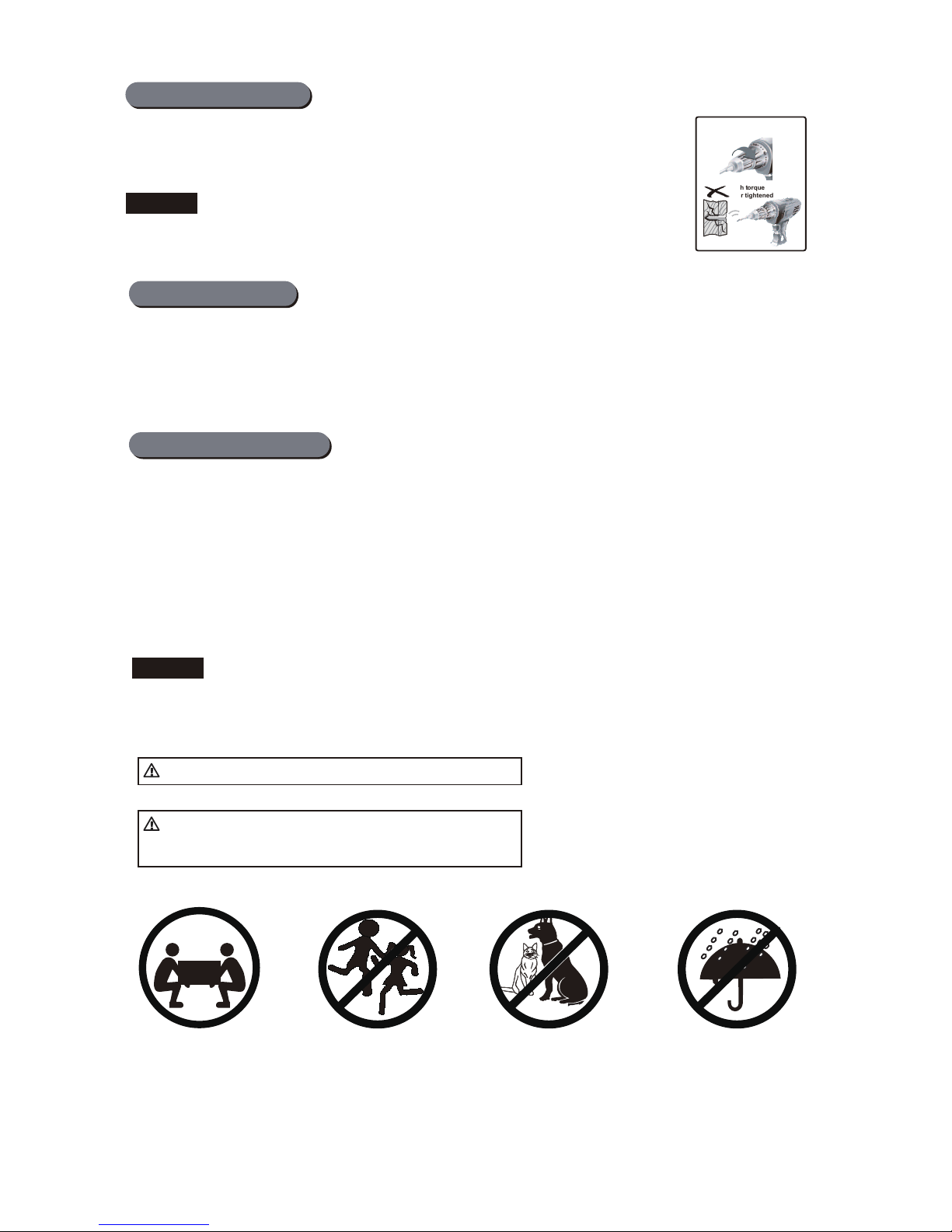

TOOLS REQUIRED

Phillips Screwdriver - Not Included

Standard (Flat Head Screwdriver) - Not Included

Allen Key - Included

CAUTION !

Electric Screwdrivers may be helpful during assembly; however, please set

a low torque and use extreme caution.

Power tools

-Set low torque

High torque

over tightened

Strong adults needed No children in

assembly area

Keep away from pets Do not use or keep product

outdoors. For indoor use only.

No wet/humid conditions.

www.themdsports.com

1556306 3

(Continued on the next page.)

910 11 12

13 14 15 16

Basketball

2 3 41

x2 x2 x2 x2

6 7 85

x2 x2 x4

x2 x2

x2 x3

Air Pump

18 19 20

A-L Connector

G-L Connector

B-3 Way

Connector

C-3 Way

Connector

D-4 Way

Connector

E-4 Way

Connector

F-4 Way

Connector

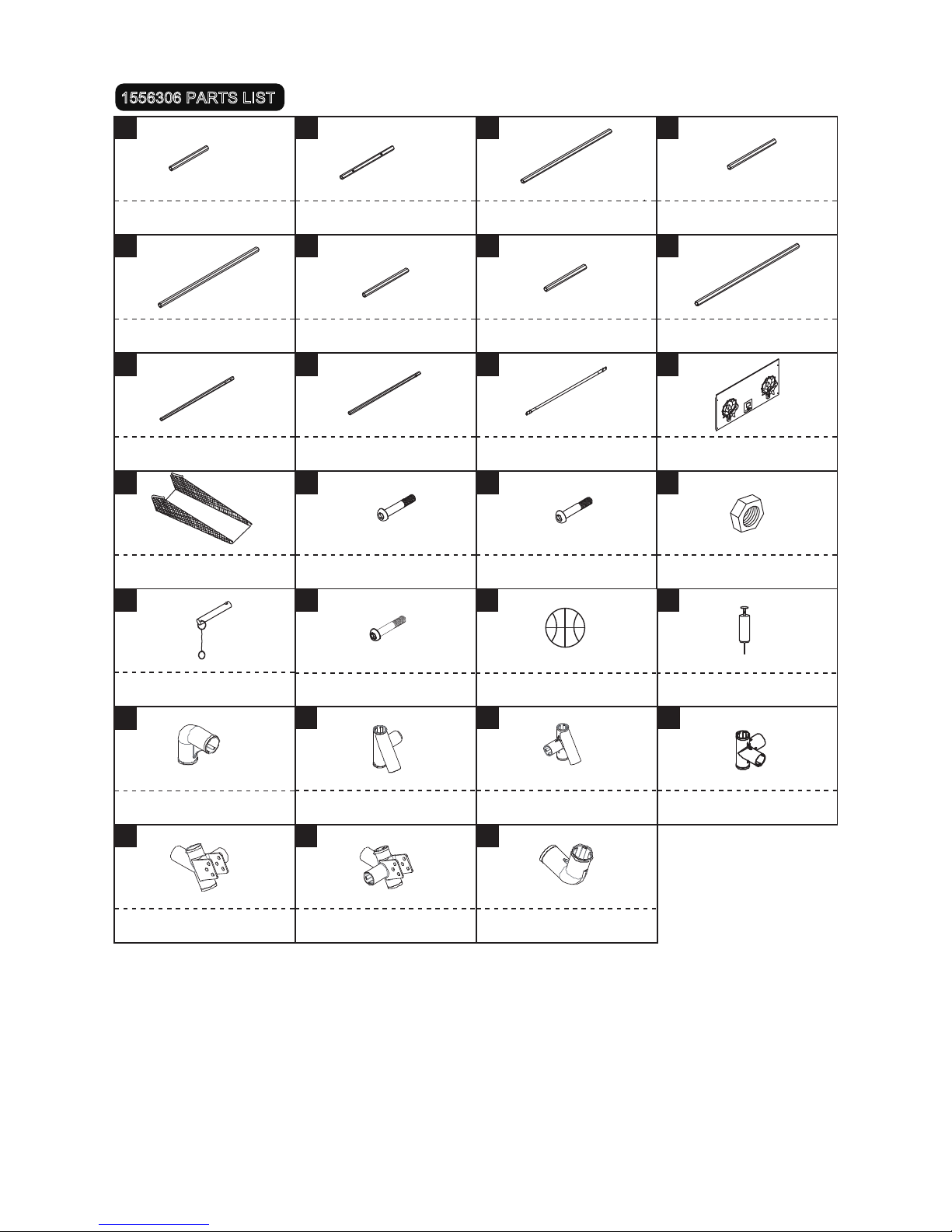

1556306 PARTS LIST

Tube - 1

200mm

Tube - 2

586mm

Tube - 3

710mm

Tube - 4

256mm

Tube - 7

400mm

Tube - 8

700mm

Tube - 10

725mm

Tube - 5

822mm

Tube - 6

290mm

x1 x4

Ball Return Net M6 x 45mm Bolt

M6 x 40mm Bolt

M6 x 35mm Bolt

Tube - 11

Φ12.7x752mm

Locking Pin

Backboard

Tube - 9

870mm

M6 Nut

www.themdsports.com

1556306 4

(Continued on the next page.)

Rim NetRim with Paddle Cap

Electronic Scorer

1556306 PRE-INSTALLED PARTS

ASSEMBLY INSTRUCTIONS:

BEFORE ASSEMBLY - Please inspect and layout all your POLES and parts

1. Find a clean, level place to begin the assembly of your product.

2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts list

page. Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work

surface.

12 3 4 5 6 7 8 910 11

www.themdsports.com

1556306 5

(Continued on the next page.)

X 2

X 1

X 4

FIG. 1

Reinforcing Reinforcing

Note:

Reinforcing

inside 4 way

connect D

must be line

up in the

middle with

Tube-7.

www.themdsports.com

1556306 6

(Continued on the next page.)

FIG. 2

FIG.1

X 2

X 1

3. Attach Tubes (#4), (#6), (#7) and (#8) using Connectors (#D), (#E) and (#F) as shown in FIG. 1.

FIG.2

4. Attach Tubes (#3), (#5) and (#8) using Connectors (#B) and (#C) as shown in FIG. 2.

www.themdsports.com

1556306 7

(Continued on the next page.)

X 2

FIG. 3

FIG. 4

FIG.3

5. Attach Tubes (#1) and (#2) using L Connectors-A (#A), as shown in FIG. 3.

FIG.4

6. Attach Tubes (#2) using Connectors (#B) and (#C) as shown in FIG. 4.

www.themdsports.com

1556306 8

(Continued on the next page.)

X 2

X 1

X 2

FIG. 5

FIG. 6

X 1

X 2

WARNING:

COLLAPSING HAZARD

Do not climb or lean on product.

FIG.5

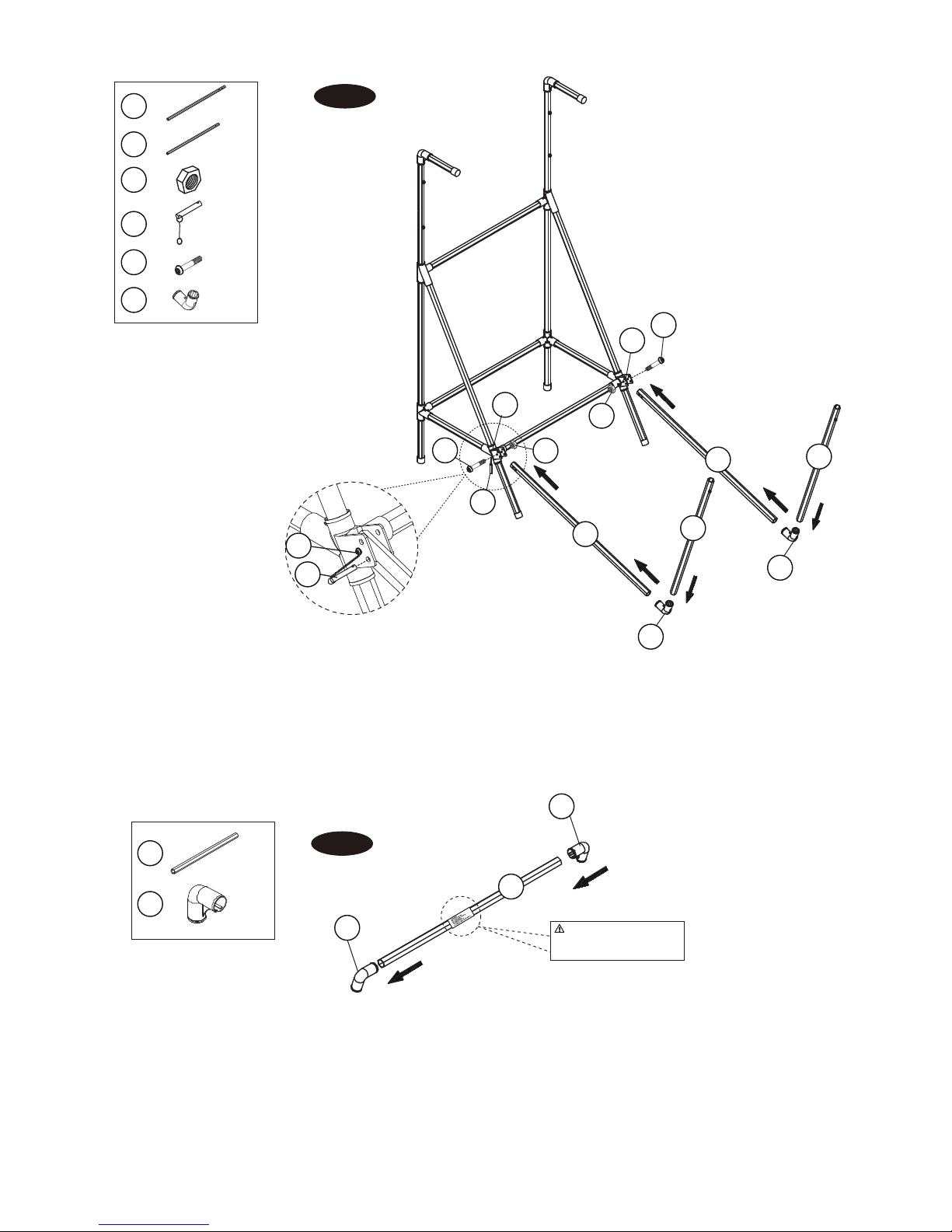

7. Attach Tubes (#9) and (#10) using Connectors (#E), (#F) and (#G) as shown in FIG. 5.

FIG.6

8. Attach Tube (#8) with Connectors (#A) as shown in FIG. 5.

www.themdsports.com

1556306 9

(Continued on the next page.)

FIG. 7

FIG.7

X 1

X 2

X 1

P1 P2

9. Attach the Backboard (#12) to the Tubes (#2) as shown in FIG. 7.

10. Attach Connectors (#A) to the Tubes (#10) as shown in FIG. 7.
