Maxtor Personal Storage 3200 Manuel utilisateur

Personal Storage 3200 User’s Guide

www.maxtor.com

Pre-Installation:

Thank You

Thank you for selecting a Maxtor Personal Storage product. Please follow

these instructions to take full advantage of its features.

Handling Precautions

If these handling precautions are not followed, damage to the Personal

Storage product may result-which may void your product warranty. Please

see the warranty section for additional information.

•DO NOT open the product

•Opening the product will void the warranty DO NOT bump, jar, drop, or

move this device while in operation as it may result in loss of data

•DO NOT stack the Personal Storage 3200

•DO NOT set or operate the Personal Storage 3200 on its side without

first being connected to its vertical stand

•DO NOT disconnect any cables while copying files without properly

unplugging or dismounting the device via your operating system - as

this can result in data loss and possible damage to the internal hard

drive

•DO NOT spill any liquids or drinks on the product - as they will damage

the internal electronics

Hardware and Operating System Requirements for

Windows PC

•Pentium III-class equivalent processor or later

•Windows 2000 or XP

•128MB RAM or more as required by operating system

NOTE: Macintosh Systems are NOT supported with this product.

Kit Components

The Maxtor Personal Storage 3200 comes complete with components shown

here. Please familiarize yourself with each of these items prior to installation.

•Personal Storage 3200

•Power Adapter

USB Backward Compatibility The Maxtor Personal Storage 3200 is

ems with

•USB Interface Cable

backward compatible and can be used with current computer syst

built in USB 1.1 ports. If your computer does not have USB 2.0 support built

in, a USB 2.0 PCI adapter card is required to achieve the USB 2.0 data

transfer rates.

Windows PC Setup:

Windows 2000 / XP

pared your new personal storage 3200 with oneMaxtor has completely pre

large NTFS partition. After you connect the drive to your computer (see Part

3 Hardware - Installation for more information), Windows will detect the

"USB Mass Storage Device" and install the drivers for it. Allow up to two

minutes for your computer to recognize the drive. Restart your system. Your

drive is now ready to use.

Personal Storage 3200 User’s Guide

www.maxtor.com

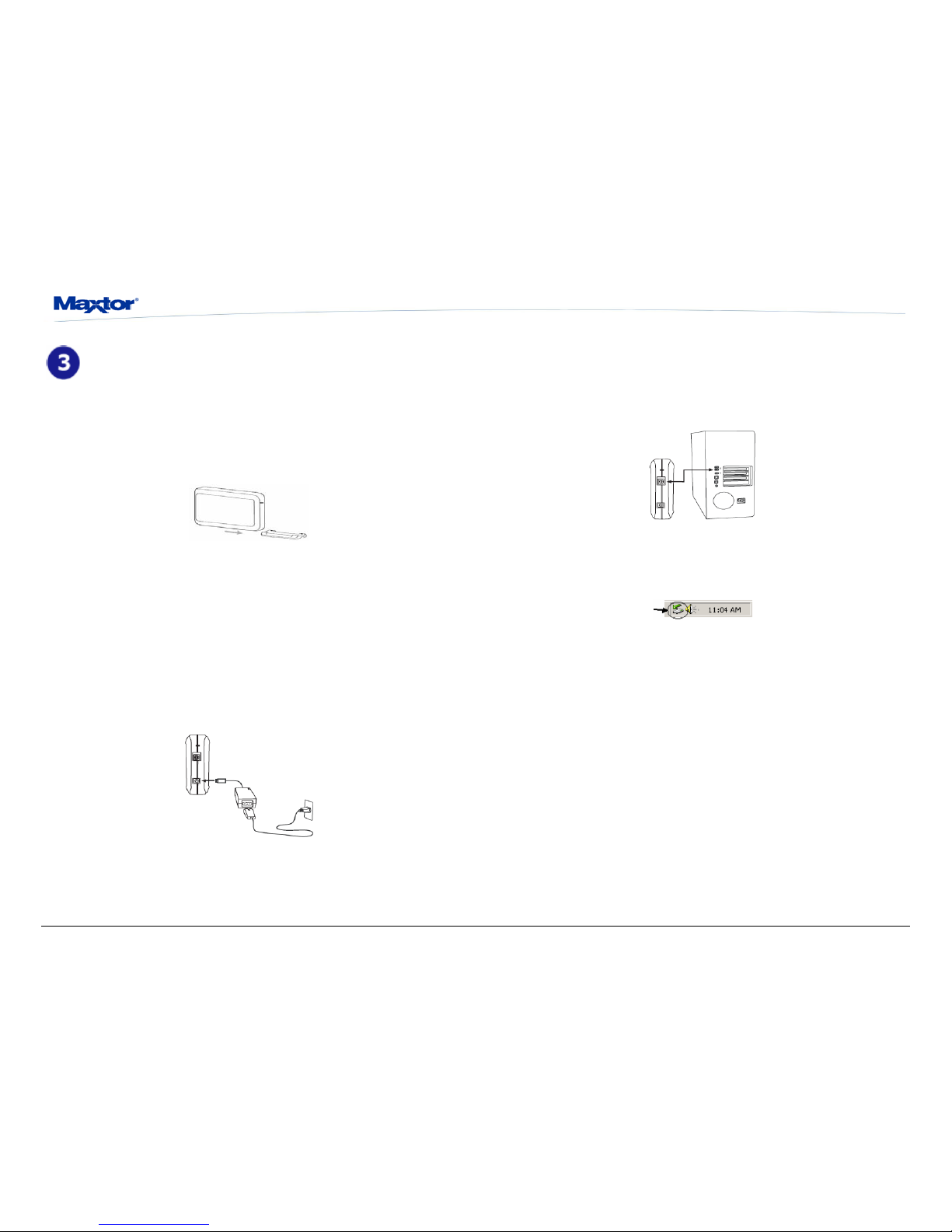

Hardware Installation:

To connect your new Maxtor personal storage 3200 to your computer, please

follow these simple steps. If these steps are not performed in order, the

Personal Storage 3200 may not function properly.

Connect To Vertical Stand

Securely slide and connect the Personal Storage 3200 drive to the vertical

stand.

This is will allow you to safely operate the Personal Storage 3200 while

vertically oriented.

NOTE: Failure to connect the drive to the vertical stand before operating vertically may result in

damage to the drive.

Powered Cord Connections

1. Ensure that your computer is turned on and is running one of the

required operating systems.

2. Plug the one-pin male connector into the back of the Personal Storage

3200’s DC power-in connector.

3. Connect the female end of the power cord into the power adapter.

4. Plug the male connector from the power adapter into your power source.

Figure 1 - Connecting the Pow r

USB Data Cable Connections

1. Plug the larger end of the USB cable into available USB port on your

computer.

2. Plug the smaller end of the USB cable into the USB connection on the

Maxtor Personal Storage 3200.

Figure 2 - Connecting USB Data Cable Connections

Disconnecting the Personal Storage 3200

1. Right-click on the Windows Unplug or Eject Hardware icon in your

System Tray located at the bottom right order of your screen

2. Unplug the male connector from the power cord in your electrical wall

outlet

3. Unplug the smaller end of the USB cable in the USB connection of the

Personal Storage 3200

Reconnecting the Personal Storage 3200

1. Plug the male connector from the power cord into your electrical wall

outlet.

2. Plug in the smaller end of the USB cable into the USB connection on the

Personal Storage 3200.

Personal Storage 3200 User’s Guide

www.maxtor.com

Troubleshooting & FAQs:

1. The Personal Storage 3200 does not appear on my system.

a. Is the drive running? Make sure all power connectors on the drive

and power adapter are securely plugged in. If the drive is plugged

into a power strip, try plugging it directly into the wall outlet. Is the

USB cables connected properly?

b. Verify that the cables are connected according to the installation

instructions in “Step 3 Hardware Installation – Power Cord

Connections”.

c. Have you tried cycling the power for the drive?

•While your computer is running, unplug the USB cable from the

drive, and then unplug the drive’s power cord.

•Wait ten seconds; plug the power cable back into the drive.

•Wait another ten seconds, plug the USB cable in. See if the drive

appears on your system.

d. Is your USB interface card recognized and working properly in the

Device Manager?

To open the Device Manager:

•Select Start →Settings →Control Panel.

•Double-click the System icon. The System Properties dialog

box appears. Select the Hardware tab and then click Device

Manager.

•Double-click the entry for the Universal Serial Bus Controller.

An entry should show for the Personal Storage 3200.

e. Have you installed the latest Microsoft Service Pack? The most

current Service Pack(s) contain drivers that assist with the

recognition of USB devices. Go to www.microsoft.com for more

information.

2. My computer shows less drive capacity than on the box label. Hard

drive capacity is defined in terms of decimal (base 10) capacity. In

decimal notation, one megabyte (MB) is equal to one million bytes and

one gigabyte (GB) is equal to one billion bytes. We are most accustomed

to the decimal system in everyday life. However, computers use the

binary (base 2) numbering system. In the binary numbering system, one

megabyte is equal to 1,048,576 bytes, and one gigabyte is equal to

1,073,741,824 bytes. Windows uses the binary numbering system. When

you use your system to check your drive’s capacity, multiply the value

shown (displayed in base 2 megabytes) by 1,048,576 to determine the

decimal equivalent for the hard drive's capacity.

3. My applications run slowly using the USB 1.1 interface.

When you connect the drive to your system using the USB 1.1 interface,

the data transfer rate is approximately 1 MB per second. Maxtor does not

recommend installing applications on a drive using the USB 1.1

interface. You can however use your drive to store the data for many

applications over a USB 1.1 interface.

4. I get a message stating that I have a high-speed device connected

to a low-speed port in Windows XP.

This is normal. Windows XP is letting you know that you have connected

your USB 2.0 drive to a USB 1.1 port and you will not have the high-

speed capabilities that you would have with a USB 2.0 port.

5. I’m having data transfer performance problems with my USB 2.0

adapter card.

Maxtor drives will run as fast as the host adapter card will allow (up to

the maximum burst rate of 480 Mb per second). If you are having

performance issues, make sure the card’s drivers are the most current

available and that they are installed properly.

Limited Warranty Statement available on Maxtor’s Website
