Marshall Electronics M-LCD7-HDMI Manuel utilisateur
User Manual
Marshall Electronics
M-LCD7-HDMI
M-LCD7-HDMI-B-C511
M-LCD7-HDMI-B-CE6
M-LCD7-HDMI-B-NEL3
Portable 7’’ HDMI TFT LCD Monitor
2M-LCD7-HDMI Manual
Product Overview
The M-LCD7-HDMI is a 7” high-denition widescreen LCD monitor featuring our completely digital
TFT-MegaPixel active matrix LCD platform. This monitor is ideal as a light-weight high resolution
viewnder or focus-assist monitor. Our proprietary digital signal processing features, along with multi-
format compatibility, accommodate multiple video formats including NTSC and PAL. The HDMI input
also accepts VESA (VGA) standards allowing the display to be used as a computer monitor.
Features
■High-Resolution 7” Widescreen Monitor
The M-LCD7-HDMI features an all-digital TFT-MegaPixel active matrix LCD system with
1,152,000 pixels. The LCD panel features a brightness of 300 cd/m2 and a contrast ratio of
500:1, making the display ideal in a variety of environments and lighting conditions.
■Multi-Format Compatibility
The M-LCD7-HDMI accommodates multiple video standards with Composite Video, VGA,
NTS/PAL, and HDMI inputs.
■User-Interchangeable Battery Adapters
Several battery adapters are available to accommodate a wide variety of professional
camcorder and DSLR batteries.
Caution
1. Please use the attached adapter accessory.
2. Do not expose this product to direct sunlight, heat, or humidity.
3. For optimal image quality, avoid bright lights while using this product.
4. Avoid heavy impact or dropping product on the ground.
5. Do not use chemical solutions to clean this product. Simply wipe with a soft clean
cloth.
3M-LCD7-HDMI Manual
Carefully unpack the M-LCD7-HDMI monitor and verify that the following items are included:
■AC model (M-LCD7-HDMI) includes:
M-LCD7-HDMI Monitor
AC Power Supply
HDMI Cable
HDNI – MINI HDMI Cable
Car Cigarette Adapter
Table Stand
PC Cable [9-pin VGA Cable]
Multi-function input cable [SKS Cable]
Camera mount
Remote control
Operating Instructions
■DC model (M-LCD7-HDMI-B-XXX) includes the following additional items:
Battery (Canon B511, or Nikon EN-EL3E, or Canon LP-E6)
Battery mount
Mounting plate
Power DC cable
Hood
Battery charger
When storing the monitor for extended lengths of time, please remove the battery or unplug the
battery from the monitor.
Inspect the unit for any physical damage that may have occurred during shipping. If there is any
damage, immediately call Marshall Electronics Customer Service at (800) 800-6608. If you are not
located within the continental United States, call +1 (310) 333-0606.
Unpacking
4M-LCD7-HDMI Manual
Table of Contents
■Product Description ........................................................................................................... 4
Remote Control .......................................................................................................... 5
Matched Cable ............................................................................................................ 5
Connection ................................................................................................................. 6
■Operating Instructions ....................................................................................................... 7
■Specications ..................................................................................................................... 13
■Accessories ......................................................................................................................... 13
■Troubleshooting .................................................................................................................. 14
■Warranty .............................................................................................................................. 15
Product Description
■Description of Monitor
1. Indicator light
2. : Power on/off
3. AV/PC: AV/PC switch
4. : Volume down or to adjust the value setting function
5. Infrared receiver
6. : Volume up or to adjust the value of setting function
7. MENU: To activate OSD menu
8. : Selection key, to adjust phase directly
9. : Selection key, to adjust brightness directly
10. DC12V: DC12V input jack
11. HDMI: HDMI input jack
12. SKS: SKS input jack
5M-LCD7-HDMI Manual
■Remote Control
1. : Power on/off
2. : MUTE
3. : To activate OSD Menu
4. : Volume down, or to adjust the value of setting function
5. : Volume up, or to adjust the value of setting function
6. : Selection key, the brightness adjustment
7. : Selection key, the phase adjustment
8. : Aspect ratio switch, 4:3 or 16:9
9. : Up/Down Switch
10. : Right/Left Switch
11. : AV1/AV2/PC Switch
■Matched Cable
Picture 3 (AV cable)
Product Description
U/D
L/R
1. SKS input connector to be connected to SKS input
jack on monitor
2. Male 9-pin plug for VGA signal
3. DC12V power
4. Yellow RCA jack for video 1
5. White RCA jack for audio
6. Red RCA jack for video 2
6M-LCD7-HDMI Manual
Picture 4 (VGA cable)
1. Female 9-pin jack connects to male 9-pin plug on picture 3
2. 15-pin VGA signal input end connects to computer VGA port
■Connection
1. Connect SKS input end of the AV cable (picture 3) into the AV input jack of the monitor.
The other jack of the AV cable should be connected as follows:
2. Male 9-pin plug of picture 3 is connected to female 9-pin jack of picture 4; the VGA
signal input end of picture 4 will be connected to the VGA port at the back of the
computer. Tighten the screws.
3. Black jack connects to DC12V power
4. Yellow RCA jack connects to video signal 1
5. White RCA jack connects to audio signal
6. Red RCA jack connects to video signal 2
Please use the included DC adapter. (Note that the power consumption should be less or equal to
10W.)
Product Description
7M-LCD7-HDMI Manual
Operation
After connecting to power, the unit will be in standby mode (red light). Press the power button on the
unit or on the remote control and the buttons of the unit will light up blue. Press the same button again
and the unit will return to standby mode. (Note the blue button will shut off 5 or 6 seconds after you
turn the unit off.) Push “PC/AV” on the unit or AC/PC on the remote control to switch between AV and
PC.
■OSD in PC Mode:
■OSD in AV Mode:
You can press “ ” or “ ” on the unit or on the remote control to select the items: (Color), (Adjust),
(Menu), (Edit), (Volume), and conrm by pressing “ ” or ” ” on the unit or on the remote control.
Then push “ ” or ” ” again to adjust the values. Push “ ” to exit the OSD after your adjustment.
Operating Instructions
8M-LCD7-HDMI Manual
■Description of OSD:
In PC mode:
(Color)
■In Color mode of OSD, use “ ” or ” ” to select and then push “ ” or ” ” to adjust.
Brightness: To adjust the brightness
Contrast: To adjust the contrast
Color Temp: To adjust the color temperature
The color temperature of OSD is adjustable. Press “</>” on the unit or on the remote control to select
“Color Temp,” then choose a color temperature such as 6500 Ks, 7500 Ks or 9300 Ks by pressing “ ”
or ” ”. You can also adjust color temperature by selecting “USER” and adjusting the RED, GREEN,
and BLUE by pushing “ ” or “ ” until desired color value is achieved.
Operating Instructions
9M-LCD7-HDMI Manual
Note: when you select “USER,” a mini box will appear on the bottom right corner of the OSD, as pic-
tured below:

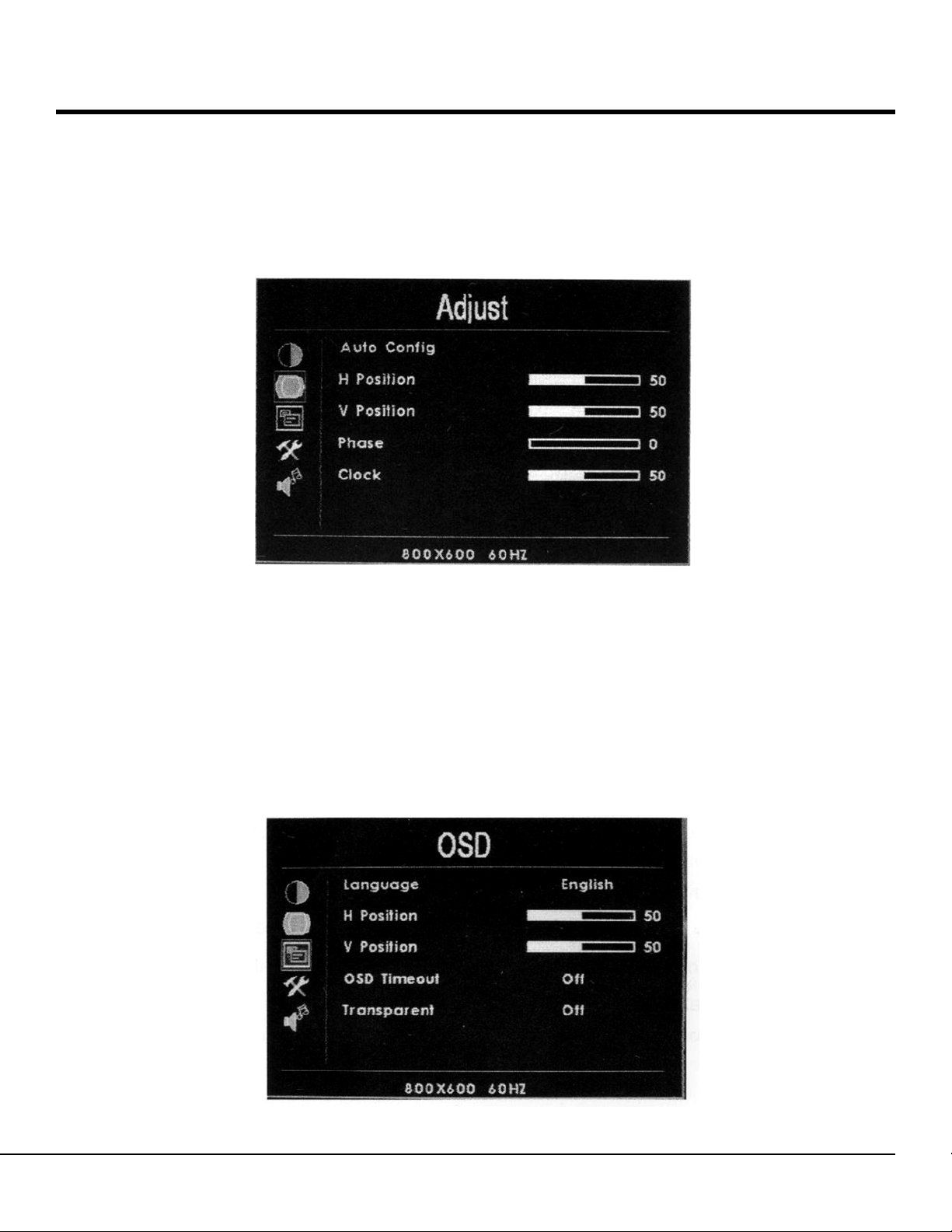

■(Adjust):
Auto Cong: To automatically adjust to factory default setting
If the auto adjust is not satisfactory, use manual adjust.
H Position: To adjust the picture horizontally
V Position: To adjust the picture vertically
Phase: To adjust the phase
Clock: To adjust the clock for eld and line synchronization
■(OSD):
Operating Instructions
10 M-LCD7-HDMI Manual
■Language: language selection:
H Position: To adjust the picture in horizontal
V Position: To adjust the picture in vertical
OSD Time out: To adjust the clock
Transparent: To adjust the level of transparency
■(Function):
Reset: Back to the original factory setting
Display Ratio: To change the display ratio: 16:9, 4:3
LR Rotation: To change the picture left/right
UD Rotation: To change the picture up/down
■Sound
Volume: To adjust the volume.
Operating Instructions
