Marshall M-CT5 Camera-Top Monitor Owner’s Manual

Owner’s Manual

M-CT5

Camera-Top Monitor

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

Dear users:

Thank you for purchasing Marshall’s M-CT5-CE6 HD DSLR LCD Moni-

tor. This 5” Pro HD LCD Monitor is designed to be used as an external

video display, allowing you to step back from the camera while still being

able to frame and capture the action without having to look through the

camera’s built-in viewﬁnder. It employs advanced integrated circuits, high

quality TFT LCD modules, and low power consumption.

This monitor is designed to be small, easily operated, and portable, with

HDMI, Composite Video, Audio Input and HDMI Output. This monitor can

be powered by the Canon E6 battery.

Product Advanced Features:

• Zoom mode

• HDMI input and output. Video Input and Audio input

• Viewﬁnder marked ranges:0%, 85%, 90%, 93%, 96%

• Cross the screen center mark

• 16:9 or 4:3 Aspect Ratio Setting

• Earphone stereo output.

• Brightness, Contrast, Hue, Saturation and Color Temperature Adjust-

ment

• Support Canon LP-E6 or equivalent

• Removable Sunhood

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

To ensure the best use of this product, please read this manual carefully

beforehand.

CAUTION

1. Please use the adapter attached in the accessory or another quali-

ﬁed adapter.

2. Please do NOT expose this product to direct sunlight, heat, or humid

conditions.

3. Please keep away from strong light while using this product to en-

sure the image effect and long-term use.

4. Please avoid heavy impact or drop onto the ground.

5. Please do NOT use chemical solutions to clean this product. Please

wipe with a clean, soft cloth to maintain the brightness of the surface.

6. Please do not take apart or repair the unit by yourself to avoid dam-

age the product.

CONTENTS

1. Product description__________________________________4

Panel Instruction ____________________________________4

Back view _________________________________________5

1/4 inch standard screw bracket ﬁxed hole picture _________5

Battery plate________________________________________6

Sunhood installation and removal _______________________6

2. Power input________________________________________7

3. Operating instructions _______________________________7

Panel shortcut button function instruction__________________7

Menu operating instruction ____________________________7

4. Parameters________________________________________11

5. Accessories _______________________________________12

6. Trouble shooting____________________________________12

7. Menu List _________________________________________13

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

Panel Instruction

1. Volume down to adjust the value setting function

2. Volume up or to adjust the value setting function and activate the

volume adjust menu

3. MENU: To activate OSD menu

4. Menu navigation key up

5. Menu navigation key down

6. HDMI/Video selector key

7. Zoom - DSLR mode

8. Indicator light

9. Speaker

1 2 345 6 8

Product Description

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

Back view

10. HDMI input jack

11. HDMI output jack

12. 3.5mm headphone jack

13. Power on/off

14. Battery mount

15. DC12V input jack

16. Video In

17. Audio In

1/4inch Fixed hole

There is a 1/4 standard screw bracket ﬁxed hole on the top and bottom of

the monitor for mounting the monitor and mounting accessories onto the

monitor.

1011

12 13

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

Battery plate:

To power the monitor with the Canon LP-E6 (equivalent) battery.

Battery installation

Suggestion: Remove the battery for long periods of inactivity.

Sunhood installation and Removal

Attach the self adhesive side of the Velcro® to the side of the monitor.

battery plate

Side

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

2. Power input

The monitor can be powered by the enclosed CE6 or equivalent battery

or by a 12V power adapter (optional). Please note the input polarity is

Positive with respect to --○-+, otherwise will damage the monitor!

3. Operating instruction

3.1 Menu operating instructions

Before setting the menu functions, please make sure the device is

connected correctly. Power switch (lower right corner of the unit) dial

to ON position. The monitor enters into working state. Please dial to

OFF position when closing the unit. After enter into working state,

press the “mode” button on the unit, according to the input video sig-

nal to switch “HDMI,VIDEO” (under NO menu state, using the short-

cut button on the panel to operate). Press “MENU”button on the unit,

then enter into OSD menu operation. Operate “▲”or “▼”on the unit to

select or adjust the needed optionals.

(color); (menu); (function); (sound);

After selecting the optionals, press “►”or “◄” on the unit to conﬁrm,

then using “▲” or “▼” to select or adjust the value of Analog Data. Af-

ter conﬁrm the needed adjust parameters, using “►” or “◄” to adjust.

If you need to exit OSD menu, repress “MENU” button.

Color

Enter into “Color” OSD, press “◄”or “►” button to conﬁrm, then enter to

adjust the color parameters, use “▲” or ”▼” to select adjustment item,

then use “◄” or “►” adjust the parameters.

¤ Brightness: To adjust the image’s brightness.

¤ Contrast: To adjust the brightest and darkest ratio of the image, please

note the sense of picture when adjust, proportion too large or small, will

make the picture lose the color of showy.

¤ Tint: On NTSC Video mode, the image color tint difference is

adjustable by tint.

¤ Saturation: To adjust color concentration.

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

¤ Color temperature: Enter into (color) menu, press “◄” or “►” on the

unit to conﬁrm, press ”▲” or “▲” to select the form of color tempera-

ture, then press “◄” or “►” on the unit to conﬁrm, then use “▲” or ”▼”

to select color temperature such as: 9300 K, 7500K, 6500K or USER.

(the monitor leave the factory defaults 6500K).

When selecting “USER”, use “▲” or ”▼” to select color R.G.B., then use

“◄” or “►” to adjust the value of Analog Data, to make sure the color of

picture meets your needs.

OSD

After select “OSD” function, press “◄” or “►” button to conﬁrm, then

enter into parameters adjust. Using “▲” or ”▼” button to select optional

items, then using “◄” or “►” button to adjust the parameters.

¤ Language: Languages for OSD as below:

English Italian Francois

Deutsch Español Japanese Pycc

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

¤ H Position: To adjust the OSD position in horizontal,

¤ V Position: To adjust the OSD position in vertical.

¤ OSD Timeout: To adjust the clock.

¤ Transparent: To adjust the level of transparent.

Function

After selecting “function”, press “◄” or “►” button to conﬁrm, then enter

into parameters adjust. Using “▲” or ”▼” button to select adjustable

items, then using “◄” or “►” button to adjust the parameters.

¤ Reset Back to original setting.

¤ Display Ratio To change the display ratio, 16:9/4:3.

¤ Finder Frame Safety frame setting

¤ Center Mark: Screen center mark (cross mark) display setting

Marshall M-CT5 Camera-Top Monitor Owner’s Manual

10|

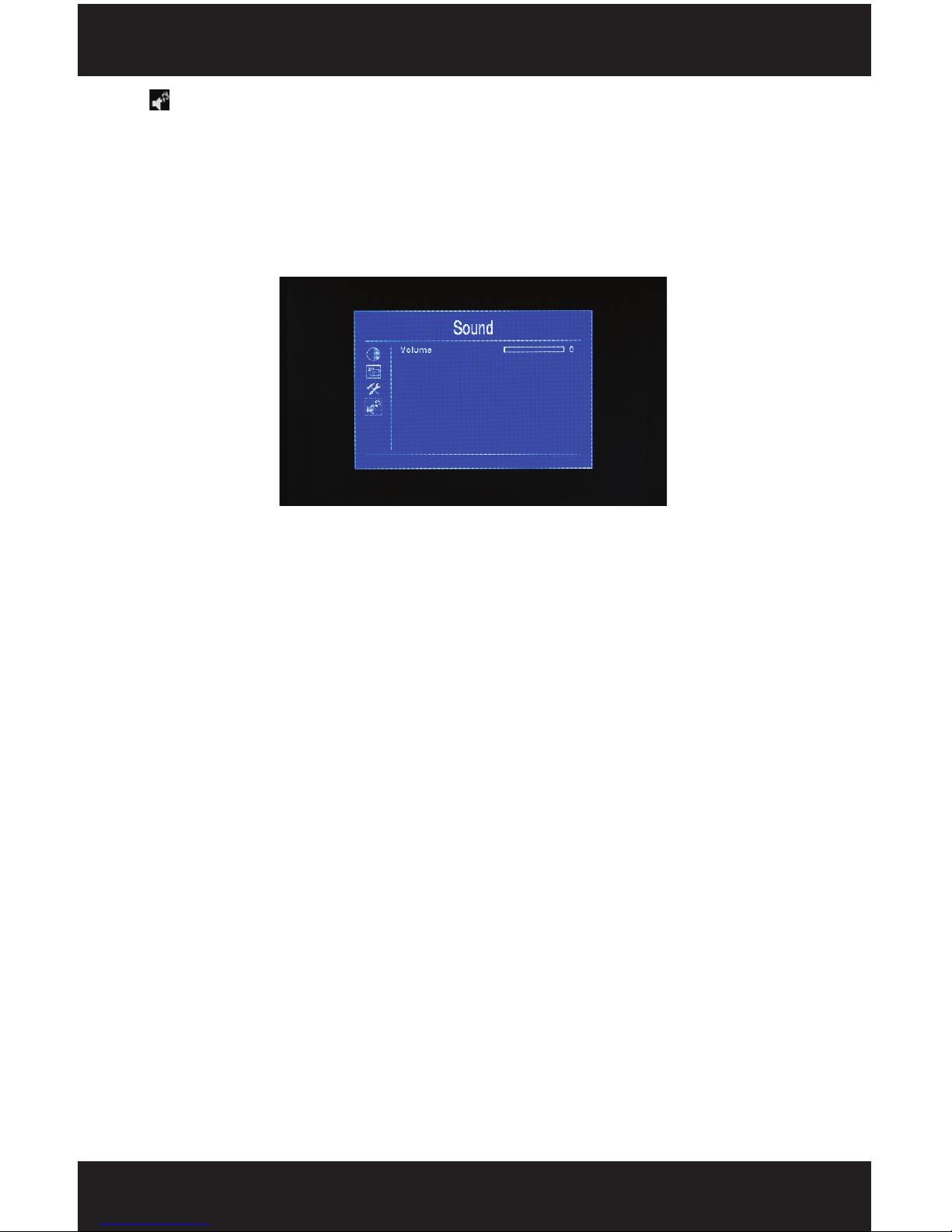

Sound

After select “sound”, press “◄” or “►” button to conﬁrm, then enter into

parameters adjust. Using “▲” or ”▼” button to select adjustable items,

then using “◄” or “►” button to adjust the parameters.

¤ Volume: To adjust the volume.
