Model No. V-R653-IMD-3GTE

High Definition LCD Monitor with In-Monitor Display

Operating Instructions

Edition 2 Revision 8W

This page intentionally left blank

Table of Contents

Installation and Initial Setup ------------------------------------------------------------------------------------------------------5

Top and Front Panel Features ----------------------------------------------------------------------------------------------------6

Rear Panel Features-----------------------------------------------------------------------------------------------------------------7

Compatible Input Formats---------------------------------------------------------------------------------------------------------8

MAIN MENU AND NAVIGATION--------------------------------------------------------------------------------------------------9

Using the menu buttons........................................................................................................................................................................9

Using the RotoMenu knob ....................................................................................................................................................................9

MARKER SETUP SUBMENU..................................................................................................................................................................10

VIDEO CONFIGURATION SUBMENU....................................................................................................................................................12

COLOR CONFIGURATION SUBMENU...................................................................................................................................................15

SYSTEM CONFIGURATION SUBMENU .................................................................................................................................................16

DEINTERLACER SUBMENU...................................................................................................................................................................18

OSD CONFIGURATION SUBMENU .......................................................................................................................................................19

CC CONFIGURATION SUBMENU..........................................................................................................................................................23

AUDIO CONFIGURATION SUBMENU ...................................................................................................................................................24

IMD CONFIGURATION SUBMENU .......................................................................................................................................................25

SERVICE SUBMENU..............................................................................................................................................................................28

Specifications----------------------------------------------------------------------------------------------------------------------- 29

Dimensions-------------------------------------------------------------------------------------------------------------------------- 30

Maintenance------------------------------------------------------------------------------------------------------------------------ 31

Warranty ---------------------------------------------------------------------------------------------------------------------------- 31

Installation and Initial Setup

■Unpacking

Carefully unpack the V-R653-IMD-3GTE monitor and verify that the following items are included:

• V-R653-IMD-3GTE Monitor

• V-PS12-5V-1 DC Power Supply

• Operating Instructions

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately

contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-

0606.

■Installation

The V-R653-IMD-3GTE can be mounted in any standard EIA 19” equipment rack. The attached rack ears can be angled to provide

the user control over the viewing angle. Adequate ventilation is required when installed to prevent possible damage to the

monitor’s internal components. Please see the Dimensions section for more information.

■Connections, Power-On and Initial Setup

Plug the DC Power Supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the

monitor. Connect the required cables for video signal input and output. (Power must be applied to the V-R653-IMD-3GTE for the

active loop-though output to be activated.) The monitor defaults to ‘ON’ when power is supplied. Video will automatically be

detected and displayed on the screen.

Top and Front Panel Features

Power Button

Turn the monitor panel off or on by pressing the power

button. In the ON state, the LED on the power button will

illuminate green.

Menu Navigation Buttons

Use the Menu, ↑, ↓, and Select buttons to display and

navigate the on-screen menu. See MAIN MENU AND

NAVIGATION for details on using the Menu.

User-Definable Function Buttons

Two user-definable function buttons can be used for direct

access to various settings. Functions are assigned using the on-

screen menu. See SYSTEM CONFIGURATION SUBMENU for

information on changing Functions.

RotoMenu™Knob

The RotoMenu™knob is alternate means of accessing and

navigating the main menu, using only a single control. See the

Using the RotoMenu knob section for details on using the

RotoMenu.

Image Adjustment Knobs

Use the image adjustment knobs to adjust color saturation,

brightness and contrast of the image. The status of each image

adjustment parameter is shown on the bottom left of the

screen, with values ranging from 0 to 100. Pressing a knob

once displays the current value. Pressing a knob twice resets

the corresponding adjustment to the default setting. See

VIDEO CONFIGURATION SUBMENU for information on Blue

Only calibration.

LED Tally

Three LED tally lights (yellow, red, green) are available above

the screen. Each tally light can be controlled from a variety of

sources. See IMD CONFIGURATION SUBMENU for more

details.

Rear Panel Features

3G-SDI Input and Output

The V-R653-IMD-3GTE has one HD-SDI input and one active

loop-through output. See Compatible Input Formats for

details on accepted formats.

Headphone Jack

The 1/8” jack on the back of the monitor takes two channels

of embedded SDI audio and provides a Headphone audio

signal. Volume can be adjusted via the RotoMenu knob or in

the Audio Configuration submenu. See the Audio

Configuration section for instructions on how to select the two

audio channels.

RS-422/485 Serial Interface

The RS-422/485 ports are used to remotely control the IMD or

all V-R653-IMD-3GTE features, using a variety of industry

standard protocols. (Note: Connector/pin-out may need to be

adapted depending on protocol and controlling device used).

Only one connection to either port is needed to control the

monitor. The second port can be used to loop multiple

monitors in the same bus. See IMD CONFIGURATION

SUBMENU for further details.

Tally / GPI Interface (HD-15)

LED tally, OSD tally and GPI can be activated via the HD-15

connector by connecting the corresponding pin to ground. A

variety of external devices can be used to perform the contact

closure. No additional power should be supplied to the HD-15

port. See the System Configuration section for details on

configuring GPI.

Power Input

Connect the 12VDC input to the power input connector.

Power can be supplied from the included power supply, or

from a variety of DC sources supplying at least 5.0 Amps at 12

Volts.

Compatible Input Formats

SDI/HDSDI Inputs

525i/ 59.94, 625i/ 50

720p/ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1080p/ 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30

1035i/ 59.94, 60

1080i/ 50, 59.94, 60

3G-SDI Inputs

3G – Level A and Level B

YCbCr, YCbCr+A, RGB, RGB+A

1080p/ 60, 59.94, 50

1080p/ 30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF

1080i/ 60, 59.94, 50

MAIN MENU AND NAVIGATION

Access and navigate the main menu using the 4 menu buttons or the RotoMenu™knob:

Using the menu buttons

• Press the MENU button to enter the main menu.

• Use the and buttons to scroll through the main menu or each submenu.

• Press the SELECT button to enter a submenu or choose a setting.

• Press the MENU button to exit the main menu, or return to the main menu from a submenu.

Using the RotoMenu knob

• Press the RotoMenu™knob to enter the main menu.

• Rotate the knob to scroll up or down in the main menu or each submenu.

• Press the RotoMenu™knob to enter a submenu or choose a setting.

The menu automatically times out after 15 seconds of being idle.

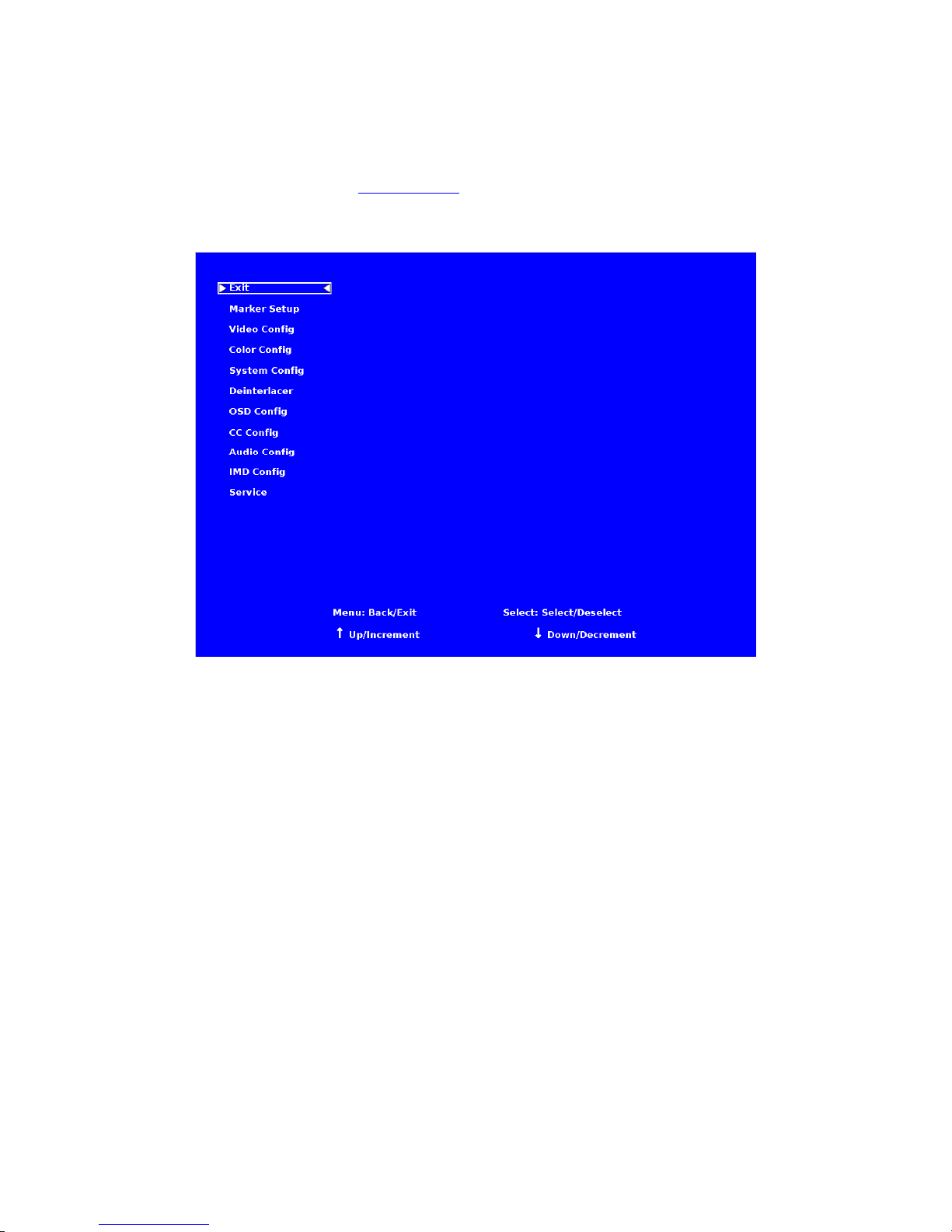

Main Menu

MARKER SETUP SUBMENU

Use the Marker Setup submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen mode.

■Marker Enable

The Marker Enable setting turns 16:9 or 4:3 screen markers On or Off. By default, this setting is On. If you turn the setting OFF,

the markers are automatically turned ON the next time you initiate a Screen Marker through a Function Button or through the

Marker submenu.

■16:9 Markers

Use this setting to superimpose one of 10 markers on the screen when in 16:9 or Full Screen mode. This setting is disabled when

the aspect ratio is set to 4:3, or when Pixel-to-Pixel mode is enabled. Note that in Full Screen mode, markers are vertically

stretched along with the picture to fit the 16:10 screen.

• Off (No Marker)

• 95% Safe Area

• 93% Safe Area

• 90% Safe Area

• 88% Safe Area

• 80% Safe Area

• 1.85:1 Aspect Ratio

• 2.35:1 Aspect Ratio

• 4:3 Aspect Ratio

• 14:9 Aspect Ratio

• 13:9 Aspect Ratio

16:9 Marker Examples:

Marker Setup Submenu

OFF (No Marker) 90% Safe Area
