RADIOEM903 - Dip Switch Transmitter
- Dip Switch Transmitter
Replacement and Programming Instructions
Replacement and Programming Instructions

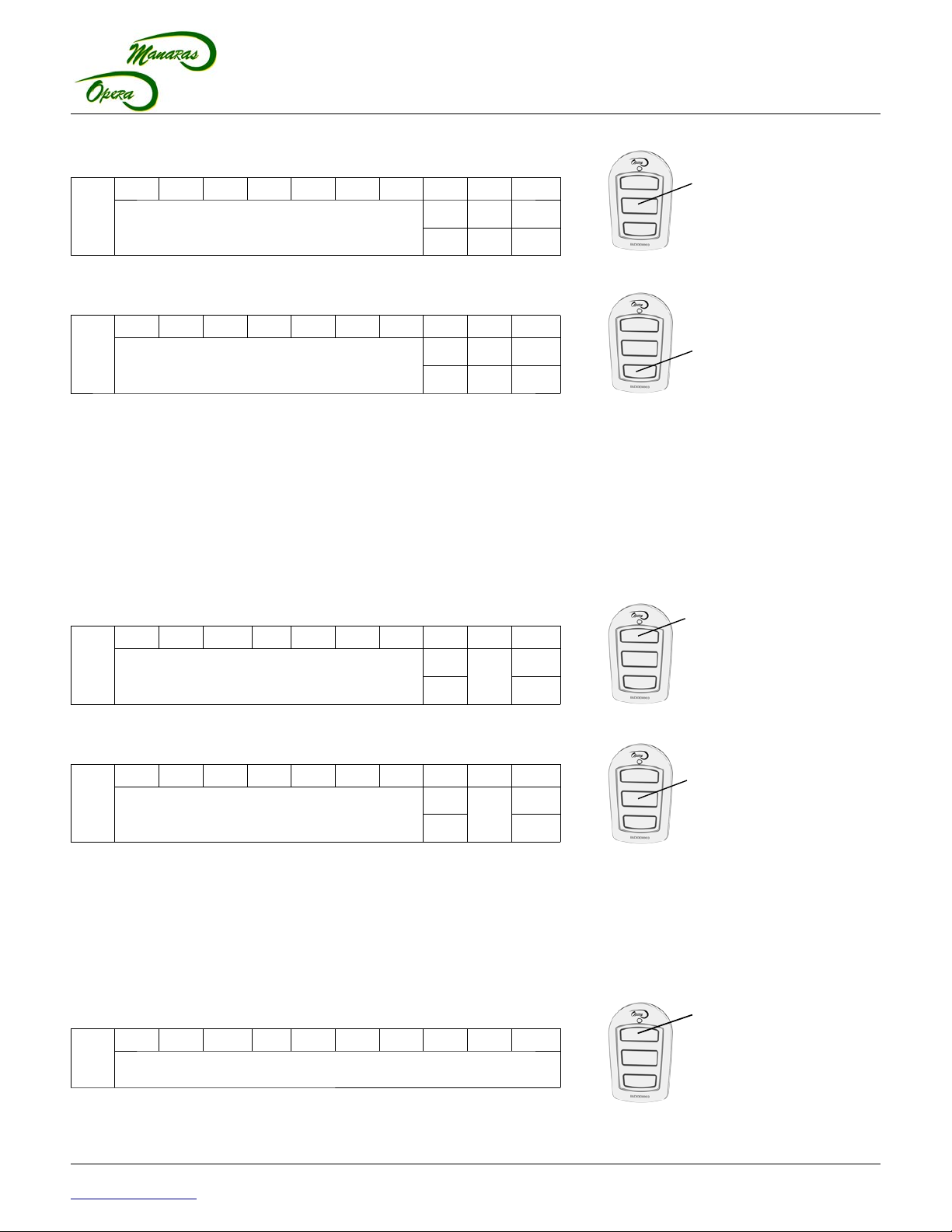

Door k = Receiver k g Button k
Key #8 must be set to ON. Keys #9 and #10 must be set to OFF.
ON
↑
12345678 9 10
Must match with transmitter
■
■ ■
Door l = Receiver l g Button l
Keys #8 and #9 must be set to ON. Key #10 must be set to OFF.
ON
↑
12345678 9 10
Must match with transmitter
■ ■
■
➢Replacing RADIO016 (2-Door Transmitter) with new RADIOEM90 ( -Door Transmitter):
The DIP SWITCH transmitter has 10 switching keys. With the use of a screwdriver or a pen, place the dip switch keys
on RADIOEM903 at the same positions as those found on RADIO016. Use buttons j and k to operate the 2 doors.
Coding the Receiver (as reference :
➔Dip Switch Keys #1 to #7 and #9 = must be at the same ON / OFF positions as the transmitter.
➔Dip Switch Keys #8 and #10 = coding of the receiver number jk (refer below for the receiver number).
Door j = Receiver j g Button j
Keys #8 and #10 must be set to ON.
ON
↑
12 345678 9 10
Must match with transmitter
■ ■
Door k = Receiver k g Button k
Key #8 must be set to ON. Key #10 must be set to OFF.
ON
↑
12345678 9 10
Must match with transmitter
■
■
➢Replacing RADIO027 (1-Door Transmitter) with new RADIOEM90 ( -Door Transmitter):
The DIP SWITCH transmitter has 10 switching keys. With the use of a screwdriver or a pen, place the dip switch keys
on RADIOEM903 at the same positions as those found on RADIO027. Use button j to operate the door.
Coding the Receiver (as reference :
➔Dip Switch Keys #1 to #10 = must be at the same ON / OFF positions as the transmitter.
Door j = Receiver j g Button j
ON
↑
1 2 3 4 5 6 7 8 9 10
Must match with transmitter
1-800-361-2260
www.manaras.com 2TN1040 REV 1 - 2017/07/13
